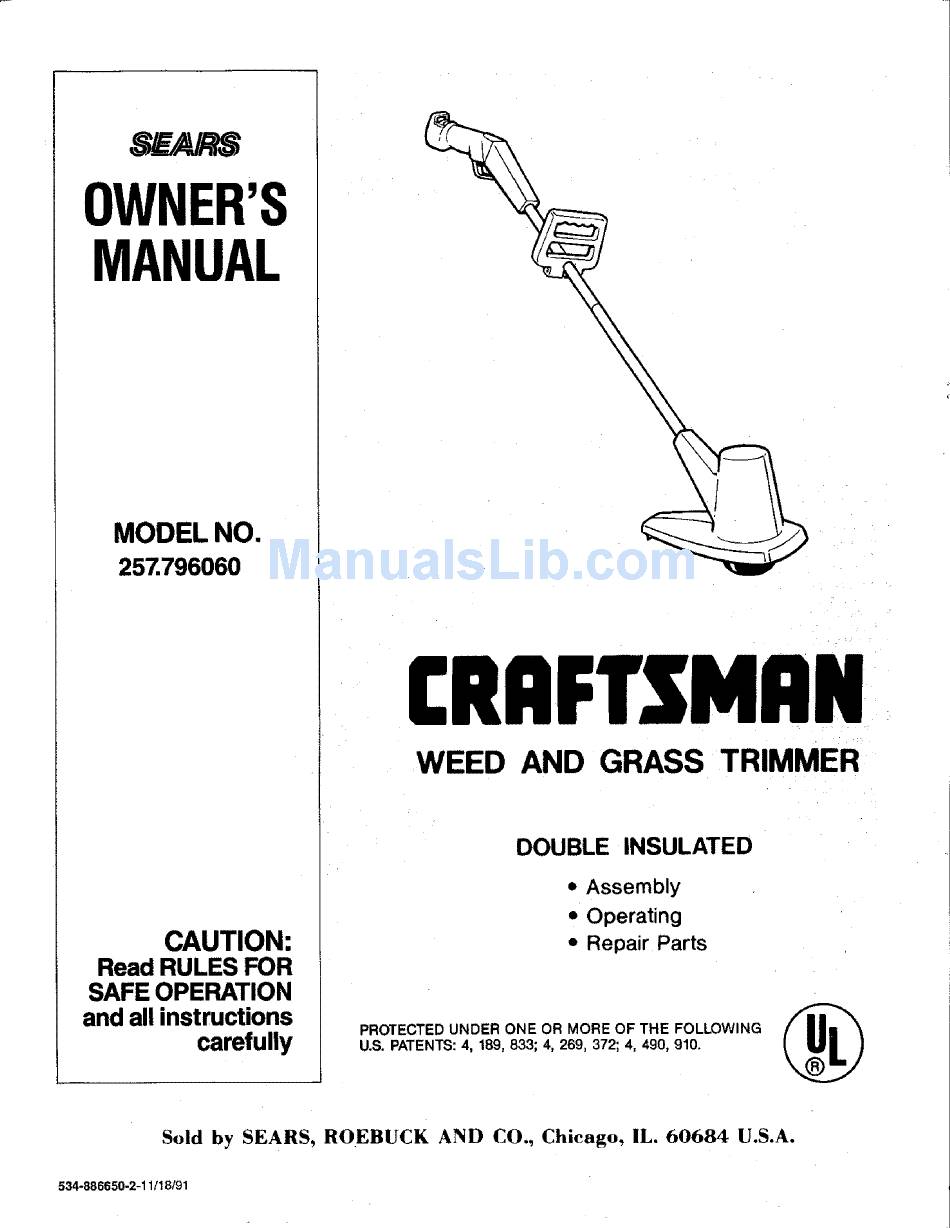

OWNER'S
MANUAL
MODEL NO.
257.796060
CAUTION:
Read RULES FOR
SAFE OPERATION
and all instructions
carefully
C FTSMRN

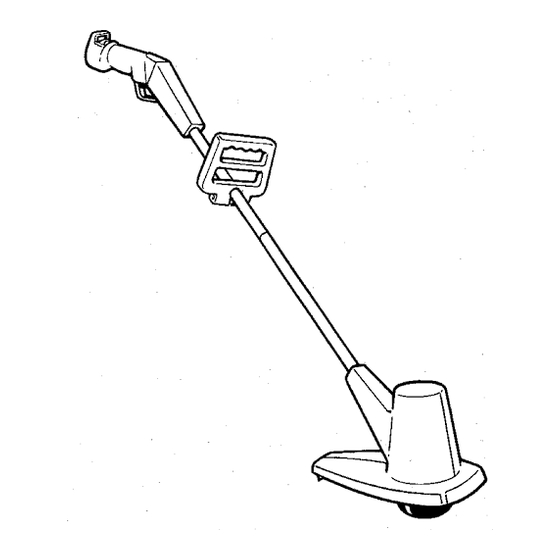

WEED AND GRASS TRIMMER
DOUBLE
INSULATED
• Assembly
• Operating
• Repair
Parts
PROTECTED UNDER ONE OR MORE OF THE FOLLOWING
U.S, PATENTS: 4, 189, 833; 4, 269, 372; 4, 490, 910.
Sold
by SEARS,
ROEBUCK
AND
CO.,
Chicago,
IL. 60684
U.S.A.
534-886650-2-11/18/91
Advertisement
Related Manuals for Craftsman 257.796060
Summary of Contents for Craftsman 257.796060
- Page 1 __A/_ OWNER'S MANUAL MODEL NO. 257.796060 C FTSMRN WEED AND GRASS TRIMMER DOUBLE INSULATED • Assembly • Operating CAUTION: • Repair Parts Read RULES FOR SAFE OPERATION and all instructions PROTECTED UNDER ONE OR MORE OF THE FOLLOWING carefully U.S, PATENTS: 4, 189, 833; 4, 269, 372; 4, 490, 910. Sold by SEARS, ROEBUCK...
-
Page 2: Box Contents
FULL ONE-YEAR WARRANTY ON CRAFTSMAN GRASS TRIMMER If this Electric Weedwacker fails to pedorm properly due to a defect in material or workmanship within one year from the date of purchase, Sears wilt repair it, free of charge, ff this Electric Weedwacker is used forcommercial or rental purposes, this warranty applies for only 90 days from the date of purchase, This warranty applies only while this product is.in use in the... - Page 3 ASSEMBLY INSTRUCTIONS Remove TRIMMER from carton and examine it thoroughly to make sure it is not damaged. Remove discard protective plastic clips inserted TRtGGER handle tubes before assembly of trimmer. TOOLS NEEDED FOR ASSEMBLY • Medium Phillips screwdriver • Adjustable wrench or pliers ATTACHING...
- Page 4 OPERATING INSTRUCTIONS HOW TO ACTUATE SELF FEEDING CUTTING LINE HOW TO OPERATE Hold trimmer in a comfortable upright position and depress Your trimmer is equipped with an Automatic Line Feed head. trigger switch. Whenever switch is depressed, the head will advance the cutting line.
- Page 5 OPERATING INSTRUCTIONS (cont'd) RECOMMENDED REPLACEMENT PARTS AND ACCESSORIES FIG.5 Your SEARS WEEDWACKER uses SPECIALLY TREATED .080 COVER DIAMETER MONOFILAMENT NYLON cutting line which is available at SEARS STORES AND CATALOG STORES. You may purchase a fully wound spool(Part No,85832) or you may purchase a 100 foot coil of line (Part No.
-
Page 6: Exploded View
MODEL 257.796060 EXPLODED VIEW 35 I... -
Page 7: Parts List
MODEL 257.796060 PARTS LIST DOUBLE INSULATED -- WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS REFo PART DESCRIPTION QTY. 8268-2 Screw, 8-18, 11x 11/8 THD Form 8265-25 Handle (set) 9360-1 Plug, Power 1930-t Switch, Trigger 8290 Harness Assy. (complete) 9152 Label, Warning/Rating 8439 Label, Handle 8268-1... - Page 8 The Model Number witl be found on a label attached to your Trimmer's handle tube. Always mention the Model Number when MANUAL requesting service or repair parts for your Craftsman Trimmer. All parts listed herein may be ordered from any SEARS SERVICE CENTER located in most retail stores.
