TheBench Grinder i s provided witha bft andrighttwo
piece TooU Rest,BothTooU Rests havea fiat,smooth
surface toUay y ourworkpbce against, A naccessory
DrHU BitSharpening H ateis included, ThispUate g oes
onovertherightTooU RestonUy a ndis usedtosharpen
twistdrHU b its,
1, DONOTassembb the Bench Grinder u ntilyouare
surethetooU ISNOTpUugged in,
2, DONOTassembb the Bench Grinder u ntilyouare
surethe power switchis inthe "OFF" p osition,
3, DONOTassembb the Bench Grinder u ntilyouare
surethegrinding wheeUs arefirmUy t ightened tothe
Bench Grinder,

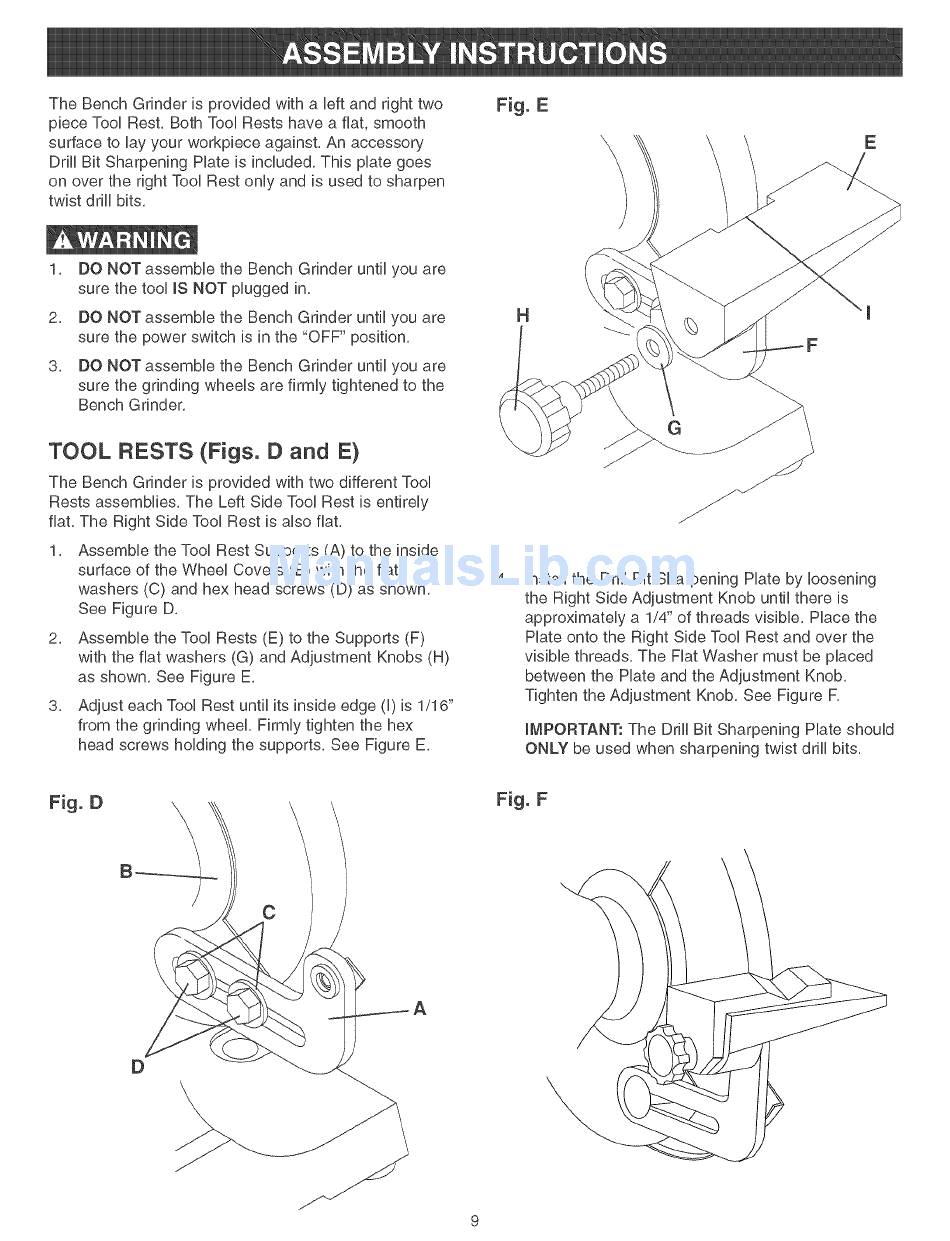

TOOL RESTS (Figs. D and E}
The Bench Grinder is provided with two different Tool
Rests assemblies, The Left Side Tool Rest is entirely
flat, The Right Side Tool Rest is also flat,
1, Assemble the Tool Rest Supports (A) to the inside
surface of the Wheel Covers (B) with the flat
washers (C) and hex head screws (D) as shown,
See Figure D,
2, Assemble the Tool Rests (E) to the Supports (F)
with the flat washers (G) and Adjustment Knobs (H)
as shown, See Figure E,
3, Adjust each Tool Rest until its inside edge (I) is 1/16"
from the grinding wheel, Firmly tighten the hex
head screws holding the supports, See Figure E,
Fig. E
E
H
G
4,
Install the Drill Bit Sharpening Hate by loosening
the Right Side Adjustment Knob until there is
approximately a 1/4" of threads visible, Place the
Hate onto the Right Side Tool Rest and over the
visible threads, The Fiat Washer must be placed
between the Hate and the Adjustment Knob,
Tighten the Adjustment Knob, See Figure F,
IMPORTANT: The Drill Bit Sharpening Hate should
ONLY be used when sharpening twist drill bits,
Fig. D
Fig. F
C
D
