Summary of Contents for KitchenAid KGCP462KSS01
Page 1

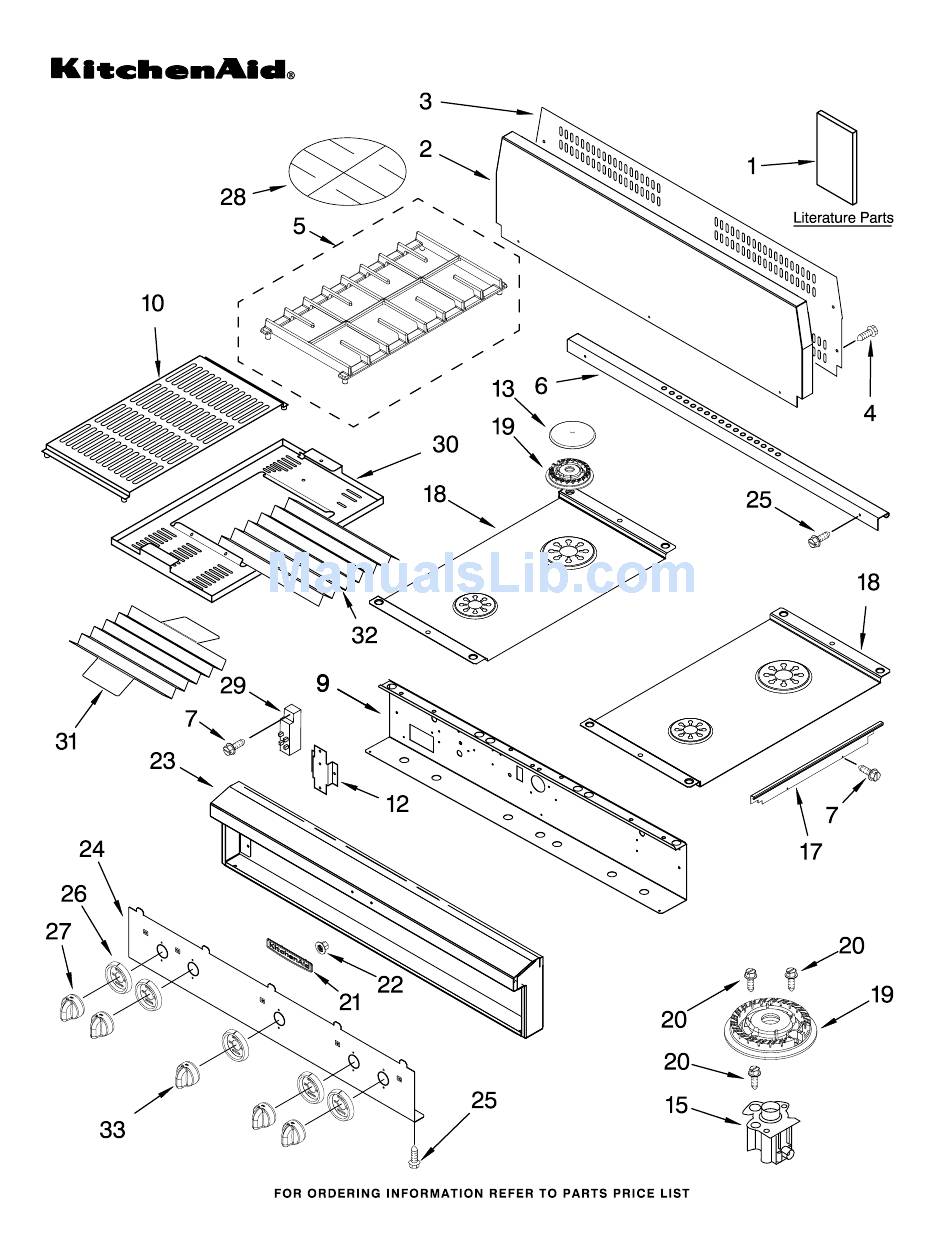

COOKTOP, BURNER AND GRATE PARTS For Model: KGCP462KSS01 36" Stainless Steel Professional Cooktop (Stainless Steel) Part No.8186104 7−03 Litho in U.S.A. (cre)
Page 2
COOKTOP, BURNER AND GRATE PARTS For Model: KGCP462KSS01 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts LIT8284671 Wiring Diagram LIT8285588 Use & Care Guide LIT8285479 Installation Instructions LIT8285589 Instructions, LP Conversion 4454960 Backsplash 8284712 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 8284851 Trim, Island 3400843 Screw, 8−18 x 1/4 8285478 Support, Control...
Page 3
BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP462KSS01 (Stainless Steel) 8186104...
Page 4
BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP462KSS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4455040 Tubing, Gas 4449845 Bracket, Support 4455157 Regulator,Pressure Burner − RF 8285361 Cover, Panel 8284970 Burner Box 4455041 Tubing, Gas 8285031 Box, Burner 8284795 Bracket, Grill Burner −...
