- Page 1 OVEN PARTS 36" KITCHENAID FREE STANDING RANGE For Model:KDRP462LSS0 DUAL FUEL W/GRILLE (Stainless Steel) Part No. 8186000 10−02 Litho in U.S.A. (cre)
-

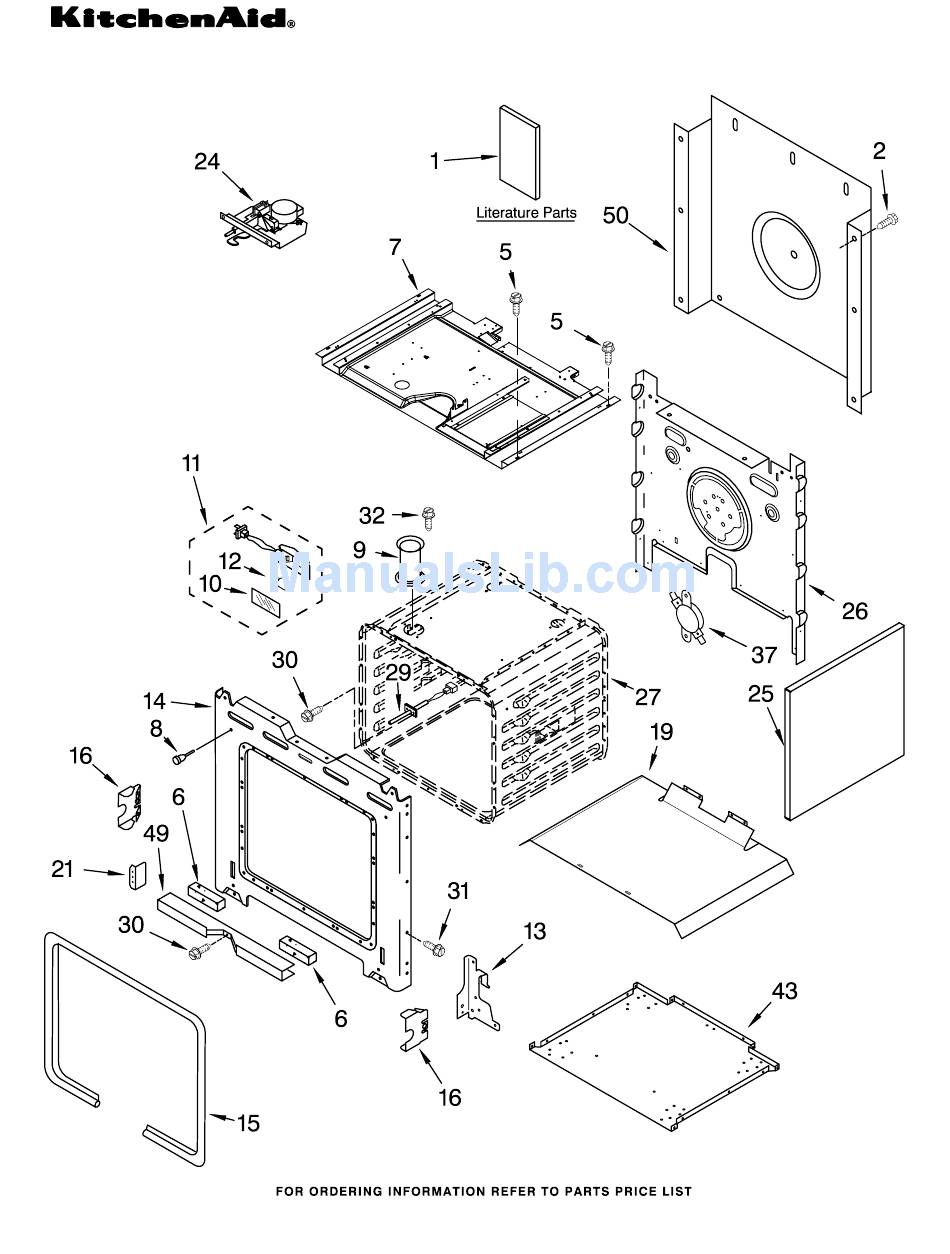

Page 2: Oven Parts
OVEN PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452163 Lens, Light 4449154 Screw, 8−32 x .440 NOTE: The screws and nuts 4448972 Oven Light Assy 4449040 Screw, 8−18 x 3/8 required to attach a part are 4449748 Screw 3196176 Screw, 8−18 x 1/2 listed immediately following... -
Page 3: Oven Door Parts
OVEN DOOR PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8300152 Door Liner 4449263 Glass, Inner 8301089 Shield, Heat 4449743 Screw, 8−32 x 3/8 4449809 Screw, 8−18 x 3/8 Hinge, Door 8300153 Seal, Door Top 8300579 R.Side 4451668 Retainer, Glass 8300580 L.Side... - Page 4 INTERNAL OVEN PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4456105 Element, Broil 8300204 Element, Hidden 8300799 Tray, Hidden 4449154 Screw Bake Bake 3147563 Grill, Broiler 4451583 Motor, Convection 8300800 Cover, Access 3147845 Pan, Broiler 4452226 Blade, Fan 4449154 Screw, 8−32 x .440 3181534 Rack, Roasting...
-
Page 5: Control Panel Parts
CONTROL PANEL PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8300208 Panel, Control 2004333 Palnut 4455719 Spacer Ring 4453000 Bracket, Display 2005292 Nameplate 4455806 Glass, Display 8300805 Bracket, Display 8301491 Face, Control 3192439 Seal, Limiter Mounting Panel 8285005 Bracket, Spark... - Page 6 TOP VENTING PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452489 Deflector, Vent 8300642 Transformer, 4451759 Vent, Exhaust Control 4451438 Elbow, Vent−Top 4449809 Screw, 8−18 x 3/8 8301489 Bracket, Control 8300223 Blower 60MM 4455352 Bracket, Blower Mounting 4449809 Screw (4) 8301632 Box, Blower...
- Page 7 COOKTOP, BURNER AND GRATE PARTS For Model:KDRP462LSS0 (Stainless Steel) 8186000...
- Page 8 COOKTOP, BURNER AND GRATE PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part DESCRIPTION 4454960 Backsplash 8284712 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 8284851 Trim, Island 8284741 Grate, Grill Cap, Burner 4455243 14K (2) 8284669 6K (2) Holder, Orifice Includes Orifice 9754188 Turbo (4) 9754182 Auxillary (2)
- Page 9 BURNER BOX, GAS VALVES, AND SWITCHES For Model:KDRP462LSS0 (Stainless Steel) 8186000...
- Page 10 BURNER BOX, GAS VALVES, AND SWITCHES For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8300231 Tubing, Gas 4453033 Regulator,Pressure 8284960 Guard, Rear Spill Burner − RF 8301072 Burner Box 3400843 Screw 8301705 Bracket, Griddle 8300230 Tubing, Gas 8301066 Tube, Grill Valve Burner −...
-
Page 11: Chassis Parts
CHASSIS PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4452803 Vent, Bottom 4452434 Brace, Rear 3196537 Screw, 8−18 x 3/8 Lower Trim, Front 4455604 Bracket, Mounting 4449809 Screw, 8−18 x 3/8 4452804 Right Side Regulator 8301087 Backer, Trim Lower 4453205 Left Side... -
Page 12: Miscellaneous Parts
MISCELLANEOUS PARTS For Model:KDRP462LSS0 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION SPLICING WIRES−−25FT. WIRING HARNESS PARTS ADHESIVE LENGTH 4448444 Grommet, Rail 591014 Adhesive 8284849 Harness, Jumper Loctite (1/3 oz.) 242828 Wire (12 Ga. (White) 482338 Sealer, Silastic 150 c Black) 8284848 Harness, Jumper (3 oz.)
