KitchenAid KECD866RBL01 Parts List
36" electric built−in downdrdaft cooktop
Hide thumbs
Also See for KECD866RBL01:
- Use & care manual (20 pages) ,
- Installation instructions manual (10 pages)
Related Manuals for KitchenAid KECD866RBL01
Summary of Contents for KitchenAid KECD866RBL01
- Page 1 COOKTOP PARTS For Models: KECD866RBL01, KECD866RWW01, KECD866RSS01 (Black) (White on White) (S.Steel) 36" ELECTRIC BUILT−IN DOWNDRDAFT COOKTOP 12−05 Litho in U.S.A. (cre) Part No. 8186487 Rev.A...

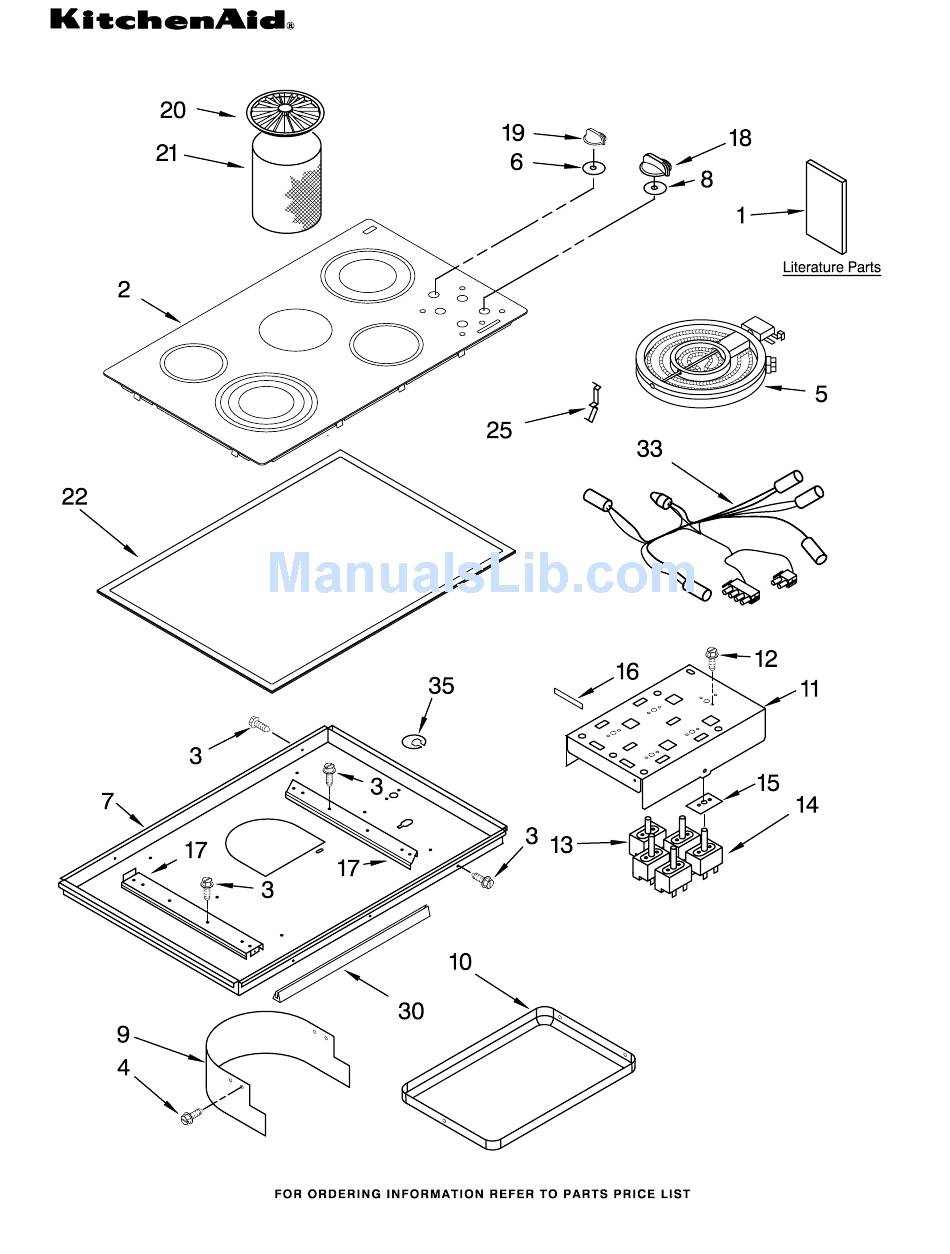

- Page 2 COOKTOP PARTS For Models: KECD866RBL01, KECD866RWW01, KECD866RSS01 (Black) (White on White) (S.Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Knob, Blower 3183956 Seal, Switch Cover Literature Parts Switch 8285934 Shield, Vent 8286553 Installation 3190656 Drip Bowl, Grease 8286097BL Black Instructions 4455354 Bracket, Mounting 8286097WH White...
- Page 3 BLOWER UNIT PARTS For Models: KECD866RBL01, KECD866RWW01, KECD866RSS01 (Black) (White on White) (S.Steel) Illus. Part DESCRIPTION 8285958 Bracket, Shield 3192403 Bracket, Blower Mounting 9760484 Ring, Inlet 9760485 Screen, Inlet 9760483 Adapter, Vent 9760440 Blower Motor Asm. (Includes Fan Asm) 3196537 Screw, 8−18 x 3/8 8186487...
- Page 4 OPTIONAL PARTS For Models: KECD866RBL01, KECD866RWW01, KECD866RSS01 (Black) (White on White) (S.Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ACCESSORY PARTS FOLLOWING PARTS FOLLOWING PARTS NOT ILLUSTRATED NOT ILLUSTRATED 3191048 Cleaner, Glass WIRING HARNESS PARTS SPLICING WIRES−−25FT. Miscellaneous 8286420 Harness, Wire LENGTH 3172515 Hardware, Mounting...
