Craftsman 358.352681 Operator's Manual

2.6 cu. in./42cc 2-cycle 18 in. bar gasoline chain saw
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

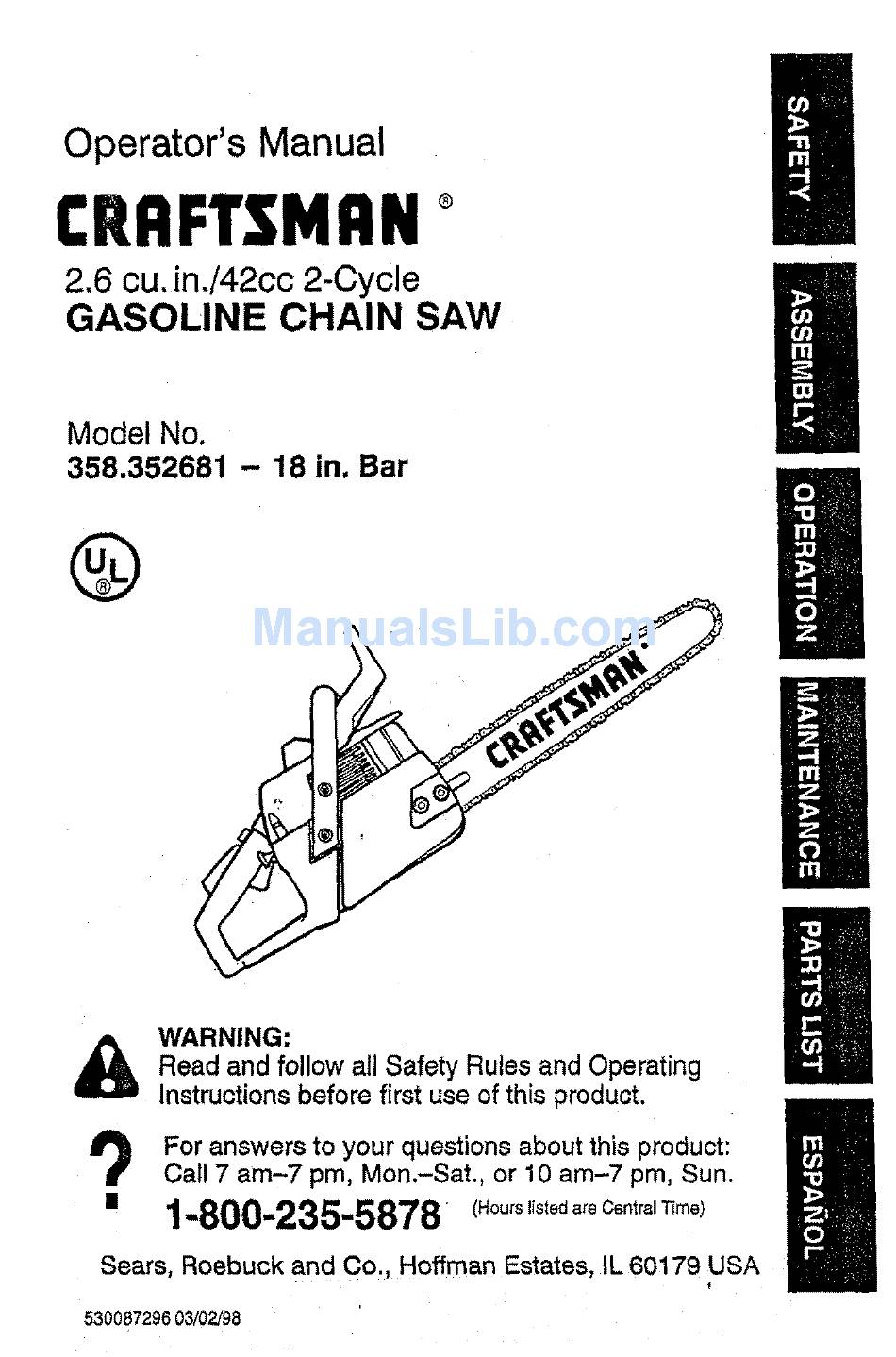

Operator's Manual
CP.AFTSMFIN °
2.6 cu. in./42cc 2'Cycle
GASOLINE
CHAIN
SAW
Model No.
358.352681
@
- 18 in. Bar
WARNING:
Read and follow all Safety Rules and Operating
Instructions
before first use of this product.
For answers to your questions
about this product:
Call 7 am-7 pm, Mon.-Sat.,
or 10 am-7 pm, Sun.
•
1-800-235-5878
I.ou.s,,.,oda,oOon,.o,_,mo_
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
530087296 03/02/98
