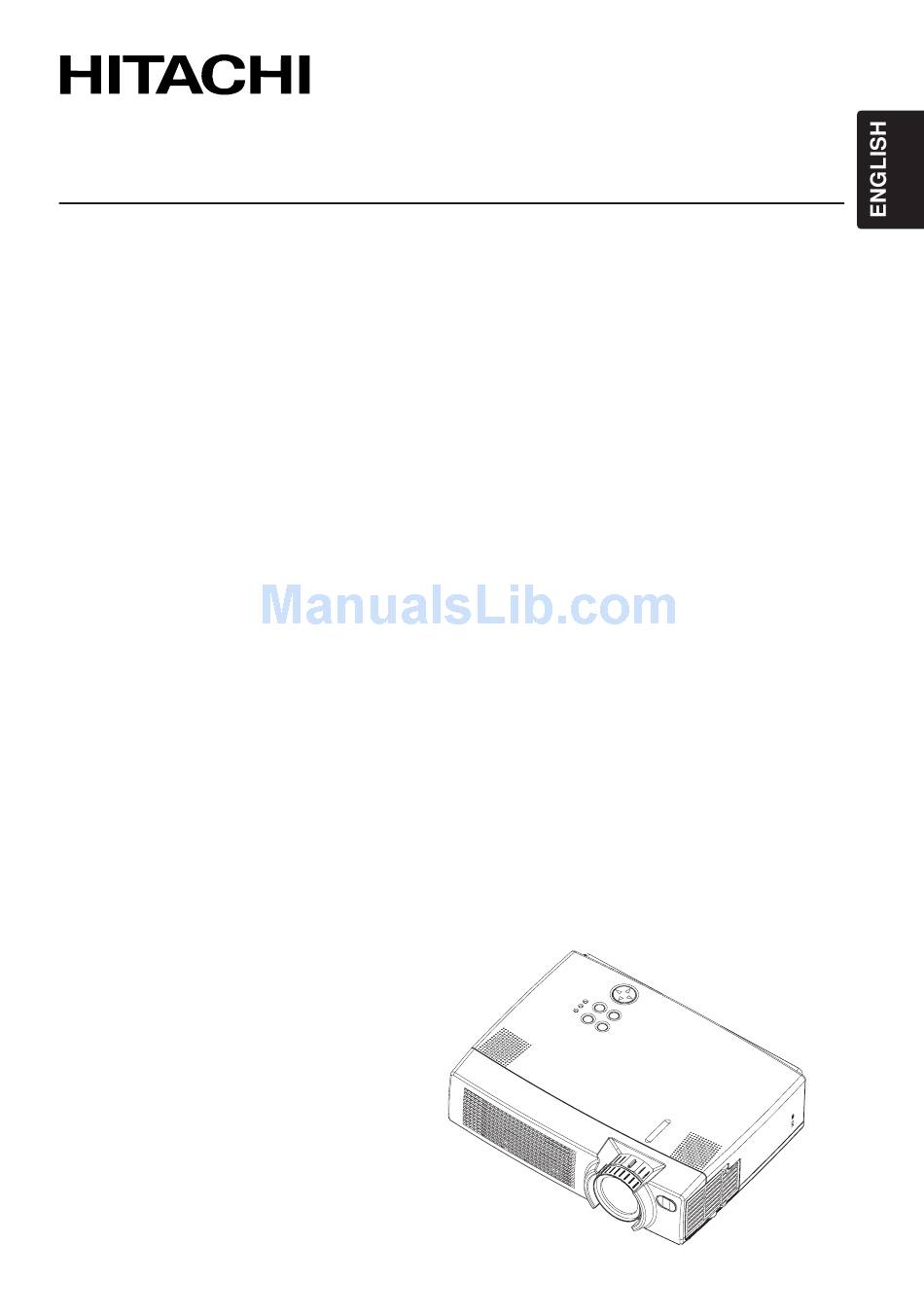

Page 1: Regulatory Notices
Liquid Crystal Projector CP-X990W / CP-X995W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. TECHNICAL REGULATORY NOTICES... -
Page 2: Table Of Contents
Liquid Crystal Projector USER'S MANUAL USER'S MANUAL WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. NOTE TRADEMARK ACKNOWLEDGMENT : CONTENTS... -
Page 3: Features
FEATURES FEATURES Outstanding Brightness Partial Magnification Function Distortion Correction Function BEFORE USE BEFORE USE Contents of package • NOTE Power Cord Power Cord Power Cord (UK Type) (Europe Type) (US Type) Projector (with Lens Cap) Liquid Crystal Projector CP-X990W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. -
Page 4: Part Names
Part Names ZOOM Button FOCUS Button ZOOM FOCUS KEYSTONE Button INPUT Button KEYSTONE INPUT MENU STANDBY/ON Button MENU Button STANDBY/ON RESET LAMP POWER TEMP LAMP Indicator RESET Button POWER Indicator TEMP Indicator Control Panel (Refer to P.9 "OPERATIONS") Remote Control Sensor Control Panel Lens Ventilation Openings... -
Page 5: Remote Control Transmitter
Part Names (continued) BLANK Button STANDBY/ON Button LASER Button VIDEO Button RGB Button Disk Pad MOUSE / RIGHT Button Used to operate the Used to click the right mouse shift function and mouse button. left click function. KEYSTONE Button AUTO Button RESET Button MENU Button Used to click the right... -
Page 6: Loading The Batteries
Loading the Batteries CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause battery cracking or leakage, which could result in fire or personal injury. • When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. -
Page 7: Installation
INSTALLATION INSTALLATION Installation of the Projector and Screen Screen Table 1. Installation Reference a [inches (m)] Screen size Top View [inches (m)] [inches (cm)] Min. Max. 40 (1.0) 55 (1.4) 73 (1.9) 60 (1.5) 85 (2.2) 114 (2.9) 80 (2.0) 114 (2.9) 151 (3.8) 100 (2.5) -
Page 8: Cabling
Cabling Table 2. Cabling Function Terminal Cable RGB IN 1 Analog RGB input RGB cable with D-sub 15-pin shrink jack RGB IN 2 and inch thread screws Analog RGB output RGB OUT Digital RGB input DVI cable with inch thread screws AUDIO IN [RGB 1] / [DVI] (interlocked with RGB IN 1 or DVI) Audio input... -
Page 9: Power Connection
Power Connection CAUTION • Be carful in handling the power Power outlet cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual. • Connect the power cord firmly. Avoid using a AC Inlet loose, unsound outlet or failed contact. Power Cord Example of System Setup Computer... -
Page 10: Operations
OPERATIONS OPERATIONS STANDBY/ BLANK STANDBY/ON LASER ON Button POWER Indicator STANDBY/ON Button VIDEO ZOOM button FOCUS button AUTO MENU KEYSTONE MENU SELECT POSITION RESET Power Switch FREEZE PinP MAGNIFY MUTE FOCUS button FOCUS ZOOM VOLUME Lens cap ZOOM button Power ON Power OFF WARNING •... -
Page 11: Basic Operation
Basic Operation Table 3 . Basic Operation Item Description Select Input Signal ( : Press the INPUT button. RGB IN 1 → RGB IN 2 → DVI → VIDEO → S-VIDEO → COMPONENT VIDEO (→ RGB IN 1) Select RGB Input : Press the RGB button. VIDEO/S-VIDEO/COMPONENT VIDEO →... - Page 12 Table 3. Basic Operation (continued) Item Description VOLUME Volume Adjustment : Press the VOLUME button. Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE MUTE mode. Automatic Adjustment at RGB Input : Press the AUTO button. Horizontal position(H.POSIT), vertical position (V.POSIT),clock phase (H.PHASE), and horizontal size(H.SIZE) are automatically adjusted.
-
Page 13: Setup Menu
Setup Menu SETUP INPUT IMAGE OPT. SETUP INPUT IMAGE OPT. BRIGHT BRIGHT CONTRAST CONTRAST V POSIT SHARPNESS COLOR H POSIT H PHASE TINT H PHASE H SIZE COLOR BAL R COLOR BAL R COLOR BAL B COLOR BAL B ASPECT ASPECT VIDEO RGB IN 1... -
Page 14: Input Menu
Input Menu SETUP INPUT IMAGE OPT. EXECUTE AUTO CANCEL VIDEO VIDEO NR Progressive BLACK HDTV Table 5. Input Menu Item Description Automatic Adjustment at RGB Input: Select the EXECUTE with the button. Horizontal position (H.POSIT), vertical position (V.POSIT), clock phase (H.PHASE), and horizontal size (H.SIZE) are automatically adjusted. -
Page 15: Image Menu
Image Menu SETUP INPUT IMAGE OPT. BLANK MyScreen ORIGINAL START UP MyScreen MIRROR P.IN P. POSIT P.IN P. INPUT GAMMA Table 6. Image Menu Item Description Select Blank Screen: Select the screen in case of the BLANK mode with the button.The selected one (MyScreen, ORIGIAL or one colors) is displayed when the BLANK mode is ON. -
Page 16: Options Menu
Options Menu SETUP INPUT IMAGE OPT. VOLUME MENU COLOR LANGUAGE AUTO OFF SYNC ON G WHISPER Table 7. Options Menu Item Description ↔ VOLUME Volume Adjustment: Reduce VOLUME Increase VOLUME MENU COLOR Select Menu Background Color: Select with the buttons. Operation Start/Stop: Press the button. -
Page 17: No Signal Menu
No Signal Menu VOLUME BLANK START UP MIRROR MENU COLOR LANGUAGE AUTO OFF SYNC ON G WHISPER Table 8. No Signal Menu Item Description ↔ Increase VOLUME Volume Adjustment: Reduce VOLUME • When this function is used, audio input is automatically switched to video. The VOLUME audio input can be switched by moving the DISK PAD left and right during the display of the volume adjustment bar. -
Page 18: Maintenance
MAINTENANCE MAINTENANCE Lamp HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING A mercury lamp used in this LCD projector is made of glass and has high internal pressure. The mercury lamp can burst with a big noise due to deterioration resulting from a shock, crack and passage of time, and can end its service life in unlit condition. - Page 19 Replacing the Lamp CAUTION • Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents. • Do not use the projector with the lamp cover removed. Resetting the Lamp Timer → • NOTE ENGLISH-18 ENGLISH-18...
-
Page 20: Air Filters
Air Filters filter cover Cleaning Air Filters filters Replacing the Air Filter CAUTION • Switch power OFF and remove the power cord from the power outlet before beginning maintenance work. Please read the separate “SAFETY INSTRUCTIONS” thoroughly to ensure that maintenance is performed correctly. •... -
Page 21: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING OSD Message Table 9. OSD Message Message Contents The usage time of lamp will be reaching 2000 hr CHANGE THE LAMP shortly. AFTER REPLACING LAMP, RESET THE LAMP TIME. It is recommended to replace the lamp soon. Prepare a new lamp as a replacement. -
Page 22: Indicators Message
Indicators Message Table 10. Indicators Message POWER LAMP TEMP Contents indicator indicator indicator Lights Turns off Turns off The Standby mode has been set. orange Blinks Turns off Turns off Warming up. Please wait. green Lights Turns off Turns off ON. Normal operation possible. green Blinks Turns off Turns off Cooling. -
Page 23: Symptom
Symptom Table 11. Symptom Symptom Possible cause Remedy Page The main power switch is not Turn on the main power switch. turned on. The power cord is Plug the power cord into an AC disconnected. power outlet. The power is not Turn off the projector with the main turned on. -
Page 24: Specifications
SPECIFICATIONS SPECIFICATIONS Table 12. Specifications Item Specification Product name Liquid crystal projector Panel size 3.3 cm (1.3 type) Liquid crystal Drive system TFT active matrix panel Pixels 786,432 pixels (1024 horizontal x 768 vertical) Lens Zoom lens F=1.7 ~ 2.3 f=49.0 ~ 64.0 mm Lamp 275 W UHB Speaker... -
Page 25: Warranty And After-Service
WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE ENGLISH-24 ENGLISH-24... -
Page 26: Dimension Diagram
TECHNICAL TECHNICAL Dimension Diagram 308.5 Unit : mm 30.5 Signal Connector Pin Assignment 1. D-sub 15-pin Shrink Connector (RGB IN 1/RGB IN 2/RGB OUT) Pin No Signal Pin No Signal Pin No Signal Video input Red RGB IN 1: SCL(DDC) Video input Green Ground RGB IN 2: -... -
Page 27: Example Of Computer Signal
Example of computer signal Resolution Display fH (kHz) fV (Hz) Rating Signal mode H × × V mode 720 × 400 37.9 85.0 VESA TEXT Zoom in 640 × 480 31.5 59.9 VESA VGA (60Hz) Zoom in 640 × 480 35.0 66.7 Mac13"mode... - Page 28 Initial set signals The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, refer to adjust the V.POSIT and H.POSIT of the menu. Back porch b Front porch d Back porch b Front porch d Display interval c...
-
Page 29: Usb Mouse
Connection to the Mouse Control 1. PS/2, ADB or Serial Mouse (1) Turn off the projector and computer, and connect the two units with the appropriate cable. For PS/2 mouse control (for IBM and compatible), use the enclosed mouse cable. For others, consult your dealer. - Page 30 ADB Mouse Projector Computer ( POWER ON ) CONTROL Terminal DATA Mouse jack D-sub 15-pin shrink jack Mini DIN 4-pin Serial Mouse Projector Computer CONTROL Terminal Mouse jack D-sub 15-pin shrink jack D-sub 9-pin SEL0 USB Mouse USB jack (B type) Projector Computer USB jack...
- Page 31 RS-232C communication (1) Turn off the projector and computer power supplies and connect with the RS-232C cable. (2) Turn on the computer power supply and, after the computer has started up, turn on the projector power supply. Projector Computer RS-232C jack D-sub 9-pin Control jack D-sub 15-pin shrink jack...
- Page 32 Requesting projector status (Get command) (1) Send the request code Header + Command data (‘02H’+‘00H’+ type (2 bytes) +‘00H’+‘00H’) from the computer to the projector. (2) The projector returns the response code ‘1DH’+ data (2 bytes) to the computer. Changing the projector settings (Set command) (1) Send the setting code Header + Command data (‘01H’+‘00H’+ type (2 bytes) + setting code (2 bytes)) from the computer to the projector.
-
Page 33: Command Data Chart
Command data chart Command data Names Operation type Header Action Type Setting code BE EF 06 00 3B D3 01 00 00 30 00 00 Orange BE EF 06 00 AB D2 01 00 00 30 01 00 Green BE EF 06 00 5B D2 01 00... - Page 34 Command data chart Command data Names Operation type Header Action Type Setting code BE EF 06 00 7C D2 02 00 07 30 00 00 Magnify Increment BE EF 06 00 1A D2 04 00 07 30 00 00 Decrement BE EF 06 00 CB D3...
- Page 35 Command data chart Command data Names Operation type Header Action Type Setting code Normal BE EF 06 00 46 D3 01 00 02 20 00 00 Mute Mute BE EF 06 00 D6 D2 01 00 02 20 01 00 BE EF 06 00 75 D3...
- Page 36 Command data chart Command data Names Operation type Header Action Type Setting code BE EF 06 00 F1 72 02 00 01 22 00 00 Sharpness Increment BE EF 06 00 97 72 04 00 01 22 00 00 Decrement BE EF 06 00 46 73...
- Page 37 Command data chart Command data Names Operation type Header Action Type Setting code Upper left BE EF 06 00 02 23 01 00 01 23 00 00 Upper right BE EF 06 00 92 22 01 00 01 23 01 00 bottom left BE EF 06 00...
- Page 38 REGULATORY NOTICES REGULATORY NOTICES FCC Statement Warning WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 39 6740 Campobello Road, Mississauga, Ontario Spain L5N2L8, Canada Tel: +34-3-330-8652 Fax: +34-3-339-7839 Tel: +1-905-821-4545 Fax: +1-905-821-1101 Hitachi Home Electronics Asia, (S) Pte Ltd. Hitachi Home Electronics (Europe), Ltd. 16 Collyer Quay #20-00 Hitachi Tower Singapore Dukes Meadow, Millboard Road, Bourne End , 049318, Singapore...
