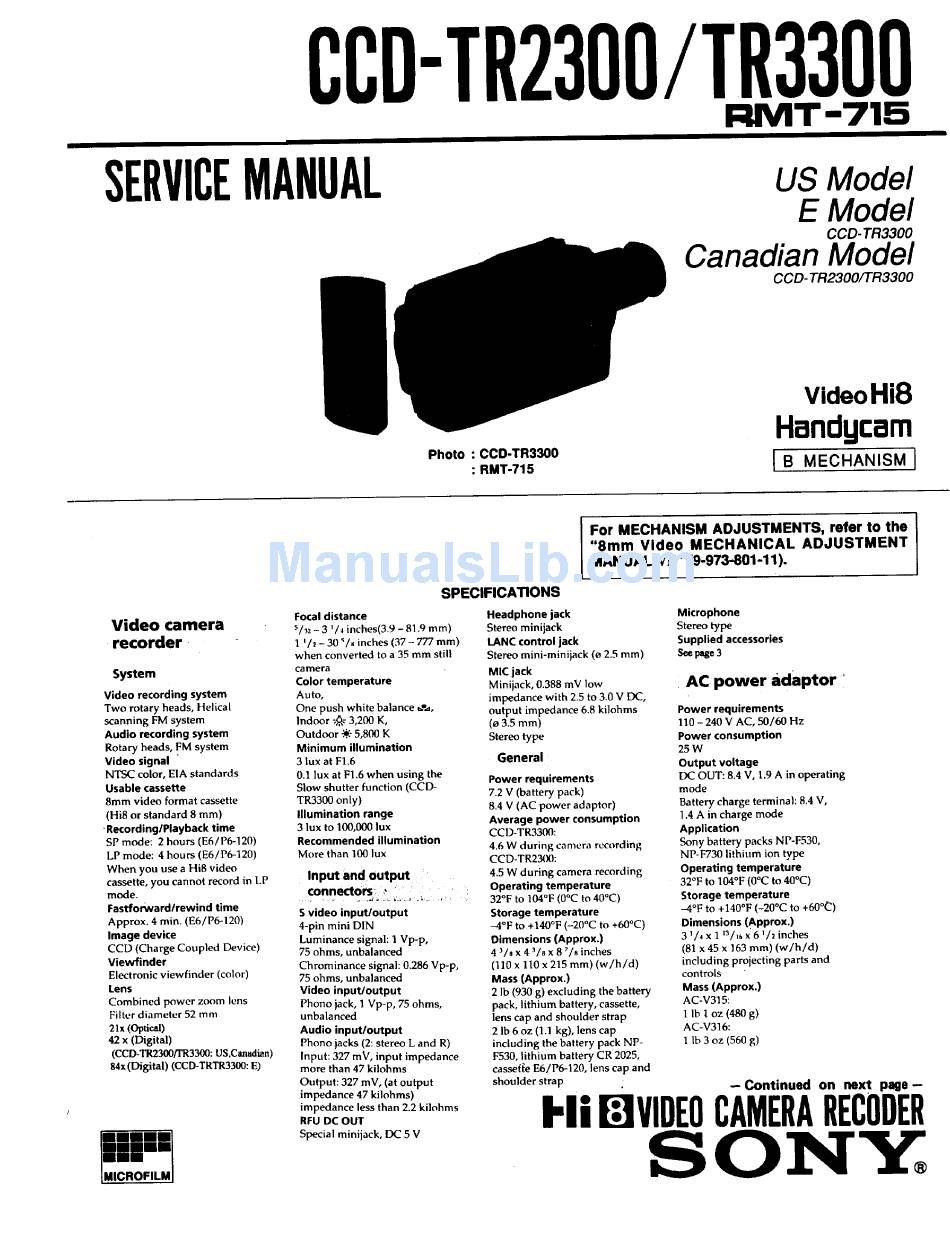

CCD-TR2300/TR
RMT-715
SERVICE
MANUAL
US Model
E Model
CCD- TR3300
Canadian Model
CCD- TR2300/TR3300
: CCO-TR3300
: RMT-715
VideoHi8
Handycam
]e MECHANISM i
Video
camera
recorder
System
Video recording
system
Two rotary heads, Helical
scanning FM system
Audio recording
system
Rotary heads, FM system
Video signal
NTSC color, EIA standards
Usable cassette
8ram video
format cassette
(Hi8 or standard 8 ram)
•Recording/Playback
time
SP mode:
2 hours (E6/P6-120)
LP mode:
4 hours (E6/P6-120)
When you use a Hi8 video
cassette,
you cannot record in LP
mode,
Fastforward/rewind
time
Approx.
4 min. (E6/P6-120)
Image device
CCD (Charge Coupled
Device)
Viewfinder
Electronic viewfinder
(color)
Lens
Combined
power zoom
lens
Filter diameter
52 mm
2Ix (optical)
42 x (Digital)
(CCD-TR2300/FR3300: US,Canadian)
84x(Digital)
(CCD-TRTR3300: E)
For MECHANISM
ADJUSTMENTS,
refer to the
"8mm
Video
MECHANICAL
ADJUSTMENT
MANUAL VII" (9-973-801-11).
SPECIFICATIONS
Focal distance
s/32- 3 '/4 inches(3.9 - 81.9 ram)
1 '/2 - 30 _/. inches
(37 - 777 mm)
when converted
to a 35 mm still
camera
Color temperature
Auto,
One push white balance
d',a,
Indoor
";_-:3,200 K,
Outdoor
_.,-5,800 K
Minimum
illumination
3 lux at F1.6
0.1 lux at FI.6 when using the
Slow shutter function
(CCD-
TR3300 only)
Illumination
range
3 lux to 100,000 lux
Recommended
illumination
More than 100 lux
Input
andoutput
:
€onnectOrs_
," ......
s video input/output
4-pin mini DIN
Luminance
signal: 1 Vp-p,
75 ohms, unbalanced
Chrominance
signal: 0.286 Vp-p,
75 ohms, unbalanced
Video input/output
Phono jack, 1 Vp-p, 75 ohms,
unbalanced
Audio input/output
Phono jacks (2: stereo L and R)
Input: 327 mV, input
impedance
more than 47 kilohms
Output:
327 mV, (at output
impedance
47 kilohms)
impedance
less than 2.2 kilohms
RFU DC OUT
Special
minijack, DC 5 V
Headphone
jack
Stereo minijack
LANC control jack
Stereo mini-minijack
(o 2.5 mm)
MIC jack
Minijack,
0.388 mV low
impedance
with 2.5 to 3.0 V DC,
output
impedance
6.8 kilohms
(_ 3.5 ram)
Stereo type
General
Power requirements
7.2 V (battery
pack)
8.4 V (AC power adaptor)
Average
power consumption
CCD-TR3300:
4.6 W during
camera recording
CCD-TR2300:
4.5 W during
camera recording
Operating
temperature
32°F to 104°F (0°C to 40°C)
Storage temperature
-4°F to +140°F (-20°C to +60°C)
Dimensions
(Approx.)
4 3/_ x 4 3/8 x 8 7/s inches
(110 x 110 x 215 mm) (w/h/d)
Mass (Approx.)
2 lb (930 g) excluding
the battery
pack, lithium
battery, cassette,
lens cap and shoulder
strap
2 lb 6 oz (1.1 kg), lens cap
including
the battery pack NP-
1:530, lithium
battery CR 2025,
casseffe
E6/P6-120,
lens cap and
shoulder
strap
Microphone
Stereo type
Supplied accessories
Seepage3
AC power
adaptor
•
Power requirements
110 - 240 V AC, 50/60 Hz
Power consumption
25 W
Output
voltage
[X_ OUT: 8.4 V, 1.9 A in operating
mode
Battery charge terminal: 8.4 V,
] .4 A in charge mode
Application
Sony battery packs NP-F530,
NP-F730
lithium
ion type
Operating
temperature
32°F to 104°F (0°(2 to 40°C)
Storage temperature
-4°F to +140°F (-20°C
to +60°C)
Dimensions (Approx.)
3 _/_ x 1 _3/_6x 6 _/z inches
(81 x 45 x 163 ram) (w/h/d)
including
projecting
parts and
controls
Mass (Approx.)
AC-V315:
1 Ib 1 oz (480 g)
AC-V316:
1 lb 3 oz (560 g)
--Continued
on next page-
