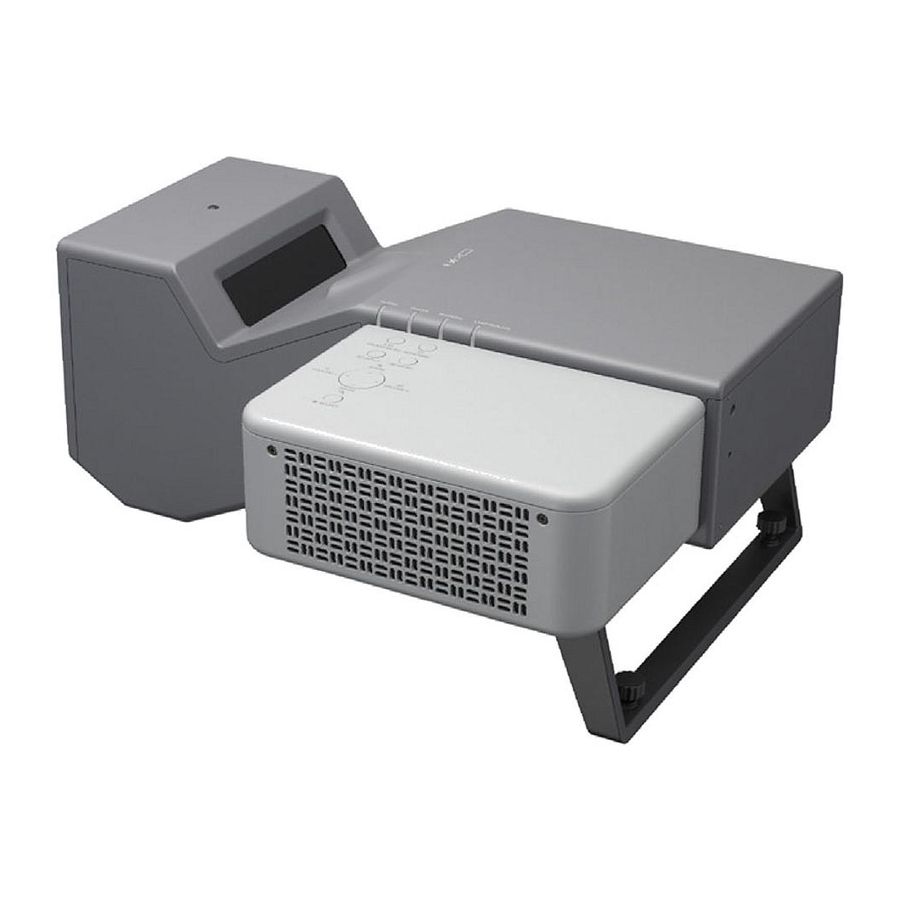

Sanyo PLC-XL50A - 2000 Lumens Manual
Basic serial command specifications
Hide thumbs
Also See for PLC-XL50A - 2000 Lumens:
- Service manual (126 pages) ,
- Owner's manual (72 pages) ,
- Manual (51 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Sanyo PLC-XL50A - 2000 Lumens
Summary of Contents for Sanyo PLC-XL50A - 2000 Lumens
- Page 1 BASIC SERIAL COMMAND SPECIFICATIONS PLC-XL50/A Ver. 1.00...
-
Page 2: Table Of Contents
PLC-XL50 Basic Serial Command Specifications ÿ CONTENTS ÿ 1. Overview..........................4 2. Serial Interface Specifications ..................4 2.1. Transfer Specifications ....................4 2.2. Connection ........................4 3. Notes for Communication ....................5 4. Functional Execution Command Table................6 5. Status Read Command Table ...................7 Functional Execution Command ..................8 6.1. - Page 3 PLC-XL50 Basic Serial Command Specifications 6.32. BRIGHTNESS – Command ................14 6.33. Computer 2 RGB Command................14 6.34. IMAGE (Toggle) Command ................15 6.35. ON START Setting Command ................15 6.36. ON START Cancel Command................15 6.37. Power Management Ready Command............15 6.38. Power Management OFF Command ...............15 6.39.
-
Page 4: Overview
PLC-XL50 Basic Serial Command Specifications 1. Overview 1.1. These specifications define projector control commands for PLC-XL50. 1.2. The projector control commands are used to control a projector through RS-232C from a computer. 2. Serial Interface Specifications 2.1. Transfer Specifications Item Specifications Synchronous system Asynchronous... -
Page 5: Notes For Communication
PLC-XL50 Basic Serial Command Specifications 3. Notes for Communication 3.1. The projector command is defined as one command/one line that starts with “C” and ends with carriage return (0x0D). 3.2. There are two types of Commands: Functional Execution Commands and Status Read Commands. Example of Functional Execution Command: “C05”... -
Page 6: Functional Execution Command Table
PLC-XL50 Basic Serial Command Specifications 4. Functional Execution Command Table Command Item Command Item POWER ON BRIGHTNESS + POWER OFF ÿ Quick Power OFFÿ BRIGHTNESS - ――― POWER OFF ――― ――― ――― ――― Computer 1 ÿ MC/W/Nÿ Computer 2 RGB ―――... -
Page 7: Status Read Command Table
PLC-XL50 Basic Serial Command Specifications Command Item Command Item ――― FREEZE ON ――― FREEZE OFF ――― Auto PC ADJ. ――― PRESENTATION TIMER ――― KEYSTONE ↑ ――― KEYSTONE ↓ ――― Computer 1 Analog RGB ――― Computer 1 Scart ――― ――― ――― ―――... -
Page 8: Functional Execution Command
PLC-XL50 Basic Serial Command Specifications Functional Execution Command 6.1. Format 6.1.1. PC issues a command in format as below. “C” COMMAND [CR] Command: two characters (See Basic Functional Execution Command Table) 6.1.2. A projector changes received data to decode and returns a result after being ready to receive next command. -
Page 9: Operation Requirements
PLC-XL50 Basic Serial Command Specifications 6.4. Operation Requirements When the projector’s status in this below, Functional Execution Commands are limited. Projector Status Available Functional Execution Commands Standby Mode C00ÿ POWER ON C00ÿ POWER ON → Countdown is terminated Processing Countdown C01ÿ... -
Page 10: Power On Command
PLC-XL50 Basic Serial Command Specifications 6.5. POWER ON Command Command “C00” [CR] Power ON When already Power is ON, nothing is done. Detail When sending this command during processing Countdown, Countdown is terminated. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.6. -
Page 11: Video Command
PLC-XL50 Basic Serial Command Specifications 6.10. Video Command Command “C07” [CR] Select Video Input Detail Notes) When Input search is On1/On2, this command is not executed while the projector returns OK. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.11. VOLUME + Command Command “C09”... -
Page 12: Video Mute On Command
PLC-XL50 Basic Serial Command Specifications 6.15. VIDEO MUTE ON Command Command “C0D”[CR] Video Mute ON. This command works the same as “NO SHOW” button of the remote control for Detail No Show ON, but does not work for No Show OFF. Acceptable [ACK] [CR] Response... -
Page 13: Image Cinema Command
PLC-XL50 Basic Serial Command Specifications 6.21. Image Cinema Command Command “C13” [CR] Detail Set Image to Cinema mode. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.22. Image 1 Command Command “C14” [CR] Detail Set image to Image 1 mode. Acceptable [ACK] [CR] Response Unacceptable... -
Page 14: Menu On Command
PLC-XL50 Basic Serial Command Specifications 6.28. MENU ON Command Command “C1C” [CR] Detail Display Menu of On Screen Display. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.29. MENU OFF Command Command “C1D” [CR] Detail Clear Menu of On Screen Display. Acceptable [ACK] [CR] Response... -
Page 15: Image (Toggle) Command
PLC-XL50 Basic Serial Command Specifications 6.34. IMAGE (Toggle) Command Command “ÿ # ÿ ÿ ”[CR] Switch Image Setting status. Detail This command works the same as “IMAGE” button on the projector or remote control as "IMAGE” function. Acceptable [ACK] [CR] Response Unacceptable “ÿ... -
Page 16: D.zoom + Command
PLC-XL50 Basic Serial Command Specifications 6.40. D.ZOOM + Command Command “C30” [CR] Make screen image larger. Detail This command works the same as “ZOOM ▲” button of the remote control. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.41. D.ZOOM – Command Command “C31”... -
Page 17: Image Color Board Command
PLC-XL50 Basic Serial Command Specifications 6.46. Image color board Command Command “C39” [CR] Detail Set Image to Color board mode. Acceptable [ACK] [CR] Response Unacceptable “ÿ ”[CR] 6.47. POINTER RIGHT Command Command “C3A” [CR] Move the Pointer of On Screen Display Menu to the right. Detail This Command differs from the operation of pointer “>”... -
Page 18: Freeze On Command
PLC-XL50 Basic Serial Command Specifications 6.52. FREEZE ON Command Command “C43” [CR] Freeze the screen. Detail This command works the same as “FREEZE” button of the remote control for Freeze ON, but does not work for Freeze OFF. Acceptable [ACK] [CR] Response Unacceptable “ÿ... -
Page 19: Input 1 Scart Command
PLC-XL50 Basic Serial Command Specifications 6.57. INPUT 1 Scart Command Command “C51” [CR] Select Analog Scart input of Input1. Detail Notes) This command is not executed while the projector returns OK, when Input search is On. Acceptable [ACK] [CR] Response Unacceptable “ÿ... -
Page 20: Status Read Command
PLC-XL50 Basic Serial Command Specifications 7. Status Read Command 7.1. Format 7.1.1. PC issues commands in format as below; “CR” Command [CR] Commandÿ 1 characterÿ See Basic Status Read Command Tableÿ 7.1.2. When a projector receives the appropriate command, it returns a character line as the required data. -
Page 21: Status Read Command
PLC-XL50 Basic Serial Command Specifications 7.3. Status Read Command Command “CR0” [CR] Detail Get the projector status Acceptable “%1” [CR] ”00” = Power ON “80” = Standby “40” = Processing Countdown “20” = Processing Cooling Down Response “10” = Power Failure “28”... - Page 22 PLC-XL50 Basic Serial Command Specifications 7.3.5. “10” [CR] Status : Power Failure When the power supply voltage inside the projector reaches abnormal status, the projector is automatically turned off. The projector returns “10”[CR], which shows it moves to Power OFF status due to power failure. Fan also stops unlike Cooling Down status.
-
Page 23: Input Mode Read Command
PLC-XL50 Basic Serial Command Specifications 7.4. Input Mode Read Command Command “CR1” [CR] Detail Get the selected Input. Acceptable “%1” [CR] ”1” = Computer1 is selected Response “2” = Computer2 is selected “3” = Video is selected Unacceptable “?” [CR] 7.5.
