Philips ProSpec 26000 Specification

Page 1 of 4
2
1
1/16"
3
4
1 3/16"
9
Catalog No.
Plain Track
Finishes: 4'
Matte White 26004WH
Matte Black 26004BK

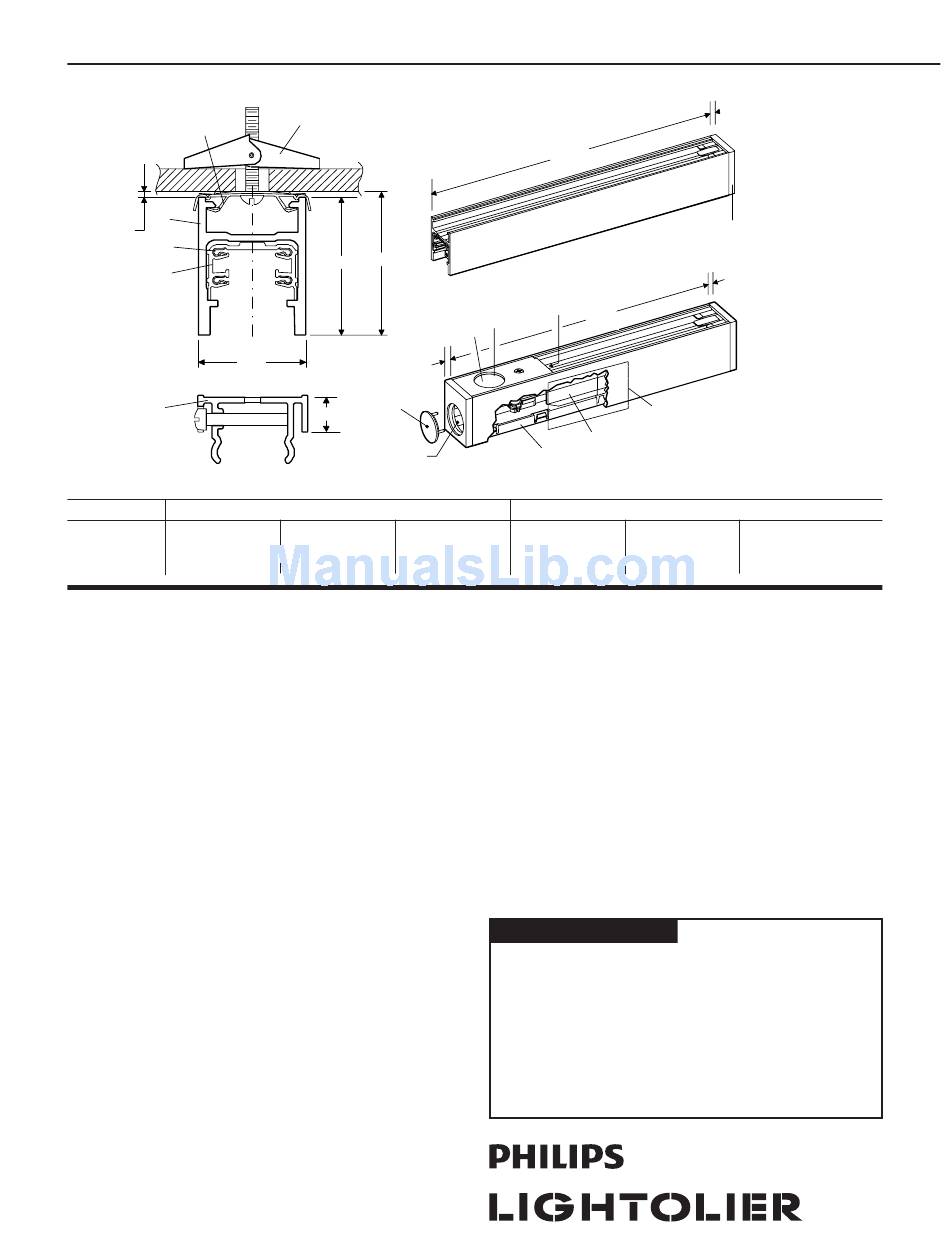

Features
1. Track: 6063T-5 structural aluminum extrusion; average wall thickness .08.
2. Flush Mounting Clips: spring steel. Black or white nylon coated to prevent
rusting and marking ceiling. Furnished with track unit.
3. Conductors: "U" shaped copper conductor, increases contact surface area
minimizes contact resistance provides reliable positive connection.
4. Insulated liner: .040" wall, high temperature extruded thermoplastic.
5. Toggle Bolts and Screws: furnished with track unit.
6. Dead End Cap: molded thermoplastic.
7. Feed Track.
8. Plain Track.
9. Standoff Mounting Clip: 1/16" extruded aluminum, one screw mounting,
one screw tightening. 3/8" gap helps to compensate for ceiling irregularities.
Provides rigid support for dense loading of track.
10. F eed-in Connector Module: included with feed track.
11. Removable Hole Plug: for surface feed 3/8" or 1/2" trade size connector.
12. K O: accepts, 3/8" or 1/2" trade connector for feed.
13. W ire Cover: molded thermoplastic.
Mechanical
Track units plug together and lock securely to prevent accidental separation.
ProSpec track fixtures can be attached at any point along the track. Track units
may be field cut.
Electrical
(2) circuits. Each circuit is 120V, 60Hz, 20 AMP compatible. Each circuit has
dedicated neutral for maximum control flexibility. Track units are continuously
grounded throughout. Electrical conductors are concealed in an insulated liner
in the track. Intended for wiring to branch circuit building wire with ground, in
accordance with National and local codes.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0910
5
1 5/8"
1 9/16"
Feed
13/64"
11
3/8"
Feed
8' 12'
26008WH 26012WH
26008BK 26012BK
ProSpec Track Lighting
48"
96"
144"
8 Plain Track
47-5/8"
Feed 95-5/8"
12
143-5/8"
See Detail A ( pg 4)
10
13
7 Feed Track
Feed Track
4' 8'
26001WH 26002WH
26001BK 26002BK
Mounting
Surface: ProSpec track can be surface mounted either flush to a surface or
with clips
1/16" clips are provided with the track and space the track 1/16" from the
ceiling.
3/8" standoff clips can be ordered separately. These space the track 3/8" from
the ceiling, provide a rigid support and a pleasing appearance on uneven ceilings.
Stem: ProSpec track can also be suspended from horizontal surfaces or sloped
surfaces. Stems can be field cut to provide any length from a surface with a
maximum length of 3".
A sloped surface (ceiling) adapter is available to allow the track to hang verti-
cally with the track opening horizontal to the floor.
Finish
All painted finishes are baked enamel.
Label
UL, I.B.E.W
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
26000
13/64"
6
13/64"
12'
26013WH
26013BK
Type:
Track
