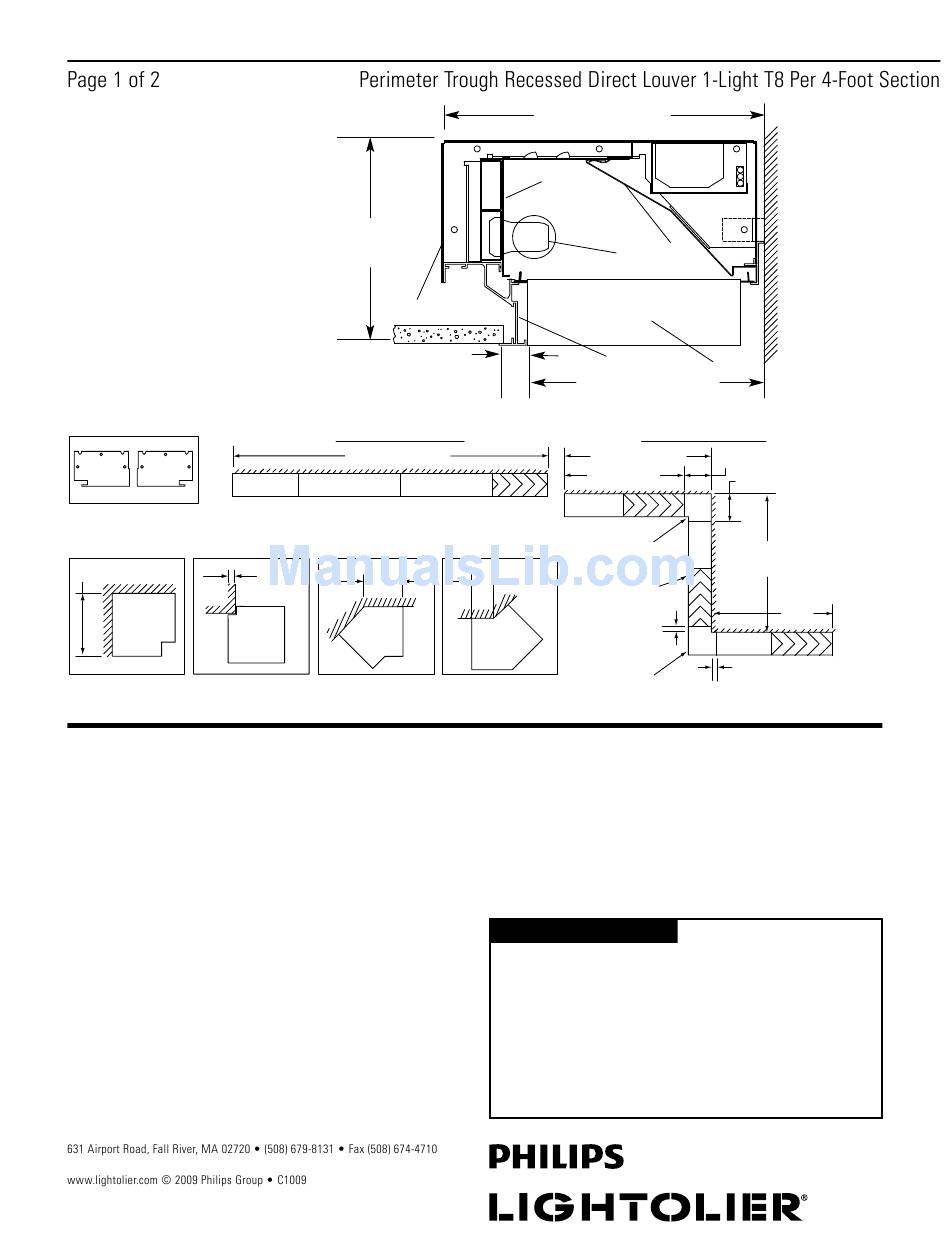

Quarter Scale
Complete ordering instructions on back.
Sample Run, End Plate and Corner Block Accessories
End Cap Set
PTS7EP Standard
PTS7EPA Air
14" (35.56cm)
90° Inside
90° Outside
PTS7C901 Standard
PTS7C900 Standard
PTS7C901A Air
PTS7C900A Air
Features
1.
Housing: Die-formed steel, slotted for air return. Integral flanges at each end
strengthen the housing and permit housings to be bolted together in continuous
runs and facilitate suspension of fixture. Concealed openings for heat extraction
and air return.
2. Lamping: One T8 fluorescent lamp, as specified. Provided by others.
3. Reflector: Die-formed semi-specular aluminum.
4. Louver: Semi-specular anodized aluminum, 40° lengthwise by 30° minimum
crosswise shielding. Supported along both edges by concealed frame of
extruded aluminum. Bold baffle, prismatic lens, gold anodized louver, open or
egg crate louver available, consult factory.
5. Socket Channels: Die-formed, pre-painted steel held by support brackets and
allows for up to 6" (15.24cm) lamp overlap.
6.
Ceiling Trim: Extruded aluminum with integral aligner splines.
Electrical
Specify 120 volt or 277 volt. 3 conductor, 18 gauge wire. Color-coded quick
connectors allow ease of connection for joiner modules. For special circuiting,
consult factory. Factory installed ballast disconnect allows the ballast to be
disconnected from and reconnected to incoming power under load without turning
the entire circuit off.
Dimming: Advance Mark X, use Advance compatible two-wire control (no extra
control lead required).
We reserve the right to change details of design, materials and finish.
7 -1/16"
(19.94cm)
1
1-5/16" (3.33cm)
Example of Straight Run
21' 10-3/4" (677.39cm)
60"
84"
8 -1/2" (245.11cm)
1-1/2"
(3.81cm)
135° Inside
PTS7C1351 Standard
PTS7C1351A Air

Lighting Systems

11-1/4" (28.58cm)
5
6
8-1/4" (20.96cm)
10' 2-1/4" (310.52cm)
9' 0" (274.32cm)
84"
Lighted
60"
Telescoping
Unit
90° Inside Corner
4-3/4" (12.07cm)
Telescoping
Unit
1-1/2" (3.81cm)
90° Outside Corner
135° Outside
PTS7C1350 Standard
PTS7C1350A Air
Mountings
Wall Adjustment Bracket - Allows for inconsistencies in wall straightness.
Die-formed steel used to mount system to the wall.
Finish
Ceiling trim painted baked enamel semi-gloss white.

Options and Accessories

90° inside, 90° outside, 135° inside, and 135° outside corerns available.
Labels
UL, cUL and I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
PTS7-1
2
3
4
Example of Pattern Run
14" (35.56cm)
14" (35.56cm)
48"
8' 1/2"
(245.11cm)
(3 places)
8' 1/2"
245.11cm
48"
1-1/2" (3.81cm)
Type:
