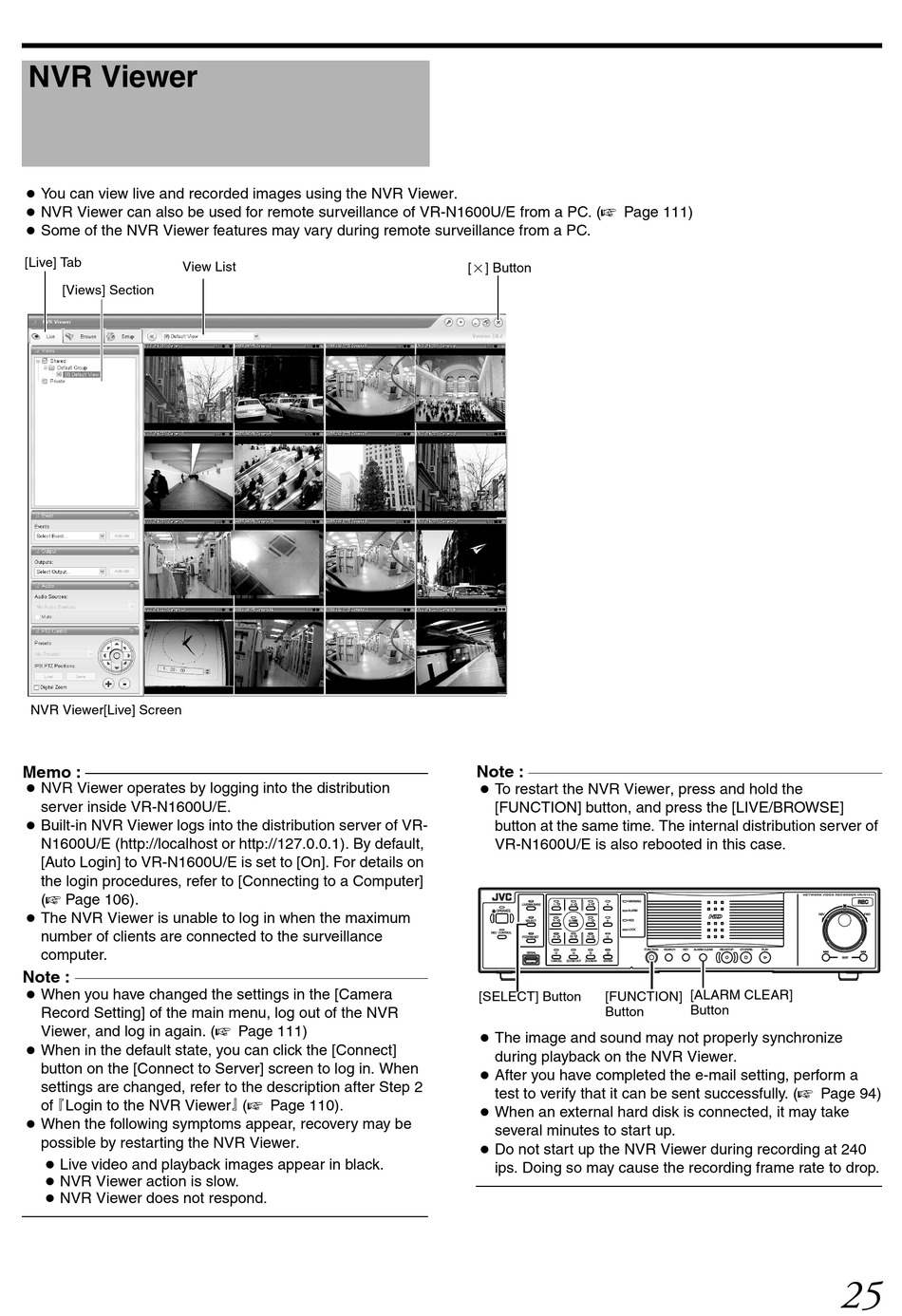

NVR Viewer

● You can view live and recorded images using the NVR Viewer.
● NVR Viewer can also be used for remote surveillance of VR-N1600U/E from a PC. (A Page 111)
● Some of the NVR Viewer features may vary during remote surveillance from a PC.
[Live] Tab
View List
[Views] Section
NVR Viewer[Live] Screen
Memo :
● NVR Viewer operates by logging into the distribution
server inside VR-N1600U/E.
● Built-in NVR Viewer logs into the distribution server of VR-
N1600U/E (http://localhost or http://127.0.0.1). By default,
[Auto Login] to VR-N1600U/E is set to [On]. For details on
the login procedures, refer to [Connecting to a Computer]
(A Page 106).
● The NVR Viewer is unable to log in when the maximum
number of clients are connected to the surveillance
computer.
Note :
● When you have changed the settings in the [Camera
Record Setting] of the main menu, log out of the NVR
Viewer, and log in again. (A Page 111)
● When in the default state, you can click the [Connect]
button on the [Connect to Server] screen to log in. When
settings are changed, refer to the description after Step 2
of Login to the NVR Viewer (A Page 110).
● When the following symptoms appear, recovery may be
possible by restarting the NVR Viewer.
● Live video and playback images appear in black.
● NVR Viewer action is slow.
● NVR Viewer does not respond.
[ ] Button
Note :
● To restart the NVR Viewer, press and hold the
[FUNCTION] button, and press the [LIVE/BROWSE]
button at the same time. The internal distribution server of
VR-N1600U/E is also rebooted in this case.
WARNING
LIVE/BROWSE
OPERATE ALARM
HDD
SELECT
LOCK
REC CONTROL
PTZ/PRESET
SERIAL
CANCEL ZOOM OUT ZOOM IN ENTER
[SELECT] Button [FUNCTION]
Button
● The image and sound may not properly synchronize
during playback on the NVR Viewer.
● After you have completed the e-mail setting, perform a
test to verify that it can be sent successfully. (A Page 94)
● When an external hard disk is connected, it may take
several minutes to start up.
● Do not start up the NVR Viewer during recording at 240
ips. Doing so may cause the recording frame rate to drop.
FUNCTION SEARCH KEY ALARM CLEAR REC/STOP STOP(PB) PLAY
[ALARM CLEAR]
Button
REV FWD
SKIP
