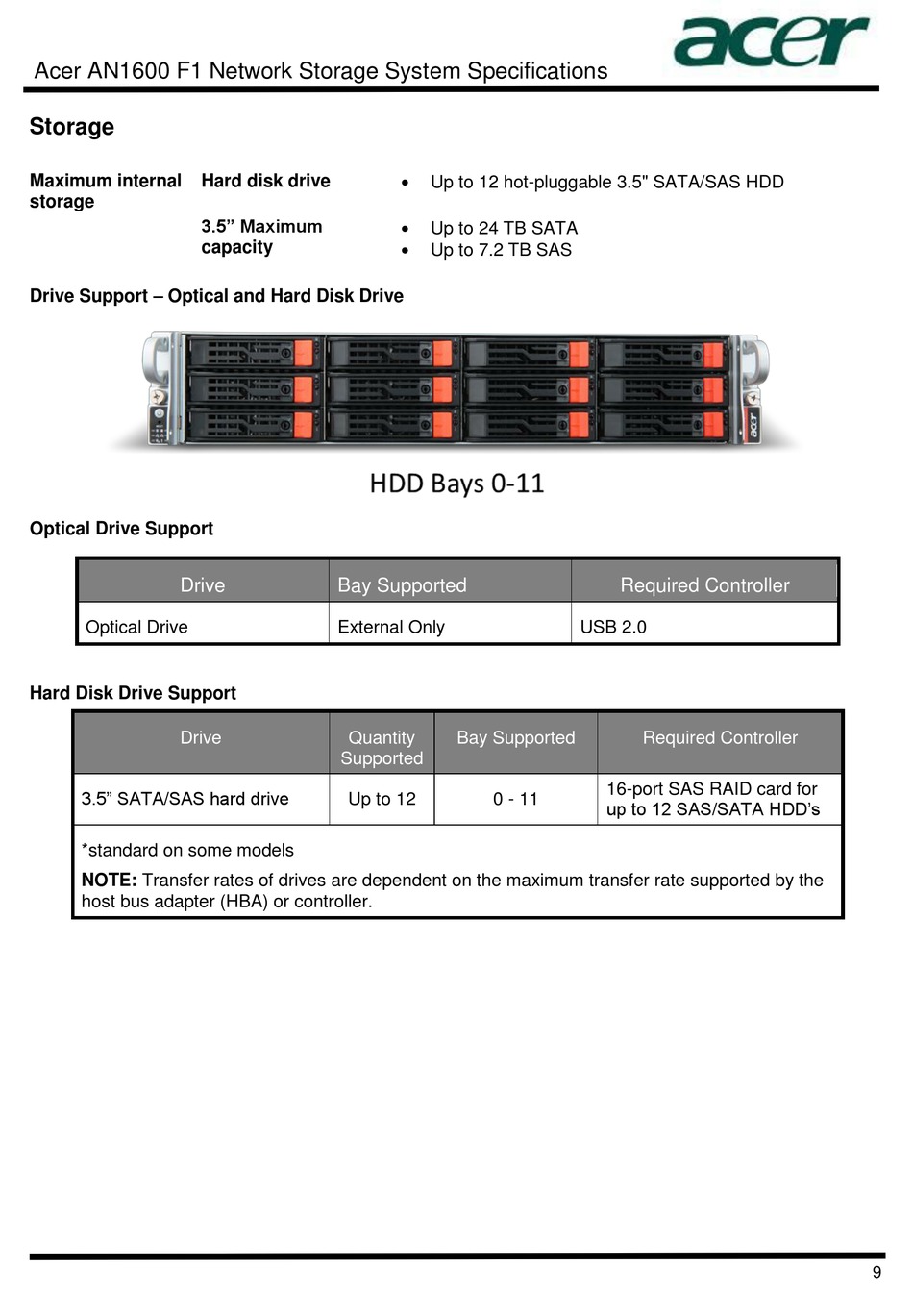

Acer AN1600 F1 Specifications page 9

Acer AN1600 F1 Network Storage System Specifications
Storage
Maximum internal Hard disk drive
storage
3.5" Maximum
capacity
Drive Support – Optical and Hard Disk Drive
Optical Drive Support
Drive
Optical Drive
Hard Disk Drive Support
Drive
3.5" SATA/SAS hard drive
*standard on some models
NOTE: Transfer rates of drives are dependent on the maximum transfer rate supported by the
host bus adapter (HBA) or controller.

Up to 12 hot-pluggable 3.5" SATA/SAS HDD

Up to 24 TB SATA

Up to 7.2 TB SAS
Bay Supported
External Only
Quantity Bay Supported
Supported
Up to 12 0 - 11
Required Controller
USB 2.0
Required Controller
16-port SAS RAID card for
up to 12 SAS/SATA HDD's
9
