HP Rack Storage/8 Setup

HP Rack Storage/8 units for shared storage in the cluster must be set up for single bus operation. When
cabled as a single bus unit, the HP Rack Storage/8 provides up to 8 hard disk drives on a single SCSI bus.
Although the HP Rack Storage/8 are shipped from the factory configured for single bus operations, check
their setups as outlined below and make changes as necessary.
Set Option Switches
Set the option switches as shown below.
Connect the Bridge Cable
Use the bridge cable included as part of the shipped items, and connect the port labeled 1-Out to the port
labeled 2-In. as shown above.
to part "4 Cluster Cabling and Setup" in the Installation Guide
NetRAID Supplement to the HP NetServer Microsoft Cluster Installation Guide
Option Switches Set to
Up
Down

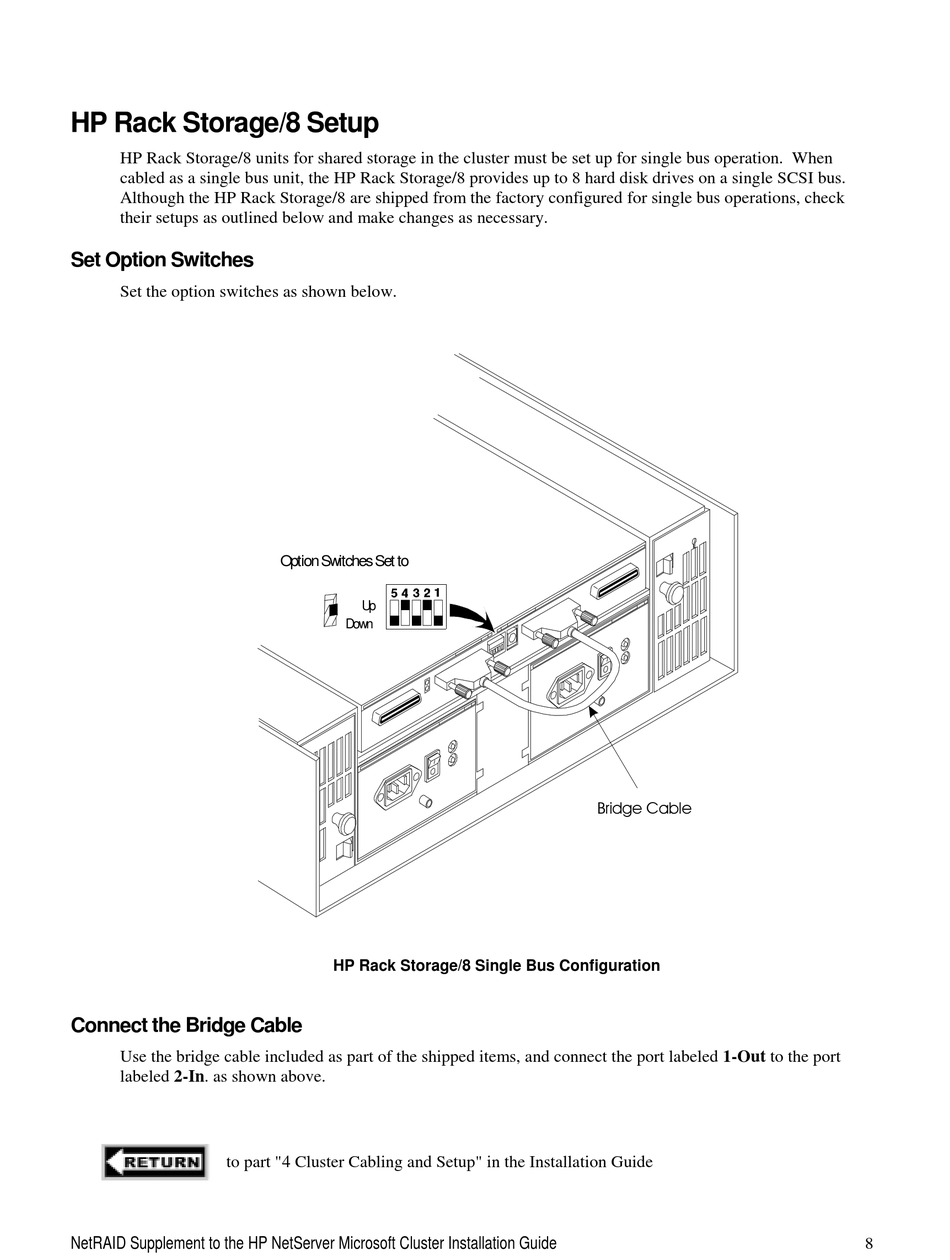

HP Rack Storage/8 Single Bus Configuration
%ULGJH &DEOH
8
