1 Installation and Setup

The HP Ultra3 Single Channel SCSI Host Bus Adapter enables you to connect up to
15 SCSI devices—such as hard disk drives, scanners, and CD-ROM drives—to HP
Servers with 32-bit or 64-bit PCI expansion slots. You can connect newer Ultra3 and
Ultra2 SCSI devices to the two 68-pin Low Voltage Differential/Single-Ended
(LVD/SE) connectors. You can also connect legacy SCSI devices to the 68-pin and
50-pin internal Single-Ended (SE) connectors.
NOTE The HP Server tc2110 uses only Ultra3 SCSI devices
68-pin Internal SE Connector
J6
68-pin Internal LVD/SE Connector
J2
68-pin External LVD/SE Connector
50-pin Internal SCSI SE Controller

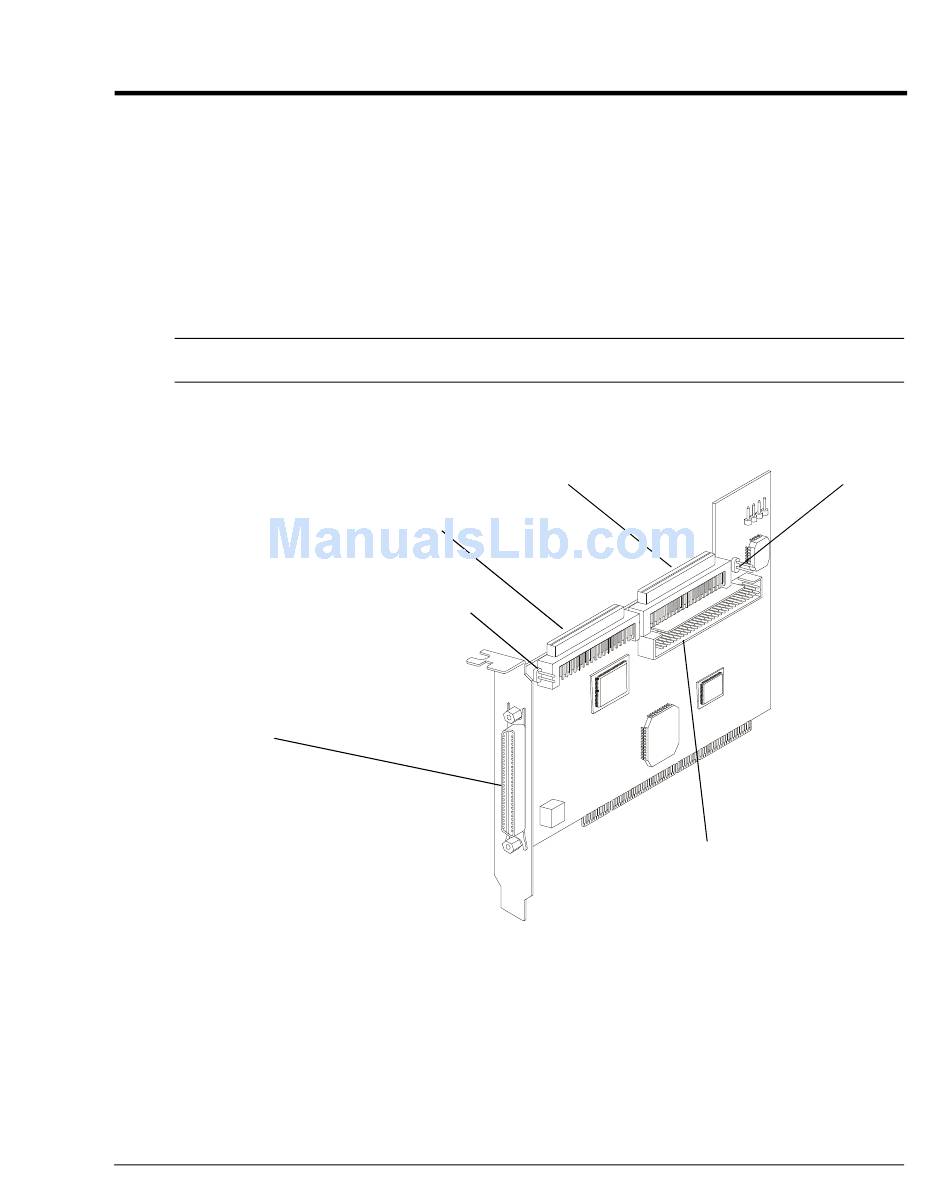

Figure 1-1. HP Ultra3 Single Channel SCSI Host Bus Adapter
