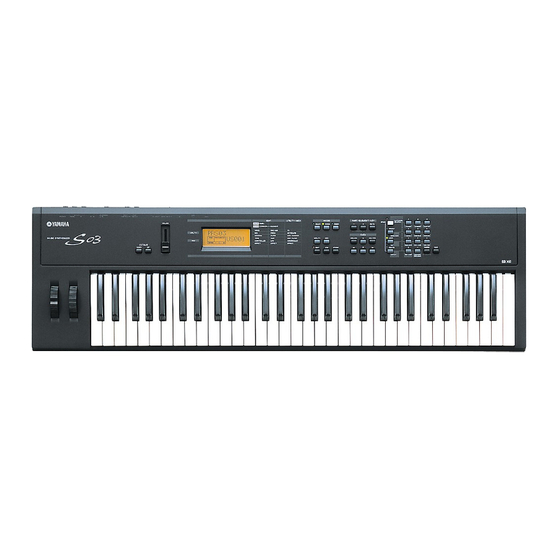

Yamaha S03SL Data List

Music synthesizer

Hide thumbs Also See for S03SL:

Owner's manual (112 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Yamaha S03SL

Page 1 MIDI Data Table MIDI Implementation Chart MIDI Implementation Chart This document is printed on chlorine free (ECF) paper with soy ink. U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation © 2001 Yamaha Corporation V654610 404MWCP2.3-03C0 Printed in Japan...
Page 2: Table Of Contents
S03 Data List Table of Contents S03 Normal Voice List ..........2 XG Normal Voice List ..........4 Drum Voice List ............8 Wave List ...............10 Original Kit List ............10 Multi List ..............11 Control List .............11 Effect Type List ............12 Effect Parameter List ..........13 Effect Data Assign Table ........16 MIDI Data Format ...........18 MIDI Data Table .............23...
Page 3: S03 Normal Voice List
S03 Normal Voice List PRESET Bank Select MSB=63, LSB=0 Element Switch Element Switch Category Voice Name Variation Type Category Voice Name Variation Type StPiano1 2Band EQ FuzFalf Amp Simulator StPiano2 2Band EQ VxOrgan 2Band EQ WarmStPf Early Ref1 Dance 2Band EQ Dark Pf 3Band EQ Pipes...
Page 4: Bank Select Msb=63, Lsb
USER Bank Select MSB=63, LSB=8 Element Switch Element Switch Category Voice Name Variation Type Category Voice Name Variation Type Synth St 2Band EQ Delay L.C.R Pro-Ana Phaser2 DarkSync Phaser1 AnaStrg1 2Band EQ BritSync Echo AnaStrg2 2Band EQ SP Sync 3Band EQ SynCh&St Flanger3 Porta Ld...
Page 5: Xg Normal Voice List
XG Normal Voice List Bank Select MSB=00, LSB=Bank Number Stereo Single Slow Fast Decay Double Attack Bright Dark Rsonant Attack Instrument Bank 0 Pgm# Bank 0 Bank 1 Bank 3 Bank 6 Bank 8 Bank 12 Bank 14 Bank 16 Bank 17 Bank 18 Bank 19...
Page 6 Release Rezo Sweep Muted Detune 1 Detune 2 Detune 3 Octave 1 Octave 2 5th 1 5th 2 Bend Tutti Instrument Bank 0 Pgm# Bank 0 Bank 25 Bank 27 Bank 28 Bank 32 Bank 33 Bank 34 Bank 35 Bank 36 Bank 37 Bank 38...
Page 7 Velo-Switch Velo-Xfade other wave Instrument Bank 0 Pgm# Bank 0 Bank 41 Bank 42 Bank 43 Bank 45 Bank 64 Bank 65 Bank 66 Bank 67 Bank 68 Bank 69 Bank 70 Bank 71 Group Bank Select LSB=00 Piano Acoustic Grand Piano GrandPno 1 Dream Bright Acoustic Piano...
Page 8 Instrument Bank 0 Pgm# Bank 0 Bank 72 Bank 96 Bank 97 Bank 98 Bank 99 Bank 100 E Bank 101 E Group Bank Select LSB=00 Piano Acoustic Grand Piano GrandPno Bright Acoustic Piano BritePno Electric Grand Piano El.Grand Honky-tonk Piano HnkyTonk Electric Piano 1 E.Piano1...
Page 9: Drum Voice List
Drum Voice List Bank Slelect LSB=0 Bank MSB# Program # Alternate StndKit1 StndKit2 ElctrKit AnalgKit SymphKit Note# Note Key off Room Kit Rock Kit Dance Kit Jazz Kit Brush Kit assign (Standard Kit) (Standard2 Kit) (Electro Kit) (Analog Kit) (Symphony Kit) C#-1 Surdo Mute Surdo Open...
Page 10 Bank MSB# Program # Alternate NwStndKt StudioKt ElPopKit TimberKt HvyHipKt Note# Note Key off TightKit Funk Kit R&B Kit SFX Kit 1 SFX Kit 2 assign (New Standard Kit) (Studio Kit) (Electro Pop Kit) (Timber Kit) (Heavy Hip Kit) C#-1 D-1# F#-1 G#-1...
Page 11: Wave List
Wave List Original Kit List Category/WaveName Category/WaveName Category/WaveName Category/WaveName Category/WaveName Original Kit Name Pf:PianoL@ Or:1 1/3 Pd:SynVoice Dr:Stick Wv:Bel2Wv StndKit1 (Standard1 Kit) Pf:PianoL@2 Or:1 Cp:Celesta Dr:SdQ Wv:Ep1 StndKit2 (Standard2 Kit) Pf:Hrpscd@ Or:Rotar Cp:Glocken Dr:T8SdA Wv:Ep2 Room Kit Or:Reed@ Or:Clack Cp:NewAge Dr:T8SdB Wv:Ep3 Rock Kit...
Page 12: Multi List
Multi List Control List Controller Bank Select MSB=63, LSB=64 Number Category Name Name Remarks DigiRich PITCH BEND Pitch Bend RosePad MODULATION WHEEL Set in the Utility Mode FOOT CONTROLLER (11) Set in the Utility Mode Minister FOOT SWITCH (64) Set in the Utility Mode Gtr+Pad Str+Bell The control numbers in the parentheses are the defaults.
Page 13: Effect Type List
Effect Type List REVERB Effect Type Features No Effect Effect turned off. Hall 1 Reverb simulating the resonance of a hall. Hall 2 Room 1 Reverb simulating the resonance of a room. Room 2 Room 3 Stage 1 Reverb appropriate for a solo instrument. Stage 2 Plate Reverb simulating a metal plate reverb unit.
Page 14: Effect Parameter List
Effect Parameter List n Parameters marked with a ● in the “Control” column can be controlled from an AC1 (assignable controller 1) etc. However, this is valid only for a Variation effect (when selected for Insertion). HALL1,HALL2 ECHO (variation block) ROOM1,ROOM2,ROOM3 Parameter Display...
Page 15 KARAOKE1,2,3 (variation block) ROTARY SPEAKER (variation block) Parameter Display Value See Table Control Parameter Display Value See Table Control ● 1 Delay Time 0.1 - 400ms 0 - 127 table#7 1 LFO Frequency 0.00Hz - 39.7Hz 0 - 127 table#1 2 Feedback Level -63 - +63 1 - 127...
Page 16 PHASER 2 (variation block) 2BAND EQ(STEREO) (variation block) Parameter Display Value See Table Control Parameter Display Value See Table Control 1 LFO Frequency 0.00Hz - 39.7Hz 0 - 127 table#1 1 EQ Low Frequency 50Hz - 2.0kHz 8 - 40 table#3 2 LFO Depth 0 - 127...
Page 17: Effect Data Assign Table
Effect Data Assign Table table#1 table#2 table#3 table#4 table#5 LFO Frequency Modulation Delay Offset EQ Frequency Reverb time Delay Time(200.0ms) Data Value Data Value Data Value Data Value Data Value Data Value Data Value Data Value Data Value 0.00 2.69 THRU(20) 17.0 100.8...
Page 18 table#6 table#7 table#8 Room Size Delay Time(400.0ms) Reverb Width;Depth;Height Data Value Data Value Data Value Data Value Data Value 201.6 17.6 204.8 17.9 207.9 18.2 211.1 18.5 12.7 214.2 18.8 15.8 217.4 19.1 19.0 220.5 19.4 22.1 223.7 19.7 25.3 226.8 20.0 28.4...
Page 19: Midi Data Format
MIDI Data Format 1.2.7 Expression This message controls expression (dynamics within a musical line) for each part. It is used to create volume changes during a song. Channel messages Control# Parameter Data Range Expression 0...127 1.1 Note on/note off If the Multi Part parameter Rcv EXPRESSION = OFF, that part will not receive Expression. These messages convey keyboard performance data.
Page 20 1.2.16 Portamento Control NRPN Data Entry This message specifies the portamento source key number (the key number at which MSB LSB MSB LSB Parameter name and value range portamento will begin). Data of 0...127 specifies the portamento source key. 19H rr Drum instrument pitch fine When Portamento Control is received, the currently-sounding pitch will change at a rr : drum instrument note number...
Page 21: System Exclusive Messages
1.3 Channel mode messages 1.5 Pitch bend These messages specify the basic operation of a part. This message conveys movements of the pitch bender. This message is generally used to modify the pitch of a part, but the depth of the following 1.3.1 All Sound Off seven effects can be controlled.
Page 22 = Sub-ID #1=General Information 2.1.5.1 Master tuning 00000010 = Sub-ID #2=Identity Reply This message simultaneously modifies the tuning of all channels. 01000011 = YAMAHA ID 00000000 = Device Family Code LSB S03 ID #1 11110000 Exclusive status 01000001 = Device Family Code MSB S03 ID #2...
Page 23: Realtime Messages
The message format is as follows. 2.3.1 XG parameter request 11110000 Exclusive status This message requests transmission of XG parameter settings. 01000011 YAMAHA ID Settings are transmitted in the format of an XG parameter change (refer to 2.1.3). 0000nnnn N:Device Number 01001100 Model ID...
Page 24: Midi Data Table
MIDI Data Table Address Size Data Parameter Description Default value - ¥ dB...0dB...+6dB(0...96...127) 40 00 - 7F REVERB RETURN 01 - 7F REVERB PAN L63...C...R63 Bank Select TOTAL SIZE 0E Available Bank Select/Program Change 00 - 7F REVERB PARAMETER 11 Refer to Effect Parameter List 00(depends on reverb type) 00 - 7F REVERB PARAMETER 12...
Page 25 <Table 1 - 5> 00 - 7F AC1 LFO PMOD DEPTH 0...127 00 - 7F AC1 LFO FMOD DEPTH 0...127 MIDI Parameter Change table (MULTI PART) 00 - 7F AC1 LFO AMOD DEPTH 0...127 00 - 5F AC2 CONTROLLER NUMBER 0...95 Address Size...
Page 26 <Table 2 - 2> <Table 2 - 5> MIDI Parameter Change table (REMOTE SWITCH) Bulk Dump Block Address Size Data Parameter Description Parameter Block Description Byte Count Top Address 0A 00 MULTI VOICE NATIVE SYSTEM Native System DEMO UTILITY NATIVE MULTI Bulk Header MIDI COMMON Common...
Page 27 00 - 7F CHORUS PARAMETER 5 “ 00(“) Address Size Data Parameter Description Default value 00 - 7F CHORUS PARAMETER 6 “ 1C(“) 00 - 7F CHORUS PARAMETER 7 “ 40(“) 00 - 5F AC1 CONTROLLER NUMBER 0...95 00 - 7F CHORUS PARAMETER 8 “...
Page 28 Address Size Data Parameter Description Default value 00 - 0F Scaling Pan Table Number 0...65535, 1st bit3-0→bit15-12 00 00 - 0F 2nd bit3-0→bit11-8 00 - 0F 3rd bit3-0→bit7-4 00 - 01 Level Scaling Offset4 -128...+0...+127 00 - 0F 4th bit3-0→bit3-0 00 - 7F 00 - 0F Tuning Curve Table Number 0...65535, 1st bit3-0→bit15-12...
Page 29: Midi Implementation Chart
YAMAHA [ Music Synthesizer ] Date :27-DEC-2000 Model S03 MIDI Implementation Chart Version : 1.0 Function... Transmitted Recognized Remarks Basic Default 1 - 16 1 - 16 Memorized Channel Changed 1 - 16 1 - 16 Memorized Mode Default Messages 1 - 4(m=1) ˛...
