Register your product and get support at
www.philips.com/welcome
AD7050W/37

User manual

Advertisement

Table of Contents
loading

Related Manuals for Philips AD7050W/37

Summary of Contents for Philips AD7050W/37

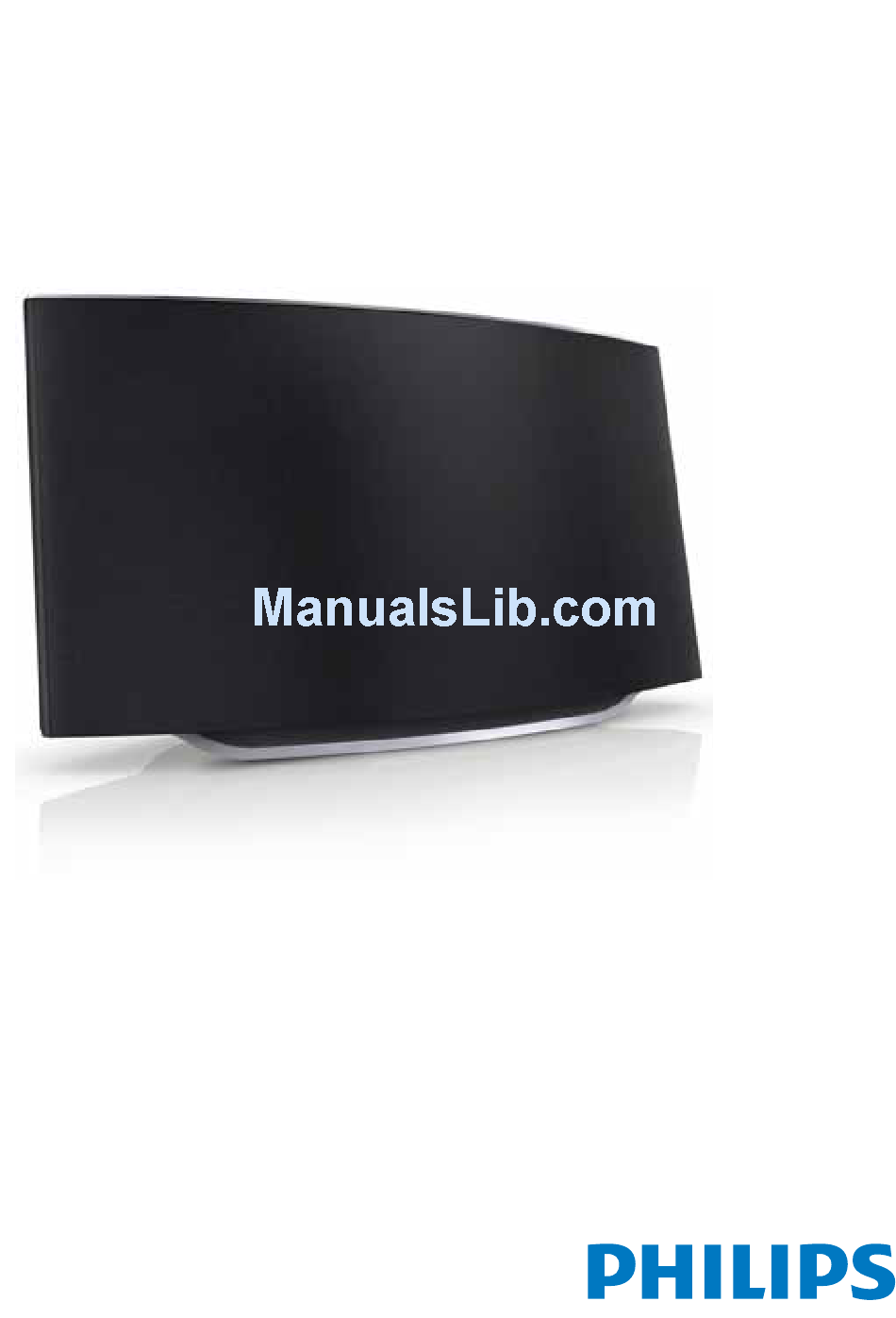

  • Page 1: User Manual

    Register your product and get support at www.philips.com/welcome AD7050W/37 User manual...
  • Page 3 For Customer Use P.S. To get the most from your PHILIPS purchase, be Enter below the Serial No. which is locat- sure to register online at: ed on the rear of the cabinet. Retain this www.philips.com/welcome...
  • Page 4 ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD- UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE Philips is not liable for any damage to or loss of any programs, LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR data, or other information stored on any media contained within...

  • Page 5: Table Of Contents

    Contents 7 Product information Specifications 1 Important 8 Troubleshooting Safety Notice 2 Your Entertainment System Introduction What's in the box What else you need Overview of the main unit Get started to use AirPlay 3 Prepare Connect power Turn AD7050W on 4 Connect to your home Wi-Fi network for AirPlay Method 1: Use iOS5 Wi-Fi network login sharing Method 2: Connect to a WPS router Method 3: Connect to a non-WPS Wi-Fi router 5 Play...

  • Page 6: Important

    1 Important j Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. k Only use attachments/accessories specified by the manufacturer. Safety l Use only with the cart, stand, tripod, bracket, or table specified by the Important Safety Instructions manufacturer or sold with the apparatus.

  • Page 7: Notice

    FCC rules Risk of overheating! Never install this apparatus in a confined space. Always leave a space of This equipment has been tested and found at least four inches around this apparatus for to comply with the limits for a Class B digital ventilation. Ensure curtains or other objects device, pursuant to Part 15 of the FCC Rules. never cover the ventilation slots on this These limits are designed to provide reasonable apparatus. protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy Notice and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no Notice of compliance guarantee that interference will not occur in a particular installation. Modifications If this equipment does cause harmful The user is cautioned that changes or...
  • Page 8 Class II equipment symbol: prevent potentially negative consequences on the environment and human health. Please visit www recycle.philips.com for additional information on a recycling center in your area. CLASS II apparatus with double insulation, and no protective earth provided. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to Note separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene • The type plate is located on the bottom of the (bags, protective foam sheet.) apparatus. Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. “Made for iPod, ” “Made for iPhone, ” and “Made for iPad” mean that an electronic accessory...

  • Page 9: Your Entertainment System

    • charge your iPod/iPhone/iPad through Entertainment the USB socket with an Apple USB cable (not supplied). System • play your iTunes music library on your iPod/iPhone/iPad through the USB socket directly while charging. • play music from other audio devices Congratulations on your purchase, and through the MP3-LINK socket. welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. What's in the box If you contact Philips, you will be asked for the model and serial number of this apparatus. The Check and identify the contents of your model number and serial number are on the package: bottom of the apparatus. Write the numbers • Main unit (with a built-in Wi-Fi here: module) Model No.

  • Page 10: Overview Of The Main Unit

    c WI-FI SETUP button/indicator List of compatible iTunes host devices • Connect the unit to a Wi-Fi network. for AirPlay • Show the Wi-Fi connection status of the unit. In terms of AirPlay, AD7050W is compatible with: d MP3-LINK • a Wi-Fi enabled PC/Mac installed with • Connect an external audio player iTunes 10 (or later); and through the supplied MP3 link cable. • the following iPod/iPhone/iPad models installed with iOS 4.3 (or later): e USB • iPad 2 • Connect an iPod/iPhone/iPad through an Apple USB cable (not supplied).

  • Page 11: Prepare

    3 Prepare Turn AD7050W on Press and hold on the back to turn the unit on. Always follow the instructions in this chapter in sequence. Wait for successful boot-up of the unit. » The boot-up takes up to 35 seconds. » During boot-up, the Wi-Fi SETUP Connect power indicator on the back of the unit blinks yellow. Caution » After boot-up, for first-time setup, the • Risk of product damage! Make sure that the power Wi-Fi SETUP indicator turns solid supply voltage matches the voltage printed on the yellow, and the unit enters Assisted Wi- bottom of the unit. Fi Setup mode automatically. • Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket.

  • Page 12: Connect To Your Home Wi-Fi Network For Airplay

    4 Connect to You have a Wi-Fi Choose method enabled device with 3 (see 'Method 3: your home Wi- an Internet browser, Connect to a non- such as an iPod touch/ WPS Wi-Fi router' on Fi network for iPhone/iPad or a Wi-Fi page 12). enabled PC/Mac. AirPlay Before connection of AD7050W to you home Wi-Fi network, make sure that: a your Wi-Fi router is powered on and working properly. b AD7050W has been powered on and booted up successfully (see 'Turn AD7050W on' on page 9).

  • Page 13: Method 2: Connect To A Wps Router

    Tap ALLOW (allow) to share your Wi-Fi settings with AD7050W. » After a while, the indicator on the back of AD7050W turns solid green, and the unit beeps. » AD7050W is connected to your existing home Wi-Fi network successfully. Method 2: Connect to a WPS router Note • Before you press any button on AD7050W, make sure that AD7050W has been booted up successfully (see 'Turn AD7050W on' on page 9). Press WIFI SETUP on the back of AD7050W. » The following dialog box is displayed. Press the WPS button on your home Wi-Fi router. Shortly after step 1, press Wi-Fi SETUP on the back of AD7050W.

  • Page 14: Method 3: Connect To A Non-Wps Wi-Fi Router

    Follow the sequence below for connection of AD7050W to a non-WPS Wi-Fi router. Collect settings of your home Wi-Fi router and write down on paper for use during AD7050W Wi-Fi setup (see 'Collect settings of your home Wi-Fi router' on page 12). Make sure that AD7050W is in Assisted Wi-Fi Setup mode. If not, switch AD7050W to Assisted Wi-Fi Setup mode (see 'Switch AD7050W to Assisted Wi-Fi Setup mode' on page 13). » A new Wi-Fi network created by AD7050W will appear, with the network name (SSID) of Philips AD7050W. Connect your Wi-Fi enabled device to the • newly created Wi-Fi network temporarily For some Wi-Fi routers, you may need to hold the WPS button for Wi-Fi connection or enable the WPS (see 'Connect your Wi-Fi enabled device PBC function from the router configuration pages. See to the newly created Wi-Fi network' on the user manuals of the specific routers for details. page 13). • If the Wi-Fi SETUP indicator on AD7050W stays yellow, it means that the Wi-Fi connection has failed.
  • Page 15 Connect your Wi-Fi enabled device to » A new Wi-Fi network created by your existing home Wi-Fi network. AD7050W will appear, with the network name (SSID) of Philips Launch the Internet browser (for example, AD7050W. Apple Safari or Microsoft Internet » It may take up to 45 seconds for Explorer) on your Wi-Fi enabled device. successful creation of this new Wi-Fi Open the configuration page of your network. home Wi-Fi router. Find the Wi-Fi settings tab and write down Note the following information on paper: • After you finish manual Wi-Fi setup for AD7050W, A Network name (SSID) the new Wi-Fi network created by AD7050W will B Wi-Fi security mode (usually WEP, disappear. WPA or WPA2 if enabled) • If you fail to enter Assisted Wi-Fi Setup mode, power off AD7050W and power on it, then try again after C Wi-Fi password (if Wi-Fi security is successful boot-up.
  • Page 16 Wait until successful Wi-Fi connection on your iPod touch/iPhone/iPad. is displayed at the upper left corner » of your iPod touch/iPhone/iPad. • If Philips AD7050W is not in the list, try to scan the available Wi-Fi networks again. Option 2: Use your Wi-Fi enabled PC/Mac Note • See the user manual of your PC/Mac for how to connect your PC/Mac to a Wi-Fi network. • During Wi-Fi network connection, do not connect any network cable to your PC/Mac. Open the Wi-Fi setup tool or control panel on your PC/Mac. Select Philips AD7050W from the list of Scan the available Wi-Fi networks. available networks. Philips AD7050W Select Philips AD7050W from the list of available networks.
  • Page 17 192.168.1.1 Wait until successful Wi-Fi connection on your PC/Mac. If you use Safari on your Wi-Fi enabled PC/ Mac, you can also select 'Philips AD7050W XXX' from the Bonjour pull-down list to enter the AD7050W configuration web page directly. • If Philips AD7050W is not in the list, try to scan the Click -> Preferences. available Wi-Fi networks again. » The Bookmarks menu is displayed.
  • Page 18 Tick Include Bonjour for Bookmarks bar. Select 'Philips AD7050W XXX' from the Bonjour pull-down list shown at the bookmarks bar. » The AD7050W configuration web page is displayed. • Follow the on-screen instructions to change and confirm the internal Wi-Fi settings of AD7050W. » After a while, the indicator on the back Change the internal Wi-Fi settings of of AD7050W turns solid green, and AD7050W the unit beeps. » AD7050W is connected to your On the AD7050W configuration web page, existing home Wi-Fi network you can change the internal Wi-Fi settings of successfully. AD7050W for connection of AD7050W to your existing home Wi-Fi network. Note Note •...
  • Page 19 Select your network name (SSID) from the list of available wireless networks. • If you like, you can change the name of your AD7050W in Advanced settings -> AirPlay Device Name on the AD7050W configuration web page. This is helpful when you have multiple Philips AirPlay-enabled devices in your house and you need to distinguish between them. • If you want to enter the network name (SSID) manually (for example, if you want to hide your SSID), go to Advanced settings -> CONFIGURE MANUALLY on the AD7050W configuration web page. Restore your Wi-Fi enabled device back to your existing home Wi-Fi...

  • Page 20: Play

    Stream audio from your iTunes music library to AD7050W Note • Make sure that your iTunes host device is connected to the same Wi-Fi network as AD7050W. Your iTunes device can be an iPod touch/iPhone/iPad installed with iOS 4.3 (or later) or a Wi-Fi enabled PC/Mac installed with iTunes 10 (or later). • For iPhone 4S users: To ensure optimal performance of AirPlay streaming, upgrade your iPhone 4S to iOS 5.1 or later. Select Philips AD7050W XXXX (or user Stream from your iPod touch/iPhone/ customized name) from the AirPlay list. iPad Launch the iPod/Music application on your iPod touch/iPhone/iPad. Tap on the AirPlay icon. Philips AD7050W xxx...
  • Page 21 Select a media file and start play. » After a while, you will hear music from AD7050W. Select Philips AD7050W XXXX (or user customized name) from the AirPlay list. Select a media file and start play. » After a while, you will hear music from AD7050W. Note • If you fail to hear music after successful setup, do one of the following on your iPod touch/iPhone/iPad: • (1) Disconnect and then re-connect to the same Wi-Fi router again; • (2) Close all applications running at the background; • (3) Power off and then power on your iPod touch/ iPhone/iPad again. Stream from your PC/Mac Launch iTunes 10 (or a later version) on your PC/Mac. • When you stream audio from your iTunes music library on a PC/Mac, you can select more than one AirPlay- Click the AirPlay icon on the window.

  • Page 22: Control Play

    Allow iTunes audio control from remote speakers in Edit (for Windows) or iTunes (for Mac) -> Preferences... -> Devices. Use advanced sound settings If your iTunes host device is an iPod touch/ iPhone/iPad: For advanced sound settings and additional features, you can use your iPod touch/iPhone/ iPad to download the Philips SoundStudio • Connect an Apple USB cable (not application from Apple App Store. It is a free supplied) to: application from Philips. • the USB socket on the back of AD7050W.

  • Page 23: Play From An External Device

    • Connect the supplied MP3 link cable to: Compatible iPod/iPhone/iPad • the DC IN socket on the back of the unit. The USB socket supports play and charge of • the headphone socket on an external the following iPod, iPhone, and iPad models. audio player. • iPad 2 • iPad • iPhone 4S • iPhone 4 • iPhone 3GS • iPhone 3G • iPhone • iPod classic • iPod 5G • iPod 4G • iPod nano (2nd, 3rd, 4th, 5th, and 6th generation) •...

  • Page 24: Update Firmware

    AD7050W on' on page 9). XXXX » It takes about 35 seconds for the unit to boot up. During boot-up, the WI-FI SETUP indicator on the back of the unit blinks yellow. » After boot-up, you can hear a beep and the WI-FI SETUP indicator turns to solid white. XXXX. zip » AD7050W is connected to the last configured Wi-Fi network automatically. On your PC/Mac, go to www.philips.com/ Make sure that AD7050W and your PC/ support. Mac are connected to the same Wi-Fi Enter the model number to find the latest router. firmware upgrade file available. Open Apple Safari on your PC/Mac, then Save the upgrade file to your hard drive. select 'Philips_Fidelio XXX' from the Bonjour pull-down list. • Or open any other Internet browser...
  • Page 25 Follow the on-screen instructions to complete the firmware update. Note • In case the firmware update fails, you can try the above procedures again. • After successful firmware update, if there is any problem with the Wi-Fi connection, restart AD7050W, and then try to set up the Wi-Fi network for AD7050W again (see 'Connect to your home Wi-Fi network for AirPlay' on page 10).
  • Page 26 7 Product General information information AC power Input: 100 ~ 240 V, 50/60 PHILIPS Hz 2A SWITCHING POWER Output: 18 V SUPPLY MODEL: Note 2 5 A EFS05001800250 CE • Product information is subject to change without prior Operation Power 40 W notice. Consumption Power Consumption in < 0 5 W Standby Mode Dimensions Specifications - Main Unit (L x W x H) 358 x 137 x...
  • Page 27 To keep the warranty valid, never try to repair support connection to routers with the system yourself. 802.11n only. • This device does not support the WPS- If you encounter problems when using this PIN method. apparatus, check the following points before • If your Wi-Fi router supports WPS and the requesting service. If the problem remains WPS-PBC method but fails to connect to unsolved, go to the Philips web site (www. AD7050W, try the manual Wi-Fi setup philips.com/welcome). When you contact method (see 'Method 3: Connect to a Philips, ensure that the apparatus is nearby non-WPS Wi-Fi router' on page 12). and the model number and serial number are • Enable SSID broadcast on the Wi-Fi router. available. • Keep away from potential sources of interference which may affect Wi-Fi signal, such as microwave ovens.
  • Page 28 Occasional breaking of AirPlay music • Video streaming or FTP downloads may streaming overload your router and therefore may cause interruptions during AirPlay music Do one or all of the following: play. Try to reduce the load of your router. • Move AD7050W closer to your Wi-Fi router. • Remove any obstacles between AD7050W and your Wi-Fi router. • Avoid using Wi-Fi channel which is overlapped by the nearby Wi-Fi network. • Check if your network speed is fast enough (in cases where multiple devices share the same router, the AirPlay performance may be affected). Turn off the other devices connected to your home router. • Enable the Quality of Service (QoS) option (if available on the Wi-Fi router). • Turn off other Wi-Fi routers. No AirPlay icon on my iTunes host device •...
  • Page 29 Specifications are subject to change without notice © 2012 Koninklijke Philips Electronics N.V. All rights reserved. AD7050W_37_UM_V1.0...
