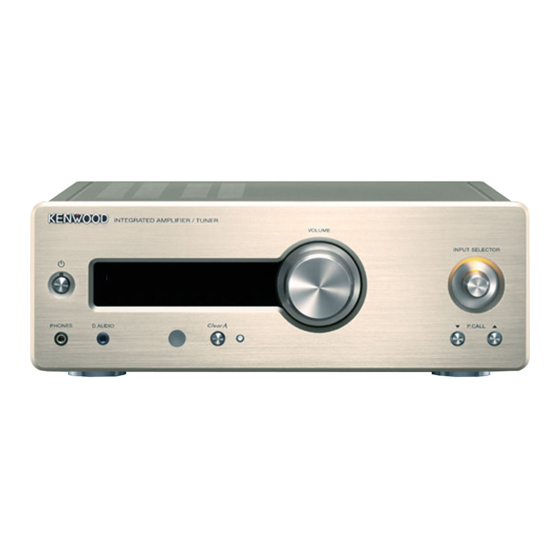

STEREO INTEGRATED AMPLIFIER/TUNER
R-K1000
INSTRUCTION MANUAL
Declaration of Conformity with regard to
Decla
the EMC Directive 2004/108/EC
Manufacturer:
Kenwood Corporation
2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan
EU Representative's:
Kenwood Electronics Europe BV
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands
© B60-5712-00/00 (EW/XW) BT

Advertisement

Table of Contents
loading

Related Manuals for Kenwood R-K1000

Summary of Contents for Kenwood R-K1000

  • Page 1 R-K1000 INSTRUCTION MANUAL Decla Declaration of Conformity with regard to the EMC Directive 2004/108/EC Manufacturer: Kenwood Corporation 2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan EU Representative’s: Kenwood Electronics Europe BV Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands © B60-5712-00/00 (EW/XW) BT...

  • Page 2: Safety Precautions

    Safety Precautions Before Applying Power Caution: Read this page carefully to ensure safe operation. Units are designed for operation as follows. Australia .............AC 240 V only Europe ............AC 230 V only Safety precautions WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 3: Important Safety Instructions

    Safety Precautions IMPORTANT SAFETY INSTRUCTIONS Caution: Read this page carefully to ensure safe operation. Read Instructions A product and cart combination should be moved with care. Quick – All the safety and operating instructions should stops, excessive force, and uneven be read before the product is operated.
  • Page 4 Safety Precautions IMPORTANT SAFETY INSTRUCTIONS 8. Power Cord Protection d) If the product does not operate normally by following the operating instructions. – Power-supply cords should be routed so that they are not likely to be walked on or pinched e) If the product has been dropped or by items placed upon or against them, paying damaged in any way, and...
  • Page 5 Safety Precautions Safety Precautions 19. Outdoor Antenna Grounding Information on Disposal of Old Electrical – If an outside antenna or cable system is and Electronic Equipment (applicable for connected to the product, be sure the antenna or EU countries that have adopted separate cable system is grounded so as to provide some waste collection systems) protection against voltage surges and built-up...
  • Page 6 Room Equalizer. Realistic audio playback with near-original sound Supreme EX Original Kenwood audio enhancement technology that reproduces the high-bandwidth component in the original sound produces incredibly realistic audio that restores almost all the nuances of the original performance.

  • Page 7: Table Of Contents

    Contents To ensure safety, read the items carrying this marking carefully. Procedures by Input Source P.25 Before Using the System This chapter explains how to connect and use the system with the diff erent input sources. • Receiving Broadcast Stations Be sure to read these precautions.

  • Page 8: Accessories

    Accessories AM loop antenna FM indoor antenna Microphone for Room Equalizer (Cord length: Approx. 5 m: 1) Remote control Batteries for the remote control (RC-R0830E: 1) (R03: 2) R-K1000...

  • Page 9: Installing The System

    Installing the System Notes on installing the system Always install the system on a fl at, stable surface. When installing the system on a stand of some sort, be sure to check the strength of the stand. The magnets used in the speakers may cause color irregularities on TV or PC screens. Do not set up the speakers too close to a TV or PC.

  • Page 10: Connecting The System

    Connecting the System Ensure that all the cords are securely connected. Loose or incomplete connections may Main Connections result in noise interference or no sound at all. Do not plug the AC power cord into an AC wall outlet until all the connections are completed. Caution for Before disconnecting any cords or cables, always turn the main unit off and unplug the power cord connection...

  • Page 11: Connecting The Speakers

    Connecting the System If the system is connected correctly and still does not operate Microcomputer malfunctions normally or shows display errors, reset the microcomputer. (P.65) Connecting the AM loop antenna The antenna supplied with the system is for indoor use. Place it as far as possible away from the main unit, your TV set, the speaker cords and the power cord and point it in the direction that gives the best reception.
  • Page 12 Connecting the System Connecting the CD Player (DP-K1000 – sold separately) When connecting a CD player, read the instruction manual for the DP-K1000 also. Ensure that all the cords are securely connected. Loose or incomplete connections may result in noise interference or no sound at all.
  • Page 13 Connect digital audio players to the [D.AUDIO] terminal on the front panel of the main unit. If you connect a Kenwood player that supports digital audio link using the dedicated cable, you can control the player from the main unit and the remote control. (P.34) It can be connected using a 3.5 mm stereo mini-plug cable...
  • Page 14 Connecting the System TAPE IN/OUT Connect the audio output and audio input terminals on the cassette deck to the [TAPE IN] and [TAPE OUT] terminals respectively on the rear panel of the R-K1000. Audio OUT Audio IN Cassette deck AUX IN Connect the audio OUT terminals on components such as VCRs to the [AUX IN] terminal on the rear panel of the R-K1000.
  • Page 15 Connecting the System DIGITAL IN 3 (COAX) Connect the digital coaxial type output terminal on components such as DVD players to the [DIGITAL IN 3 (COAX)] terminal on the rear panel of the R-K1000. Set the digital audio output on connected components to “PCM”.

  • Page 16: Component Names And Functions

    Component Names and Functions Main unit Power (P.23) INPUT SELECTOR (P.23, 32) Turns the unit on or off (Standby). Selects the input source (FM, AM, CD, PHONO, TAPE, AUX, D.AUDIO, D-IN1, Standby indicator D-IN2 or D-IN3). Red: Lights in Standby mode. Orange: Lights in Timer Standby mode.
  • Page 17 Component Names and Functions Displays shown in this manual Display may diff er from the actual displays. Displays numbers and text. Displays the FM or AM radio frequency or the sampling frequency. Flashes when the sound Displays the FM reception frequency. is muted.

  • Page 18: Remote Control

    Component Names and Functions Remote control keys with the same names as keys on the Remote control main unit have the same functions as the main unit keys. Turns the unit on or off (Standby). Sets Clear A. (P.23) (P.49) Turns the unit on or off (Standby).

  • Page 19: Using The Remote Control

    Component Names and Functions Using the remote control After plugging the main unit into the AC wall outlet, press the power [K] key on the remote control unit to turn the system Once the system is turned on, press the key for the function you want to use.

  • Page 20: How To Use This Manual

    How to Use This Manual Operation procedure While this system can be controlled from either the remote control or the main unit, the explanations in this manual primarily describe operation procedures using the remote control. Receiving Broadcast Stations Presetting Stations Automatically (AUTO MEMORY) Up to 40 stations can be preset in the system.
  • Page 21 How to Use This Manual Operation icons Explanations of main unit procedures Explains the procedure for the radio. Explains the procedures for external Explanations of remote components. control procedures Explains the procedure for digital audio players. Related functions that may also be helpful Explains how to set the sound quality.

  • Page 22: Basic Operation

    Basic Operation This section describes some basic procedures for using the system, such as turning the unit on or off , selecting input source, and adjusting the volume. Check the connections. (P.10–15) Preparations Have the remote control ready. (P.19) ClearA SLEEP TIMER DISPLAY...
  • Page 23 Basic Operation Turn the system on (off ). You can also turn the R-K1000 on by pressing [BAND], [D.AUDIO], [CD], [AUX], [PHONO], [TAPE], [D-IN1], [D-IN2] or [D-IN3] on the remote control. Pressing the power [K] key when the unit is on turns it off (Standby mode).

  • Page 24: Using Cds (Dp-K1000 - Sold Separately)

    Using CDs (DP-K1000 – sold separately) When a DP-K1000 (sold separately) is connected to the R-K1000, you can use the R-K1000 remote control to play CDs. Skipping forward/back Hold down the [I] or [J] key. Skipping tracks, skipping back, skipping to the start ClearA To skip to the previous or next track: Press the [G] or [H] key.
  • Page 25 Procedures by Input Source This chapter explains the operation procedures for each input source. For information on the sound quality settings and component settings regardless of the input source, see “Audio Settings” (P.37) and “Component Settings” (P.51). If an error is displayed or a problem arises, see “Maintenance” (P.61).

  • Page 26: Receiving Broadcast Stations

    Receiving Broadcast Stations This section explains how to listen to the FM/AM radio and set radio stations. Listening to FM/AM Radio Simply pressing the [TUNER/BAND] key turns on the system and allows you to listen to the radio. Press the [TUNER/BAND] key to select “FM” or “AM”. Each time you press the key, the band switches between “FM”...
  • Page 27 Receiving Broadcast Stations Presetting Stations Automatically (AUTO MEMORY) R P.28 Related Presetting Stations Manually (Manual Preset) R P.29 Information Audio Settings R P.37 onwards Choosing from stations that are not stored (Auto/Manual tuning) 1 Select Auto tuning or Manual tuning. Press the [AUTO/MONO] key.

  • Page 28: Presetting Stations Automatically (Auto Memory)

    Receiving Broadcast Stations Presetting Stations Automatically (AUTO MEMORY) Up to 40 stations can be preset in the system. For use of the RDS function, stations must be memorized by AUTO MEMORY. Press the [MODE] key. ClearA SLEEP TIMER DISPLAY DIMMER Select “AUTO MEMORY”.

  • Page 29: Presetting Stations Manually (Manual Preset)

    Receiving Broadcast Stations FM/AM Broadcast Statins Related Information Presetting Stations Manually (Manual Preset) Select a desired station. Receive a station with either Auto Tuning or Manual Tuning. (P.27) To memorize an RDS station, wait for the station name to appear on the display before carrying out step 2.

  • Page 30: Ps (Program Service) Name Display

    RDS (Radio Data System) This system is designed for RDS reception, it can extract the information from the broadcast signal for use with various functions such as automatic display of the station name. Select the FM band. Preset RDS stations with the AUTO MEMORY function. (P.28) PS (Program Service) Name Display When an RDS broadcast is received, the station name is automatically ClearA...

  • Page 31: Searching For A Desired Program Type (Pty Search)

    RDS (Radio Data System) Searching for a Desired Program Type (PTY Search) The tuner automatically searches for a station which is currently broadcasting a specified program type (genre). Press the [PTY] key. When an RDS broadcast is received, the program type is shown on the ClearA display.

  • Page 32: External Components

    External Components You can play tracks by connecting external components to the system. Playback from External Components Connect the external component to the system as described in “Connecting Other Accessories (Commercially Available Units)” (P.13–15). When connecting external components, always turn this system and the external components off beforehand.

  • Page 33: Adjusting The External Component Input Level

    External Components Connecting Other Accessories (Commercially Available Units) R P.13–15 Related Audio Settings R P.37 onwards Information Adjusting the External Component Input Level Use the procedure below to adjust the input level for the external component connected to the [PHONO IN], [TAPE IN] or [AUX IN] terminal.

  • Page 34: Playback From A Digital Audio Player

    D.AUDIO You can connect a Kenwood digital audio player (referred to hereafter simply as “digital audio player”) to the system and use it to play tracks. Playback from a Digital Audio Player Use this procedure to connect a digital audio player to the system and use it to play tracks.
  • Page 35 D.AUDIO Adjusting the Digital Audio Player Input Level R P.36 Related Audio Settings R P.37 onwards Information Operations during digital audio player playback Playing the tracks in the previous/next folder To go to the previous folder, press the [FOLDER O] key. To go to the next folder, press the [FOLDER P] key.

  • Page 36: Adjusting The Digital Audio Player Input Level

    D.AUDIO D.AUDIO Adjusting the Digital Audio Player Input Level Use the procedure below to adjust the input level for the external component connected to the [D.AUDIO] terminal. Use this adjustment when the volume from an external component is noticeably higher or lower than other input sources at the same volume setting.
  • Page 37 Audio Settings Use the procedures in this chapter to specify the sound quality settings for your stereo system. These procedures allow you to set up the Room Equalizer function, which will measure the acoustic characteristics of your room and optimize the system’s acoustic eff ects. You can also use the system’s digital sound equalizer function to customize the sound to your own preferences.

  • Page 38: Room Eq (Room Equalizer)

    ROOM EQ (Room Equalizer) The system measures the test signal emitted from the speakers using the microphone supplied with the system and automatically sets the optimum acoustic eff ect for the size of the room and the location in which the stereo is installed. You can also combine this with the TONE eff ects. Automatically Setting the Acoustic Eff ects for the Room (ROOM EQ) The system measures the acoustic characteristics using the microphone supplied with the system and automatically sets the following acoustic...
  • Page 39 ROOM EQ (Room Equalizer) Plug the room equalizer microphone supplied with the system into the [ROOM EQ MIC IN] jack on the rear panel of the main unit. See “Main Connections” (P.10) for details. Place the microphone in the listening position (at ear level).
  • Page 40 ROOM EQ (Room Equalizer) Canceling automatic setup If you press the [MODE] key during automatic setup, the “R.EQ CANCEL?” message appears. If you press the [ENTER] key, “R.EQ CANCEL” is displayed and setup is canceled. Pressing the [VOL] key also cancels automatic setup. ClearA SLEEP TIMER...

  • Page 41: Matching The Acoustic Eff Ect To The Conditions

    ROOM EQ (Room Equalizer) ROOM EQ (Room Equalizer) Sound Presets R P.45 Related Related Information Information Matching the Acoustic Eff ect to the Conditions Carry out the “ROOM EQ” (P.38) procedure beforehand. This procedure then allows you to select the sound mode based on the selected sound eff ect and your listening conditions.

  • Page 42: Digital Sound Equalizer

    Digital Sound Equalizer This system features a Digital Sound Equalizer function that uses DSP-based digital processing. This provides more detailed settings that allow you to adjust the sound to your own preferences. Adjusting the Range Levels (TONE) Use this feature to adjust low-, mid- and high-range tones. By choosing one of 3 frequencies (TURN OVER) for each tone range and then setting the levels, you can adjust the tones to match your preferences.
  • Page 43 Digital Sound Equalizer Sound Presets R P.45 Related Information Press the [ENTER] key. ClearA Press the [C] or [D] key to select the frequency of the SLEEP TIMER DISPLAY DIMMER mid tones (MID) you want to adjust (1 kHz, 2 kHz, MODE 3 kHz).
  • Page 44 Digital Sound Equalizer Press the [ENTER] key. ClearA SLEEP TIMER DISPLAY DIMMER MODE Press the [C] or [D] key to select the frequency of the high ROOM EQ SOUND FLAT TONE MODE PRESET tones (TREBLE) you want to adjust (5 kHz, 7 kHz, 10 kHz). ENTER TUNING P.CALL...

  • Page 45: Sound Presets

    Sound Presets Related Information You can register up to 3 of the sound eff ects you have set as Sound Presets. You can then recall and apply the registered Sound Presets simply by pressing the [SOUND PRESET] key. Registering Sound Eff ects You can register up to 3 of the sound eff ects you have set using ROOM EQ, ROOM EQ MODE or TONE.

  • Page 46: Using Sound Presets

    Sound Presets Using Sound Presets Use this procedure to recall and apply a registered Sound Preset. Register the sound eff ect you want to use as a Sound Preset beforehand. (P.45) ClearA SLEEP TIMER DISPLAY DIMMER MODE ROOM EQ SOUND Press the [SOUND PRESET] key.

  • Page 47: Disabling Equalizer Eff Ects (Flat)

    Sound Presets Sound Presets Related Information Disabling Equalizer Eff ects (FLAT) Press the [FLAT] key. ClearA SLEEP TIMER DISPLAY DIMMER MODE ROOM EQ SOUND FLAT TONE MODE PRESET The “TONE” levels are set to 0 and “NORMAL” is set in “ROOM EQ MODE” ENTER and the TURN OVER settings also revert to their default values.

  • Page 48: Supreme Ex

    Supreme EX Supreme EX is Kenwood’s original sound quality enhancement technology and is used for playing CDs and audio fi les or for playback using components connected to a digital input terminal. Setting Supreme EX Press the [MODE] key. ClearA...

  • Page 49: Clear A

    Clear A Related Information Clear A mode allows you to enjoy superb rich sound quality even at low volumes. This function is particularly useful for situations when you want to keep the volume low, such as late- night listening. Setting Clear A Press the [Clear A] key.

  • Page 50: Balance

    BALANCE Use this procedure to adjust the volume balance for the left and right speakers. Adjusting the Speaker Volume Balance Press the [MODE] key. ClearA SLEEP TIMER DISPLAY DIMMER Select “BALANCE”. MODE ROOM EQ SOUND Press the [A] or [B] key. FLAT TONE MODE...
  • Page 51 Component Settings As well as the basic time settings, this chapter explains various functions that make the system easier to use, such as the timer and display settings. Setting the Time …………………………………52 Setting the Timer • Setting the Sleep Timer (SLEEP) …………………………… 53 •...

  • Page 52: Setting The Time

    Setting the Time Set the system clock to the correct time. If you use the Program Timer for playback when the time is not set correctly, you will not be able to run the program at the correct time. Press the [MODE] key. Select “TIME ADJUST”.

  • Page 53: Setting The Timer

    Setting the Timer The system features the Sleep Timer, which automatically turns the system off after a set interval, and the Program Timer, which starts playback at a specifi ed time. Setting the Sleep Timer (SLEEP) This function automatically turns the system off after a set interval. You can set an interval between 10 and 90 minutes in 10-minute increments until the system is turned off .

  • Page 54: Setting The Program Timer (Program)

    Setting the Timer Setting the Program Timer (PROGRAM) This function allows you to use the timer to automatically start playback at a specifi ed time. You can set two timers (PROG. 1 and PROG. 2) at the same time. You can use the timer to activate CD, radio or external component. Set the system’s clock to the correct time beforehand.
  • Page 55 Setting the Timer Setting the Timer Setting the Time R P.52 Related Information Select the day (or days) on which the Program Timer will run. Press the [A] or [B] key. The setting changes as shown below each time you press the key. EVERYDAY SUNDAY MONDAY...
  • Page 56 Setting the Timer Select “PLAY” or “AI PLAY”. Press the [A] or [B] key. Playback is at the volume set in step 11. ClearA Playback begins at the specifi ed time and the volume gradually increases to the level SLEEP TIMER DISPLAY DIMMER...
  • Page 57 Setting the Timer Setting the Timer Select the input source. Press the [A] or [B] key. The input source changes as shown below each time you press the key. TUNER TAPE ClearA D-IN3 D-IN2 D-IN1 SLEEP TIMER DISPLAY DIMMER MODE ROOM EQ SOUND Press the [ENTER] key.

  • Page 58: Display Settings

    Display Settings Use these settings to adjust the brightness of the display and to specify the settings for the main unit dial lighting. Setting the Display Brightness (DIMMER) Use these settings to adjust the brightness of the display and to specify the settings for the main unit dial lighting.

  • Page 59: Turning The Display Saver On/Off

    Display Settings Turning the Display Saver ON/OFF If the system is not used at all for a set period, this function scrolls the display to prevent burn-in of the text on the display and uneven display brightness. Press the [MODE] key. ClearA Select “DISP.

  • Page 60: Auto Power Save (A

    Auto Power Save (A.P.S.) Auto Power Save (A.P.S.) is a function that automatically turns the system off if it is not used at all for 30 minutes after a CD stops playing. (When the DP-K1000 (sold separately) is connected.) Press the [MODE] key. ClearA Select “A.P.S.
  • Page 61 Maintenance This chapter explains how to deal with error messages displayed on the system or problems that may arise. It also describes how to store and maintain your system so that it continues to give pleasure for many years to come. Messages …………………………………………62 Troubleshooting …………………………………63 Care and Storage …………………………………66...

  • Page 62: Messages

    Messages Displayed Message Meaning CAN’T SETUP The ROOM EQ microphone is not connected. RConnect the ROOM EQ microphone. (P.10) Headphones are plugged into the [PHONES] jack. RUnplug the headphones. Non-PCM The [CD IN (COAX)], [DIGITAL IN 1 (OPT)], [DIGITAL IN 2 (OPT)] or [DIGITAL IN 3 (COAX)] terminal is receiving non-PCM input singnals.

  • Page 63: Troubleshooting

    Troubleshooting Apparent faults or malfunctions may be easily resolved. Before calling for service, check the table below for symptoms that match yours. Amplifi er/Speakers Symptoms Possible Cause/Solution Ref. page There is no sound. Check that the system is connected properly, as 10–15 described in “Connecting the System”.
  • Page 64 Possible Cause/Solution Ref. page I can’t use the remote Connect the player using the dedicated cable. control or main unit to Check whether the connected model is compatible. control my Kenwood digital audio player. Remote control Symptoms Possible Cause/Solution Ref. page The remote control does Insert new batteries.
  • Page 65 Troubleshooting Resetting the microcomputer Symptoms Possible Cause/Solution Microcomputer Malfunctions may occur due to an external cause or because a malfunction (the system connection cord was unplugged while the system was turned on. does not work, the Use the procedure below to reset the microcomputer. display is faulty, etc.).

  • Page 66: Care And Storage

    Care and Storage Care and storage of main unit Do not place in the following locations Place exposed to direct sunlight. Place subjected to excessive humidity or dirt. Place exposed to direct heat from heating equipment. Be careful against condensation When the diff erence in temperatures between the main unit and the environmental air is large, dew may be condensed inside the main unit and may cause...

  • Page 67: Specifi Cations

    Specifi cations [Amplifi er] [Digital unit] Rated output Sampling frequencies Rated output power (Clear A: OFF) ........32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz ......40 W + 40 W (63 Hz – 12.5 kHz, 0.7 %, 6 Ω, IEC) Supreme EX (CD, D-IN1, D-IN2, D-IN3) Output power (Clear A: OFF) Playable frequencies ...........
  • Page 68 For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
