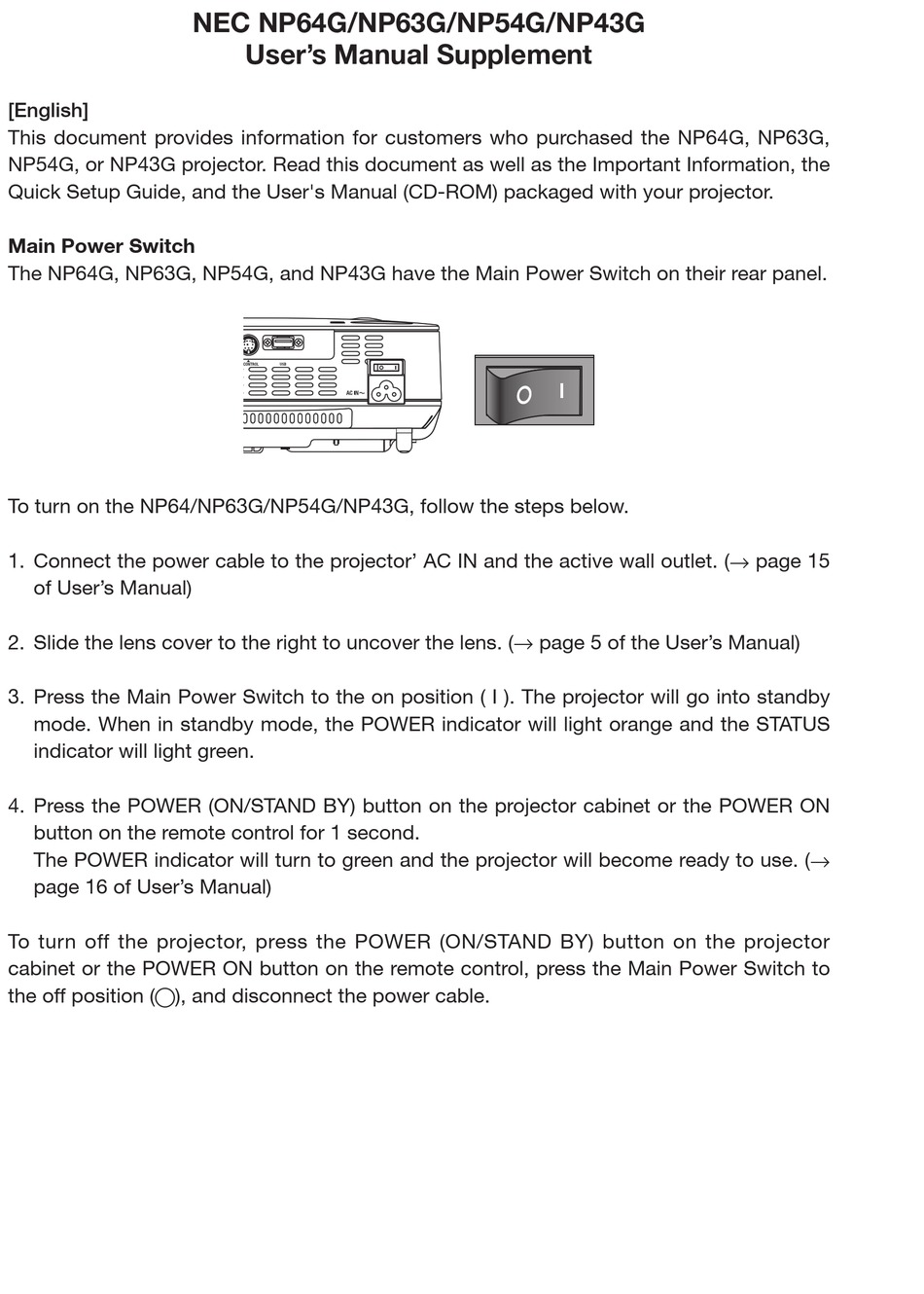

This document provides information for customers who purchased the NP64G, NP63G,
NP54G, or NP43G projector. Read this document as well as the Important Information, the
Quick Setup Guide, and the User's Manual (CD-ROM) packaged with your projector.
Main Power Switch
The NP64G, NP63G, NP54G, and NP43G have the Main Power Switch on their rear panel.
To turn on the NP64/NP63G/NP54G/NP43G, follow the steps below.
1. Connect the power cable to the projector' AC IN and the active wall outlet. ( → page 15
of User's Manual)
2. Slide the lens cover to the right to uncover the lens. ( → page 5 of the User's Manual)
3. Press the Main Power Switch to the on position ( I ). The projector will go into standby
mode. When in standby mode, the POWER indicator will light orange and the STATUS
indicator will light green.
4. Press the POWER (ON/STAND BY) button on the projector cabinet or the POWER ON
button on the remote control for 1 second.
The POWER indicator will turn to green and the projector will become ready to use. ( →
page 16 of User's Manual)
To turn off the projector, press the POWER (ON/STAND BY) button on the projector
cabinet or the POWER ON button on the remote control, press the Main Power Switch to
the off position ( ), and disconnect the power cable.
NEC NP64G/NP63G/NP54G/NP43G
User's Manual Supplement
Advertisement
Related Manuals for NEC NP64
Summary of Contents for NEC NP64
- Page 1 NEC NP64G/NP63G/NP54G/NP43G User’s Manual Supplement [English] This document provides information for customers who purchased the NP64G, NP63G, NP54G, or NP43G projector. Read this document as well as the Important Information, the Quick Setup Guide, and the User's Manual (CD-ROM) packaged with your projector.
-
Page 2: Specifications
Menu The NP64G/NP63G/NP54G/NP43G does not have the menu item [STANDBY MODE]. Specifications Power Requirement/Input Current NP64G: 200-240V AC, 50/60 Hz, 1.6 A NP63G: 200-240V AC, 50/60 Hz, 1.5 A NP54G: 200-240V AC, 50/60 Hz, 1.5 A NP43G: 200-240V AC, 50/60 Hz, 1.4 A Power Consumption NP64G: 277W(200-240V AC) in OFF for ECO MODE... - Page 3 NEC NP64G/NP63G/NP54G/NP43G Ergänzung zum Bedienungshandbuch [Deutsch] Dieses Dokument bietet Informationen für Kunden, die den Projektor NP64G, NP63G, NP54G oder NP43G gekauft haben. Lesen Sie sowohl dieses Dokument als auch die Wichtigen Informationen, die Schnellstartanleitung und das Bedienungshandbuch (CD- ROM), die Ihrem Projektor beiliegen.
- Page 4 Menü Beim NP64G/NP63G/NP54G/NP43G gibt es den Menüpunkt [STANDBY-MODUS] nicht. Technische Daten Stromversorgung/Versorgungsspannung NP64G: 200 – 240 V Wechselstrom, 50/60 Hz, 1,6 A NP63G: 200 – 240 V Wechselstrom, 50/60 Hz, 1,5 A NP54G: 200 – 240 V Wechselstrom, 50/60 Hz, 1,5 A NP43G: 200 –...
- Page 5 NEC NP64G/NP63G/NP54G/NP43G Supplément du Mode d’emploi [Français] Ce document renseigne les clients ayant acheté le projecteur NP64G, NP63G, NP54G, ou NP43G. Lire ce document ainsi que l'Information Importante, le Guide d'installation rapide et le Mode d'emploi (cédérom) empaquetés avec votre projecteur.
-
Page 6: Spécifications
Menu Le NP64G/NP63G/NP54G/NP43G ne possède pas l’élément du menu [MODE VEILLE]. Spécifications Puissance requise/Courant d’entrée NP64G: 200-240V AC, 50/60 Hz, 1,6 A NP63G: 200-240V AC, 50/60 Hz, 1,5 A NP54G: 200-240V AC, 50/60 Hz, 1,5 A NP43G: 200-240V AC, 50/60 Hz, 1,4 A Consommation électrique NP64G: 277W(200-240V AC) pour DÉSACT. - Page 7 NEC NP64G/NP63G/NP54G/NP43G Supplemento al Manuale dell’utente [Italiano] Questo documento fornisce informazioni per gli acquirenti dei proiettori NP64G, NP63G, NP54G e NP43G. Si prega di leggere il presente documento così come le Informazioni importanti, la Guida rapida di impostazione e il Manuale dell’utente (CD-ROM) forniti con il proiettore.
- Page 8 Menu I modelli NP64G/NP63G/NP54G/NP43G non hanno la voce di menu [MODO DI ATTESA]. Specifiche Requisiti di alimentazione/Corrente in ingresso NP64G: 200-240V CA, 50/60 Hz, 1,6 A NP63G: 200-240V CA, 50/60 Hz, 1,5 A NP54G: 200-240V CA, 50/60 Hz, 1,5 A NP43G: 200-240V CA, 50/60 Hz, 1,4 A Consumi energetici NP64G:...
- Page 9 NEC NP64G/NP63G/NP54G/NP43G Suplemento del manual del usuario [Español] Este documento informa a los clientes que han comprado un proyector NP64G, NP63G, NP54G o NP43G. Lea este documento así como la Información Importante, la Guía de Instalación Rápida, y el Manual del usuario (CD-ROM) provisto con su proyector.
-
Page 10: Especificaciones
Menú El NP64G/NP63G/NP54G/NP43G no tiene el elemento en el menú [MODO DE ESPERA]. Especificaciones Requisitos de alimentación/Corriente de entrada NP64G: 200-240V CA, 50/60 Hz, 1,6 A NP63G: 200-240V CA, 50/60 Hz, 1,5 A NP54G: 200-240V CA, 50/60 Hz, 1,5 A NP43G: 200-240V CA, 50/60 Hz, 1,4 A Consumo eléctrico NP64G:... - Page 11 NEC NP64G/NP63G/NP54G/NP43G Suplemento ao Manual do utilizador [Português] Este documento fornece informação aos clientes que tenham efectuado a compra de um projector NP64G, NP63G, NP54G, ou NP43G. Leia este documento assim como a Informação Importante, o Guia de Instalação Rápida e o Manual do Utilizador (CD-ROM) que vêm embalados com o seu projector.
- Page 12 Menu O NP64G/NP63G/NP54G/NP43G não tem o item [MODO ESPERA] do menu. Especificações Requisitos de energia/Corrente de entrada NP64G: 200-240 V CA, 50/60 Hz, 1,6 A NP63G: 200-240 V CA, 50/60 Hz, 1,5 A NP54G: 200-240 V CA, 50/60 Hz, 1,5 A NP43G: 200-240 V CA, 50/60 Hz, 1,4 A Consumo energético NP64G:...
- Page 13 NEC NP64G/NP63G/NP54G/NP43G Tillägg till bruksanvisning [Svenska] Det här dokumentet innehåller information till kunder som köpt en NP64G, NP63G, NP54G, eller NP43G-projektor. Läs detta dokument, samt Viktig information, Snabbstartsguiden och Bruksanvisningen (CD-ROM) som medföljer din projektor. Huvudströmbrytare På NP64G, NP63G, NP54G och NP43G sitter huvudströmbrytaren på den baksidan.
- Page 14 Meny Menyposten [STANDBY-LÄGE] finns inte på NP64G/NP63G/NP54G/NP43G. Specifikationer Nätspänning/Inström NP64G: 200-240V växelström, 50/60 Hz, 1,6 A NP63G: 200-240V växelström, 50/60 Hz, 1,5 A NP54G: 200-240V växelström, 50/60 Hz, 1,5 A NP43G: 200-240V växelström, 50/60 Hz, 1,4 A Strömförbrukning NP64G: 277W(200-240V växelström) i AV för EKO-LÄGE 213W(200-240V växelström) i PÅ...
- Page 15 NEC NP64G/NP63G/NP54G/NP43G Руководство пользователя Дополнение [Русский] Данный документ содержит информацию для клиентов приобретших модели проектора NP64G,NP63G,NP54G или NP43G. Прочитайте данный документ, важную информацию, краткое руководство по установке и руководство пользователя (CD-ROM), входящие в комплект с проектором. Главный выключатель Главный выключатель на моделях NP64G, NP63G, NP54G и NP43G находится на задней...
- Page 16 212Вт(200-240В переменный ток) в положении ВКЛ. для ЭКО РЕЖИМ 4Вт(200-240В переменный ток) в РЕЖИМЕ ОЖИДАНИЯ Для других требований, чем указанных выше, см. Руководство пользователя на стр. 86 и 87 (CD-ROM), имеющееся в комплекте с проектором. NEC Display Solutions, Ltd. 2010 Printed in China Ver.1 04/10 7N8N0961...
