HP RP7 Model 7800 Illustrated Parts And Service Map

Illustrated Parts & Service Map
HP RP7 Retail System Model 7800
©
2012 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for tech-
nical or editorial errors or omissions contained herein. Intel, Pentium, Intel
Inside, and the Intel logo are trademarks or registered trademarks of the Intel
Corporation and its subsidiaries in the U. S. and other countries.
Document Number 703845-001.
Key Specifications
Processor Type Intel® Core i5, i3, Pentium, Celeron
RAM Type Non-ECC DDR3 PC3-12800 (1666 MHz) & PC3-10600 (1333 MHz)
Maximum RAM 16 GB
Display Options • HP RP7 15 inch Resistive AFD Display
• HP RP7 15 inch Capacitive AFD Display
• HP RP7 17 inch Capacitive AFD Display
Chipset Intel Q67 Express
Graphics Adapter Integrated Intel HD graphics
• HP Retail Integrated Fingerprint Reader
Options
• HP Retail Integrated Dual-Head MSR
• HP Retail Integrated Webcam
• HP RP7 10.4-inch CFD Display
• HP RP7 VFD Customer Display
• HP RP7 Adjustable Stand
I/O Interfaces • 6 USB 2.0
• 2 USB+PWR 12V (1 available if VFD Customer Display installed)
• 1 USB+PWR 24V (Printer)
• 1 USB in lockable compartment
• 1 RJ-12 Cash Drawer (dual drawers via optional Y cable)
• 2 RS-232 Powered (+5V/+12V, F-10 Setup Configurable)
• 1 Parallel port
• 1 PS/2 (supports keyboard or mouse, both through a splitter)
• 1 DVI-I for Secondary Display (not available if 10.4-inch CFD installed)
• 1 RJ-45 10/100/1000 LAN
• 1 Audio line-in
• 1 Audio line-out (not available if 10.4-inch CFD installed and audio connected
• 1 DC-in (for power supply)
• 1 DC-out (for HP RP7 10.4-inch CFD only)
• 4 connectors for select HP integrated peripherals
Preinstalled • Windows 7 Professional (32-bit or 64-bit)
Operating Systems
• Windows Embedded POSReady 2009
• Genuine Windows® Embedded POSReady 7 (32-bit or 64-bit)
HP RP7 Retail System Model 7800
1st Edition August 2012.
703845-001

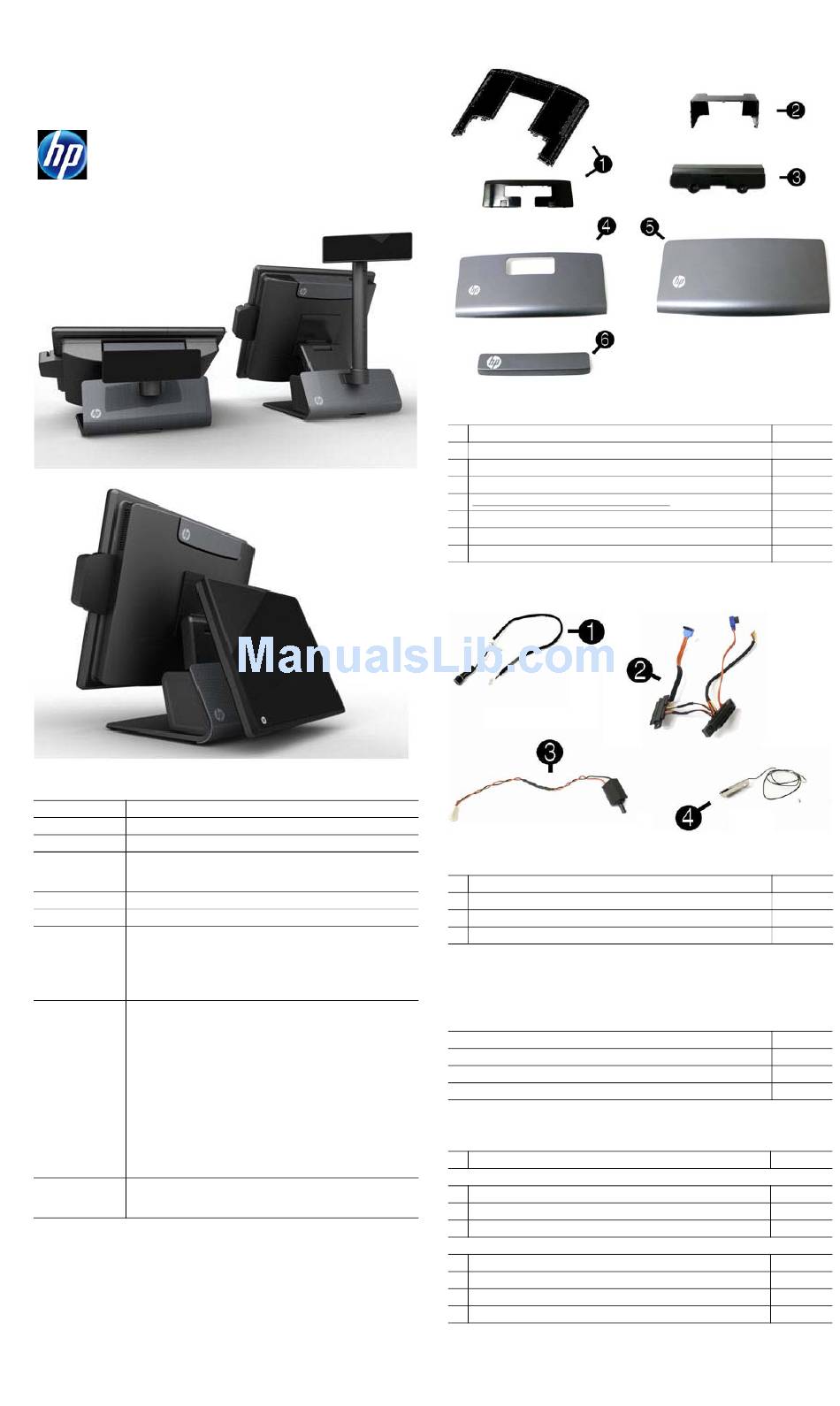

Spare Parts

Plastics
1 Display head back panel and rear I/O cover
2 Power supply cover
3 USB cover plate (for integrated USB module slots on sides of display)
* Power adapter, 180W (does not include power cord)
In Mold Decoration (IMD; customizable) covers:
4 Panel with hole (for bottom rear on models with VFD)
5 Panel without hole (for bottom rear on models without VFD)
6 Top panel, small (for top rear of display)
* Not shown
Cables
1 Hard drive LED cable assembly
2 Hard drive harness cable assembly
3 Hood sensor
4 Antenna kit
*Not shown
Mass Storage Devices (not illustrated)
320 GB, 7200 rpm SATA hard drive
256 GB Solid State Drive (SSD)
128 GB Solid State Drive (SSD)
32 GB MLC Flash, 2.5-in (mSATA SSD)
System Boards, Memory, Processors (not illustrated)
* System board (includes replacement thermal material)
Memory modules (PC3-12800, CL11, SODIMM)
* 8 GB
* 4 GB
* 2 GB
Processors (include thermal replacement material)
* Intel Core i5 2400S processor, 2.5 GHz, 65W
* Intel Core i3 2120 processor, 3.3 GHz, 65W
* Intel Pentium Dual-Core G850 processor, 2.9 GHz, 65W
* Intel Celeron G540 processor, 2.5 GHz
702769-001
702787-001
xxxxxx-001
702778-001
702781-001
702786-001
702770-001
702777-001
702776-001
702772-001
702771-001
639135-001
661842-001
665961-001
686616-001
674783-001
689374-001
689373-001
689372-001
640953-001
638629-001
655973-001
665119-001
