HP Integrity rx2660 Quick Start Manual

Use this console quick start for a server that is set up and ready to connect to a host console. This information
can also be found in the HP Integrity rx2660 Installation Guide or the HP Integrity Integrated Lights-Out 2
Management Processor Operations Guide.
To connect to a host console, use one or more of the following ports:
• Console serial port (RS-232). Use this port to access the iLO 2 MP through the serial.
• iLO 2 MP LAN port. Use this port to access the iLO 2 MP through the LAN.
• VGA port. Use this port to access a graphics console. You cannot access the iLO 2 MP using this port.

Physical Access

Figure 1 shows the server ports and required connection components.
Figure 1 Server Ports and Connection Components
Core LAN Ports
* Note: The iLO 2 MP LAN port requires a separate IP address from the port used by the operating system.
Use the MAC address to the MP hardware and not the MAC address to the server core LAN card.
Obtain the MP hardware MAC address from a label on the server.
IMPORTANT Once you are physically connected, the next step is to configure the console. The following
sections provide high-level console configuration information. For detailed information on
configuring the console, see the HP Integrity rx2660 Installation Guide included with the
server documentation.
MPN: AB419-9005A AB419-9005A
Console Quick Start

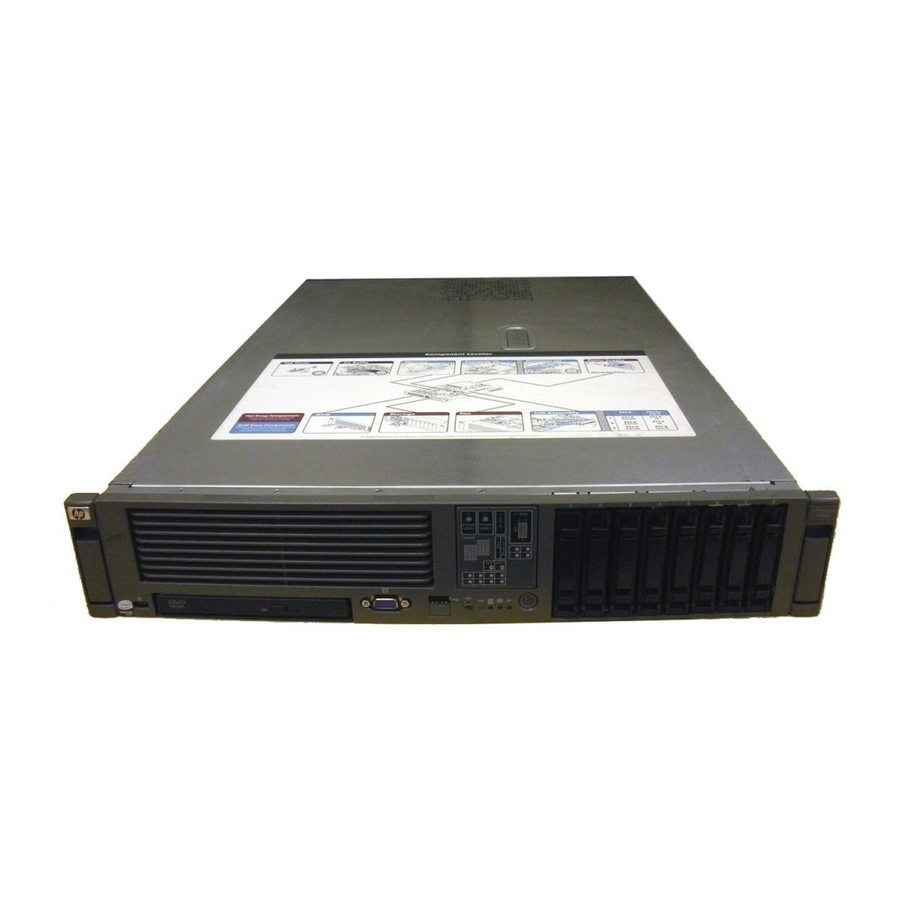

HP Integrity rx2660 Server
Aux Serial Port
(printers, etc.)
Console Serial Port
(RS-232 female-to-female cable)
Connected to emulation terminal
device (PC, laptop, or ASCII terminal)
VGA Port
USB Ports
(VGA Cable)
(any USB
device)
EFI Only/
No iLO 2 MP
Access
*iLO 2 MP LAN Port
(10/100 LAN cable)
1
