Epson AP-60
PROJECTOR SOUND SOLUTION
Product Name
AP-60 (U.S.)
AP-60 (Canada)
Pendant Microphone (PM-60)

Specifications

Main Speaker and Electronics Unit
Power Output
30 W RMS x 2 channels (60 W total)
T.H.D. < 1% / 1 kHz / 30 W
Frequency Range
100 Hz – 20 KHz
Speaker Level
85 dB ± 3.5 dB at 1 W at 1 m
Speaker Impedance
8 Ω/ch
Receiving Frequencies (IR)
Mic Channel 1 = 2.06 MHz
Mic Channel 2 = 2.56 MHz
Power Consumption
Standby: 1 W or less
110 W max
Input Voltage
AC 100 ~ 240 V ± 10% 50 Hz/60 Hz
DSP Features
Auto Power Off (after 60 min. with no input)
Voice-optimized System Equalization
Anti-Feedback Circuit
High Frequency Cut Filter
Audio Connectors
3.5 mm Stereo Minijack input (Line 1)
RCA / L & R input (Line 2)
3.5 mm Stereo Minijack output (Rec Out)
Other Connectors
75 Ω F type / Coaxial × 2 (IR receiver)
AC power inlet

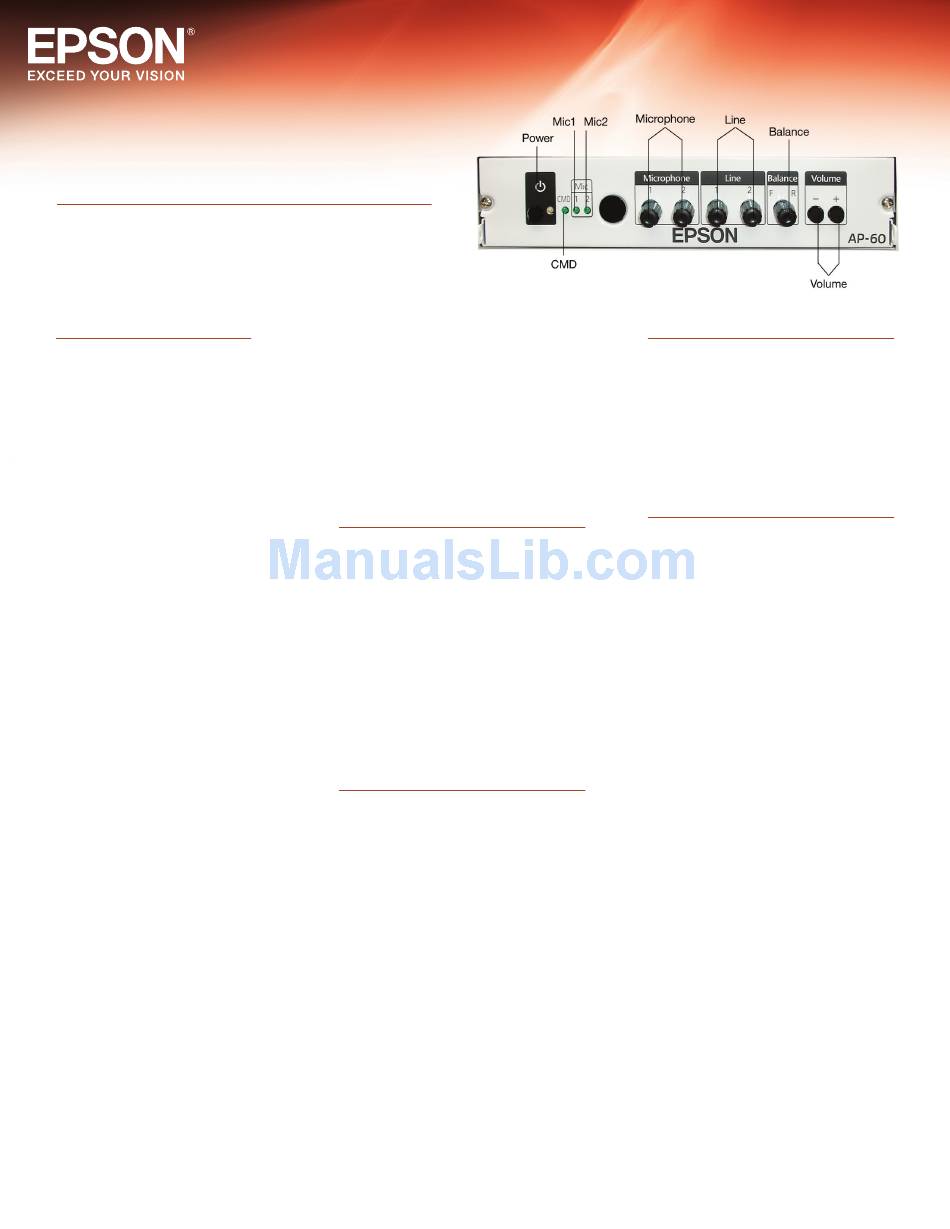

Controls
Individual Gain Controls for Mic
Channels 1 & 2 and Line Channels 1 & 2
Balance Control (Front / Rear Fader)
Master Volume (Up / Down)
Anti-Feedback Switch (Off / Low / High)
High Frequency Cut Switch (Off / On)
Standby Switch
Indicators
Standby LED
Command LED
Mic Channel 1 LED
Mic Channel 2 LED
Command Sensor
Front Panel of DSP (Sensor 1)
Rear Side of Enclosure (Sensor 2)
Epson America, Inc. Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806 3840 Kilroy Airport Way, Long Beach, CA 90806
Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark and Better Products for a Better Future is a trademark of Seiko Epson Corporation. All other product and brand Epson is a registered trademark, Epson Exceed Your Vision is a registered logomark and Better Products for a Better Future is a trademark of Seiko Epson Corporation. All other product and brand
names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. Copyright 2009 Epson America, Inc. CPD-30881 9/09 names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks. Copyright 2009 Epson America, Inc. CPD-30881 9/09
Product Code UPC
V12H329020 0 10343 87469 5
V12H329020-F 0 10343 87524 1
V12H3290M1 0 10343 87508 1
Dimensions (W x D x H)
Main unit only: 14.25" x 14.25" x 7.36"
With mounting bracket: 14.25" x 14.25" x 7.71"
Weight: 15.2 lb/6.9 kg
Safety Standard
U.S.: UL60065
Canada: CAN/CSA-C22.2 No.60065-03
EMC
U.S.: FCC part 15B class B
Canada: ICES-003 class B
Limited Warranty
3-year limited warranty
Pendant Microphone
Microphone Type
Single Directivity Electret Capacitor x 2
Controls
Gain Adjustment Thumbwheel
Power Switch
Mic Channel Switch (1 / 2)
Audio Connectors
3.5 mm Stereo Minijack (Aux In)
Transmitting Frequencies (IR)
Channel 1 = 2.06 MHz
Channel 2 = 2.56 MHz
Battery Type
AA Alkaline (LR6) x 2
Dimensions (W x D x H)
5.10" x 2.25" x 0.73"
Weight: 2.19 ounces/62 g
IR Sensor
Input Voltage
DC 24 V (draws power from IR receiver)
Connector
75 Ω F type
Size
4.0" x 1.2" (not including connector)
Weight
6.17 ounces (175 g)
Epson Canada, Ltd. Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5 3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5

Remote Control

AP-60 Controls
Standby
Mute
Volume Up / Down
Epson Projector Controls
Standby
A/V Mute
Source Search
Battery Type
AA Manganese Dioxide (R6) x 2
Other Included Components
Mount Kit
Extension Pipe (48.6 mm × 307 mm)
Lower Bracket
Anti-rotation Bolt (M10 × 63 mm) w/ M10 Nut
M47.5 Nut
Guy Wire (1.5 mm × 1.2 mm)
Cables
Power Cable (3 m)
IR Sensor Cable / Coaxial (3 m)
Batteries
AA Alkaline (LR6) x 2 (for Microphone)
AA Manganese Dioxide (R6) x 2 (for Remote)
Manuals
Installation Guide
Users Guide
Connection Diagrams
