Appendix B: Enabling technology

The advent of SAS and SATA drives makes the implementation of dual-domain SAS technology
possible. Hardware and protocol commonality enables the redundancy and reliability of dual-domain
SAS technology and reduces the number of possible single points of failure within a system.

SAS and SATA technology

Parallel storage technology has reached hard limitations with respect to volume and speed. The
physical architectural differences found in SCSI and ATA drives also mean that there are limitations
for connectivity. Serial technology has eliminated these connectivity barriers to connectivity (see
Figure B-1). Serial attached SCSI and ATA are complementary technologies based on a universal
interconnect, so SAS users can choose to deploy cost-effective SATA drives in a SAS storage
environment.
Requirements for physical connectivity have dropped from the 68 wires per cable required by parallel
technology to 4 wires for serial. In addition to reducing the size of wiring and connectors, serial
technology reduces the incidence of crosstalk, signal skew, and other forms of signal error found in
parallel storage networks. Serial "star" topology, enabled by expanders, is more flexible, easier to
manage, and common to both SAS and SATA drives.

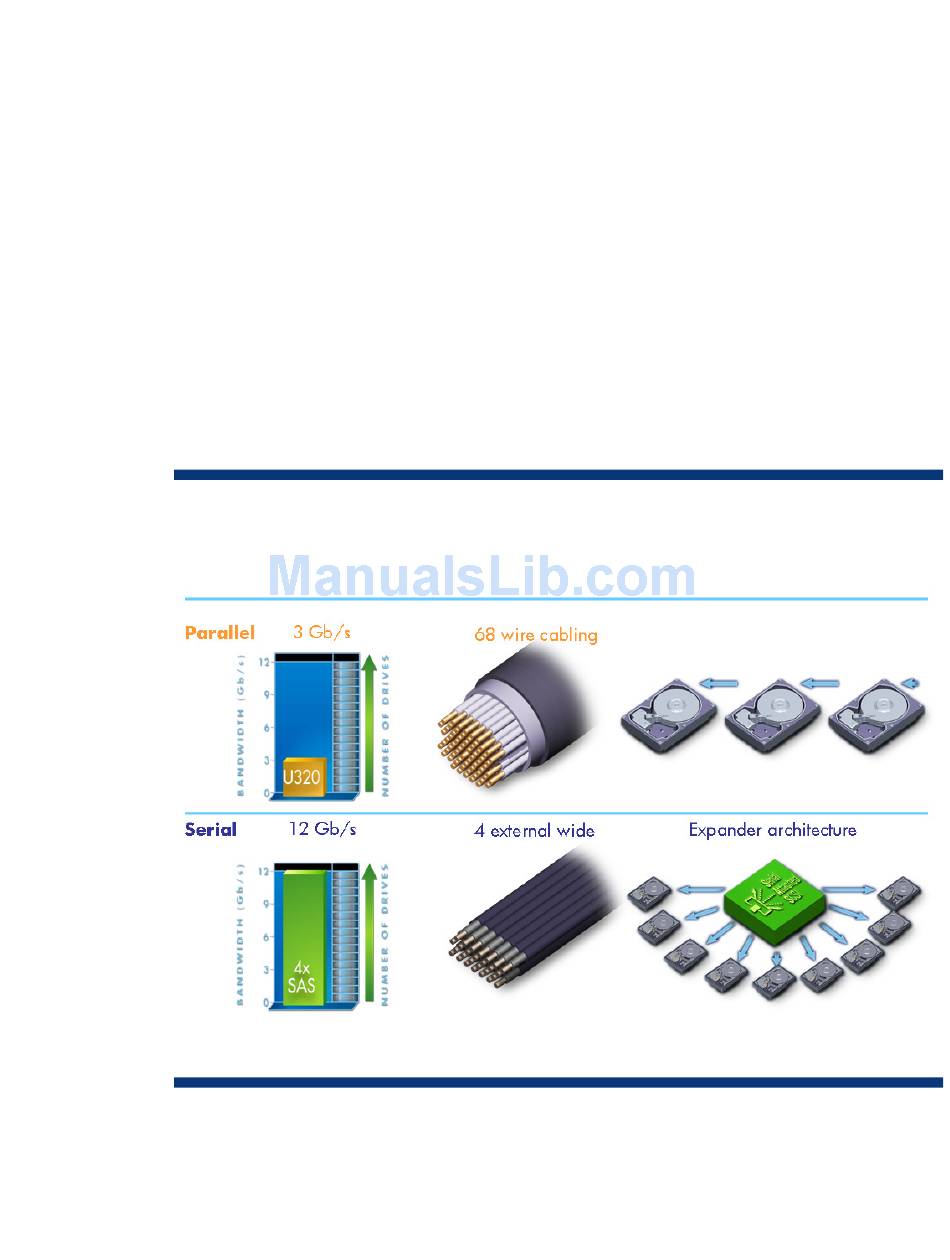

Figure B-1 Comparison of parallel and serial technologies
.
Bandwidth Physical layer Topology
