Front View

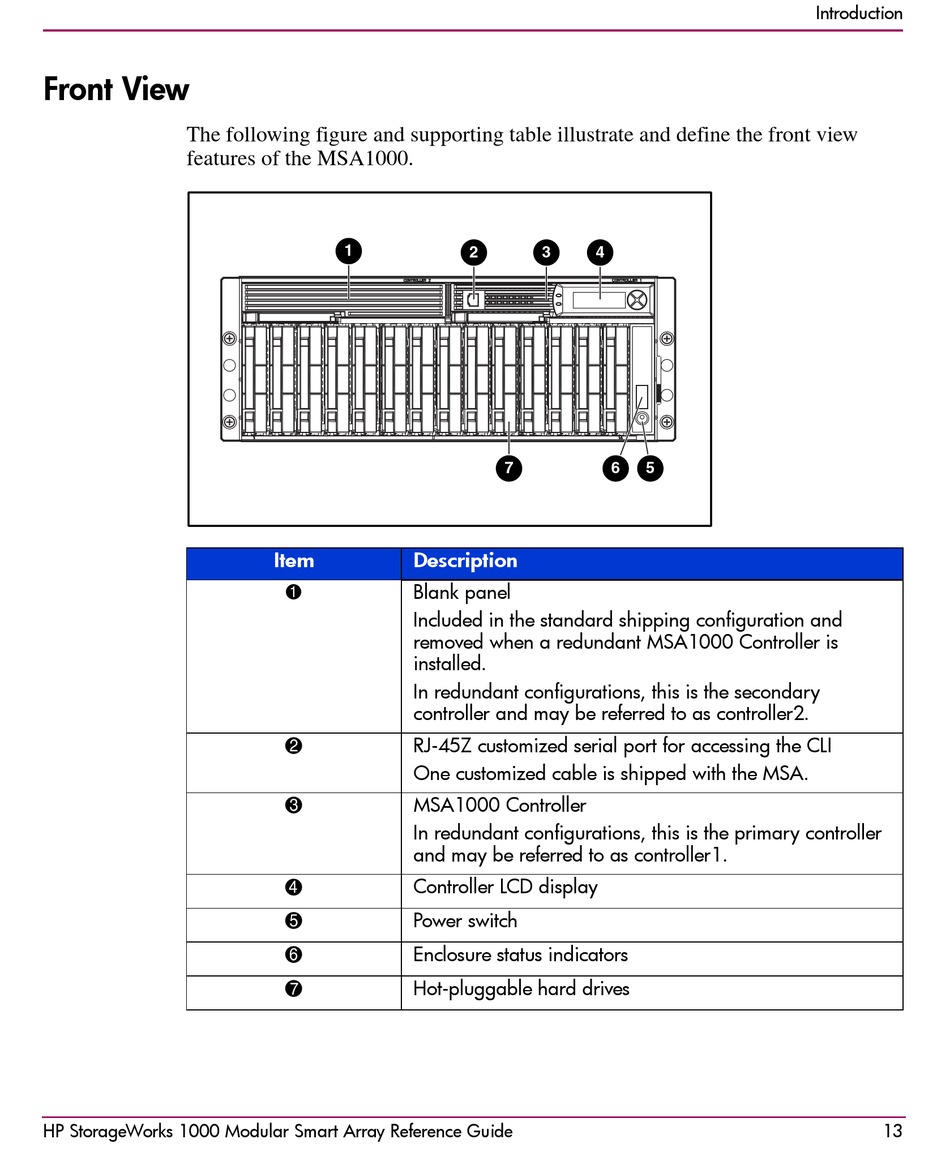

The following figure and supporting table illustrate and define the front view
features of the MSA1000.
HP StorageWorks 1000 Modular Smart Array Reference Guide
1
Item Description
Blank panel
1
Included in the standard shipping configuration and
removed when a redundant MSA1000 Controller is
installed.
In redundant configurations, this is the secondary
controller and may be referred to as controller2.
RJ-45Z customized serial port for accessing the CLI
2
One customized cable is shipped with the MSA.
MSA1000 Controller
3
In redundant configurations, this is the primary controller
and may be referred to as controller1.
Controller LCD display
4
Power switch
5
Enclosure status indicators
6
Hot-pluggable hard drives
7
2 3 4
7 6 5
