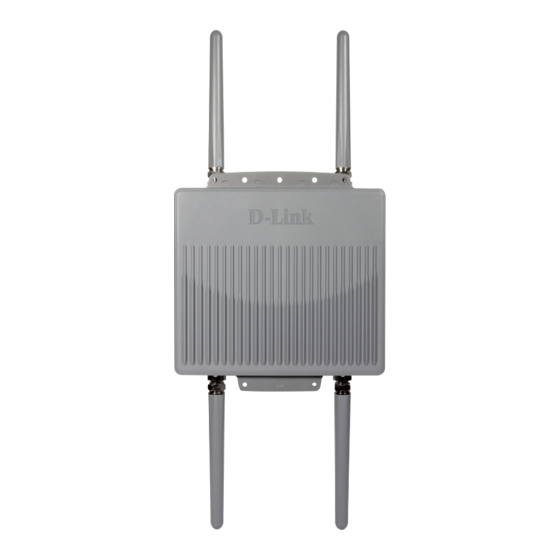

Airpremier n concurrent dual band outdoor poe access point
Hide thumbs Also See for AirPremier DAP-3690:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link AirPremier DAP-3690

Summary of Contents for D-Link AirPremier DAP-3690

  • Page 2: Table Of Contents

    Log > Log Settings ..............58 VLAN Settings > VLAN List ........... 33 Maintenance > Administrator Settings ......... 59 Port List ..................34 Limit Administrator ..............60 Add/Edit VLAN ................. 35 System Name Settings ............61 D-Link DAP-3690 User Manual...
  • Page 3 Easy Deployment and Management ........73 Different AP Roles in an Array ........... 76 Easy Configuration of D-Link AP Array ........76 Supported in all D-Link 11n Business APs ......78 Reliable WLAN Management Tool ........... 78 Using the Console Port ............79 Troubleshooting ...............

  • Page 4: Product Overview

    *Do not use the console cable in an outdoor environment for long term use. We strongly recommend a type CMX console cable for outdoor use. Warning: Using a power adapter with different specifications than the one included with the DAP-3690 will cause damage and void the warranty for this product.

  • Page 5: Introduction

    Section 1 - Product Overview Introduction D-Link introduces its new AirPremier N Concurrent Outdoor Dual Band PoE Access Point (DAP-3690). With a series of versatile function, high power design and weather resistant features, DAP-3690 is an ideal solution for hot spot networks to provide outdoor users with wireless Internet access.

  • Page 6: Features And Benefits

    • SNMP for management - The DAP-3690 is not just fast, but also supports SNMP v.3 for better network management. Superior wireless AP manager software is bundled with the DAP-3690 for network configuration and firmware upgrade. Systems administrators can also set up the DAP-3690 easily with the Web-based configuration.

  • Page 7: Wireless Basics

    D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home, business or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever you want it.
  • Page 8 OFDM reduces the amount of crosstalk (interference) in signal transmissions. The D-Link DAP-3690 will automatically sense the best possible connection speed to ensure the greatest possible speed and range. Note: 802.11n offers the most advanced network security features available today, including WPA.

  • Page 9: Installation Considerations

    Keep the number of walls and ceilings between the DAP-3690 and other network devices to a minimum - each wall or ceiling can reduce your DAP-3690’s range by 3-90 feet (1-30 meters). Position your devices so that the number of walls or ceilings is minimized.

  • Page 10: Four Operational Modes

    Create a wireless LAN Wirelessly connect multiple networks while still WDS with AP functioning as a wireless AP Wirelessly connect multiple networks AP acts as a wireless network adapter for your Wireless Client Ethernet enabled device D-Link DAP-3690 User Manual...

  • Page 11: Connect To Your Network

    Method 2 - Use if you do not have a PoE switch and do not have a power outlet near the location of the access point. Method 1 1. Connect one end of your Ethernet cable into the LAN (PoE) port on the DAP-3690 and then connect the other end to your PoE switch. D-Link DAP-3690 User Manual...
  • Page 12 1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit and the other end into one port on your switch, router, or computer. 2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and the other end into the LAN (PoE) port on the DAP-3690 access point.

  • Page 13: Using The Configuration Menu

    Start your web browser program (I.E. Internet Explorer). Type the IP address and http port of the DAP-3690 in the address field (http://192.168.0.50) and press Enter. Make sure that the IP addresses of the DAP-3690 and your computer are in the same subnet.
  • Page 14 Click the Apply button to configure changes. Click the Save button to configure changes. Alternatively, click the “Save and Activate” option on the Configuration drop-down menu at the top of each DAP-3690 window. This will cause the DAP-3690 to save and reboot.

  • Page 15: Wireless Settings

    Wireless Settings Access Point Mode In Access Point mode, the DAP-3690 functions as a wireless AP. After completing the desired settings, click the Save button to let your changes take effect. Wireless Band: Select either 2.4 GHz or 5 GHz from the drop-down menu.
  • Page 16 Select 802.1X if your network is using port-based Network Access Control. For more information about the different types of Authentication offered on the DAP-3690 and the respective settings of each, please go to the first page of the “Authentication” explanations, which begins on page 23.

  • Page 17: Wds With Ap Mode

    Section 3 - Configuration WDS with AP mode In WDS with AP mode, the DAP-3690 wirelessly connects multiple networks while still functioning as a wireless AP. After completing the desired settings, click the Save button to let your changes take effect.
  • Page 18 Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. For more information about the different types of Authentication offered on the DAP-3690 and the respective settings of each, please go to the first page of the “Authentication” explanations, which begins on page 23.

  • Page 19: Wds Mode

    Section 3 - Configuration WDS mode In WDS mode, the DAP-3690 wirelessly connects multiple networks, without functioning as a wireless AP. After completing the desired settings, click the Save button to let your changes take effect. Wireless Band: Select either 2.4 GHz or 5 GHz from the drop-down menu.
  • Page 20 Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. For more information about the different types of Authentication offered on the DAP-3690 and the respective settings of each, please go to the first page of the Authentication explanations which begins on page 23.

  • Page 21: Wireless Client Mode

    Section 3 - Configuration Wireless Client mode In Wireless Client mode, the DAP-3690 functions as a wireless client on a wireless network in which an AP already exists. After completing the desired settings, click the Save button to let your changes take effect.
  • Page 22 Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. For more information about the different types of Authentication offered on the DAP-3690 and the respective settings of each, please go to the first page of the Authentication explanations which begins on page 23.

  • Page 23: Open System Or Shared Key Authentication

    Retype the Network Key entered above in the corresponding field. *ASCII (American Standard Code for Information Interchange) is a code that represents English letters using numbers ranging from 0-127. **Hexadecimal (HEX) digits consist of the numbers 0-9 and the letters A-F. D-Link DAP-3690 User Manual...

  • Page 24: Wpa-Personal Authentication

    Select the interval during which the group key will be valid. Update Interval: The default value of 1800 is recommended. PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the corresponding field. Confirm Retype the PassPhrase entered above in the corresponding PassPhrase: field. D-Link DAP-3690 User Manual...

  • Page 25: Wpa-Enterprise Authentication

    Enter the IP address of the RADIUS server. Click External if the RADIUS server is on your network or Internal if you are using the RADIUS server on the DAP-3690. RADIUS Port: Enter the RADIUS port (1812 is the default).

  • Page 26: Authentication

    Accounting Port: Enter the Accounting port (1813 is the default). Accounting Secret: Enter the Accounting secret. Note: You can input the secondary RADIUS server and accounting server settings if you have a backup RADIUS and accounting server. D-Link DAP-3690 User Manual...

  • Page 27: Lan

    Section 3 - Configuration LAN is short for Local Area Network. This is considered your internal network. These are the IP settings of the LAN interface for the DAP-3690. These settings may be referred to as private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.

  • Page 28: Advanced Settings

    Section 3 - Configuration Advanced Settings Performance The Performance Settings window offers a number of user-controlled settings designed to optimize the performance of the DAP-3690. After completing the desired settings, click the Save button to let your changes take effect. Wireless: Use the drop-down menu to turn the wireless function On or Off.
  • Page 29 APs. If this function is enabled and when the number of users exceeds this value, or the network utilization of this AP exceeds the percentage that has been specified, the DAP-3690 will not allow clients to associate with the AP.
  • Page 30 Network Utilization: Set the maximum utilization of this access point for service. The DAP-3690 will not allow any new clients to associate with the AP if the utilization exceeds the value the user specifies. Select a utilization percentage between 100%, 80%, 60%, 40%, 20%, or 0%.

  • Page 31: Multi-Ssid

    WPA-Personal parameters please go to page 24. For a detailed description of the WPA-Enterprise parameters please go to page 25. For a detailed description of the 802.1X parameters please go to page 26. D-Link DAP-3690 User Manual...
  • Page 32 Priority: When the Enable Priority check box is checked at the top of this window, this drop-down menu is used to select a priority between 0 and 7. WMM (Wi-Fi Select Enable to provide basic Quality of Service features. Multimedia): D-Link DAP-3690 User Manual...

  • Page 33: Vlan Settings > Vlan List

    The DAP-3690 supports VLANs. VLANs can be created with a Name and VID. Mgmt (TCP stack), LAN, Primary/Multiple SSID, and WDS connection can be assigned to VLANs as they are physical ports. Any packet which enters the DAP-3690 without a VLAN tag will have a VLAN tag inserted with a PVID.

  • Page 34: Port List

    The name of the port is displayed in this column. Tag VID: The Tagged VID is displayed in this column. Untag VID: The Untagged VID is displayed in this column. PVID: The Port VLAN Identifier is displayed in this column. D-Link DAP-3690 User Manual...

  • Page 35: Add/Edit Vlan

    Use the radio button to toggle to Enable. VLAN Mode: The current VLAN mode is displayed. Provide a number between 1 and 4094 for the VLAN ID (VID): Internal VLAN. VLAN Name: Enter the VLAN to add or modify. D-Link DAP-3690 User Manual...

  • Page 36: Pvid Setting

    Once you have made the desired settings, click the Save button to let your changes take effect. VLAN Status: Use the radio button to toggle to Enable. VLAN Mode: The current VLAN mode is displayed. PVID Auto Assign Use the radio button to toggle PVID auto Status: assign status to Enable. D-Link DAP-3690 User Manual...

  • Page 37: Intrusion

    The Wireless Intrusion Protection window is used to set APs as All, Valid, Neighborhood, Rogue, and New. Once you have made the desired settings, click the Save button to let your changes take effect. AP List: The choices include All, Valid, Neighbor, Rogue, and New. Detect: Click this button to initiate a scan of the network. D-Link DAP-3690 User Manual...

  • Page 38: Schedule

    24 hours a day, enter the desired starting and ending times in the next two fields. Start Time: Enter the beginning hour and minute, using a 24-hour clock. End Time: Enter the ending hour and minute, using a 24-hour clock. D-Link DAP-3690 User Manual...

  • Page 39: Ap Array

    Enter a password that will be used to access the AP array you Password: have created. Click the button to initiate a scan of all the available APs on Scan AP Array List: the network. Connection Status: This displays the status of the current AP array. D-Link DAP-3690 User Manual...

  • Page 40: Web Redirection

    Toggle the drop-down menu between Enable and Disable. Web Direction A list of accounts will be displayed here. Highlight a username Account List: to edit it or click the Delete icon to remove it from this list. D-Link DAP-3690 User Manual...

  • Page 41: Internal Radius Server

    Internal RADIUS Server The DAP-3690 features a built-in RADIUS server. Once you have finished adding a RADIUS account, click the Save button to let your changes take effect. The newly-created account will appear in this RADIUS Account List. The radio buttons allow the user to enable or disable the RADIUS account.

  • Page 42: Arp Spoofing Prevention Settings

    Enter the MAC address of your gateway. Address: Gateway Address A list of gateway addresses will be displayed here. Highlight List: an IP address to edit it or click the Delete icon to remove it from this list. D-Link DAP-3690 User Manual...

  • Page 43: Dhcp Server (Dynamic Pool Settings)

    This protocol simplifies network management and allows new wireless devices to receive IP addresses automatically without the need to manually assign new IP addresses. Select Enable to allow the DAP-3690 to function as a DHCP server. IP Assigned Input the first IP address available for assignment on From: your network.

  • Page 44: Dhcp Server (Static Pool Setting)

    IP addresses automatically without the need to manually assign IP addresses. Select Enable to allow the DAP-3690 to function as a DHCP server. Host Name: Enter the name of the host computer in this text box.
  • Page 45 IP address of a network computer with a dynamically assigned IP address, if applicable. Enter the Domain Name System (DNS) server address for the wireless network. The DNS server translates domain names such DNS: as www.dlink.com into IP addresses. Domain Name: Specify the domain name for the network. D-Link DAP-3690 User Manual...

  • Page 46: Dhcp Server (Current Ip Mapping List)

    Binding MAC The MAC address of a device on the network that is within Address: the DHCP static IP address pool. Assigned IP The current corresponding DHCP-assigned static IP Address: address of the device. D-Link DAP-3690 User Manual...

  • Page 47: Filters (Wireless Mac Acl)

    Section 3 - Configuration Filters (Wireless MAC ACL) The DAP-3690 features a wireless MAC Access Control List filter. Once a user is finished with these settings, click the Save button to let the changes take effect. Wireless Band: Displays the current wireless band rate.

  • Page 48: Filters (Wlan Partition)

    Section 3 - Configuration Filters (WLAN Partition) The DAP-3690 features a wireless partition. Once a user is finished with these settings, click the Save button to let the changes take effect. Wireless Band: Displays the current wireless band. Link Integrity: Select Enable or Disable.

  • Page 49: Traffic Control (Uplink/Downlink Setting)

    Mbits per second. These values are also used in the QoS and Traffic Manager windows. Once the desired uplink and downlink settings are finished, click the Save button to let your changes take effect. Downlink The downlink bandwidth in Mbits per second. Bandwidth: Uplink The uplink bandwidth in Mbits per second. Bandwidth: D-Link DAP-3690 User Manual...

  • Page 50: Traffic Control (Qos)

    Traffic Control (QoS) Quality of Service (QoS) enhances the experience of using a network by prioritizing the traffic of different applications. The DAP-3690 supports four priority levels. Once the desired QoS settings are finished, click the Save button to let your changes take effect.

  • Page 51: Traffic Control (Traffic Manager)

    Downlink The downlink bandwidth in Mbits per second. This value Bandwidth: is entered in the Uplink/Downlink Setting window. The uplink bandwidth in Mbits per second. This value is Uplink Bandwidth: entered in the Uplink/Downlink Setting window. D-Link DAP-3690 User Manual...

  • Page 52: Home > Status

    Section 3 - Configuration Home > Status Device Information Device This read-only window displays the configuration Information: settings of the DAP-3690, including the firmware version and the device's MAC address. D-Link DAP-3690 User Manual...

  • Page 53: Client Information

    Section 3 - Configuration Client Information Client This window displays the wireless client information for Information: clients currently connected to the DAP-3690. The following information is available for each client communicating with the DAP-3690. SSID: Displays the SSID of the client. MAC: Displays the MAC address of the client.

  • Page 54: Wds Information

    Displays the name of the client. MAC: Displays the MAC address of the client. Authentication: Displays the type of authentication being used. Signal: Displays the WDS link signal strength. Status: Displays the status of the power saving feature. D-Link DAP-3690 User Manual...

  • Page 55: Home > Status

    Section 3 - Configuration Home > Status Stats > Ethernet Ethernet Traffic This window displays transmitted and received Statistics: count statistics for packets and bytes. D-Link DAP-3690 User Manual...

  • Page 56: Stats > Wlan

    Section 3 - Configuration Stats > WLAN WLAN Traffic This window displays wireless network statistics for data Statistics: throughput, transmitted and received frames, and frame errors. D-Link DAP-3690 User Manual...

  • Page 57: Log > View Log

    The log information includes but is not limited to the following items: cold start AP, upgrading firmware, client associate and disassociate with AP, and web login. The web page holds up to 500 logs. D-Link DAP-3690 User Manual...

  • Page 58: Log > Log Settings

    Enter a user name for the SMTP server. Password: Enter a password for the SMTP server. Confirm Confirm the password for the SMTP server by retyping it. Password: Schedule: Use the drop-down menu to set the e-mail log schedule. D-Link DAP-3690 User Manual...

  • Page 59: Maintenance > Administrator Settings

    Section 3 - Configuration Maintenance > Administrator Settings Check one or more of the six main categories to display the various hidden administrator parameters and settings displayed on the next six windows. D-Link DAP-3690 User Manual...

  • Page 60: Limit Administrator

    VLAN ID: Limit Check to enable the Limit Administrator IP address. Administrator IP: IP Range: Enter the IP address range that the administrator will be allowed to log in from and then click the Add button. D-Link DAP-3690 User Manual...

  • Page 61: System Name Settings

    Each of the six main categories display various hidden administrator parameters and settings. System Name Settings System Name: The name of the device. The default name is D-Link DAP-3690. Location: The physical location of the device, e.g. “office”. D-Link DAP-3690 User Manual...

  • Page 62: Login Settings

    New Password: When changing your password, enter the new password here. The password is case-sensitive. “A” is a different character than “a. ” The length should be between 0 and 12 characters. Confirm Password: Enter the new password a second time for confirmation purposes. D-Link DAP-3690 User Manual...

  • Page 63: Console Settings

    Status: Status is enabled by default. Uncheck the box to disable the console. Console Select the type of protocol you would like to use, Telnet Protocol: or SSH. Timeout: Set to 1 Min, 3 Mins, 5 Mins, 10 Mins, 15 Mins or Never. D-Link DAP-3690 User Manual...

  • Page 64: Snmp Settings

    Trap Status: Check the box to enable the trap status. Trap Server IP: Enter the trap server IP address. This is the IP address of the SNMP manager to receive traps sent from the wireless access point. D-Link DAP-3690 User Manual...

  • Page 65: Ping Control Setting

    Ping Control Setting Status: Check the box to enable Ping control. Ping works by sending ICMP “echo request” packets to the target host and listening for ICMP echo response replies. The default is enabled. D-Link DAP-3690 User Manual...

  • Page 66: Firmware And Ssl Certification Upload

    DAP-3690. Upload SSL Click Browse to locate the SSL Certification file on your local computer. After selecting and opening the file, click Upload to Certification From upload the file to the DAP-3690. Local Hard Drive: D-Link DAP-3690 User Manual...

  • Page 67: Maintenance > Configuration File

    After selecting the file, click Upload to apply the configuration settings to the DAP-3690. Download Click Download to save the current DAP-3690 Configuration File: configuration to your local computer. Note that if you save one configuration with the administrator’s...

  • Page 68: Maintenance > Time And Date

    A user can either manually set the time for the Time Manually: AP here, or click the Copy Your Computer’s Time Settings button to copy the time from the computer in use (Make sure that the computer’s time is set correctly). D-Link DAP-3690 User Manual...

  • Page 69: Configuration > Save And Activate

    Configuration > Save and Activate The drop-down Configuration menu allows users to save the current changes and reboot the DAP-3690 by clicking "Save and Activate". If the "Save and Activate" option is selected, the following window will appear to display how many seconds remain before the save settings and reboot system action is completed.

  • Page 70: System > System Settings

    Section 3 - Configuration System > System Settings Restart the Click Restart to restart the DAP-3690. Device: Restore to Click Restore to restore the DAP-3690 back to factory Factory Default default settings. Settings: Clear Language Click Clear to remove the DAP-3690 language pack.

  • Page 71: Help

    Section 3 - Configuration Help Help: Scroll down the Help page for topics and explanations. D-Link DAP-3690 User Manual...

  • Page 72: Using The Ap Array

    Simple WLAN Management Tool When one needs to set up a wireless local area network (WLAN) in a small office with limited IT resources, D-Link’s AP Array is the answer. It allows the efficient deployment of a secured WLAN and easier administration from a single point; thus, minimizing the effort to maintain the wireless network.

  • Page 73: Easy Deployment And Management

    Section 4 - Using the AP Array Easy Deployment and Management With D-Link’s AP Array, deployment and management of APs are made simple. The following steps show how straightforward it is to deploy the array of APs: Step 1 - Deployment of Master AP: •...
  • Page 74 No Backup Master AP Available: If the Master AP crashes and there are only Slave APs in the array, the Slave APs will work as stand-alone APs until a new Master joins the array. The administrator may want to configure two Master APs for the array, so that there is always a Backup Master AP available. D-Link DAP-3690 User Manual...
  • Page 75 Performance Settings • All Administrator Settings Settings that are not synchronized are: • Operation Mode • Radio Channel • LAN Settings If required, settings that are not synchronized will have to be configured individually for each AP. D-Link DAP-3690 User Manual...

  • Page 76: Different Ap Roles In An Array

    The Slave AP follows all the settings in the Master AP. Easy Configuration of D-Link AP Array The following section shows how simple it is to configure the D-Link AP Array for the different AP roles: Master AP Role Click Advanced Settings > AP Array to view and edit the information on the AP in an array.
  • Page 77 Note: Remember to select “Save & Activate”. The AP will not become master until you select “Save & Activate”. Slave AP Role Click Advanced Settings > AP Array to view and edit the information on the AP in an array. Step 1: Click Enable AP Array and select the Slave role. D-Link DAP-3690 User Manual...

  • Page 78: Supported In All D-Link 11N Business Aps

    D-Link AP Array is supported in all D-Link 11n business APs. Note: Please refer to your local D-Link website for any new models of D-Link 11n business APs. You may also get the latest AP Array function by doing a firmware update.

  • Page 79: Using The Console Port

    1. Connect one end of the provided serial console cable to the console port on the DAP-3690, and the other to an available serial port on the PC you wll use to connect to the device.
  • Page 80 Section 3 - Configuration 4. Select the appropriate COM port: 5. Configure the Port Settings: Note: Your terminal emulation must be set to 115200 bits per second. D-Link DAP-3690 User Manual...
  • Page 81 6. Enter the Login Name and Password: Once logged in, you will be able to run configuration commands from the command line prompt. You can type in a letter and press tab to see the available commands. D-Link DAP-3690 User Manual...

  • Page 82: Troubleshooting

    1. The computer used to configure the DAP-3690 cannot access the Configuration menu. • Check if the LAN LED on the DAP-3690 is ON. If the LED is not ON, check if the cable for the Ethernet connection is securely inserted. •...
  • Page 83 If it is necessary to assign a Static IP Address to the wireless adapter. If you are entering a DNS Server address, you must also enter the Default Gateway Address. Remember that if you have a DHCP-capable router, you will not need to assign a static IP address. D-Link DAP-3690 User Manual...
  • Page 84 4. Why does my wireless connection keep dropping? • Antenna Orientation - try different antenna orientations for the DAP-3690. Try to keep the antenna at least 6 inches away from the wall or other objects. •...

  • Page 85: Technical Specifications

    **Please note that operating frequency ranges vary depending on the regulations of • WEP™ 64-/128-bit individual countries and jurisdictions. The DAP-3690 isn’t supported in the 5.25~5.35 • SSID Broadcast Disable GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions.
  • Page 86 • W = 190 mm • H = 35 mm *Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-3690 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions.

  • Page 87: Contacting Technical Support

    • Hardware Revision (located on the label on the bottom of the Access Point (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the Access Point). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 88: Warranty

    Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware.
  • Page 89 D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s functional specifications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software.
  • Page 90 • USA residents send to 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier selected by D-Link.

  • Page 91: Limitation Of Liability

    FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT.
  • Page 92 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. D-Link DAP-3690 User Manual...
  • Page 93 This device has been designed to operate with an antenna having a maximum gain of 6 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. D-Link DAP-3690 User Manual...

  • Page 94: Registration

    Appendix D - Registration Registration Register your product online at registration.dlink.com Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 June 21, 2011 D-Link DAP-3690 User Manual...
