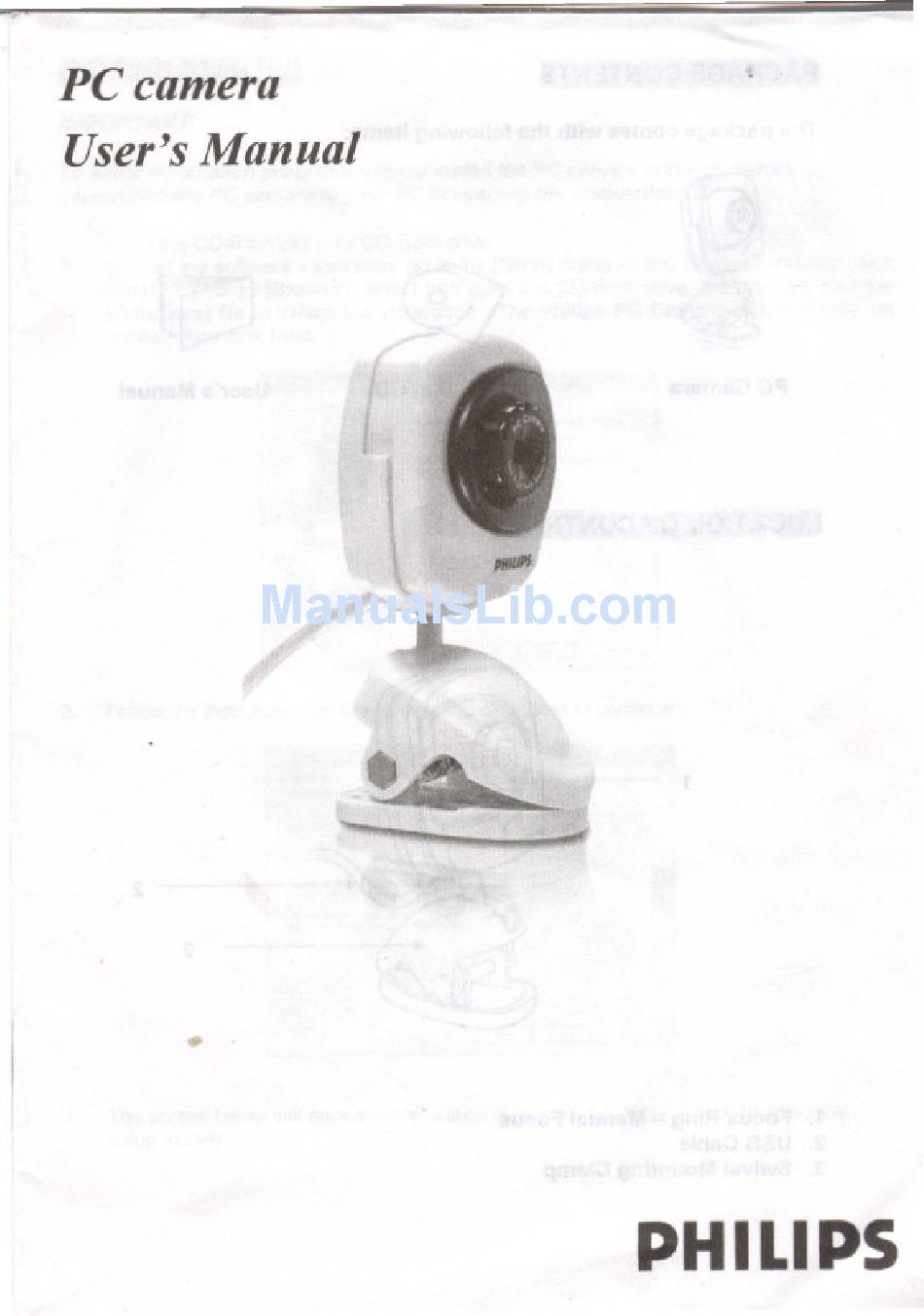

- Page 1 PC camera User's Manual prI1IIS " Jc.. PHILIPS...
-
Page 2: Location Of Controls
PACtMGE CONI~NIS The package comes with the following items: PC Camera Installation CD User's Manual LO..cATION OF'CONTROL:.S 1. Focus Ring- Manual Focus 2. USBCable 3. Swivel MountingClamp... - Page 3 ~j{~~rn~Riltm1 IMPORTANT: To avoid installation problems, please install the PC camera software before connecting the PC camera to your PC or running the Installation Insert the CD-Rom into your CD-Rom drive. To start the software installation, go to the [Start] menu on the Windows desktop, click [Start]-'7 [Run]-'7[Browse], select and open the CD-Rom drive, then double click the [setup.exe]...
- Page 4 '~~_W~"-- r::?;;D ~r;;ERA edNffeor{N§:'Y'~!{m After the software installation is complete, you can connect the PC camera to your (VI) PC computer. The computer will detect the camera device named [ICatch camera] and a New Hardware Found Message will appear. Ihe Philips PC Camera software will be located on the [Start] menu ~ [Programs]~ [Philips PC camera].
- Page 5 ". RECORDING VIDEO ICAPTURING IMAGE The installed software allows recording video or capturing image when the PC camera is connected to the computer. Go to [Start] menu -7 [Programs]-7 [Philips PC camera]-7 open [AMCAP] A live image will display on the AMCAP screen. If no live video appears, check below conditions: (VI)PC Camera] 'Check if the device [ICatch...
- Page 6 is recommended to use in North America. Remark: 60Hz To set frame rate, go to [Capture] and click[Set frame rate]. 17IJjI~~~~mm~ 1. Please set up the directory to which the file wiil be saved. Go to [File] ~ seiect [Set Capture File]. Then select a directory and name a new fiie save the video.
- Page 7 " 3. To set the recording time of the video, go to [Capture] ~ [Set Time Limit]. 4. Go to [Capture] menu and select [Start Capture] ~ click [OK]. It will then start the video capturing. 5. Press [Esc] on the computer keyboard whenever you want to stop, or go to [Capture] menu and select [Stop Capture].
- Page 8 6. Go back to the directory you set and double-click the saved video file to launch the media player for viewing video. 7. You can email the captured video to your friends I family by selecting the file you want tl send, then right click your mouse, select [send to] -7 go to [Mail Recipient].
- Page 9 m;;Q~~i~IiU1t!!:> If your laptop has a built in microphone. or if you had installed a microphone on your home PC, you are able to capture the audio while recording the video. The voice will be attached in the same Captured video file. Go to [Capture] menu ~ select [Capture Audio].
- Page 10 The following hints will help you achieve the best results with your camera: Camera Placement: Position the camera so that the subject is at the centre. Place the camera on a steady surface lighting. Use sufficient lighting. Place the light source behind the camera and facing the subject. Maintain a consistent lighting environment.
- Page 11 PS'QAMI!!RA:rSRIiliJlliilml:iBBN9 Image sensor: 100K Pixels CMOS sensor Video Conferencing mode USB interface Lens: f/2.8 Frame rate: 24f/s @352 x 288 Unit size: 1.85" x 1.95" x 4"( Wx D x H) Weight about 80g B¥S:liCM_SIRIBIIIENm Available Universal Serial bus (USB port of hub) Desktop or notebook PC with a Pentium 200M Hz or higher Windows 98SE / ME / 2000 / XP operating system 50MB available hard disk space...
-
Page 12: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may caus. undesired operation.
