Checking the Navigation Status

The navigation status, including the driving sta-
tus of a vehicle, positioning status by satellite,
learning status of the 3D sensor, and cable con-
nection status can be checked.
Checking sensor learning status
and driving status
1
Touch "Information" in the Main menu,
then touch "3D Calibration".

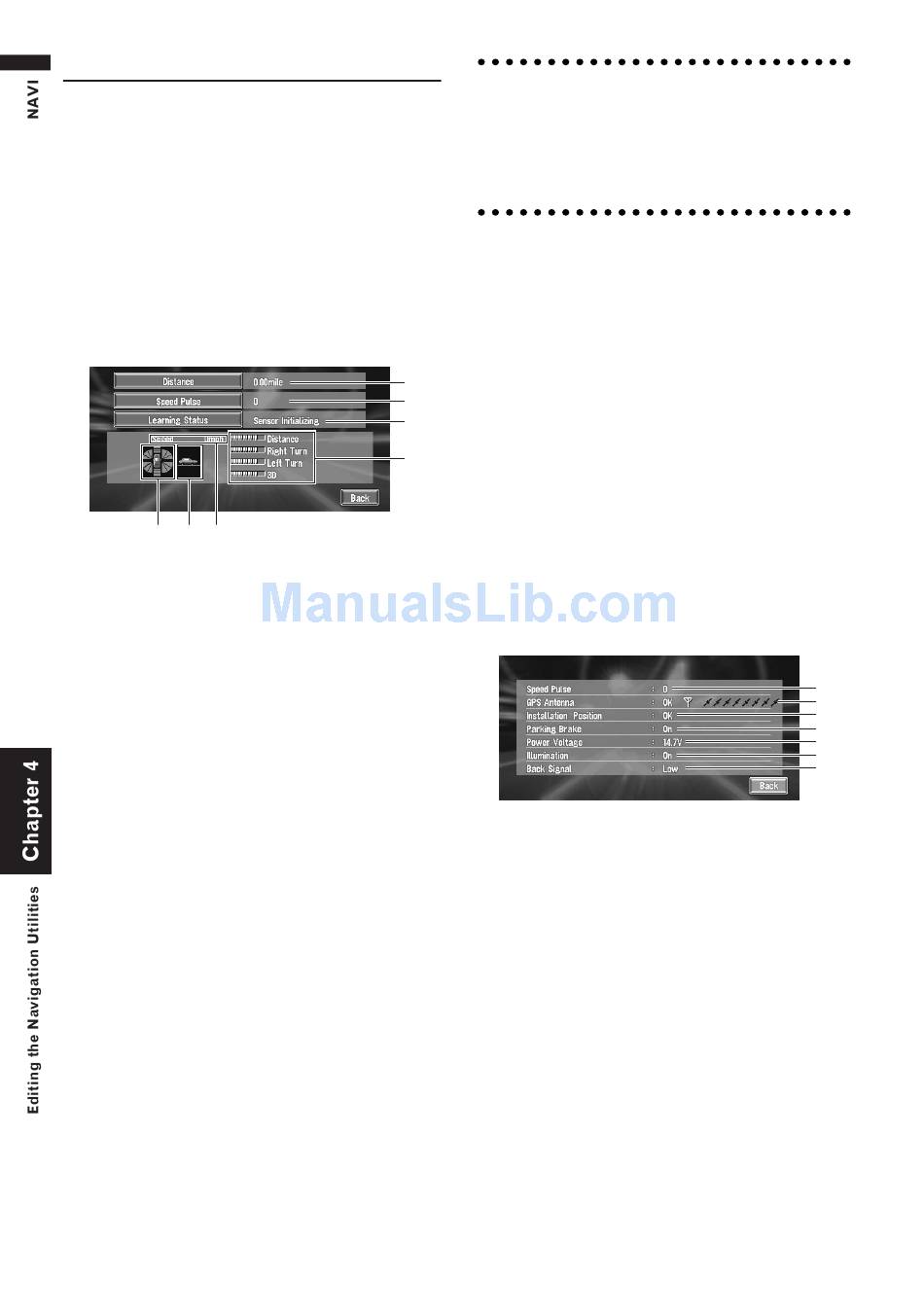

The 3D Calibration screen appears.
6 7 5
1. Distance
Driving distance is indicated.
2. Speed Pulse
Total number of speed pulses is indicated.
3. Learning Status
Current driving mode is indicated.
4. Degree of learning
Learning situations of Distance, Right Turn,
Left Turn, and 3D detection are indicated by
the length of bars.
5. Speed
Speed detected by this unit is indicated.
(This indication may be different from the
actual speed of your vehicle, so please do
not use this instead of the speedometer of
your vehicle.)
6. Front and back G/Rotational speed
Accelerated velocity of your vehicle in front
/ back direction is indicated. Also, rota-
tional speed when your vehicle turns to left
or right is shown.
7. Inclination
Degree of slope of the street is indicated.
52
To clear values...
If you want to delete the learned results stored in
"Distance", "Speed Pulse" or "Learning Sta-
tus", touch the relevant result, then touch
"Clear".
❒ This unit can automatically use two types of
sensor memory based on the outer dimen-
sions of the tires.
Checking the connections of
leads and installation positions
1
2
Check that leads are properly connected between
3
the navigation unit and the vehicle. Please also
check whether they are connected in the correct
4
positions.
1
Touch "Information" in the Main menu,
then touch "Connection Status".
The Connection Status screen appears. Either
"OK" or "NG" (or "No") appears on the
screen, and the connection status of each
cable is shown.
1. Speed Pulse
The Speed Pulse value detected by this unit
is shown. "0" is shown while the vehicle is
stationary.
2. GPS Antenna
Indicates the connection status of the GPS
antenna, the reception sensitivity, and from
how many satellites the signal is received.
3. Installation Position
The Installation position of the navigation
unit is shown.
4. Parking Brake
When the parking brake is applied, "On" is
displayed. When the parking brake is
released, "Off" is displayed.
1
2
3
4
5
6
