Summary of Contents for Asus BP5220
-
Page 1: User Manual

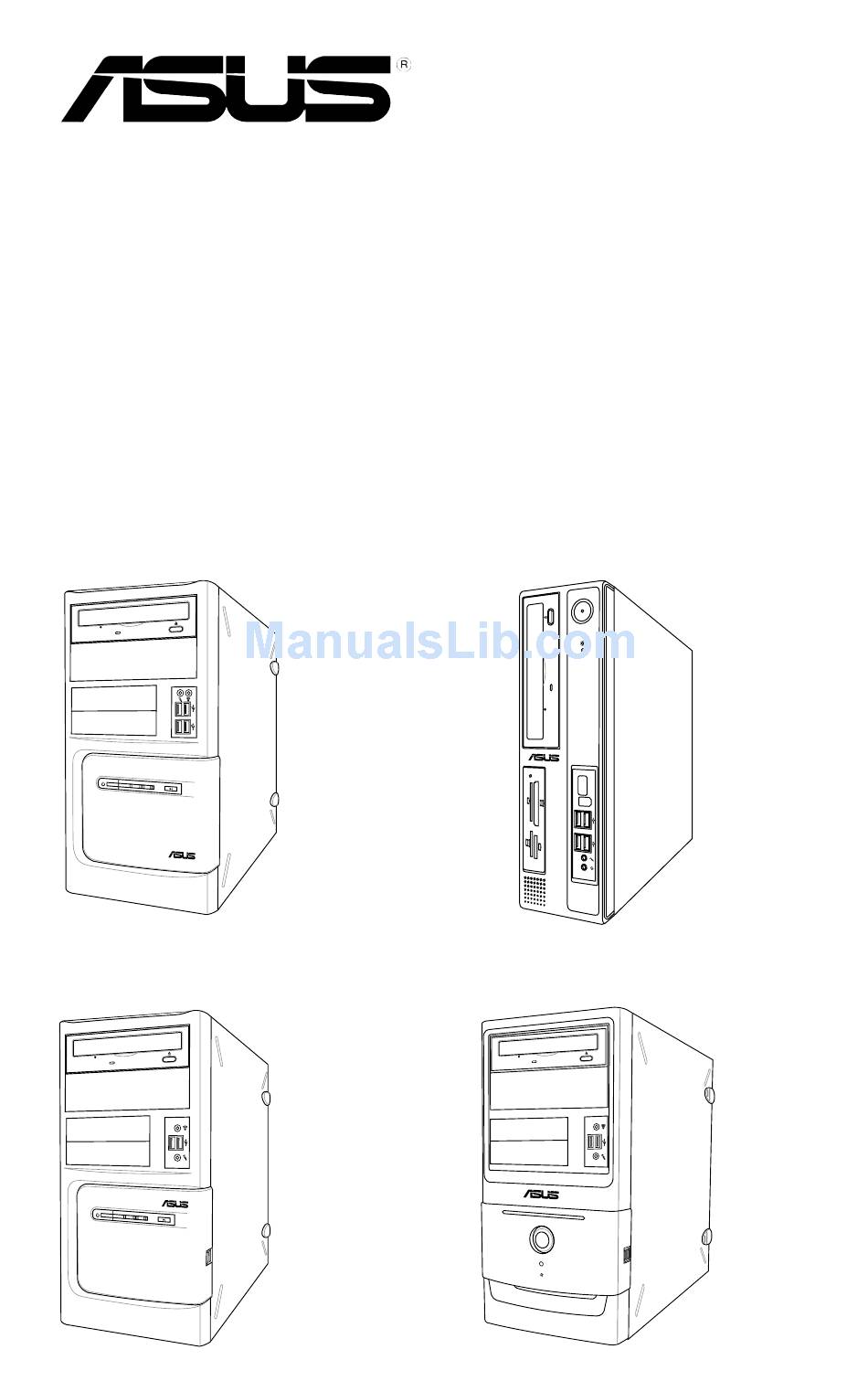

BM5620/MD100 BP5220/AS-D592 BM5220 BM5320 ASUS PC User Manual BM5620/MD100 BP5220/AS-D592 BM5220 BM5320... - Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Asus Contact Information
+1-510-739-3777 +1-510-608-4555 Web site usa.asus.com Technical Support Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, D-40880 Ratingen, Germany +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales Technical Support Telephone (Component) +49-1805-010923*... -
Page 4: Table Of Contents
2.3.1 Running the Support DVD ..........2-3 2.3.2 Drivers menu ..............2-4 2.3.3 Utilities menu ..............2-5 2.3.4 ASUS contact information ..........2-6 2.3.5 Other information ............2-7 ASUS AI Manager ................. 2-9 2.4.1 Installing AI Manager ............2-9 2.4.2 Launching AI Manager ............ -
Page 5: Notices
Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. REACH Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/ english/REACH.htm. -
Page 6: Safety Information
When using this product, do not block any air inlet/outlet on the chassis. We recommend that you use BM5620/MD100 , BM5220, and BM5320 in • environments with an ambient temperature from 5ºC~40ºC. We recommend that you use BP5220/AS-D592 in environments with an • ambient temperature from 5ºC~35ºC. •... -
Page 7: Class 1 Laser Product
LASER PRODUCT WARNING CLASS 1 LASER PRODUCT General precautions Before using the ASUS Desktop PC, carefully read the general precautions below. Improper operation could lead to personal injury or damage to the product. • Before using this product, ensure that all components are correctly installed and all cables are correctly connected. -
Page 8: About This Guide
How this guide is organized This guide contains the following parts: Chapter 1: System introduction This chapter gives a general description of the ASUS Desktop PC. The chapter lists the system features, including introduction on the front and rear panels. -
Page 9: Conventions Used In This Guide
ASUS Websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional Documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not... -
Page 10: System Package Contents
System package contents Check your system package for the following items. Standard items ASUS Desktop PC with • ASUS Desktop x1 • Mouse x1 • Keyboard x1 Cables • Power cord x1 Accessories • Mouse pad x1 • Support DVD x1 Documentation •... - Page 11 Chapter 1 This chapter gives a general description of the desktop PC. The chapter lists the system features including introduction on the front and rear panels.
-
Page 12: Chapter 1: System Introduction
1 x 3.5 inch drive bay 4 x USB 2.0 ports 1 x Microphone port 1 x Headphone port BP5220/AS-D592 2 x 5.25 inch optical disk drive bays 1 x Headphone port 2 x 3.5 inch drive bays 2 x USB 2.0 ports... -
Page 13: Rear Panel
1 x COM port 1 x Parallel port 1x VGA port Air vents 4 x USB 2.0 ports 1 x RJ-45 port 6-channel audio ports Side cover lock 4 x Expansion slots Expansion slot lock BM5620/MD100, BM5220, BM5320 ASUS BM5620/MD100, BP5220/AS-D592, BM5220, BM5320... -
Page 14: Voltage Selector
6-Channel audio ports 4 x Expansion slots 1 x Power connector Voltage selector BP5220/AS-D592 DO NOT block the air vents on the chassis. Always provide proper ventilation for this product. Voltage selector The system’s power supply unit has a 115V / 230V voltage selector. Use this switch to select the appropriate system input voltage according to the voltage supply in your area. -
Page 15: Connecting To The Keyboard And The Mouse
Connect the USB mouse to a USB port either at the rear panel or front panel. Connecting to other peripheral devices The ASUS Desktop PC is equipped with a number of ports at the rear and front panels where you can connect peripheral devices to the system. PS/2 keyboard... - Page 16 Line Out Expansion slots Microphone Power connector BP5220/AS-D592 Before you connect a peripheral device to the system, refer to the documentation that comes with the device or contact your supplier directly for information on how to install it. Chapter 1: System introduction...
- Page 17 Chapter 2 This chapter helps you to power up the system and install drivers and utilities from the Support DVD.
-
Page 18: Chapter 2: Getting Started
Refer to your OS documentation for detailed information. Powering your system Press the Power button to power up the system. Power button Power button BM5620/MD100 BP5220/AS-D592 Power button Power button BM5220 BM5320 Chapter 2: Getting started... -
Page 19: Support Dvd Information
The contents of the Support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates. 2.3.1 Running the Support DVD Place the Support DVD into the optical drive. -
Page 20: Drivers Menu
The Drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to activate the devices. ASUS InstAll - Installation Wizard for Drivers Installs drivers for this desktop PC using the installation wizard. Intel Chipset Inf Update Program Installs the Intel chipset Inf update program. -
Page 21: Utilities Menu
Before using the ASUS Update, ensure that you have an Internet connection to connect to the ASUS website. ASUS AI Manager Installs ASUS AI Manager where you can launch AI Disk, AI Security, AI Gear, and AI Probe easily. ASUS Screen Saver Installs the ASUS screensaver. -
Page 22: Asus Contact Information
2.3.4 ASUS contact information Click the Contact tab to display the ASUS contact information. Chapter 2: Getting started... -
Page 23: Other Information
Support DVD. Click an icon to display the specified information. Motherboard Info Displays the general specifications of the motherboard. Browse this DVD Displays the Support DVD contents in graphical format. ASUS BM5620/MD100, BP5220/AS-D592, BM5220, BM5320... - Page 24 Technical support Form Displays the ASUS Technical Support Request Form that you have to fill out when requesting technical support. Filelist Displays the contents of the Support DVD and a brief description of each in text format. Chapter 2: Getting started...
-
Page 25: Asus Ai Manager
ASUS AI Manager ASUS AI Manager allows you to launch AI Disk, AI Security, AI Gear, and AI Probe easily. 2.4.1 Installing AI Manager To install AI Manager on your computer: Place the Support DVD into the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled on your computer. -
Page 26: Main
Click to switch between a full-screen AI Manager window and the Quick bar. Click to keep AI Manager in the taskbar. Click to close AI Manager. 2.4.4 Main Launch AI Disk, AI Security, AI Gear, and AI Probe from the Main menu. Click the small triangle to open or close the Main menu. -
Page 27: Ai Security
To lock a device: If you are using AI Security for the first time, key in a password consisting of up to 20 alphanumeric characters. Confirm your password. Key in your password hint (optional). Click OK. ASUS BM5620/MD100, BP5220/AS-D592, BM5220, BM5320 2-11... - Page 28 Select the device you want to lock, then click Apply. Key in your password, then click OK. The device you selected cannot be accessed without the password. To unlock a device: Deselect the device you locked, then click Apply. Key in your password, then click OK. To change your password, click Change Password and follow the onscreen instructions.
- Page 29 Select your preferred system performance profile. AI Probe AI Probe automatically detects the motherboard and CPU temperatures, CPU fan speed, and CPU voltage. It also allows you to adjust these values manually. ASUS BM5620/MD100, BP5220/AS-D592, BM5220, BM5320 2-13...
-
Page 30: My Favorites
2.4.5 My favorites Add your favorite applications to the My Favorites menu. To add an application: Click Add and then from the succeeding screen select the application you want to add to the My Favorites menu. Click Open. The application you selected is added and its icon appears. Right-click an icon in the My Favorites menu to open, delete, or rename the corresponding application. -
Page 31: Support
2.4.6 Support The Support menu displays links to the ASUS international website, online technical support website, online download support website, and contact information website. 2.4.7 Information The Information menu displays the general information of your system, motherboard, CPU, BIOS, memory, and other devices installed. -
Page 32: Loading The Initial Os Default Settings
Follow the onscreen instructions to complete the process, then the system restarts. Adjust the screen to a suitable display resolution. The ASUS PC Recovery DVD is for ASUS Desktop PC only. DO NOT use it on other systems. Visit the ASUS website at www.asus.com for updates. -
Page 33: Recovering A Windows ® Vista Os
After it restarts, follow the onscreen instructions to complete the system configurations. The ASUS PC Recovery DVD is for ASUS Desktop PC only. DO NOT use it on other systems. Visit the ASUS website at www.asus.com for updates. ASUS BM5620/MD100, BP5220/AS-D592, BM5220, BM5320... -
Page 34: Recovering A Windows ® 7 Os
Follow the onscreen instructions to complete the process, and the system automatically restarts. The ASUS PC Recovery DVD is for ASUS Desktop PC only. DO NOT use it on other systems. Visit the ASUS website at www.asus.com for updates. Manufacturer: ASUSTeK Computer Inc.
