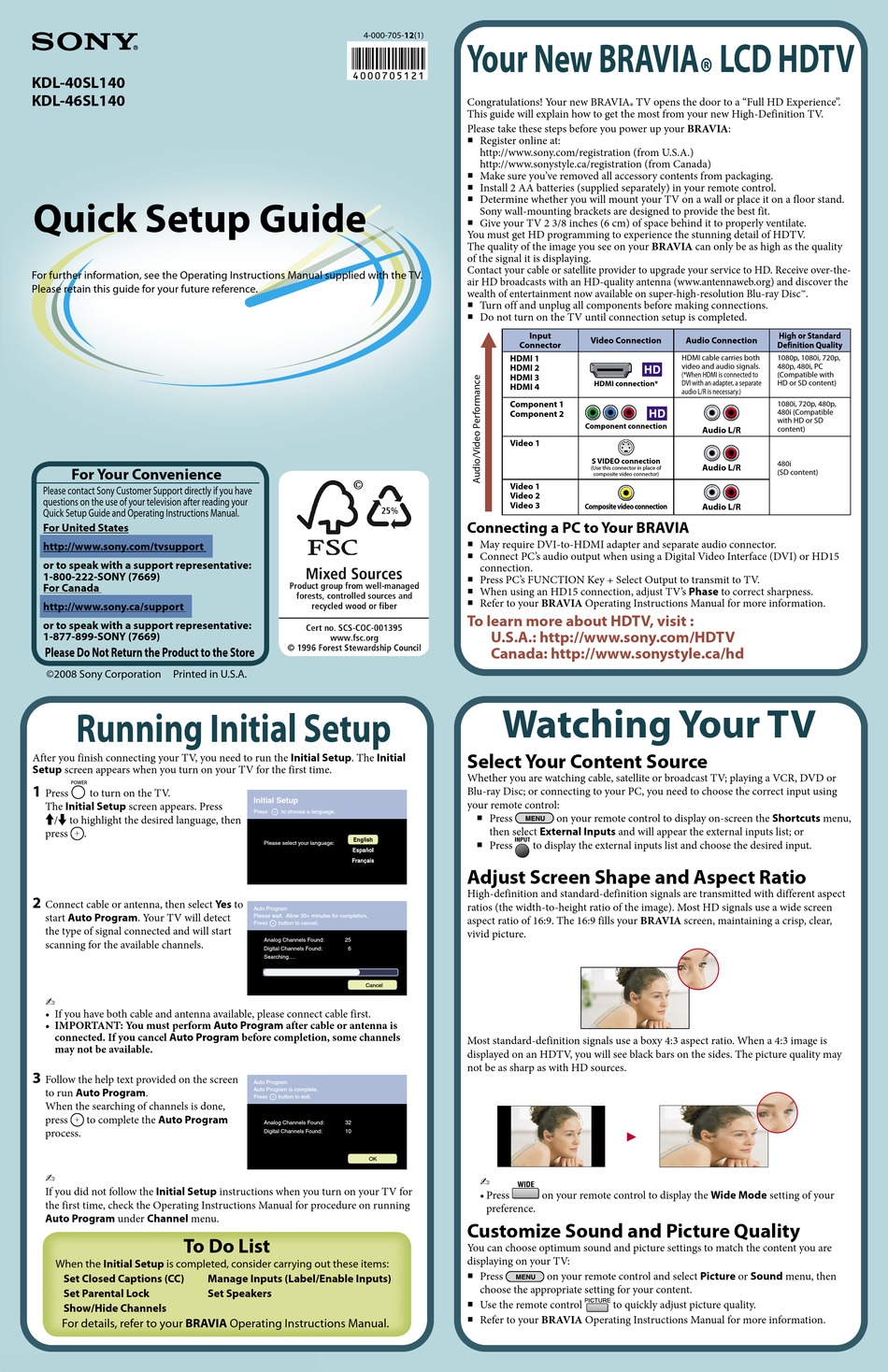

Sony BRAVIA KDL-40SL140 Quick Setup Manual

KDL-40SL140
KDL-46SL140

Quick Setup Guide

For further information, see the Operating Instructions Manual supplied with the TV.
Please retain this guide for your future reference.
For Your Convenience
Please contact Sony Customer Support directly if you have
questions on the use of your television after reading your
Quick Setup Guide and Operating Instructions Manual.
For United States
http://www.sony.com/tvsupport
or to speak with a support representative:
1-800-222-SONY (7669)
For Canada
http://www.sony.ca/support
or to speak with a support representative:
1-877-899-SONY (7669)
Please Do Not Return the Product to the Store
©2008 Sony Corporation Printed in U.S.A.

Running Initial Setup

After you finish connecting your TV, you need to run the Initial Setup. The Initial
Setup screen appears when you turn on your TV for the first time.
1
Press to turn on the TV.
The Initial Setup screen appears. Press
M/m to highlight the desired language, then
press .
2
Connect cable or antenna, then select Yes to
start Auto Program. Your TV will detect
the type of signal connected and will start
scanning for the available channels.
✍
• If you have both cable and antenna available, please connect cable first.
• IMPORTANT: You must perform Auto Program after cable or antenna is
connected. If you cancel Auto Program before completion, some channels
may not be available.
3
Follow the help text provided on the screen
to run Auto Program.
When the searching of channels is done,
press to complete the Auto Program
process.
✍
If you did not follow the Initial Setup instructions when you turn on your TV for
the first time, check the Operating Instructions Manual for procedure on running
Auto Program under Channel menu.
To Do List
When the Initial Setup is completed, consider carrying out these items:
Set Closed Captions (CC)
Set Parental Lock
Show/Hide Channels
For details, refer to your BRAVIA Operating Instructions Manual.
4-000-705-12(1)
Initial Setup
Press to choose a language.
Please select your language:
Auto Program
Please wait. Allow 30+ minutes for completion.
Press button to cancel.
Analog Channels Found: 25
Digital Channels Found: 6
Searching....
Cancel
Auto Program
Auto Program is complete.
Press button to exit.
Analog Channels Found: 32
Digital Channels Found: 10
OK
Manage Inputs (Label/Enable Inputs)
Set Speakers
Your New BRAVIA ® LCD HDTV
Congratulations! Your new BRAVIA ® TV opens the door to a "Full HD Experience".
This guide will explain how to get the most from your new High-Definition TV.
Please take these steps before you power up your BRAVIA:
■
Register online at:
http://www.sony.com/registration (from U.S.A.)
http://www.sonystyle.ca/registration (from Canada)
■
Make sure you've removed all accessory contents from packaging.
■
Install 2 AA batteries (supplied separately) in your remote control.
■
Determine whether you will mount your TV on a wall or place it on a floor stand.
Sony wall-mounting brackets are designed to provide the best fit.
■
Give your TV 2 3/8 inches (6 cm) of space behind it to properly ventilate.
You must get HD programming to experience the stunning detail of HDTV.
The quality of the image you see on your BRAVIA can only be as high as the quality
of the signal it is displaying.
Contact your cable or satellite provider to upgrade your service to HD. Receive over-the-
air HD broadcasts with an HD-quality antenna (www.antennaweb.org) and discover the
wealth of entertainment now available on super-high-resolution Blu-ray Disc™.
■
Turn off and unplug all components before making connections.
■
Do not turn on the TV until connection setup is completed.
Input
Video Connection
Connector
HDMI 1
HDMI 2
HDMI 3
HDMI connection*
HDMI 4
Component 1
Component 2
Component connection
Video 1
S VIDEO connection
(Use this connector in place of
composite video connector)
Video 1
Video 2
Video 3
Composite video connection
Connecting a PC to Your BRAVIA
■
May require DVI-to-HDMI adapter and separate audio connector.
■
Connect PC's audio output when using a Digital Video Interface (DVI) or HD15
connection.
■
Press PC's FUNCTION Key + Select Output to transmit to TV.
■
When using an HD15 connection, adjust TV's Phase to correct sharpness.
■
Refer to your BRAVIA Operating Instructions Manual for more information.
To learn more about HDTV, visit :
U.S.A.: http://www.sony.com/HDTV
Canada: http://www.sonystyle.ca/hd

Watching Your TV

Select Your Content Source
Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or
Blu-ray Disc; or connecting to your PC, you need to choose the correct input using
your remote control:
■
Press on your remote control to display on-screen the Shortcuts menu,
then select External Inputs and will appear the external inputs list; or
■
Press to display the external inputs list and choose the desired input.
Adjust Screen Shape and Aspect Ratio
High-definition and standard-definition signals are transmitted with different aspect
ratios (the width-to-height ratio of the image). Most HD signals use a wide screen
aspect ratio of 16:9. The 16:9 fills your BRAVIA screen, maintaining a crisp, clear,
vivid picture.
Most standard-definition signals use a boxy 4:3 aspect ratio. When a 4:3 image is
displayed on an HDTV, you will see black bars on the sides. The picture quality may
not be as sharp as with HD sources.
✍
• Press on your remote control to display the Wide Mode setting of your
preference.
Customize Sound and Picture Quality
You can choose optimum sound and picture settings to match the content you are
displaying on your TV:
■
Press on your remote control and select Picture or Sound menu, then
choose the appropriate setting for your content.
■
Use the remote control to quickly adjust picture quality.
■
Refer to your BRAVIA Operating Instructions Manual for more information.
High or Standard
Audio Connection
Definition Quality
HDMI cable carries both 1080p, 1080i, 720p,
video and audio signals. 480p, 480i, PC
(*When HDMI is connected to (Compatible with
DVI with an adapter, a separate HD or SD content)
audio L/R is necessary.)
1080i, 720p, 480p,
480i (Compatible
with HD or SD
Audio L/R content)
480i
Audio L/R
(SD content)
Audio L/R
