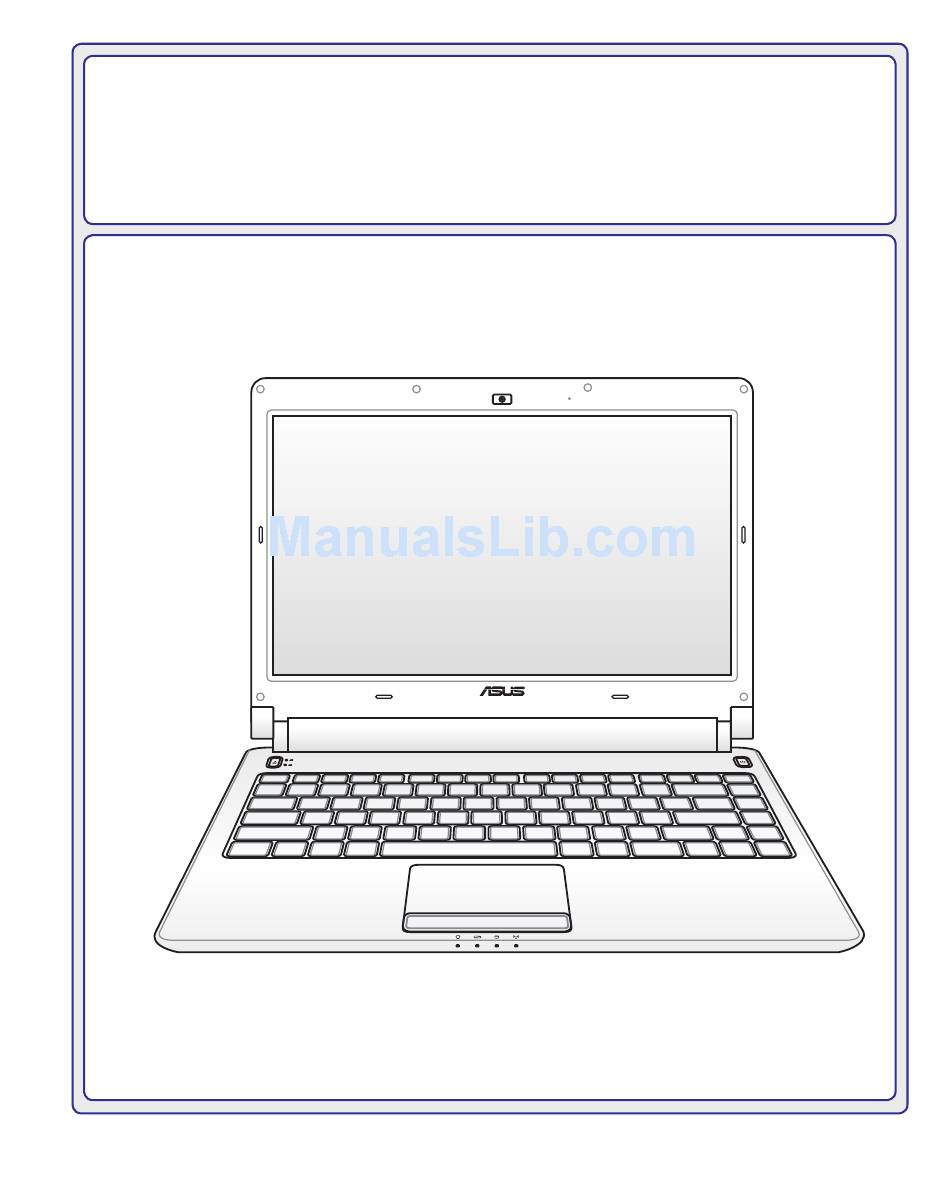

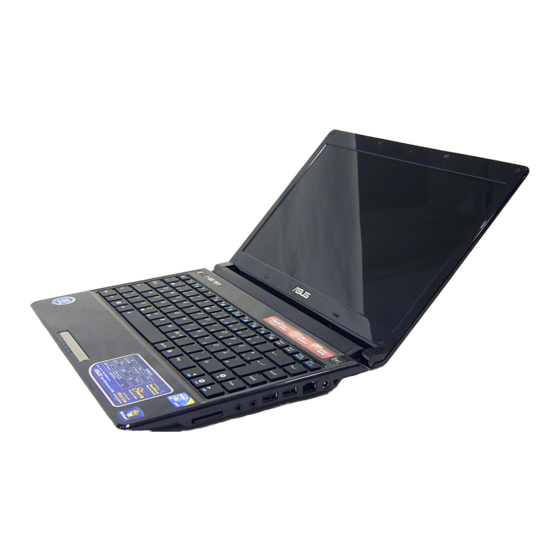

Page 1 Notebook PC Hardware User’s Manual E4790/ July 2009...
Page 2: Table Of Contents
Using AC Power � �� 22 Using Battery Power�� 23 Battery Care � �� 24 Powering ON the Notebook PC�� 25 The Power-On Self Test (POST) � �� 25 Checking Battery Power�� 26 Charging the Battery Pack � �� 26 Power Options�� 27 Power Management Modes �...
Page 3 4. Using the Notebook PC Pointing Device��38 Using the Touchpad�� 38 Touchpad Usage Diagrams�� 39 Caring for the Touchpad � �� 41 Automatic Touchpad Disabling � �� 41 Storage Devices��42 Flash Memory Card Reader�� 42 Hard Disk Drive � �� 43 Memory (RAM)��...
Page 4 Contents...
Page 5: Introducing The Notebook Pc
There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct. Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.
Page 6: About This User's Manual
Introduces you to optional accessories and gives additional information. Notes For This Manual A few notes and warnings in bold are used throughout this guide that you should be aware of in order to complete certain tasks safely and completely. These notes have different degrees of importance as described below: NOTE: Tips and information for special situations.
Page 7: Safety Precautions
Introducing the Notebook PC Safety Precautions The following safety precautions will increase the life of the Notebook PC. Follow all precautions and instructions. Except as described in this manual, refer all servicing to qualified personnel. IMPORTANT! Disconnect the AC power and remove the battery pack(s) before cleaning.
Page 8: Transportation Precautions
OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport the Notebook PC while the power is still ON. Close the display panel and check that it is in the closed position to protect the keyboard and display panel.
Page 9: Preparing Your Notebook
Introducing the Notebook PC Preparing your Notebook PC These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor- mation on using your Notebook PC. 2. Connect the AC Power Adapter 1. Install the battery pack 3.
Page 10 Introducing the Notebook PC...
Page 11: Knowing The Parts
There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct. Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.
Page 12: Top Side
Knowing the Parts Top Side Refer to the diagram below to identify the components on this side of the Notebook PC. The keyboard differs for each territory.
Page 13: Display Panel
TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if necessary) to clean the display panel.
Page 14: Touchpad And Buttons
Knowing the Parts Touchpad and Buttons The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse. A software-controlled scrolling function is available after setting up the included touchpad utility to allow easy Windows or web navigation.
Page 15: Bottom Side
Knowing the Parts Bottom Side Refer to the diagram below to identify the components on this side of the Notebook PC. The bottom side may vary in appearance depending on model. The battery pack size varies depending on model. WARNING! The bottom of the Notebook PC can get very hot. Be careful when han- dling the Notebook PC while it is in operation or recently been in operation.
Page 16: Battery Pack
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the battery pack.
Page 17: Left Side
Knowing the Parts Left Side Refer to the diagram below to identify the components on this side of the Notebook PC. Air Vents The air vents allow cool air to enter and warm air to exit the Notebook PC. IMPORTANT! Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.
Page 18: Right Side
This compartment does not support hotplugging. Headphone Output Jack The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers. Microphone Input Jack The mono microphone jack (1/8 inch) can be used to connect an external microphone or out- put signals from audio devices.
Page 19: Lan Port
To prevent damage to the Notebook PC and battery pack, always use the supplied power adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY. Security Port The security port allows the Notebook PC to be secured to a fixed object with a 2 mm metal cable.
Page 20: Rear Side
Knowing the Parts Rear Side Refer to the diagram below to identify the components on this side of the Notebook PC. Battery Pack The battery pack is automatically charged when the Notebook PC is connected to an AC power source and maintains power to the Notebook PC when AC power is not connected.
Page 21: Getting Started
There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct. Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.
Page 22: Power System
The Notebook PC power is comprised of two parts, the power adapter and the battery power system. The power adapter converts AC power from a wall outlet to the DC power required by the Notebook PC. Your Notebook PC comes with a universal AC-DC adapter.
Page 23: Using Battery Power
Notebook PC retailer. Installing and Removing the Battery Pack Your Notebook PC may or may not have its battery pack installed. If your Notebook PC does not have its battery pack installed, use the following procedures to install the battery pack.
Page 24: Battery Care
The battery pack’s useful life will depend on your environment temperature, humidity, and how your Notebook PC is used. It is ideal that the battery be used in a temperature range between 10˚C and 35˚C (50˚F and 95˚F). You must also take into account that the Notebook PC’s internal temperature is higher than the outside temperature.
Page 25: Powering On The Notebook Pc
The Notebook PC’s power-ON message appears on the screen when you turn it ON. If necessary, you may adjust the brightness by using the hot keys. If you need to run the BIOS Setup to set or modify the system configuration, press [F2] upon bootup to enter the BIOS Setup. If you press [Tab] during the splash screen, standard boot information such as the BIOS version can be seen.
Page 26: Checking Battery Power
Charging the Battery Pack Before you use your Notebook PC on the road, you will have to charge the battery pack. The battery pack begins to charge as soon as the Notebook PC is connected to external power using the power adapter.
Page 27: Power Options
Getting Started Power Options The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into sleep or hibernation modes. Actual behavior of the power switch can be customized in Windows Control Panel “Power Options.” For other options, such as “Switch User, Restart, Sleep, or Shut Down,”...
Page 28: Power Management Modes
Getting Started Power Management Modes The Notebook PC has a number of automatic or adjustable power saving features that you can use to maximize battery life and lower Total Cost of Ownership (TCO). You can control some of these fea- tures through the Power menu in the BIOS Setup.
Page 29: Special Keyboard Functions
The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons instead of the function keys.
Page 30: Colored Hot Keys (Cont)
You can see the current mode through the on-screen display (OSD). Fn+V: Toggles “Life Frame” software application.
Page 31: Multimedia Control Keys (On Selected Models)
CD Skip to Previous Track (Rewind) & Audio Volume Down During CD play, this button has two functions: Track: The first push will restart the current track. Second push will skip to the previous track. Audio: Hold down to decrease audio volume. CD Skip to Next Track (Fast Forward) & Audio Volume Up During CD play, this button has two functions: Track: Push once to skip to the next track during CD playing.
Page 32: Microsoft Windows Keys
Microsoft Windows Keys There are two special Windows keys on the keyboard as described below. The key with the Windows Logo activates the Start menu located at the bottom left of the Windows desktop. The other key, that looks like a Windows menu with a small pointer, activates the properties menu and is equivalent to pressing the right mouse button on a Windows object.
Page 33: Switches And Status Indicators
Switches and Status Indicators Switches Express Gate/ Power4Gear Hybrid Key Pressing this button will launch Express Gate when the Notebook PC is powered off. Refer to the Express Gate User’s Manual for details. The Power4Gear Hybrid key toggles power savings between various power saving modes.
Page 34: Status Indicators
Indicates that capital lock [Caps Lock] is activated when lighted. Capital lock allows some of the keyboard letters to type using capitalized letters (e.g. A, B, C). When the capital lock light is OFF, the typed letters will be in the lower case form (e.g. a,b,c).
Page 35: Drive Activity Indicator
Getting Started Drive Activity Indicator Indicates that the Notebook PC is accessing one or more storage device(s) such as the hard disk. The light flashes proportional to the access time. Bluetooth / Wireless Indicator This is only applicable on models with internal Bluetooth (BT) and built-in wireless LAN.
Page 36 Getting Started...
Page 37: Using The Notebook Pc
There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct. Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.
Page 38: Pointing Device
Left Click Using the Touchpad Light pressure with the tip of your finger is all that is required to operate the touchpad. Because the touchpad is electrostatic sensitive, objects cannot Slide finger be used in place of your fingers.
Page 39: Touchpad Usage Diagrams
Double-clicking/Double-tapping - These actions allows you to launch your selected program. Move your finger over the program that you want to launch, press the left button or tap the pad twice in rapid succession, and the system launches your selected program. If the interval between the clicks or taps is too long, the operation will not be executed.
Page 40 Using the Notebook PC Multi-finger gesture input Two-finger scrolling - Use two fingertips to slide up/down/left/right on the touchpad to scroll a window up/down/left/right. If your display window includes several sub-windows, move the pointer on that pane before scrolling. Scrolling...
Page 41: Caring For The Touchpad
Using the Notebook PC Caring for the Touchpad The touchpad is pressure sensitive. If not properly cared for, it can be easily damaged. Take note of the following precautions. • Make sure the touchpad does not come into contact with dirt, liquids or grease.
Page 42: Storage Devices
Using the Notebook PC Storage Devices Storage devices allow the Notebook PC to read or write documents, pictures, and other files to various data storage devices. This Notebook PC has the following storage devices: • Flash memory card reader • Hard disk drive...
Page 43: Hard Disk Drive
The hard disk drive is the most delicate component and will likely be the first or only component that is damaged if the Notebook PC is dropped. IMPORTANT! When replacing or upgrading the hard drive, always visit an authorized service center or retailer for this Notebook PC.
Page 44 Using the Notebook PC Installing the hard disk drive:...
Page 45: Memory (Ram)
The BIOS automatically detects the amount of memory in the system and configures CMOS accord- ingly during the POST (Power-On-Self-Test) process. There is no hardware or software (including BIOS) setup required after the memory is installed.
Page 46: Connections
Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the Notebook PC and the other end to a hub or switch. For 100 BASE-TX / 1000 BASE-T speeds, your network cable must be category 5 or better (not category 3) with twisted-pair wiring. If you plan on running the interface at 100/1000Mbps, it must be connected to a 100 BASE-TX / 1000 BASE-T hub (not a BASE-T4 hub).
Page 47: Wireless Lan Connection (On Selected Models)
The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing the IEEE 802.11 standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequen- cy Division Multiplexing (OFDM) technologies on 2.4GHz/5GHz frequencies.
Page 48: Windows Wireless Network Connection
Using the Notebook PC Windows Wireless Network Connection Connecting to a network 1. Switch ON the Wireless function if necessary for your model (see switches in Section 3). 2. Press [FN+F2] repeatedly until wireless 2b. Or double click the Wireless Console icon LAN icon and bluetooth icon are shown.
Page 49: Bluetooth Wireless Connection (On Selected Models)
You can wireless connect to your mobile phone. Depending on your mobile phone’s capabilities, you can transfer phone book data, photos, sound files, etc. or use it as a modem to connect to the Internet. You may also use it for SMS messaging.
Page 50 Using the Notebook PC...
Page 51: Appendix
There may be differences between your Notebook PC and the drawings shown in this manual. Please accept your Notebook PC as being correct. Photos and icons in this manual are used for artistic purposes only and do not show what is actually used in the product itself.
Page 52: Optional Accessories
These items, if desired, come as optional items to complement your Notebook PC. USB Hub (Optional) Attaching an optional USB hub will increase your USB ports and allow you to quickly connect or disconnect many USB peripherals through a single cable.
Page 53: Optional Connections
Windows navigation to be more comfortable. Both the external USB keyboard and mouse will work simultaneously with the Notebook PC’s built-in keyboard and touchpad. Printer Connection One or more USB printers can be simultaneously used on any USB port or USB hub.
Page 54: Bluetooth Mouse Setup (Optional
Bluetooth Mouse Setup (optional) This process can be used to add most Bluetooth devices in Windows operating system. 1. Switch ON the Wireless function if necessary for your model (see switches in Section 3). 2. Press [FN+F2] repeatedly until wireless 2b.
Page 55 • Push the “RESET” button on the bottom of the Bluetooth mouse. 6. The pairing starts. 7. The Bluetooth mouse has been successfully paired with the Notebook PC. Click Close to fin- ish the setup. “RESET” may be necessary after changing batteries. Repeat steps if necessary.
Page 56: Operating System And Software
A recovery disc is optional and includes an image of the original operating system installed on the hard drive at the factory. The recovery disc provides a comprehensive recovery solution that quickly restores the Notebook PC’s operating system to its original working state provided that your hard disk...
Page 57: Security Setting
Select Screen Select Item 3. Re-type to confirm the Enter Change F1 General Help password and press F10 Save and Exit ESC Exit [Enter]. v02.59 (C)Copyright 1985-2005, American Megatrends, Inc. 4. Password is then set. To clear the password: 1. Leave the password field blank and press [Enter]. 2. Password is then cleared.
Page 58: Save Changes
F1 General Help F10 Save and Exit ESC Exit v02.59 (C)Copyright 1985-2005, American Megatrends, Inc. User Access Level Select the level of access BIOS SETUP UTILITY Security to allow the “User Pass- Security Settings Setup: Check password word” to have in the BIOS while invoking setup. Supervisor Password : Installed Always: Check password setup utility. User Password : Installed while invoking setup as well as on each Change Supervisor Password boot. User Access Level [Full Access]...
Page 59: Common Problems And Solutions
1. Update the BIOS to the latest version and try again. 2. If updating the BIOS does not help, try better quality discs and try again. 3. If the problem still exist, contact your local service center and ask an engineer for assistance. Unknown Reason - System Unstable Cannot wake up from the hibernation.
Page 60 Notebook PC. 3. Store the battery pack in a dry location with temperatures between 10 and 30 if you will not be using it for a long time. It is strongly recommended that you charge the battery pack every three months.
Page 61 Mechanical Problem - FAN / Thermal Why is the cooling fan always ON and the temperature high? 1. Make sure that the FAN works when the CPU temperature is high and check whether there is air flow from the main air vent.
Page 62 Try to un-install them in Windows Safe Mode. 3. Check your system for viruses. 4. Update the BIOS to the latest version with Easy Flash in Windows or AFLASH in DOS mode. These utilities and BIOS files can be downloaded from the ASUS website. (WARNING: Ensure your Notebook PC does not lose power during the BIOS flashing process.)
Page 63: Updating The Bios
ASUS website and save it in your flash disk drive. 2. Connect your flash disk drive to the Notebook PC and power on the Notebook PC. 3. Use the “Easy Flash” function on the Advanced page of the BIOS Setup Utility. Follow the in- structions shown.
Page 64: Windows Vista Software Recovery
Before using the Recovery Partition, copy your data files (such as Outlook PST files) to a USB storage device or to a network drive and make note of any customized configuration settings (such as network settings).
Page 65 1. Insert the Recovery DVD into the optical drive (Notebook PC needs to be powered ON). 2. Restart the Notebook PC and press <Esc> on bootup and select the optical drive (may be labeled as “CD/DVD”) using the down cursor and press <Enter> to boot from the Recovery DVD.
Page 66: Glossary
The BIOS can be updated using the provided utility to copy a new BIOS file into the EEPROM. Bit (Binary Digit) Represents the smallest unit of data used by the computer. A bit can have one of two values: 0 or 1. Boot Boot means to start the computer operating system by loading it into system memory.
Page 67 VGA, audio, Ethernet, printer, or modem. DVD is essentially a bigger, faster CD that can hold video as well as audio and computer data. With these capacities and access rates, DVD discs can provide you with dramatically-enhanced high-color, full-motion videos, better graphics, sharper pictures, and digital audio for a theater-like experience.
Page 68 Class 4 laser is operating without proper eye protection. PCI Bus (Peripheral Component Interconnect Local Bus) PCI bus is a specification that defines a 32-bit data bus interface. PCI is a standard widely used by expansion card manufacturers.
Page 69: Suspend Mode
PC is in STR mode. In STD mode, the Notebook PC will appear to be powered OFF. System Disk A system disk contains the core file of an operating system and is used to boot up the operating system. TPM (Trusted Platform Module) (on selected models) The TPM is a security hardware device on the system board that will hold computer-generated keys for encryption.
Page 70: Declarations And Safety Statements
“Region Definitions” below. Copy- right laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require that any system capable of playing CSS encrypted content must only be capable of playing one region.
Page 71: Internal Modem Compliancy
Overview On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dial- ling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).
Page 72 1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).
Page 73: Federal Communications Commission Statement
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: •...
Page 74: Ce Mark Warning
LAN adapter that the integrated antenna is positioned more than [20cm] from your body or nearby persons during extended periods of operation. If the antenna is posi- tioned less than [20cm] from the user, it is recommended that the user limit the exposure time.
Page 75: Wireless Operation Channel For Different Domains
Maximum authorized power indoors is 100mW • Maximum authorized power outdoors is 10mW Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors: 01 Ain...
Page 76: Ul Safety Notices
These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.
Page 77 Entsorgung gebrauchter Batterien nach Angaben des Herstellers. (German) ADVARSELI! Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. (Danish) VARNING! Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Page 78: Optical Drive Safety Information
Optical Drive Safety Information Laser Safety Information Internal or external optical drives sold with this Notebook PC contains a CLASS 1 LASER PROD- UCT. Laser classifications can be found in the glossary at the end of this user’s manual. WARNING: Making adjustments or performing procedures other than those speci- fied in the user’s manual may result in hazardous laser exposure.
Page 79 Appendix CTR 21 Approval (for Notebook PC with built-in Modem) Danish Dutch English Finnish French German Greek Italian Portuguese Spanish Swedish A-29...
Page 80: Notebook Pc Information
Notebook PC Information This page is provided for recording information concerning your Notebook PC for future reference or for technical support. Keep this User’s Manual in a secured location if passwords are filled out. Owner’s Name: _________________________Owner’s Telephone: _____________ Manufacturer: ____________ Model: ___________Serial Number: _____________...
Page 81 This product is protected by one or more of the following U.S. Patents: 7,416,423; 7,415,588; 7,413,402; 7,411,791; 7,408,855; 7,403,378; 7,400,721; 7,399,011; 7,394,533; 7,392,968; 7,388,754; 7,388,752; 7,388,743; 7,382,605; 7,382,314; 7,375,952; 7,374,433; 7,373,493; 7,369,402; 7,369,064; 7,362,568; 7,362,521; 7,362,276; 7,361,034; 7,359,209; 7,359,189; 7,355,372;...
Page 82: Copyright Information
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its sup- pliers, and your reseller are collectively responsible.
