6.2 Virtual Media

6.2.1 Mapping

Upload a Floppy Image
Within two small steps working on the basis of a certain (floppy) image can be achieved.
• First, the path of the image has to be specified. You can do that either by hand, or by using
the file selection dialog of your web browser. To open the file selection dialog, click on the
button "Browse" and select the desired image file.
The maximum image size is limited to 1.44MB. To use a larger image, mount this image via
Windows Share (or SAMBA) (see the Section called Use Image on Windows Share
(SAMBA) for details).
• Second, click on the button "Upload" to initiate the transfer of the chosen image file into the
DKVM-IP1 switch s onboard memory. This image file is kept in the onboard memory of the
DKVM-IP1 switch until the end of the current session, until you logged out, or initiated a
reboot of the DKVM-IP1 switch.

6.2.2 CD ROM

Use Image on Windows Share (SAMBA)
To include an image from a Windows share, select " CD-ROM " from the submenu.

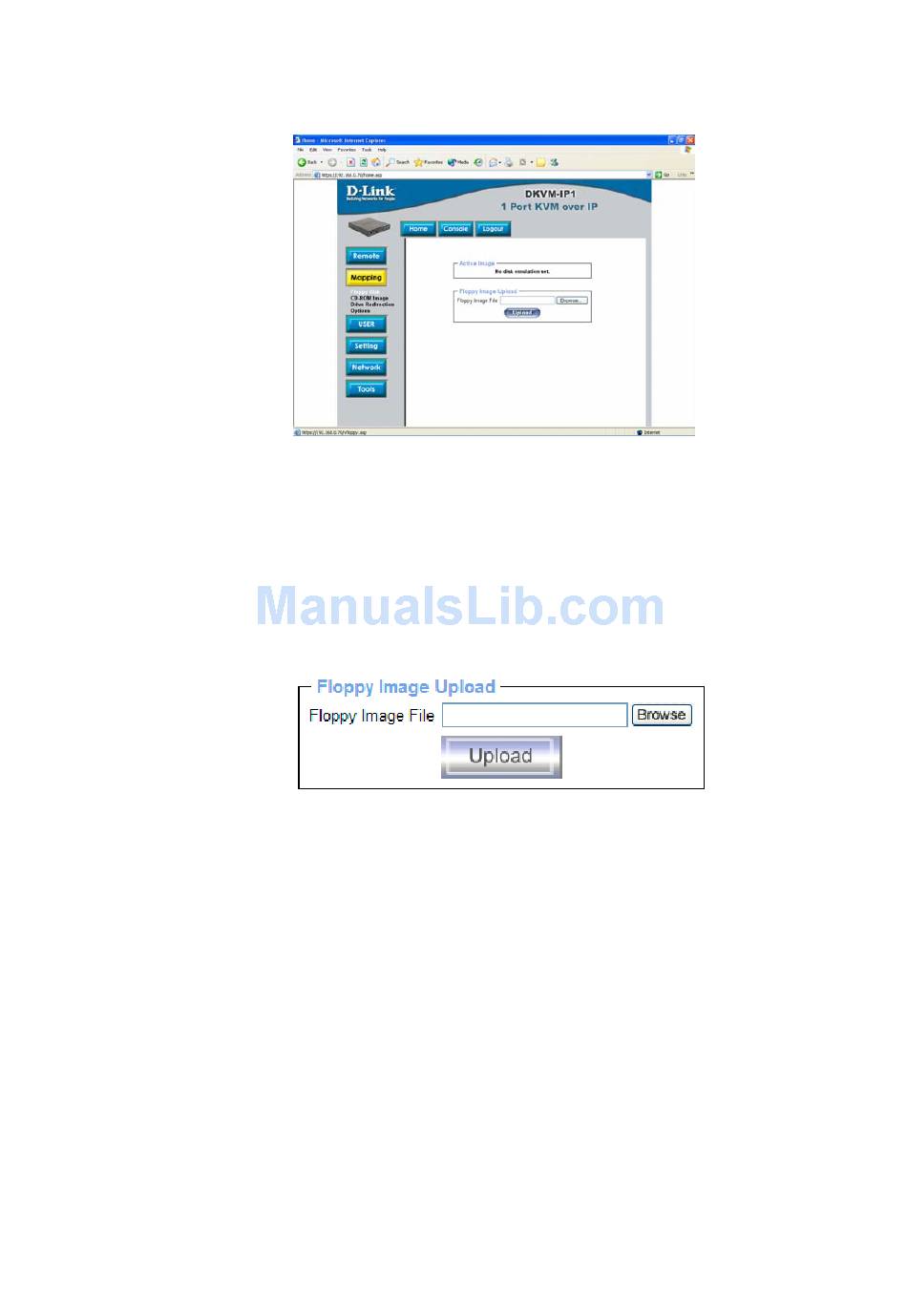

Figure 6-3. Virtual Floppy Area
Figure 6-4. Select Image File
31
