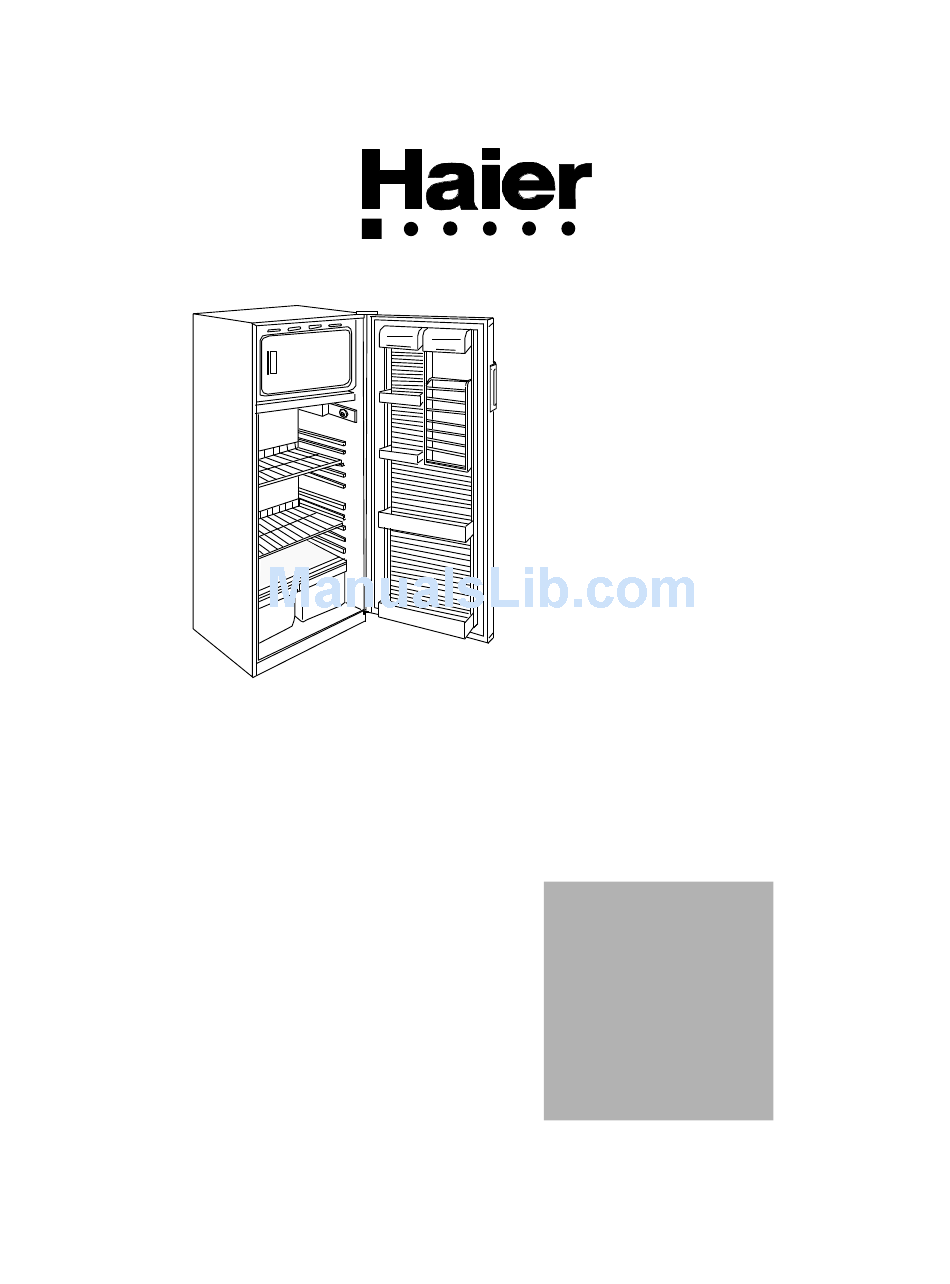

- Page 1 ® What The World Comes Home To Single Door Refrigerator Refrigeradores de Puerta Individual Refrigerator User Manual- Manual del Usuario- HSW08...
-
Page 2: Safety Precautions
"…Thawed ground meats, poultr y, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat."... - Page 3 English 10) This refrigerator should not be recessed or built-in an enclosed cabinet. It is designed for freestanding installation only. 11) Do not operate your refrigerator in the presence of explosive fumes. For Future Reference Please SAVE THESE INSTRUCTIONS DANGER Risk of child entrapment.
-
Page 4: Table Of Contents
Crisper and Crisper Cover..............12 Refrigerator Door Shelves ..............13 Defrosting....................14 Food Storage Information ..............15 Normal Operating Sounds..............17 Proper Refrigerator Care and Cleaning ........18 Cleaning and Maintenance ..............18 Light Bulb Replacement ................19 Power Interruptions ................19 Vacation and Moving Car e ..............19 Troubleshooting................20... -
Page 5: Parts And Features
1. Freezer Compartment 6. Egg Storage/ Dairy Compartment 2. Water-Collecting Tray 7. Dispense-A-Can 3. Thermostat Control 8. Door Storage Shelves 4. Wire Shelves 9. Two Leveling Legs (not shown) 5. Vegetable Crispers 10. Two Rollers (not shown) 11. Plastic Crisper Cover... -
Page 6: Installing Your Refrigerator
After properly placing your refrigerator in its final position, you can level your refrigerator. • Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator. -
Page 7: Electrical Requirements
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with proper grounding to power the refrigerator. • Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard. -
Page 8: Door Handle Installation
1. Take out door handle, screws and screw covers from refrigerator accessory bag. 2. Align the upper part of door handle with the screw hole of the upper side of refrigerator door, and fix with screw. 3. Align the lower screw hole of the door handle with the hole in the refrigerator door, fix with screw, and cover it with a screw cover. -
Page 9: Reversing The Door Swing
1. Fix refrigerator door by sticking adhesive tape on both sides to hold door in place. 2. As shown in fig. 2, dismantle the hinge box cover on the upper part of refrigerator door with a phillips head screwdriver. Then remove the screws from the hinge. Take out the hinge by pulling it vertically, and keep it in a safe place. - Page 10 # 3 2. As shown in fig. 4, install the top hinge and pad to the left side. fig. # 4 3. Install refrigerator door: make the left bottom hole of the refrigerator compartment door fall over the lower hinge axle, move back and forward the door to make it straight and in alignment with top hinge.
-
Page 11: Reversing The Door Handles
1. Remove the water-collecting tray. 2. Using a narrow blunt object (e.g. Phillips head screwdriver) press the hinge axle on the bottom of the hinged side of the freezer door. 3. This will remove the freezer door off its hinges 4. -
Page 12: Refrigerator Features And Use
To remove or adjust a full-width slide-out shelf: (see fig. # 7) 1. Gently tilt the shelf up and slide forward until the shelf has been completely removed. 2. To replace the shelf, select the desired setting and gently slide the shelf back until it rests in the locking position. -
Page 13: Crisper And Crisper Cover
2. Carefully grasp the crisper cover and slide out to remove. fig. # 9 To replace the crisper cover: 1. Insert the rear of the crisper cover into the support bracket on the side walls of the refrigerator. 2. Slide the crisper cover into place. -
Page 14: Refrigerator Door Shelves
To replace refrigerator door shelves: (see fig. # 10) 1. Align the ends of the shelves with the door shelf brackets. 2. Carefully push down on each end of the door shelf until it is locked in place in the refrigerator door brackets. -
Page 15: Defrosting
• During the defrost cycle, water will accumulate in the water collecting tray. Drain the water into a bowl by removing the drain plug that is located on the bottom of the water-collecting tray. (see Fig. 12) -
Page 16: Food Storage Information
• Eggs should be stored in an upright position in their original carton to maximize shelf life. • Fruit should be washed and dried then stored in a crisper set for low humidity. If you do not have humidity controlled crispers place the items in sealed plastic bags before storing in the crisper. -
Page 17: Frozen Food
Frozen Food • Proper freezer storage requires correct packaging. All foods must be in packages, which do not allow the flow of air or moisture in, or out. Improper storage will result in odor and taste transfer and will result in the drying out of the improperly packaged food. -
Page 18: Normal Operating Sounds
English Normal Operating Sounds You May Hear • The fan circulating air inside the interior of your unit to maintain the temperature you have selected. • Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils. -
Page 19: Proper Refrigerator Care And Cleaning
Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your refrigerator. • Rinse with clean warm water and dry with a soft cloth. • Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads. -
Page 20: Light Bulb Replacement
2. Allow light bulb to cool before removing. 3. Remove bulb by screwing it out counter-clockwise. 4 Always replace with appliance type light bulb rated at 40 watts or lesser wattage. 5. Do not exceed the 40 watts rating at any time. -
Page 21: Troubleshooting
• Check if thermostat control is not in the “OFF” position. • Check if refrigerator is plugged in. • Check if there is power at the ac outlet, by checking the circuit breaker. • Wait for 30-40 minutes to see whether refrigerator will start. It may be in "defrost"... - Page 22 • Prolonged or frequent door openings. • Check door gaskets for proper seal. Refrigerator has an odor: • Interior needs cleaning. • Foods improperly wrapped or sealed are giving off odors. Refrigerator light does not work: • Check power supply. • Tighten bulb in socket.
-
Page 23: Warranty Information
What will be done? or consequential damages, so the above limitations may not apply to you. Some 1. We will repair or replace, at our dis- States do not allow limitations on how cretion any mechanical or electrical long an implied warranty lasts, so the part which proves to be defective in above limitations may not apply to you. - Page 24 IMPORTANTE No regrese este producto a la tienda Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A). NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA...
