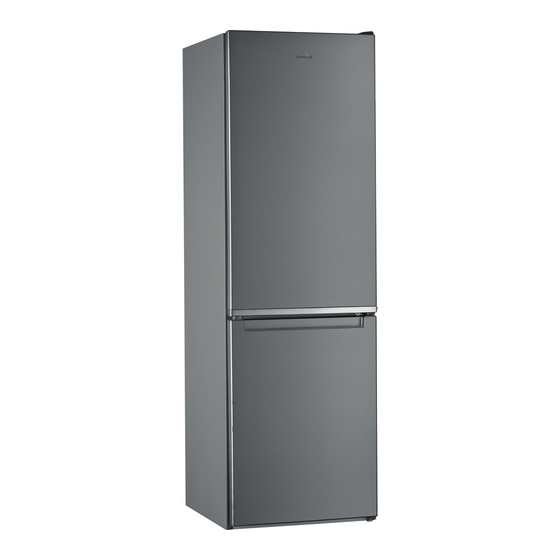

Whirlpool W9C 841C OX Quick Manual

Quick guide
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on
PRODUCT DESCRIPTION
FIRST TIME USE
Wait at least two hours, after the installation, before connecting
the appliance to the power supply. Connect the appliance to the
power supply it starts the operation automatically. The ideal storage
temperatures for the food are preset in the factory.
CONTROL PANEL
1 2
8
ON/STANDBY
To put the product in Stand-by, press and hold the On/ Stand By button
for 3 seconds. All the indicators turn off except On/Standby indicator.
Press again to reactivate the appliance.
FRIDGE TEMPERATURE
To adjust the Fridge Temperature, press the Fridge °C button. The
Fridge Temperature can be adjusted between +2°C and + 8°C, as
shown by the Fridge Temperature LEDs.
FREEZER TEMPERATURE
To adjust the Freezer Temperature, press the Freezer °C button. The
Freezer Temperature can be adjusted between -16°C and -24°C, as
shown by the Freezer Temperature LEDs.
FAST COOL
Using Fast Cool function it is possible to increase the cooling
capacity in the refrigerator compartment. The use of this function
is recommended when placing a very high quantity of food in the
refrigerator compartment. Press the Fast Cool button to activate Fast
Cool function. When activated, the Fast Cool indicator turns on. The
function is automatically disabled after 6 hours, or can be manually
disabled by pressing Fast Cool button again.
FAST FREEZE
The use of this function is recommended when placing a very high
quantity of food to be frozen in the freezer compartment.
24 hours before freezing fresh food, press the Fast Freeze button to
activate the Fast Freeze function. When activated, the Fast Freeze
indicator turns on. After 24 hours place the food to be frozen in the
middle freezing zone of freezer compartment.
The function is automatically disabled after 48 hours, or can be
manually disabled by pressing Fast Freeze button.
PRECISION CONTROL FUNCTION
Precision control function is an advanced technology that reduces
temperature fluctuations in the whole freezer compartment to
minimum, thanks to an innovative air system, totally independent from
the fridge. Freeze burns are reduced up to 60% and food preserves its
original quality and color. To activate/deactivate the precision control
function simply press the precision control function button. The
function works properly in a defined range of temperature: between
-22°C and -24°C.
When the function is engaged and the current temperature in the
* Available only on certain models
www . whirlpool . eu/ register
3 4 5 6
9 10 11 12
Before using the appliance carefully read the Safety
Instruction.
After turning the appliance on, you must wait for 4-6 hours for the
correct storage temperature to be reached for a normally filled
appliance.
7
freezer is set to the warmer set point than -22°C, the temperature is
automatically set to -22°C to match the working range. If the function
is engaged and the user modify the freezer temperature out of the
working range, the function is automatically switched off. In case of
Fast freezing is engaged, the function "Precision control function" is
inhibited until the Fast Freezing function switched off.
FAN*
The Fan improves temperature distribution inside the refrigerator
compartment, allowing better preservation of stored food.
The fan will start/stop working depending on the temperature and/
or humidity level inside the fridge. If the appliance has the Fan it can
be equipped with the antibacterial filter. If the appliance has the Fan it
can be equipped with the antibacterial filter. Visit the website page or
contact consumer service to purchase the filter.
LED LIGHT
If the LED light system does not work, please contact the Service to
replace it.
Important: The refrigerator compartment light switches on when the
refrigerator door is opened. If the door is kept open for more than 8
minutes the light will be automatically switched off.
HUMIDITY CONTROL*
Open the humidity
regulator (position B) if you
want to store food in a less
humid environment like
fruit, or close it (position
A) to store food in a more
humid environment like
vegetable.
TUCK SHELF*
Thanks to the rail system, this shelf allows you to slide under the front
part, creating an extra space for storing tall bottles or pitchers.
EASY ACCESS TRAY IN FREEZER*
Freezer tray is useful to easily access frequently used products, freeze
or simply store leftovers or small items.
1. On/stand-by indicator
2. Fast cool indicator
3. Precision control indicator
4. Fridge/freezer temperature display (°C)
5. Stop alarm indicator
6. Fast freeze indicator
7. Black out alarm indicator
8. Fridge temperature button / fast cool
button
9. Precision control button
10.
On/stand-by
11.
Stop alarm
12.
Freezer temperature button / fast freeze
button
EN
