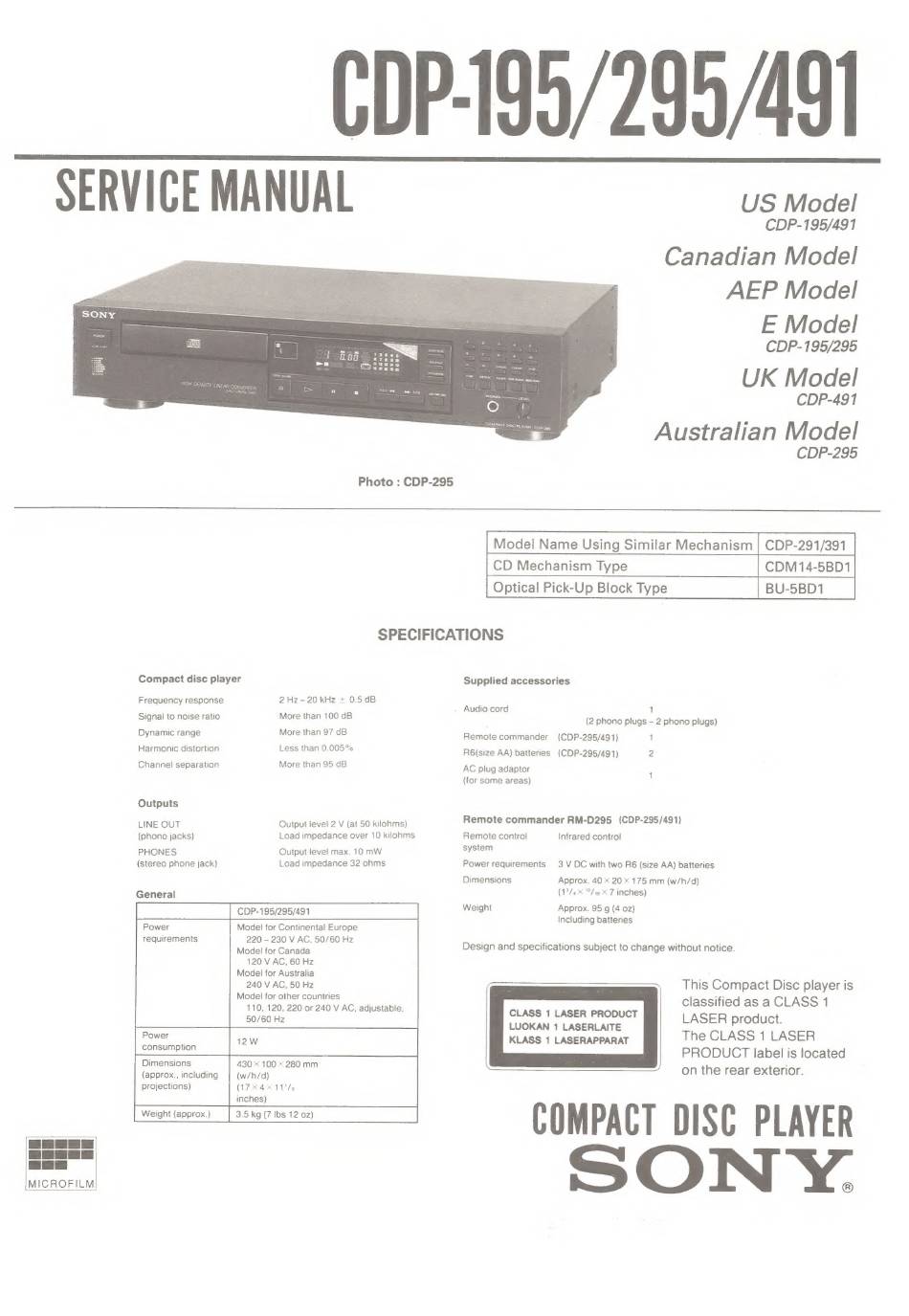

Sony CDP-295 Service Manual

SERVICE MANUAL US Mode!
CDP-195/491
Canadian Model
AEP Model
E Model
CDP-195/295
UK Model
CDP-491
ee Australian Model
CDP-295
Photo : CDP-295
Model Name Using Similar Mechanism | CDP-291/391
CD Mechanism Type | CDM14-5BD1
Optical Pick-Up Block Type BU-5BD1
SPECIFICATIONS
Compact disc player Supplied accessories
Frequency response 2Hz-20kHz + 0.5dB :
Audio cord 1
Signal to noise ratio More than 100 dB (2 phono plugs - 2 phono plugs)
Dynamic range
More than 97 dB
Remote commander
(CDP-295/491)
1
Harmonic distortion
Less than'0:005%
R6(size AA) batteries (CDP-295/491)
2
Channel separation More than 95 dB AC plug adaptor ,
(for some areas)
Outputs
LINE OUT
Output level 2 V (at 50 kilohms)
Remote commander RM-D295
(CDP-295/491)
(phono jacks) Load impedance over 10 kilohms Remote control Infrared control
PHONES Output level max. 10 mw system
(stereo phone jack) Load impedance 32 ohms Power requirements 3 V DC with two R6 (size AA) batteries
Dimensions Approx. 40 * 20 * 175 mm (w/h/d)
General (1°74 "°/16 7 inches)
Weight Approx. 95 g (4 0z)
CDP-195/295/491
Model for Continental Europe
220 - 230 V AC, 50/60 Hz
Model for Canada
120 V AC, 60 Hz
Model for Australia
240 V AC, 50 Hz
Model for other countries
110, 120, 220 or 240 V AC, adjustable,
50/60 Hz
Including batteries
Power
This Compact Disc player is
classified as a CLASS 1
CLASS 1 LASER PRODUCT LASER product.
The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.
_ COMPACT DISC PLAYER
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
Power
consumption
Dimensions 430 * 100 * 280 mm
(approx., including (w/h/d)
Projections) (17X48 11/5
inches)
Weight (approx.) 3.5 kg (7 Ibs 12 oz)
