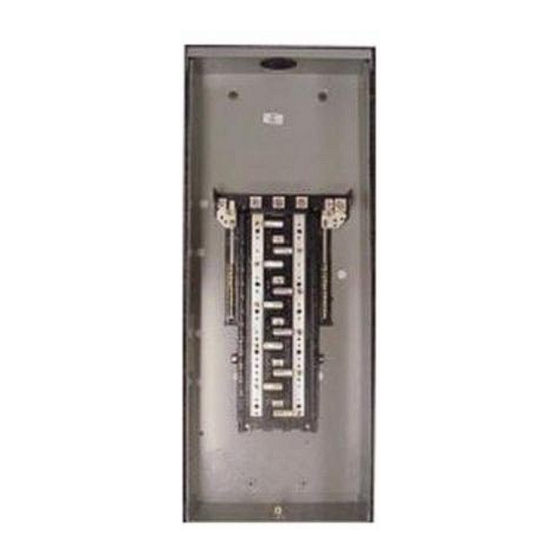

Load centers 100–225 ampere single- and three-phase 10–42 circuit indoor-type

Advertisement

Available languages

Available languages

Quick Links

g
General
To comply with the Canadian Electrical Code and the Canadian
Standards Association, the load center must be installed in
accordance with the information included on the label on the inside
of the equipment. This must also be done in accordance with the
applicable local electrical codes and by a qualified electrical
contractor or licensed electrician.
WARNING: Hazard of electrical shock or burn. Turn off power
supplying this equipment before working inside.
Installation
1 – Remove Front
Slip the front and the accessory package back into the carton to
protect the finish.
2 – Remove Service Entrance Barrier (Main Breaker
only)
Back out and save the two mounting screws securing the service
entrance barrier over the main breaker connections, then lift the
barrier up and out.
Barrier
Mounting
Screws
DEH40228
Installation Instructions
PowerMark Plus™ Load Centers
100–225 Ampere Single- and Three-Phase 10–42
Circuit
Indoor-Type
3 – Remove Interior (Optional)
Back out the mounting screws and save them for reuse.

Advertisement

loading

Summary of Contents for GE PowerMark Plus TL30422C

  • Page 1 DEH40228 Installation Instructions PowerMark Plus™ Load Centers 100–225 Ampere Single- and Three-Phase 10–42 Circuit Indoor-Type General 3 – Remove Interior (Optional) To comply with the Canadian Electrical Code and the Canadian Back out the mounting screws and save them for reuse. Standards Association, the load center must be installed in accordance with the information included on the label on the inside of the equipment.
  • Page 2 Bond Neutral Strap Terminal A 9 – Optional Wiring of Neutral and Ground Crossbar 4 – Mount Box For panelboards rated at 150 A or less, the neutral crossbar may be removed to provide optional neutral and ground wiring as follows: Flush mount: Line up the front box edge with the finish wall Insulated surface and screw or nail to the stud through the small knockouts...
  • Page 3: Installation

    Should further information be desired or should particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be referred to the GE Company. Généralités AVERTISSEMENT : Danger de choc électrique ou de brûlure. Enlever le courant avant de travailler à...
  • Page 4 3 – Enlever l’interieur (facultatif) fini. Retirer les vis de montage et les conserver pour les réutiliser. 2 – Retirer la barrière de l’entrée de service (Disjoncteur principal seulement) Dévisser et conserver les deux vis de montage retenant la barrière de l’entrée de service par dessus les connexions du disjoncteur principal, puis soulever la barrière par en haut et l’enlever.
  • Page 5 Si des informations supplémentaires étaient requises ou s’il survenait un problème particulier lesquels ne sont pas suffisamment couverts selon l’acheteur, ceci devrait être référé à GE Company. GE Industrial Systems General Electric Company 41 Woodford Ave., Plainville, CT 06062 DEH40228 R01 0500...
