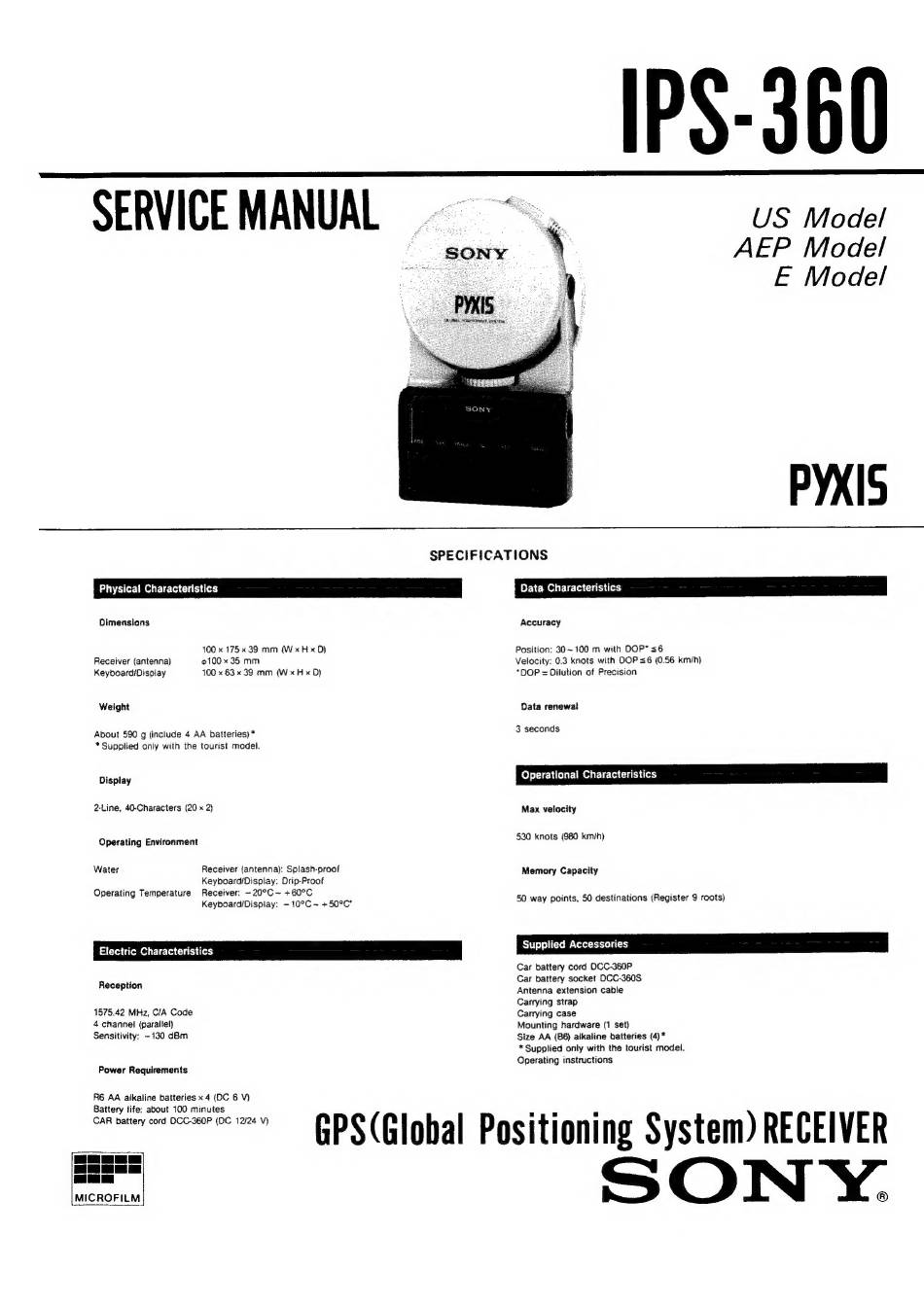

MICROFILM
SERVICE MANUAL —
IPS-360
US Model
AEP Model
E Model
PYXIS
SPECIFICATIONS
Physical Characteristics
Dimensions
100 x 175 x 39 mm (Wx
H x 0)
0100 x 35 mm
100 x 63 x 39 mm (W x H x D)
Receiver (antenna)
Keyboard/Display
Weight
About 590 g (include 4 AA batteries) *
* Supplied only with the tourist model.
Display
2-Line, 40-Characters (20 x 2)
Operating Environment
Water
Receiver (antenna): Splash-proof
Keyboard/Display: Drip-Proof
Operating Temperature
Receiver:
- 20°C ~ + 60°C
Keyboard/Display:
- 10°C ~ + 50°C'
Electric Characteristics
Reception
1575.42 MHz, C/A Code
4 channel (paraile!)
Sensitivity: ~130 dBm
Power Requirements
R6 AA alkaline batteries x 4 (DC 6 V)
Battery tife: about 100 minutes
CAR battery cord DCC-360P (DC 12/24 V)
Data Characteristics
Accuracy
Position: 30~ 100 m with
DOP" s6
Velocity: 0.3 knots with DOP 36 (0.56 km/h)
*DOP = Dilution of Precision
Data renewal
3 seconds
Operational Characteristics
Max velocity
530 knots (980 km/h)
Memory Capacity
50 way points, 50 destinations (Register 9 roots)
Supplied Accessories
Car battery cord OCC-360P
Car battery socket DCC-360S
Antenna extension cable
Carrying strap
Carrying case
Mounting hardware (1 set)
Size AA (B68) alkaline batteries (4)*
* Supplied only with the tourist model.
Operating instructions
GPS (Global Positioning System) RECEIVER
SON
Y.
