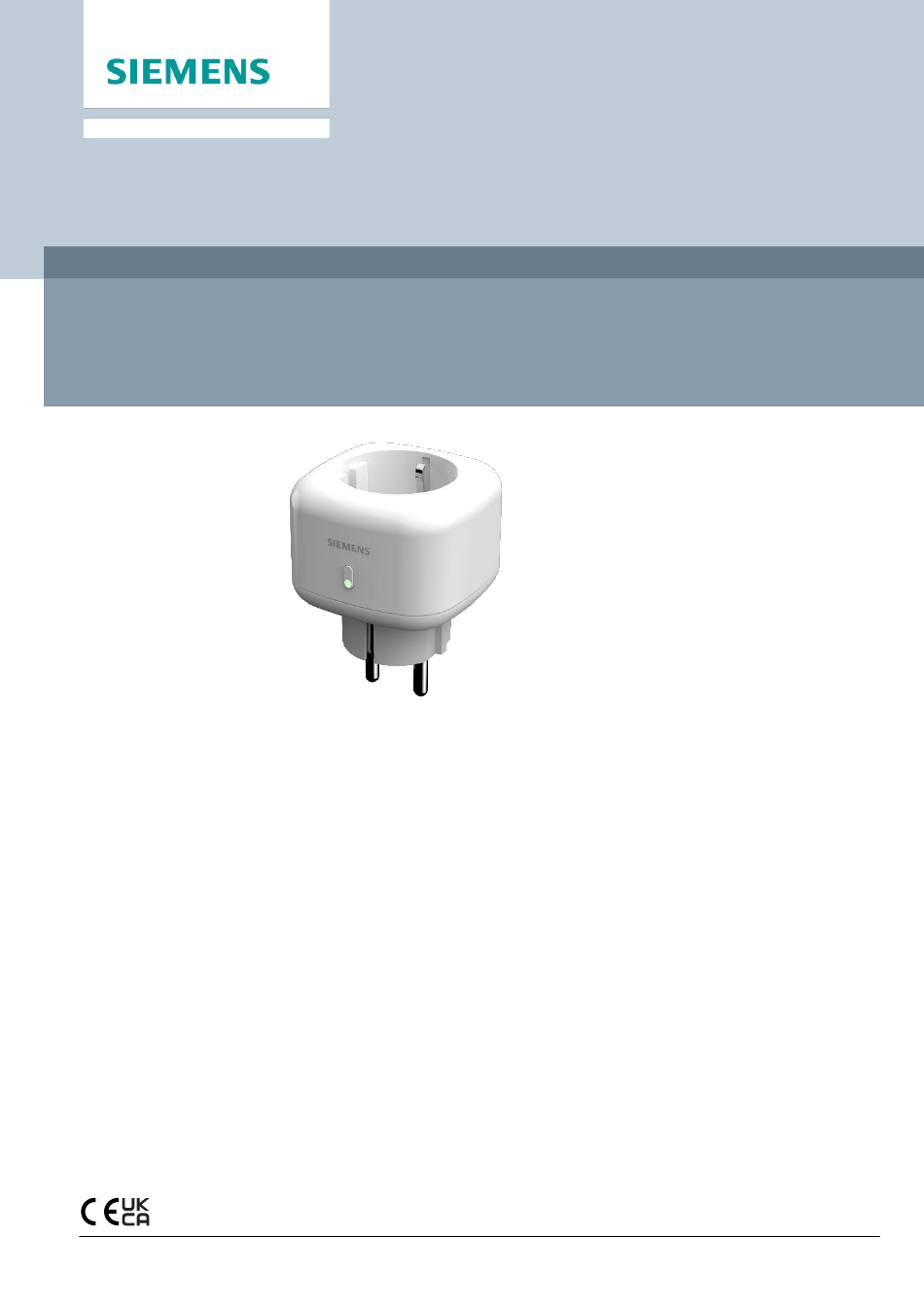

Connected Home Smart Plug
SCH030ZB
A6V13959694_en--_a
2023-07-11
Zigbee-enabled power adapter
●
Easy to install
●
Remote control from mobile application "Connected Home"
●
Communicates with Connected Home Hub via Zigbee network
●
Turning on/off connected devices locally using the operation button or remotely via
the mobile application
Smart Infrastructure
Advertisement
Related Manuals for Siemens SCH030ZB
Summary of Contents for Siemens SCH030ZB
- Page 1 Connected Home Smart Plug SCH030ZB Zigbee-enabled power adapter ● Easy to install ● Remote control from mobile application "Connected Home" ● Communicates with Connected Home Hub via Zigbee network ● Turning on/off connected devices locally using the operation button or remotely via...
- Page 2 Press and hold it down for 3 s to join Zigbee network (initiated from the mobile application). ● Press and hold it down for 10 s to perform factory reset. ● See LED indication [▶ 3] for more information. Power outlet Siemens A6V13959694_en--_a Smart Infrastructure 2023-07-11...
- Page 3 See LED indication [▶ 3] for information on the above operations. Other operations, such as assigning the plug to a room and viewing monitoring records on plug on/off status, are only available in the mobile application. Siemens A6V13959694_en--_a Smart Infrastructure 2023-07-11...
- Page 4 Type summary Type Stock number Description SCH030ZB S55772-T117 Connected Home Smart Plug Ordering When ordering, indicate product number, stock number and description. Inbox items Items Quantity Plug Mounting instructions Equipment combinations Product number Stock number Description GTW100ZB S55772-T109 Connected Home Hub...
- Page 5 ● Do not touch the plug with wet hands. ● Do not repair or disassemble the plug without authorization. ● Avoid direct solar radiation. ● The local regulations for electrical installations must be complied with. Siemens A6V13959694_en--_a Smart Infrastructure 2023-07-11...
- Page 6 For additional details, refer to Siemens information on disposal. Warranty Technical data on specific applications are valid only together with Siemens products listed under "Equipment combinations". Siemens rejects any and all warranties in the event that third-party products are used. Siemens...
- Page 7 Operation (in dry locations having no temperature or humidity control) Ambient humidity: 5...95 % r.h. (Non condensing) Temperature: -25...+70 ℃ Transport and storage (in packaging) Ambient humidity: 5...95 % r.h. (Non condensing) Operation altitude Max. 3,000 m above sea level Siemens A6V13959694_en--_a Smart Infrastructure 2023-07-11...
- Page 8 (RoHS compliance, materials composition, packaging, environmental benefit, disposal). General Dimensions See "Dimensions [▶ 8]" Color RAL9016 Firmware upgrade Via the mobile application Weight (net) 106 g Weight (with package) 162 g Dimensions Siemens A6V13959694_en--_a Smart Infrastructure 2023-07-11...
- Page 10 Issued by © Siemens 2023 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V13959694_en--_a Edition 2023-07-11...
