OWNER'S MANUAL

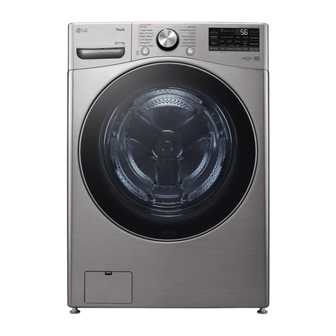

WASHER AND DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
WD20*V2S6 / WD22*V2S6
MFL70701203
Rev.11_032924
Copyright © 2019-2024 LG Electronics Inc. All Rights Reserved.
Scan the QR code to see the manual.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG WD20 V2S6 Series

Summary of Contents for LG WD20 V2S6 Series

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH WD20*V2S6 / WD22*V2S6 www.lg.com MFL70701203 Rev.11_032924 Copyright © 2019-2024 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Adding Detergents and Softeners ..............20 Control Panel ....................23 Programme Table ....................25 Drying Programme ..................28 Extra Options and Functions ................30 SMART FUNCTIONS LG ThinQ Application ..................33 Smart Diagnosis ....................35 MAINTENANCE Cleaning After Every Wash................37 Cleaning the Appliance Periodically ..............37 TROUBLESHOOTING Before Calling for Service................41...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 5 SAFETY INSTRUCTIONS • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. • Remove all objects from pockets such as lighters and matches. • The appliance is not to be used if industrial chemicals have been used for cleaning.
  • Page 6 • Never reach into the appliance while it is operating. Wait until the drum has completely stopped. • Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre.
  • Page 7 • Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the outlet socket. • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG...

  • Page 8: Caring For The Environment

    • You can take your appliance to any of the authorised centres for collection. If you want to know an updated list of countries that have this service, visit the page https:// www.lg.com/global/take-back-recycling-global-network- south-america.

  • Page 9: Installation Parts And Specifications

    INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Power Plug Control Panel Transit Bolts Detergent Dispenser Drawer Drain Hose Drum Door Cover Cap Drain Pump Filter Drain Plug Levelling Feet...
  • Page 10 INSTALLATION Accessories *1 The included accessories vary depending on the model you purchased. Cold and Hot Water Inlet Hoses Anti–slip Sheets Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap Specifications Model WD20*V2S6 / WD22*V2S6 Power Supply 120 V~ 60 Hz Maximum Power...
  • Page 11 INSTALLATION Dimension(mm) D’ 1 396...

  • Page 12: Installation Place Requirements

    INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location • This appliance must only be used for domestic household purposes and should not be used in •...

  • Page 13: Unpacking The Appliance

    INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Ventilation Lifting the Appliance Off the Foam Base • Make sure that air circulation around the...

  • Page 14: Levelling The Appliance

    INSTALLATION Levelling the Appliance Starting with the bottom two transit bolts use the spanner (included) to fully loosen all Checking the Level transit bolts by turning them counterclockwise. When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions).
  • Page 15 • Do not install the washing machine on a plinth, Failure to do so may cause vibration or noise. stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Using Anti-Slip Sheets This feature may vary depending on the model Check if the appliance is perfectly level using a purchased.

  • Page 16: Connecting The Water Supply Hose

    • Do not attach the adhesive side of anti- slip sheets to the feet of the appliance. NOTE • Additional anti-slip sheets are available at LG Electronics service centre. Connecting the Hose to the Water Tap Connecting Screw-Type Hose to Tap with Thread...

  • Page 17: Installing The Drain Hose

    INSTALLATION • Securing the drain hose correctly will protect the NOTE floor from damage due to water leakage. • After connecting the water inlet hose to the water tap, turn on the water tap to flush out foreign substances (dirt, sand, sawdust, and etc.) in the water lines.

  • Page 18: Operation Operation Overview

    OPERATION OPERATION Operation Overview End of cycle. • When the cycle is finished, a melody will Using the Appliance sound. Immediately remove your clothing from the appliance to reduce wrinkling. Before the first wash, select the Normal wash Check around the door seal when removing programme and add a half amount of the the load for small items that may be caught detergent.

  • Page 19: Preparing The Wash Load

    OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels. maximum allowance of mechanical stress.

  • Page 20: Adding Detergents And Softeners

    OPERATION Adding Detergents and NOTE Softeners • Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or Detergent Dosage odour. • Full load: According to manufacturer’s • Detergent should be used according to the recommendation.
  • Page 21 OPERATION compartment or dispensing into the drum NOTE earlier than programmed. • Be careful not to get a hand caught in the • The detergent is added to the load at the drawer while closing. beginning of the cycle. • It is normal for a small amount of water to •...
  • Page 22 OPERATION Adding Water Softener WARNING A water softener, such as anti-limescale can be • Do not mix chlorine bleach with ammonia or used to cut down on the use of detergent in areas acids such as vinegar or rust/scale remover. with high water hardness level.

  • Page 23: Control Panel

    With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use this function, refer to SMART FUNCTIONS. Wi-Fi Press and hold Wi-Fi button for 3 seconds to initiate the connection of the appliance to the LG ThinQ application. Customizing Washing Programme Buttons Use these buttons to adjust the water temperature, spin speed and soil level settings for the selected programme.
  • Page 24 OPERATION Description Display • The display shows the settings, estimated remaining time, options, and status messages. When the appliance is turned on, the default settings in the display will illuminate. • While the load weight is sensed automatically, the display on the control panel blinks. Time and Status Display Description Programme Status Indicators...

  • Page 25: Programme Table

    OPERATION Programme Table Washing Programme Tibia (Warm) (Más Fría (Tap Normal Cold) to Más Caliente (Extra Max. Load: Rating Hot)) Description Washes normally soiled clothes by combining various drum motions. • Pressing the Start/Pause button without selecting a programme will cause the Normal programme to begin immediately, using the default settings.
  • Page 26 OPERATION Planchado Permanente (Perm. Tibia (Warm) (Más Fría (Tap Max. Load: 5 kg Press) Cold) to Caliente (Hot)) Description Washes the clothes that need to minimize wrinkling on it. It helps to to preserve the finish on the wrinkle free clothes. Fría (Cold) (Más Fría (Tap Cold) Delicados (Delicates) Max.
  • Page 27 OPERATION Extra Options NOTE • The Reserva (Delay End) option can be selected for every washing programme. • The Añadir Prendas (Add Item) option can be selected for every washing programme except for the Desagüe+Centrifugado (Drain+Spin) programme. Programme Steam TurboWash Secado (Dry) Normal Carga Pesada (Heavy...

  • Page 28: Drying Programme

    OPERATION Drying Programme Blankets and Duvets Check fabric care labels on blankets and duvets General Tips for Drying before using the drying programme. Some blankets and duvets may shrink by the heated air. Use the automatic programmes to dry most loads. Electronic sensors measure the temperature of the Rubber and Plastics exhaust to increase or decrease drying...
  • Page 29 OPERATION Tiempo (Time) Press the Secado (Dry) button repeatedly to Use this function to change the drying time toggle through the selections: according to the maximum load. • Turbo: For a shorter drying time • Drying time: 30/60/120/150/180/210 minitues • Aire (Air): For delicate fabrics Using a Wash and Dry Function •...

  • Page 30: Extra Options And Functions

    OPERATION Extra Options and Add detergent. Functions You can use the extra options and functions to Select a washing programme. customize the programmes. Customizing a Washing Customize the washing programme (Temp., Programme Centrifugado (Spin), and Suciedad (Soil)) as necessary. Each programme has default settings that are selected automatically.
  • Page 31 OPERATION Using Basic Options Fresh Care Use this function when you will not be able to unload your clothes immediately after the washing You can customize the programmes by using the following basic options: programme ends. Prelavado (Pre Wash) NOTE This option is recommended when washing a heavily soiled load.
  • Page 32 OPERATION Press the Prelavado (Pre Wash), Reserva Press and hold the Enjuague+Centrifugado (Delay End), Cold Wash, or Enjuague Extra (Rinse+Spin) button for 3 seconds to activate (Extra Rinse) button. this function. • A beeper will sound, and will appear on the display.

  • Page 33: Smart Functions

    The LG ThinQ application allows you to notifications on a smartphone. The notifications communicate with the appliance using a are triggered even if the LG ThinQ application is smartphone. off. LG ThinQ Application Features...
  • Page 34 You can also monitor your cycle wireless router manual. operation so you know how much time is left in the • LG ThinQ is not responsible for any network cycle. connection problems or any faults, malfunctions, or errors caused by network Using this function connection.

  • Page 35: Smart Diagnosis

    LG ThinQ application. following two conditions: (1) this equipment or device may not cause harmful • Launch the LG ThinQ application and select the interference and Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ (2) This equipment or device must accept any application.
  • Page 36 SMART FUNCTIONS mouthpiece to the Power button until the data transfer is complete. • Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed. After the data transfer is complete, the diagnosis will be displayed in the application. NOTE •...

  • Page 37: Maintenance

    MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish.
  • Page 38 MAINTENANCE Cleaning the Water Inlet Filter Run this function once a month (or more often if needed) to reduce build-up of detergent and The water inlet filter collects lime or any sediment softener and other residue. that may be in water that is supplied to the •...
  • Page 39 MAINTENANCE Allow the water to cool before cleaning the drain Unscrew the drain pump filter slowly to drain pump filter. Open the door in an emergency or the remaining water and then proceed to perform an emergency water evacuation. remove any debris or objects from the filter. Unplug the appliance.
  • Page 40 MAINTENANCE check for build-up of cleaning products once or twice a month. Remove the detergent dispenser drawer by pulling the drawer straight out until the drawer stops. • Then gently pull the drawer outward while pressing hard the disengage button. Remove the build-up of detergent and softener.

  • Page 41: Troubleshooting

    Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
  • Page 42 • Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
  • Page 43 TROUBLESHOOTING Noises You Might Hear Symptoms Possible Cause & Solution Rattling and clanking Foreign objects, such as keys, coins, or safety pins may be in the drum. noise • Stop the appliance, check the drum for foreign objects. If the noise continues after the appliance is restarted, call for service.
  • Page 44 TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Clothes were not properly sorted. • Always wash dark colours separately from light colours and whites to prevent discoloration. • Never wash heavily soiled items with lightly soiled items. Wrinkling Appliance is not unloaded promptly. •...
  • Page 45 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Door is open. operate. • Close the door and make sure that nothing is caught under the door preventing it from closing completely. Circuit breaker/fuse is tripped/blown. • Check house circuit breakers/fuses. Replace fuses or reset breaker. The appliance should be on a dedicated branch circuit.
  • Page 46 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Kinked drain hose. drain water. • Ensure that the drain hose is not kinked. Drain located higher than 1 m above the floor. • Make sure that the drain hose is no higher than 1 m above the bottom of the appliance.
  • Page 47 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
  • Page 48 TROUBLESHOOTING Symptoms Possible Cause & Solution Your home appliance The router frequency is not 2.4 GHz. and smartphone are • Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 not connected to the GHz and connect the appliance to the wireless router. To check the router Wi-Fi network.
  • Page 49 Memo...
  • Page 50 Memo...
  • Page 51 Memo...
