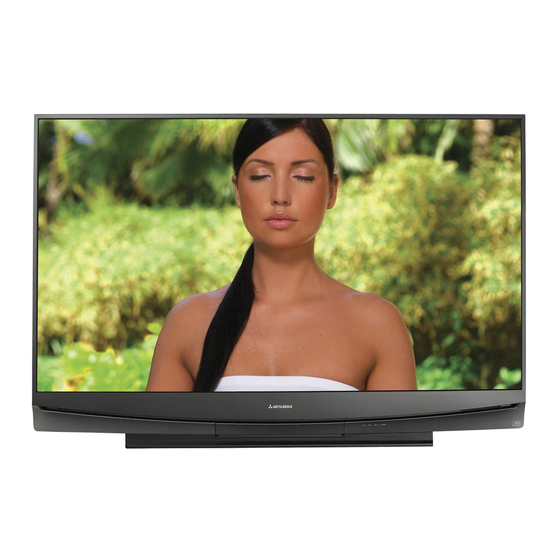

Mitsubishi Electric WD-60C9 Replacement

MODELS: WD-60C9 / WD-65C9 / WD-73C9 / WD-60737 / WD-65737 / WD-73737 / WD-82737
SCREEN REPLACEMENT 60", 65" & 73" Models
Screen Assembly Removal and Replacement
1) Open the front control panel door. (V41+ Only) Pull away Speaker Covers followed by Center Escutcheon.
2) Remove three screws (A) (two screws WD-73837).
3) Remove screws (B) around the rear edge of the screen betzel.
NOTE: Leave one screw secure at the top. Then support the assembly to prevent it from falling
while removing the remaining screw.
4) During re-assembly replace screws in their original locations.
B
B
WD-65837 / WD-73837 / WD-82837
DOOR
A
B
B
B
65 INCH
B
SPEAKER COVERS
(ORNAMENT LEFT & RIGHT)
B
60 INCH
B
B
B
Page 16
V41+
CENTER ESCUTCHEON
(ORNAMENT CENTER)
B
B
B
73 INCH
B
B
