Kenwood KRR-910 Service Manual

SETVICE MANUAL
K
KENWOOD
|
R
AM-FM STEREO RECEIVE

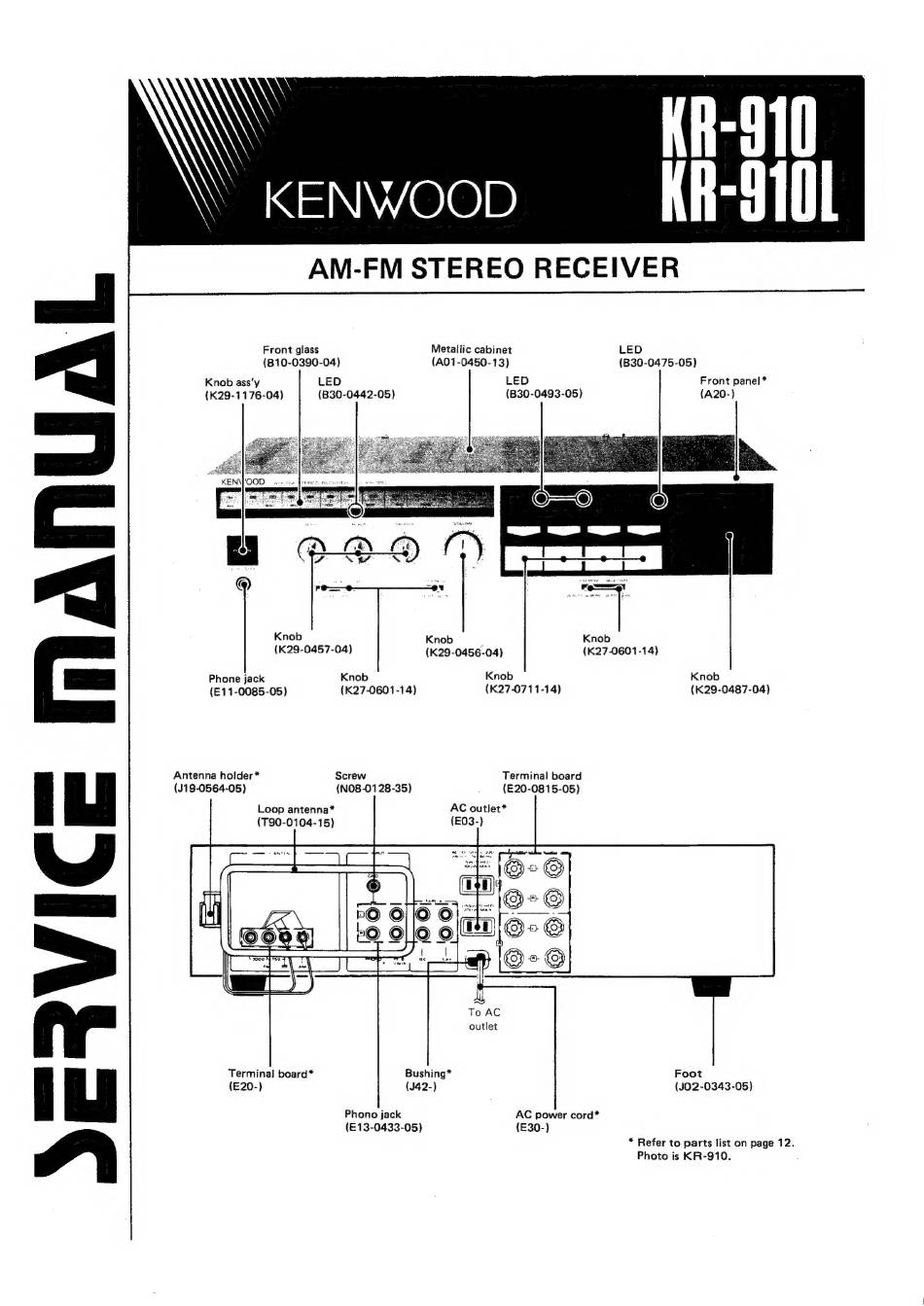

Front glass
(B10-0390-04)
Knob ass'y LED
(K29-1176-04) (B30-0442-05)
Metallic cabinet LED
(A01-0450-13) (B30-0475-05)
LED Front panel *
(B30-0493-05) (A20-)
Knob Knob . Knob
(K29-0457-04) (K29-0456-04) (K27-0601-14)
Phone jack
Knob
Knob
Knob
(E11-0085-05)
(K27-0601-14)
(K27-0711-14)
(K29-0487-04)
Antenna hoijder* Screw Terminal board
(J19-0564-05) (NO8-01 28-35) (E20-0815-05)
Loop antenna* AC outlet*
(T90-0104-15) (E03-)
Terminal board* Bushing*
(E20-) (J42-)
Phono jack
(E13-0433-05)
outlet
Foot
(JO2-0343-05)
AC power cord*
(E30-}
* Refer to parts list on page 12.
Photo is KR-910.
