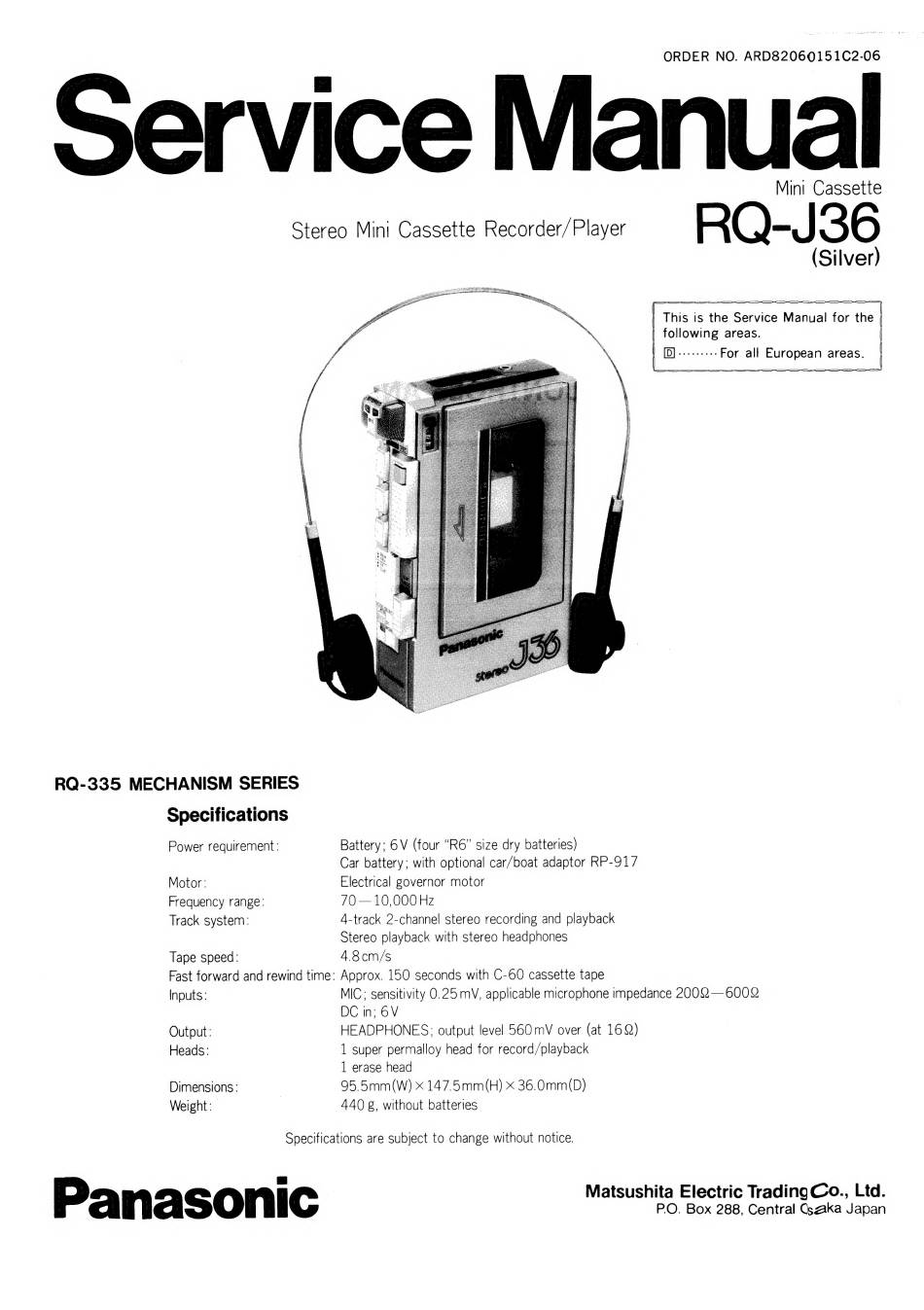

ORDER
NO. ARD82060151C2-06
Mint Cassette

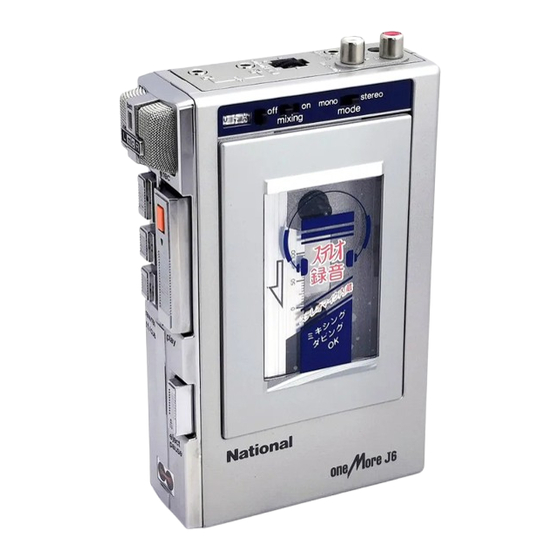

Stereo Mini Cassette Recorder/Player
RQ-J 36
(
Silver)
This is the Service Manual for the
following areas.
For all European areas.
RQ-335 MECHANISM SERIES
Specifications
Power requirement :
Battery: 6 V (four "R6" size dry batteries)
Car battery; with optional car/boat adaptor RP-917
Motor:
Electrical governor motor
Frequency range:
70— 10,000 Hz
Track system:
4-track 2-channel stereo recording and playback
Stereo playback with stereo headphones
Tape speed:
4 8cm/s
Fast forward and rewind time: Approx. 150 seconds with C-60 cassette tape
Inputs :
MIC; sensitivity 0.25 mV, applicable microphone impedance 2002— 6002
DG In-6V.
Output:
HEADPHONES: output level 560 mV over (at 16 Q)
Heads:
1 super permalloy head for record/playback
1 erase head
Dimensions:
95.5mm(W) x 147.5mm(H) xX 36.0mm(D)
Weight: |
|
440 g, without batteries
Specifications are subject to change without notice.
Panasonic
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Gsa@aka Japan
