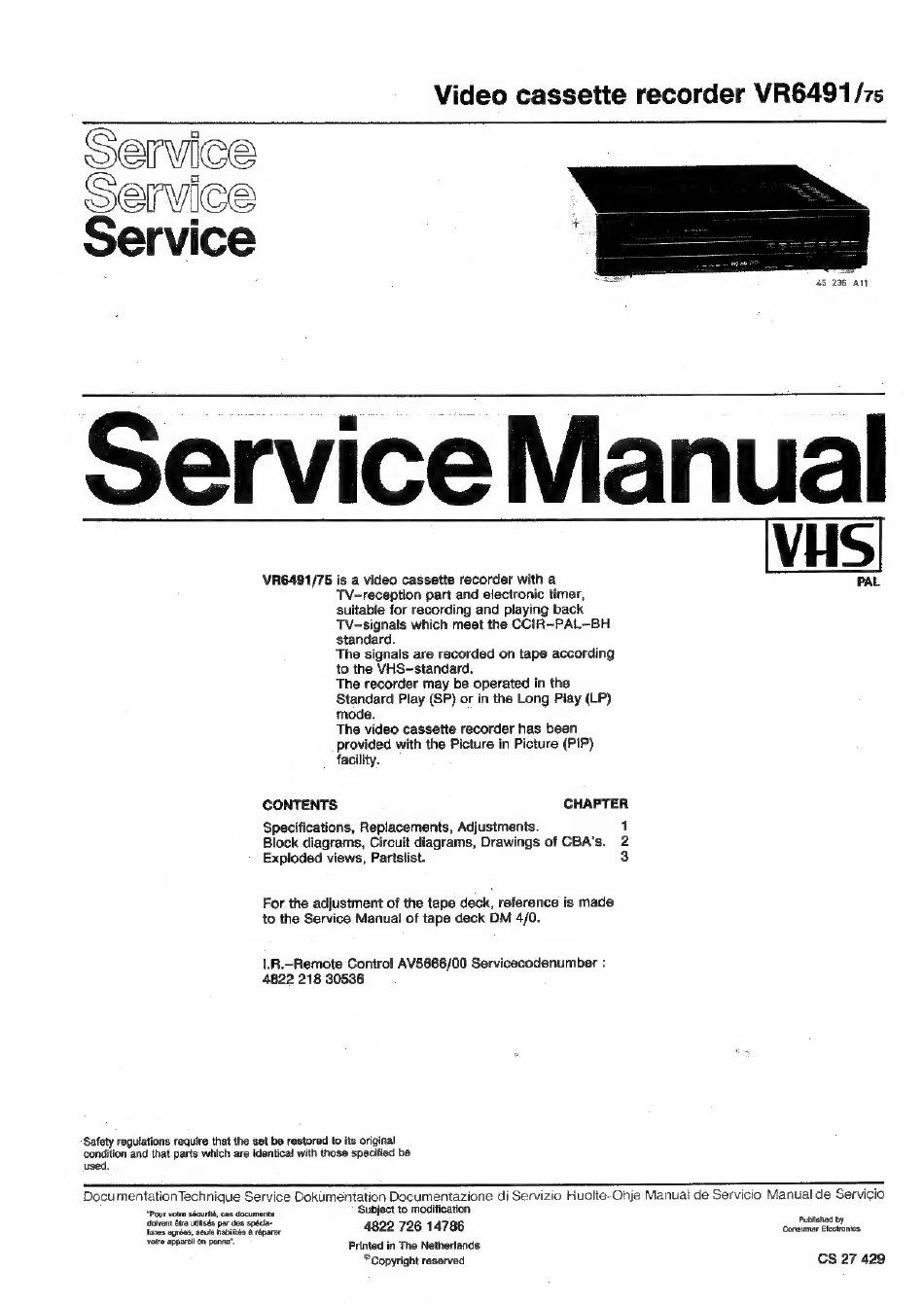

Philips VR6491 Service Manual

Service
Service
Service
45 236 ANN
VR6491/75 is a video cassette recorder with a PAL
TV-reception part and electronic timer,
suitable for recording and playing back
TV-signals which meet the CCIR-PAL—BH
standard.
The signals are recorded on tape according
to the VHS-standard.
The recorder may be operated in the
Standard Play (SP) or in the Long Play (LP)
mode.
The video cassette recorder has been
provided with the Picture in Picture (PIP)
facility.
CONTENTS, CHAPTER
Specifications, Replacements, Adjustments. 1
Block diagrams, Circuit diagrams, Drawings of CBA's. 2
Exploded views, Partslist. 3
For the adjustment of the tape deck, reference is made
to the Service Manual of tape deck DM 4/0.
1.R.-Remote Control AV5666/00 Servicecodenumber :
4822 218 30536
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified be
used.
SSS
Documentation Technique Service Dokumentation Documentazione di Servizio Huolte-Ohje Manual de Servicio Manual de Servicio
"Pour votre sécurité, cos documents,
'Subject to modification
an ares sot fabs apror
4822 726 14786
conte
ne Printed in The Netherlands
Copyright reserved CS 27 429
