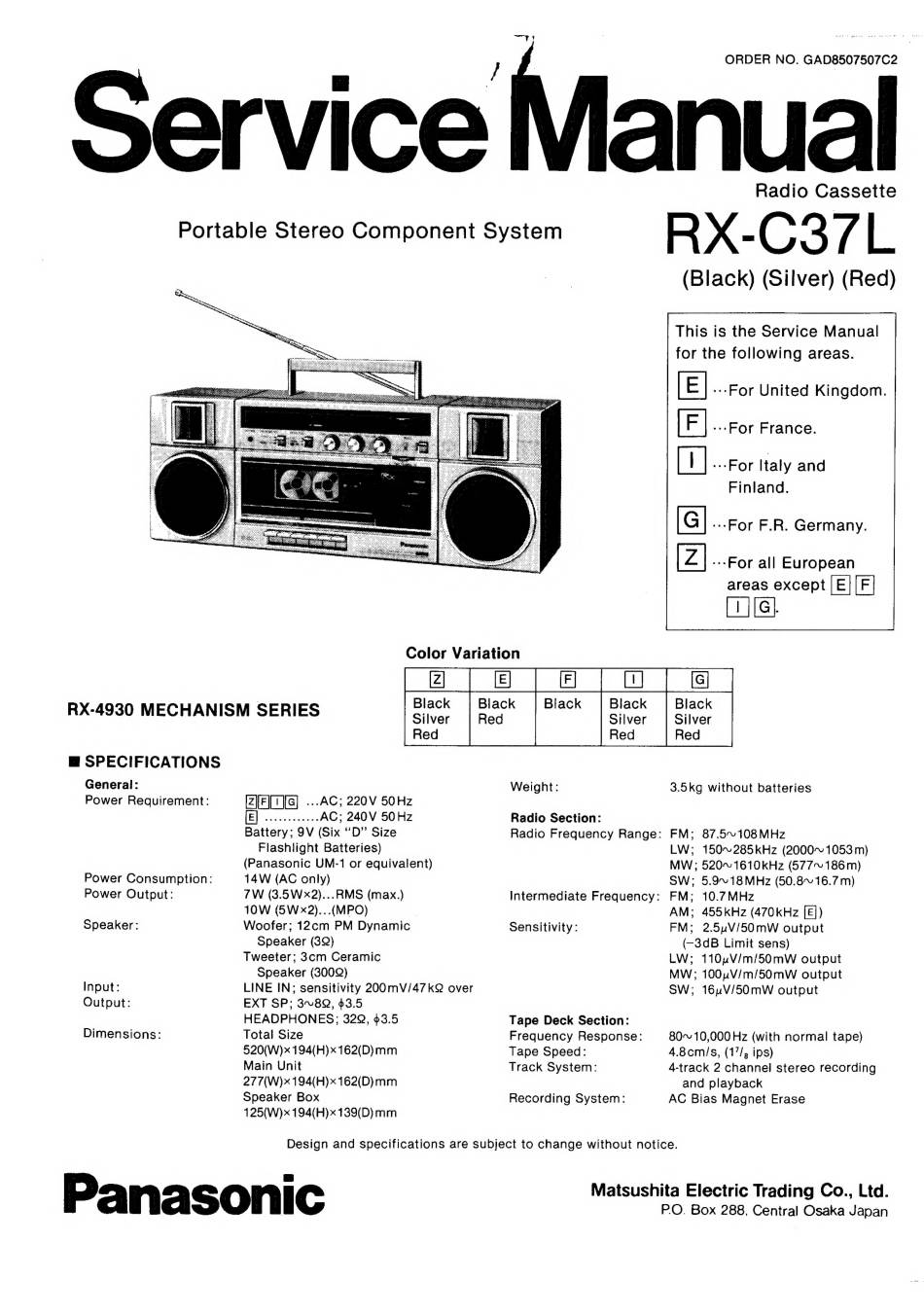

ORDER NO. GAD8507507C2
Service Manual

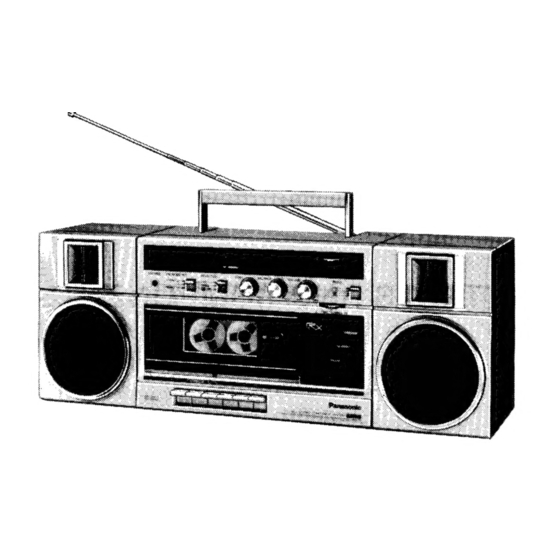

Radio Cassette
(Black) (Silver) (Red)
This is the Service Manual
for the following areas.
--For United Kingdom.
---For France.
--For Italy and
Finland.
--For F.R. Germany.
--For all European
areas except |E|
[1 |[G}
Color Variation
_ i | 2 | Be | oy el
Biack
Black
Red
RX-4930 MECHANISM SERIES
@ SPECIFICATIONS
General:
Weight:
3.5kg without batteries
Power Requirement:
[ZF] [a] ...AC; 220V 50Hz
IE) copearsecats AC; 240V 50Hz
Radio Section:
Battery; 9V (Six "D" Size
Radio Frequency Range:
FM;
87.5~108MHz
Flashlight Batteries)
LW;
150~+285kHz (2000~ 1053 m)
(Panasonic UM-1 or equivalent)
MW; 520~¢1610kHz (577~186m)
Power Consumption:
14W (AC only)
SW;
5.9~18MHz (50.8~+16.7m)
Power Output:
7W (3.5Wx2)...RMS (max.)
Intermediate Frequency:
FM;
10.7MHz
10W (5Wx2)...(MPO)
|
AM; 455kHz (470kHz [E])
Speaker:
Woofer; 12cm PM Dynamic
Sensitivity:
FM;
2.5uV/50mW output
Speaker (3)
(-3dB Limit sens)
Tweeter; 3cm Ceramic
LW;
110uV/m/50mW output
Speaker (300Q)
MW; 100uV/m/50mW output
Input:
LINE IN; sensitivity 200mV/47k
over
SW;
16uV/50mW output
Output:
EXT SP; 3~8Q, $3.5
HEADPHONES; 322, $3.5
Tape Deck Section:
Dimensions:
Total Size
Frequency Response:
80~ 10,000 Hz (with normal tape)
520(W)x 194(H)}x 162(D) mm
Tape Speed:
4.8cm/s, (17/, ips)
Main Unit
Track System:
4-track 2 channel stereo recording
277(W)x194(H)x 162(D) mm
and playback
Speaker Box
Recording System:
AC Bias Magnet Erase
125(W)x194(H)x139(D) mm
Design and specifications are subject to change without notice.
