global_main.book.book Page 1 Thursday, April 13, 2023 10:00 AM

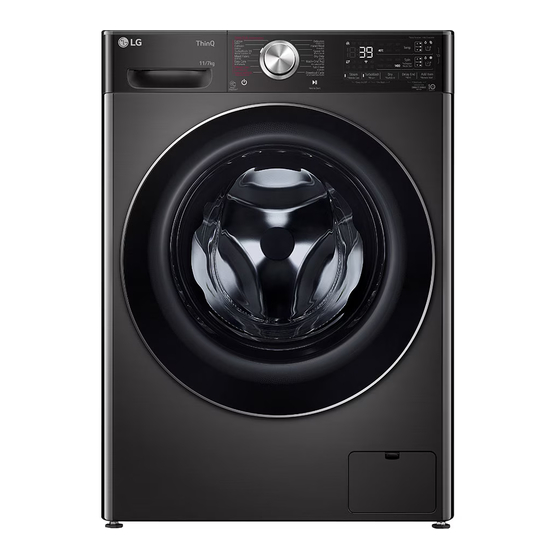

OWNER'S MANUAL
WASHER AND DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
FV1412H2BA
MFL71917053
Rev.00_041323
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG FV1412H2BA

Summary of Contents for LG FV1412H2BA

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH FV1412H2BA www.lg.com MFL71917053 Rev.00_041323 Copyright © 2023 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Preparing the Wash Load ................24 Adding Detergents and Softeners ..............24 Programme Table ....................29 Drying Programme ..................33 Extra Options and Functions ................36 SMART FUNCTIONS LG ThinQ Application ..................42 Smart Diagnosis ....................44 MAINTENANCE Cleaning After Every Wash................46 Cleaning the Appliance Periodically ..............46 TROUBLESHOOTING...

  • Page 3: Safety Instructions

    global_main.book.book Page 3 Thursday, April 13, 2023 10:00 AM SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.
  • Page 4 global_main.book.book Page 4 Thursday, April 13, 2023 10:00 AM SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 5 global_main.book.book Page 5 Thursday, April 13, 2023 10:00 AM SAFETY INSTRUCTIONS • Remove all objects from pockets such as lighters and matches. • The appliance is not to be used if industrial chemicals have been used for cleaning. Installation • This appliance should only be transported by two or more people holding the appliance securely.
  • Page 6 • Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
  • Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the...
  • Page 8 global_main.book.book Page 8 Thursday, April 13, 2023 10:00 AM SAFETY INSTRUCTIONS Disposal • Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse. • Dispose of all packaging materials (such as plastic bags and styrofoam) away from children.

  • Page 9: Installation Parts And Specifications

    global_main.book.book Page 9 Thursday, April 13, 2023 10:00 AM INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Control Panel Power Plug Detergent Dispenser Drawer Transit Bolts Drum Drain Hose...
  • Page 10 Page 10 Thursday, April 13, 2023 10:00 AM INSTALLATION Specifications Model FV1412H2BA Power Supply 230 V~, 60 Hz Product Weight 71 kg Dimension(mm) D’’ D’ 1100...
  • Page 11 global_main.book.book Page 11 Thursday, April 13, 2023 10:00 AM INSTALLATION Accessories Cold Supply Hose Anti–slip Sheets*1 Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap*1 *1 The included accessories vary depending on the model you purchased.

  • Page 12: Installation Place Requirements

    global_main.book.book Page 12 Thursday, April 13, 2023 10:00 AM INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location •...

  • Page 13: Unpacking The Appliance

    INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Lifting the Appliance Off the Ventilation Foam Base • Make sure that air circulation around the...

  • Page 14: Levelling The Appliance

    global_main.book.book Page 14 Thursday, April 13, 2023 10:00 AM INSTALLATION Levelling the Appliance Starting with the bottom two transit bolts use the spanner (included) to fully loosen all Checking the Level transit bolts by turning them counterclockwise. When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions).
  • Page 15 • Do not install the washing machine on a plinth, Failure to do so may cause vibration or noise. stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Using Anti-Slip Sheets This feature may vary depending on the model Check if the appliance is perfectly level using a purchased.

  • Page 16: Connecting The Water Supply Hose

    • Do not attach the adhesive side of anti- slip sheets to the feet of the appliance. NOTE • Additional anti-slip sheets are available at LG Electronics service centre. Connecting the Hose to the Water Tap Connecting Screw-Type Hose to Tap with Thread...
  • Page 17 global_main.book.book Page 17 Thursday, April 13, 2023 10:00 AM INSTALLATION Connecting Screw-Type Hose to Tap Without Connecting One Touch Type Hose to Tap Thread Without Thread Loosen the 4 fixing screws Unscrew the adapter ring plate and loose the 4 fixing screws. Remove the guide plate if the tap is too large to fit the adapter.

  • Page 18: Installing The Drain Hose

    global_main.book.book Page 18 Thursday, April 13, 2023 10:00 AM INSTALLATION connector latch plate. Make sure the adapter • Make sure that the hose should not be kinked or locks into place. trapped. Installing the Drain Hose Installing the Drain Hose with the Elbow Bracket The drain hose should not be placed higher than 100 cm above the floor.
  • Page 19 global_main.book.book Page 19 Thursday, April 13, 2023 10:00 AM INSTALLATION • When installing the drain hose to a sink, secure it tightly with string.

  • Page 20: Operation Operation Overview

    global_main.book.book Page 20 Thursday, April 13, 2023 10:00 AM OPERATION OPERATION Operation Overview • Press the Power button to turn on the appliance. Using the Appliance Choose the desired cycle. Before the first wash, select the Cotton wash programme and add a half amount of the •...

  • Page 21: Control Panel

    • This allows you to select an additional programmes and will light when selected. Remote Start With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use this function, refer to SMART FUNCTIONS.
  • Page 22 global_main.book.book Page 22 Thursday, April 13, 2023 10:00 AM OPERATION Description Customizing Washing Programme Buttons Use these buttons to adjust the water temperature or spin speed settings for the selected programme. • The current settings are shown in the display. •...
  • Page 23 global_main.book.book Page 23 Thursday, April 13, 2023 10:00 AM OPERATION Description AI DD • AI DD provides the appropriate drum rotation actions after load sensing is completed. • is activated when the Cotton , Mixed Fabric, and Easy Care programmes are selected and operated.

  • Page 24: Preparing The Wash Load

    global_main.book.book Page 24 Thursday, April 13, 2023 10:00 AM OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels.
  • Page 25 global_main.book.book Page 25 Thursday, April 13, 2023 10:00 AM OPERATION detergents that are suitable for Drum (front • Part load: 1/2 of the normal amount. load) type washers. • Minimum load: 1/3 of full load. • If too many suds occur, reduce the detergent amount.
  • Page 26 global_main.book.book Page 26 Thursday, April 13, 2023 10:00 AM OPERATION • It is normal for a small amount of water to Pour the detergent and softener into their remain in the manual dispenser respective compartments, up to the MAX line. compartments at the end of the cycle.
  • Page 27 global_main.book.book Page 27 Thursday, April 13, 2023 10:00 AM OPERATION top of your washer. These products can damage Open the detergent dispenser drawer. the washer’s finish and controls. NOTE • The manual dispenser cannot be used for dispensing pre-wash detergent. •...
  • Page 28 global_main.book.book Page 28 Thursday, April 13, 2023 10:00 AM OPERATION Adding Water Softener A water softener, such as anti-limescale can be used to cut down on the use of detergent in areas with high water hardness level. • First add detergent, and then the water softener. Dispense according to the amount specified on the packaging.

  • Page 29: Programme Table

    global_main.book.book Page 29 Thursday, April 13, 2023 10:00 AM OPERATION Programme Table Washing Programme Cotton 40 ℃ (Cold to 95 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Eco 40-60 40 ℃ (40 ℃ to 60 ℃) Max.
  • Page 30 global_main.book.book Page 30 Thursday, April 13, 2023 10:00 AM OPERATION Hand/Wool 30 ℃ (Cold to 40 ℃) Max. Load: 2 kg Description Washes hand-washable and machine-washable delicate clothes such as washable wool, lingerie, dresses etc. • Use detergent for machine washable woolens Speed 14 20 ℃...
  • Page 31 global_main.book.book Page 31 Thursday, April 13, 2023 10:00 AM OPERATION • Delay End and Add Item options can be selected for every washing programme in this table except the Steam Refresh programme. Programm Wrinkle Steam TurboWash EcoHybrid Pre Wash Care Cotton Eco 40-60 TurboWash...
  • Page 32 global_main.book.book Page 32 Thursday, April 13, 2023 10:00 AM OPERATION Spin Speed Programme Default Available Steam Refresh Delicates 800 rpm Up to 800 rpm Hand/Wool 800 rpm Up to 800 rpm Speed 14 400 rpm Dry Only -/1000/1200/1400 rpm Wash+Dry 1400 rpm 1000 to 1400 rpm NOTE...

  • Page 33: Drying Programme

    global_main.book.book Page 33 Thursday, April 13, 2023 10:00 AM OPERATION Drying Programme Blankets and Duvets Check fabric care labels on blankets and duvets General Tips for Drying before using the drying programme. Some blankets and duvets may shrink by the heated air. Use the automatic programmes to dry most loads.
  • Page 34 global_main.book.book Page 34 Thursday, April 13, 2023 10:00 AM OPERATION Time 30/60/120 minutes Press the Power button. Change the drying time according to the maximum load. • Fabric Type: Cotton, towels Select a wash programme. • Max. Load: 1 kg (30 minutes), 2 kg (60 minutes), 4 kg (120 minutes) Add detergent.
  • Page 35 global_main.book.book Page 35 Thursday, April 13, 2023 10:00 AM OPERATION Press the Start/Pause button. NOTE • If you select the programme, you will be unable to select a dry programme. If this occurs, press the Power button twice to cycle the machine off and back on.

  • Page 36: Extra Options And Functions

    global_main.book.book Page 36 Thursday, April 13, 2023 10:00 AM OPERATION Extra Options and Select a washing programme. Functions You can use the extra options and functions to Customize the washing programme (Temp., customize the programmes. Spin and Rinse+) as necessary. Customizing a Washing Programme Press the Start/Pause button.
  • Page 37 global_main.book.book Page 37 Thursday, April 13, 2023 10:00 AM OPERATION after the selected programme finishes. While Press the Start/Pause button. this option is running, appears on the display. Add Item You can use this option in order to add or remove clothes after the washing programme has started.
  • Page 38 global_main.book.book Page 38 Thursday, April 13, 2023 10:00 AM OPERATION NOTE NOTE • Except for LED of the Delay End button, all LEDs • Whether the detergent or softener indicator may on the control panel will be turned off within 20 blink and the chime may sound, even if there is minutes.
  • Page 39 global_main.book.book Page 39 Thursday, April 13, 2023 10:00 AM OPERATION Turn the knob to increase or decrease the Buttons Indicator Dispensed Amount amount of detergent or fabric softener. The amount is shown in the display. • The default amounts can be increased or Off (0%) decreased in 1 ml increments, within a range of 9 ml to 150 ml.
  • Page 40 global_main.book.book Page 40 Thursday, April 13, 2023 10:00 AM OPERATION Press the Dispenser 1 button to light up the NOTE Link indicator. • Run this function once a month (or more often if • The Liquid detergent indicator is always needed) to remove detergent buildup and other light on.
  • Page 41 global_main.book.book Page 41 Thursday, April 13, 2023 10:00 AM OPERATION NOTE • Once this function is set, all buttons are locked except the Power button. • When the controls are locked, and the remaining time are alternatively shown on the display during the wash while this function is engaged.

  • Page 42: Smart Functions

    Page 42 Thursday, April 13, 2023 10:00 AM SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application notifications on a smartphone. The notifications are triggered even if the LG ThinQ application is off. The LG ThinQ application allows you to communicate with the appliance using a smartphone.
  • Page 43 Page 43 Thursday, April 13, 2023 10:00 AM SMART FUNCTIONS • Smartphone user interface (UI) may vary Run the LG ThinQ application and sign in with depending on the mobile operating system (OS) your existing account or create an LG account and the manufacturer.

  • Page 44: Smart Diagnosis

    LG ThinQ application. • Launch the LG ThinQ application and select the Disable this function manually Smart Diagnosis feature in the menu. Follow When this function is activated, press and hold the the instructions provided in the LG ThinQ Remote Start button for 3 seconds.
  • Page 45 global_main.book.book Page 45 Thursday, April 13, 2023 10:00 AM SMART FUNCTIONS • Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed. After the data transfer is complete, the diagnosis will be displayed in the application. NOTE •...

  • Page 46: Maintenance

    global_main.book.book Page 46 Thursday, April 13, 2023 10:00 AM MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. •...
  • Page 47 global_main.book.book Page 47 Thursday, April 13, 2023 10:00 AM MAINTENANCE Cleaning the Water Inlet Filter Run this function once a month (or more often if needed) to reduce build-up of detergent and softener and other residue. The water inlet filter collects lime or any sediment that may be in water that is supplied to the •...
  • Page 48 global_main.book.book Page 48 Thursday, April 13, 2023 10:00 AM MAINTENANCE Allow the water to cool before cleaning the drain Unscrew the drain pump filter slowly to drain pump filter. Open the door in an emergency or the remaining water and then proceed to perform an emergency water evacuation.
  • Page 49 global_main.book.book Page 49 Thursday, April 13, 2023 10:00 AM MAINTENANCE Cleaning the ezDispense Clean the inserts with warm water. Drawer • Rinse the drawer in warm water to dissolve the detergent residue or softener scale. Clean the ezDispense compartments every time •...
  • Page 50 global_main.book.book Page 50 Thursday, April 13, 2023 10:00 AM MAINTENANCE Securely close the covers on the ezDispense compartments. Wipe off any moisture with a dry towel or cloth after cleaning. Reinsert the detergent dispenser drawer.

  • Page 51: Troubleshooting

    Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
  • Page 52 • Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
  • Page 53 global_main.book.book Page 53 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING ezDispense Error Messages Symptoms Possible Cause & Solution The amount of liquid detergent in the detergent compartment did not E d1 decrease. ezDispense ERROR 1 After putting the detergent into the detergent compartment, it was left for a long time and the detergent hardened.
  • Page 54 global_main.book.book Page 54 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Thumping sound The clothes may be out of balance. • Pause the programme and redistribute the clothes after the door unlocks. Vibrating noise Package materials are not removed. •...
  • Page 55 global_main.book.book Page 55 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Circuit breaker/fuse is tripped/blown. operate. • Check house circuit breakers/fuses. Replace fuses or reset breaker. The appliance should be on a dedicated branch circuit. The appliance will resume the programme where it stopped once power is restored.
  • Page 56 global_main.book.book Page 56 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Drain located higher than 1 m above the floor. drain water. • Make sure that the drain hose is no higher than 1 m above the bottom of the appliance.
  • Page 57 global_main.book.book Page 57 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Wrinkling Appliance is not unloaded promptly. • Always remove items from the appliance as soon as the programme is complete. Appliance is overloaded. • The appliance can be fully loaded, but the drum should not be tightly packed with items.
  • Page 58 global_main.book.book Page 58 Thursday, April 13, 2023 10:00 AM TROUBLESHOOTING Symptoms Possible Cause & Solution Too much/too little The default dispense amounts setting may need to be changed. detergent or softener • Check and change the default dispense amounts setting. dispensed.
  • Page 59 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
  • Page 60 global_main.book.book Page 60 Thursday, April 13, 2023 10:00 AM...
