KT-1950
|

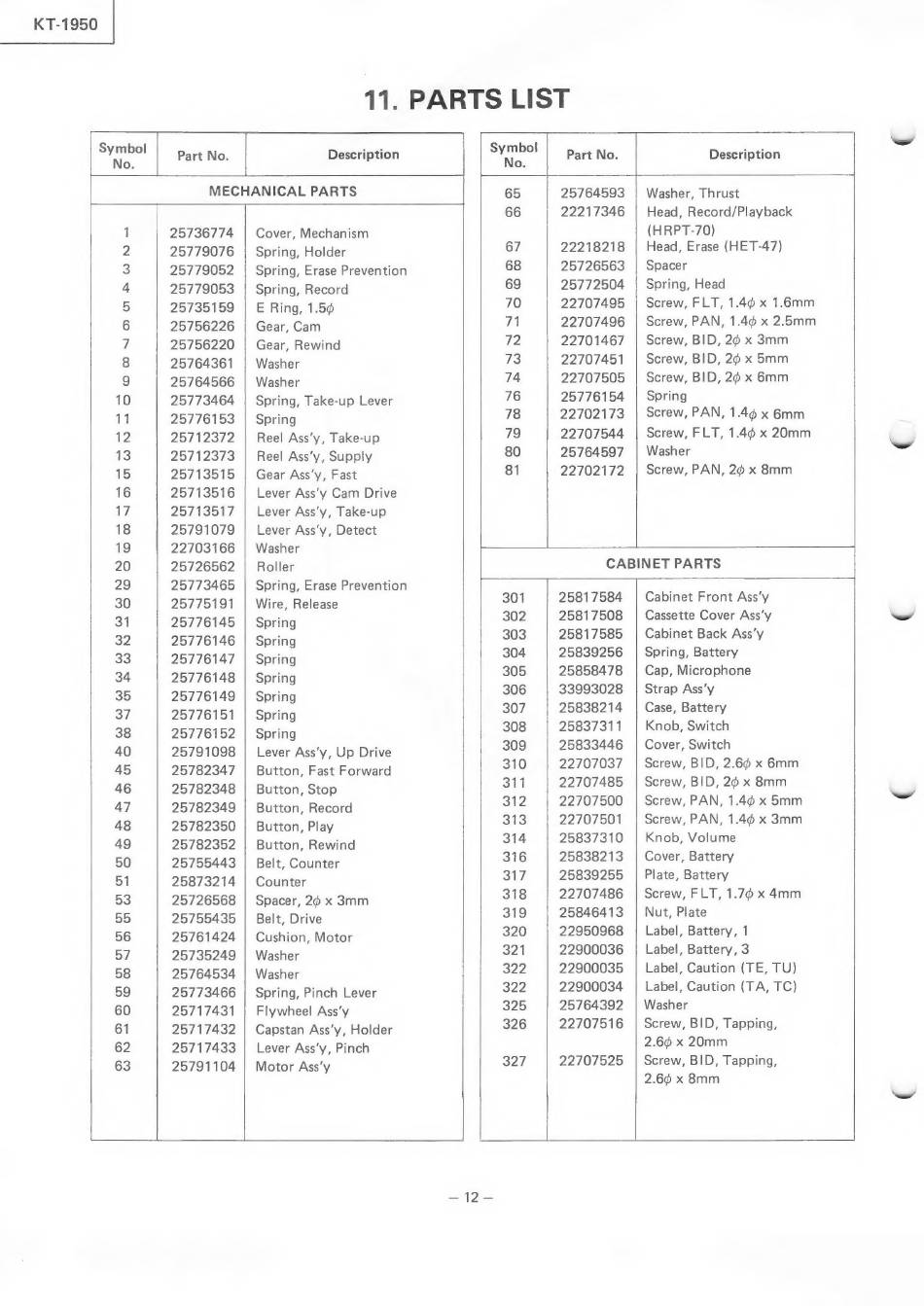

11. PARTS LIST
a
Part No.
Description
oa
Part No.
Description
MECHANICAL
PARTS
65
25764593
| Washer, Thrust
[
66
22217346 | Head, Record/Playback
1
25736774 | Cover, Mechanism
(HRPT-70)
2
25779076 | Spring, Holder
67
22218218
| Head, Erase (HET-47)
3
25779052 | Spring, Erase Prevention
68
25726563 | Spacer
4
25779053 | Spring, Record
69
25772504 | Spring, Head
5
25735159 | E Ring, 1.5¢
70
22707495 | Screw, FLT, 1.4¢ x 1.6mm
6
25756226
| Gear, Cam
71
22707496
| Screw, PAN, 1.4¢ x 2.5mm
7
25756220
| Gear, Rewind
72
22701467
| Screw, BID, 2¢ x 3mm
8
25764361
| Washer
73
22707451
| Screw, BID, 26 x 5mm
9
25764566
| Washer
74
22707505 | Screw, BID, 26 x 6mm
10
25773464 | Spring, Take-up Lever
76
25776154 | Spring
11
25776153 | Spring
78
22702173 | Screw, PAN, 1.44 x 6mm
12
25712372 | Reel Ass'y, Take-up
79
22707544
| Screw, FLT, 1.46 x 20mm
13
25712373 | Reel Ass'y, Supply
80
25764597 | Washer
15
25713515 | Gear Ass'y, Fast
81
22702172 | Screw, PAN, 2¢ x 8mm
16
25713516
| Lever Ass'y Cam Drive
17
25713517
| Lever Ass'y, Take-up
18
25791079
| Lever Ass'y, Detect
19
22703166 | Washer
L
20
25726562
| Roller
CABINET PARTS
29
25773465
| Spring, Erase Prevention
;
30
25775191
| Wire, Release
301
25817584
| Cabinet Front Ass'y
31
25776145 | Spring
302
25817508
es sien Cover Ass'y
32
25776146 | Spring
303
25817585
Cabinet Back Ass'y
33
25776147
Spring
304
25839256
Spring,
Battery
34
25776148 | Spring
305
25858478
| Cap, Microphone
37
25776151
| Spring
307
25838214
| Case, Battery
38
25776152 | Spring
308
25837311
Knob, Switeh
40
25791098 | Lever Ass'y, Up Drive
309 | 25833446 | Cover, Switch
45
25782347
| Button, Fast Forward
310
22707037
| Screw, BID, 2.69 x 6mm
46
25782348 | Button, Stop
311
22707485
| Screw, BID, 26 x 8mm
47
25782349 | Button, Record
312
22707500
| Screw, PAN, 1.4¢ x 5mm
48
25782350
Button, Play
313
22707501
Screw, PAN,
1.406 x 3mm
49
25782352 | Button, Rewind
314 | 26837310 | Knob, Volume
50
25755443
| Belt, Counter
316
25838213
Cover, Battery
51
25873214
Counter
317
25839255
Plate, Battery
53
25726568 | Spacer, 26 x 3mm
318
22707486
| Screw, FLT, 1.76 x 4mm
55
25755435 | Belt, Drive
319
25846413
Nut, Plate
56
25761424
Cushion, Motor
320
22950968
Label, Battery, 1
57
25735249
| Washer
321
22900036
| Label, Battery, 3
58
25764534
| Washer
322
22900035
| Label, Caution (TE, TU)
59
25773466 | Spring, Pinch Lever
322
22900034
| Label, Caution (TA, TC)
60
25717431 | Flywheel Ass'y
325 | 25764392 | Washer
61
25717432 | Capstan Ass'y, Holder
326 | 22707516 | Screw, BID, Tapping,
62
25717433 | Lever Ass'y, Pinch
2.66 x 20mm
63
25791104 | Motor Ass'y
327
22707525
| Screw, BID, Tapping,
2.66 x 8mm
==
