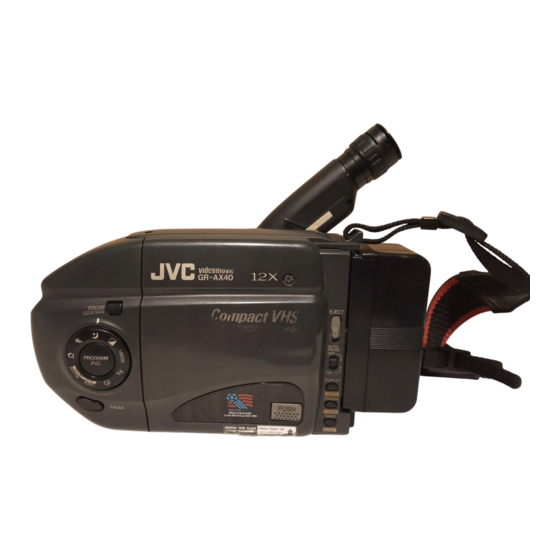

JVC GR-AX40EG Manual

Compact VHS
videomovie
SPECIFICATIONS
GENERAL Viewfinder : Electronic viewfinder with
9.5, W (GR-AX60 light on)
Signal system : PAL-type
Video recording system : Lumiance: FM recording
Golour: Converted sub-carrier direct recording
Contorms to VHS standard
Cassette : cassette
Tape speed 23.39 mm/sec
Recording time Max. 5 minutes (with EC-45 cassette)
Operating temperature § : O°C to +40°C
Operating humidity: 5% to BO%
Storate temperature 20°C to +50°C.
Weight 1 Approx. 720 g (GR-AX70/AX40)
'Approx. 730g (GR-AX60
Dimensions 2-1 45(W) x.118(H) x 182(D) mm (incl: viewfinder}
"VIDEO.
Output :1 Vp-p, 75 ohms, unbalanced
(via VIDEO out connector)
AUDIO
Output 1 ~6 dBs, 1 k-ohm (via AUDIO out connector)
CAMERA
Pick up 21/3"format CCD
Minimum required 12 hx
ilumination (F1.8)
Ulumination range 2-2 to 100,000 lux
Lens 1 F418; f=.5.5 to 66 mm, 12:1 power zoom lens
with auto iris and macro control, filter diameter
43mm
MULTI AC CHARGER/ADAPTER (AA-V35EG) SPECIFICATIONS
Power requirament . : AC.110 to 240. V~, BO/G0Hz
Power consumption: 23 W
Output : DOBBY 2s, 1.6 A (CHARGE),
Charging system : Constant current, peak detection, timer
controll
Dimensions 2 98(W) 7 cast x 138(D) mm
Weight Approx. 390 g
CASSETTE ADAPTER (C-P6U) SPECIFICATIONS.
Dimensions 88(W) x 25(H) x 104(D} mm
Weight pprox. 240 g
Accessory :-4AG" -size battery x 4
PROVIDED ACCESSORIES
Multi AC Charger/Adapte AA-V35EG
Battery pack . . .BN-VI2U
AN output cable
Editing cable
Cable adapter
Lithium battery .. ©R2025
Remote contro! unit (GR-AX70/AX60 only) . AM-V704U
Cassette adapter . ~.C-P6U
Shoulder stray vu-ve20U
E. &O, E. Design and specifications subject to change without
Aotice,
COPYRIGHT © 1994-VICTOR COMPANY OF JAPAN, LTD.
No. 86229
March 1994
