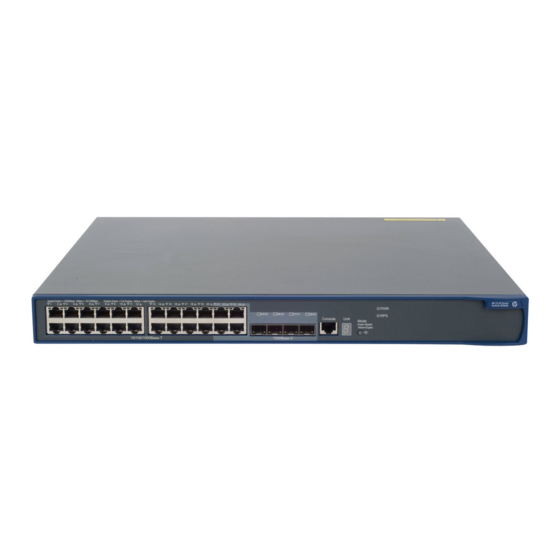

HP 5120 EI & 5120 SI Switch Series
Installation Guide
Part number: 5998-1773
Document version: 6W102-20121111

Advertisement

Table of Contents
loading

Related Manuals for HP 5120 EI Series

Summary of Contents for HP 5120 EI Series

  • Page 1 HP 5120 EI & 5120 SI Switch Series Installation Guide Part number: 5998-1773 Document version: 6W102-20121111...
  • Page 2 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    Contents Product overview·························································································································································· 1 5120-24G EI (2 slots)/5120-24G EI TAA (2 slots) panel views ·················································································2 5120-48G EI (2 slots)/5120-48G EI TAA (2 slots) panel views ·················································································3 5120-24G EI panel views················································································································································4 5120-48G EI panel views················································································································································5 5120-24G-PoE+ EI (2 slots)/5120-24G-PoE+ EI TAA (2 slots) panel views······························································6 5120-48G-PoE+ EI (2 slots)/5120-48G-PoE+ EI TAA (2 slots) panel views······························································7 5120-8G SI panel views ··················································································································································8 5120-16G SI panel views ···············································································································································8...
  • Page 4 Installing/removing an interface card (only for the 5120 EI switches)···································································· 41 Installing an interface card··································································································································· 41 Removing an interface card ································································································································· 42 Installing/removing a dedicated CX4/SFP+ cable ··························································································· 42 Verifying the installation ················································································································································ 43 Accessing the switch for the first time ·······················································································································44 Setting up the configuration environment ····················································································································...
  • Page 5 RPS status LED ························································································································································ 81 Port mode LED························································································································································ 81 10/100/1000Base-T Ethernet port LED············································································································· 81 1000Base-X SFP port LED····································································································································· 83 Support and other resources ·····································································································································84 Contacting HP ································································································································································ 84 Subscription service ·············································································································································· 84 Related information························································································································································ 84 Documents ······························································································································································ 84 Websites································································································································································· 84 Conventions ····································································································································································...

  • Page 6: Product Overview

    Product overview The HP 5120 EI Switch Series includes the models in Table 1, and the HP 5120 SI Switch Series includes the models in Table Table 1 Models in the HP 5120 EI Switch Series Type Product code HP description...

  • Page 7: 5120-24G Ei (2 Slots)/5120-24G Ei Taa (2 Slots) Panel Views

    IMPORTANT: For regulatory identification purposes, the HP 5120-8G SI, HP 5120-8G-PPoE+ SI, and HP 5120-8G-PoE+ SI products are assigned Regulatory Model Numbers (RMN). The Regulatory Model Numbers for these products are listed below. These regulatory numbers should not be confused with the marketing names HP 5120, or product numbers JG308A, JG310A, and JG309A.

  • Page 8: 5120-48G Ei (2 Slots)/5120-48G Ei Taa (2 Slots) Panel Views

    (3) Grounding screw (4) Interface card slot 1 (MOD1) (5) Interface card slot 2 (MOD2) NOTE: The 5120-24G EI (2 slots) and 5120-24G EI TAA (2 slots) switches come with the expansion interface card slots covered by filler panels. 5120-48G EI (2 slots)/5120-48G EI TAA (2 slots) panel views Figure 3 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port...

  • Page 9: 5120-24G Ei Panel Views

    5120-24G EI panel views Figure 5 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet (2) 10/100/1000Base-T Ethernet port LED port (3) SFP port (4) SFP port LED (5) Console port (6) Seven-segment LED (Unit) (7) Port mode LED (Mode) (8) System status LED (PWR) (9) RPS status LED (RPS) (10) Port LED mode switching button Figure 6 Rear panel...

  • Page 10: 5120-48G Ei Panel Views

    5120-48G EI panel views Figure 7 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet (2) 10/100/1000Base-T Ethernet port LED port (3) Console port (4) Seven-segment LED (Unit) (5) Port mode LED (Mode) (6) System status LED (PWR) (7) RPS status LED (RPS) (8) Port LED mode switching button (9) SFP port (10) SFP port LED...

  • Page 11: 5120-24G-Poe+ Ei (2 Slots)/5120-24G-Poe+ Ei Taa (2 Slots) Panel Views

    5120-24G-PoE+ EI (2 slots)/5120-24G-PoE+ EI TAA (2 slots) panel views Figure 9 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED (3) 1000Base-X SFP port (4) 1000Base-X SFP port LED (5) Console port (6) Seven-segment LED (Unit) (7) Port mode LED (Mode) (8) System status LED (PWR) (9) RPS status LED (RPS)

  • Page 12: 5120-48G-Poe+ Ei (2 Slots)/5120-48G-Poe+ Ei Taa (2 Slots) Panel Views

    5120-48G-PoE+ EI (2 slots)/5120-48G-PoE+ EI TAA (2 slots) panel views Figure 11 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED (3) Console port (4) Seven-segment LED (Unit) (5) Port mode LED (Mode) (6) System status LED (PWR) (7) RPS status LED (RPS) (8) Interface card 1 status LED (MOD1) (9) Interface card 2 status LED (MOD2)

  • Page 13: 5120-8G Si Panel Views

    5120-8G SI panel views Figure 13 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 1000Base-X SFP port (3) Console port (4) Port LED (5) Power LED (Power) Figure 14 Rear panel (1) AC-input power receptacle (2) Grounding screw 5120-16G SI panel views Figure 15 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 1000Base-X SFP port...

  • Page 14: 5120-24G Si Panel Views

    5120-24G SI panel views Figure 17 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 1000Base-X SFP port (3) Console port (4) Port LED (5) Power LED (Power) Figure 18 Rear panel (1) AC-input power receptacle (2) Grounding screw 5120-48G SI panel views Figure 19 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED...

  • Page 15: 5120-8G-Ppoe+ Si Panel Views

    5120-8G-PPoE+ SI panel views Figure 21 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button (3) Port LED (4) Power LED (Power) (5) Port mode LED (6) Console port (7) 1000Base-X SFP port Figure 22 Rear panel (1) AC-input power receptacle (2) Grounding screw 5120-8G-PoE+ SI panel views...

  • Page 16: 5120-24G-Ppoe+ Si Panel Views

    Figure 24 Rear panel (1) AC-input power receptacle (2) Grounding screw 5120-24G-PPoE+ SI panel views Figure 25 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button (3) Port LED (4) Power LED (Power) (5) Port mode LED (6) Console port (7) 1000Base-X SFP port Figure 26 Rear panel...

  • Page 17: 5120-24G-Poe+ Si Panel Views

    5120-24G-PoE+ SI panel views Figure 27 Front panel (1) 10/100/1000Base-T auto-sensing Ethernet port (2) Port LED mode switching button (3) RPS status LED (RPS) (4) Port LED (5) Power LED (Power) (6) Port mode LED (7) Console port (8) 1000Base-X SFP port Figure 28 Rear panel (1) DC receptacle (2) Screw hole of the plug...

  • Page 18: Preparing For Installation

    Preparing for installation Safety recommendations To avoid any equipment damage or bodily injury caused by improper use, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition. Before cleaning the switch, unplug all power cords. Do not clean the switch with wet cloth or liquid. •...

  • Page 19: Cleanness

    Laser safety The HP 5120 EI and 5120 SI switches are Class 1 laser devices. WARNING! Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber...

  • Page 20: Installation Tools

    Installation tools • Flathead screwdriver Phillips screwdriver • Needle-nose pliers • • Wire-stripping pliers Diagonal pliers • • ESD-preventive wrist strap Blow dryer • All these installation tools are user supplied.

  • Page 21: Installing The Switch

    CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact your local HP agent for permission. Otherwise, HP shall not be liable for any consequence caused thereby.

  • Page 22: Installing A 5120 Ei Switch In A 19-Inch Rack

    Installing a 5120 EI switch in a 19-inch rack You can install a 5120 EI switch in a 19-inch standard rack by using different mounting positions. Table shows the installation methods available for the switches of different depths. Table 6 Installation methods Use front Use front mounting Use front and...

  • Page 23: Rack-Mounting By Using Only Front Mounting Brackets

    Figure 31 Rear mounting bracket (1) Hole for attaching to a rack (by using an M6 screw) NOTE: The M6 screws for fixing the brackets to a rack are user supplied. Table 7 shows the mounting bracket shipment for different switch models. Table 7 Mounting bracket kit shipped with the 5120 EI switches Chassis Front mounting brackets...
  • Page 24 Unpack the front mounting brackets and the screws for fixing the brackets to the switch chassis. Align the round holes in one bracket with the holes in the front mounting position of the switch chassis, and use the screws to fix the mounting bracket to the chassis, as shown in Figure Repeat the previous step to attach the other mounting bracket to the chassis.

  • Page 25: Rack-Mounting By Using Front Mounting Brackets And A Rack Shelf

    Figure 33 Attach the front mounting brackets to the rack (1) Front square-holed post (2) Front panel (3) Screw for fixing the bracket to the square-holed post (4) Front mounting bracket Rack-mounting by using front mounting brackets and a rack shelf This installation method is available for all 5120 EI switches.

  • Page 26: Rack-Mounting By Using Front And Rear Mounting Brackets

    Rack-mounting by using front and rear mounting brackets This installation method is available only for the 5120-24G-PoE+ EI (2 slots), 5120-24G-PoE+ EI TAA (2 slots), 5120-48G-PoE+ EI (2 slots), and 5120-48G-PoE+ EI TAA (2 slots) switches. This task requires two persons. To install the switch in a 19-inch rack by using the front and rear mounting brackets: Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.
  • Page 27 Figure 35 Attach the rear mounting brackets to a rack (1) Rear square-holed post (2) Rear mounting bracket One person supports the chassis bottom with one hand, holds the front part of the chassis with the other hand, and pushes the chassis into the rack gently. Make sure that the load-bearing screws closely contact with the upper edges of the rear mounting brackets, as shown in Figure...
  • Page 28 Figure 36 Mount the switch in the rack (1) Rear panel (2) Rear square-holed post (3) Load-bearing screw (4) Rear mounting bracket The other person aligns the oval holes in the front brackets with the mounting holes in the front rack posts, and fixes the front mounting brackets with M6 screws (user supplied) to the front rack posts, as shown in Figure...

  • Page 29: Installing A 5120 Si Switch In A 19-Inch Rack

    Figure 37 Attach the front brackets to the rack (1) Load-bearing screw (2) Rear mounting bracket (3) Front panel (4) A screw used to fix the front mounting bracket to the rack (5) Front mounting bracket (6) Front square-holed post Installing a 5120 SI switch in a 19-inch rack Figure 38 shows the general procedure for installing a 5120 SI switch in a 19-inch rack.

  • Page 30: Mounting Brackets And Mounting Positions

    Mounting brackets and mounting positions Table 8 Mounting brackets for the 5120 SI switches Chassis Bracket view Mounting position • • 5120- 1 6G SI Front mounting (see Figure See callout A in Figure • • 5120-24G SI Rear mounting (see Figure •...
  • Page 31 Identify the correct mounting position (see Table Align the round holes in one bracket with the holes in the mounting position. Use screws to fix the mounting bracket to the chassis. Repeat the preceding steps to attach the other mounting bracket to the chassis. Figure 40 Front mounting position (5120-16G SI/5120-24G SI) (1) Front panel Figure 41 Rear mounting position (5120-16G SI/5120-24G SI)
  • Page 32 Figure 44 Front mounting position (5120-8G-PoE+ SI/5120-8G-PPoE+ SI) (1) Front panel Figure 45 Rear mounting position (5120-8G-PoE+ SI/5120-8G-PPoE+ SI) (1) Front panel Figure 46 Front mounting position (5120-24G-PoE+ SI/5120-24G-PPoE+ SI/5120-48G SI) (1) Front panel Figure 47 Mid-mounting position (5120-24G-PoE+ SI/5120-24G-PPoE+ SI) (1) Front panel...

  • Page 33: Rack-Mounting The Switch

    Figure 48 Rear mounting position (5120-24G-PoE+ SI/5120-24G-PPoE+ SI/5120-48G SI) (1) Front panel Rack-mounting the switch This task requires two persons. To mount the switch in a rack: Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.
  • Page 34 Figure 49 Mount the switch in a rack (5120-16G SI) (1) Front panel (2) Rear panel Figure 50 Mount the switch in a rack (5120-24G-PoE+ SI/5120-24G-PPoE+ SI)

  • Page 35: Mounting The Switch On A Workbench

    (1) Front panel (2) Rear panel Mounting the switch on a workbench This installation method is available for all 5120 EI and 5120 SI switches. To mount the switch on a workbench: Check that the workbench is sturdy and well grounded. Place the switch with bottom up, and clean the round holes in the chassis bottom with dry cloth.

  • Page 36: Introduction To Wall Anchor Kit

    Table 9 Models supporting wall mounting Model Hole distance 5120-8P SI 98.5 mm (3.88 in) 5120-8G-PoE+ SI 174.0 mm (6.85 in) 5120-8G-PPoE+ SI 174.0 mm (6.85 in) Introduction to wall anchor kit NOTE: No wall anchor kit is provided with the 5120 SI Switch Series. A wall anchor kit comprises an anchor and a screw, as shown in Figure 51.

  • Page 37: Mounting The Switch Through Magnet Mounting

    Insert an anchor into each hole until the anchor is flush with the wall surface. See Figure Drive a screw into each wall anchor, leaving a gap of at least 1.5 mm (0.06 in) between the base of the screw head and the wall anchor so that the switch can hang on the screws securely. Figure 53 Install a wall anchor Align the two installation holes at the switch bottom with the two screws and hang the switch.

  • Page 38: Installation Procedure

    Figure 55 Magnet mounting kit (1) M3*6 countersunk head screw (2) Permanent magnet Installation procedure To complete magnet mounting: Use a Phillips screwdriver to pass the countersunk head screw through the round hole at the center of the permanent magnet, fasten it to a blind nut in the dent of the switch bottom, and make sure that the permanent magnet and the switch are fastened reliably.

  • Page 39: Grounding The Switch

    CAUTION: Apply magnet mounting to only the 5120-8G SI, 5120-8G-PoE+ SI, and 5120-8G-PPoE+ SI. Otherwise, • a falloff or mis-operation may occur. Select the installation location carefully. In the case of poor surface, magnet mounting may not be • reliable. •...
  • Page 40 NOTE: The 5120 EI series, 5120-24G-PoE+ SI, and 5120-24G-PPoE+ SI switches come with an OT terminal for connecting to a grounding strip. For other switch models, you must prepare OT terminals yourself. To connect the grounding cable, for example, to a 5120-48G EI (2 slots) switch: Identify the grounding point (with a grounding sign) on the rear panel of the switch chassis, and remove the grounding screw from the grounding point.

  • Page 41: Grounding The Switch With A Grounding Conductor Buried In The Earth Ground

    Figure 58 Make a grounding cable connector Figure 59 Connect the grounding cable to a grounding strip (1) Grounding post (2) Grounding strip (3) Grounding cable (4) Hex nut Grounding the switch with a grounding conductor buried in the earth ground If the installation site has no grounding strips, but earth ground is available, hammer a 0.5 m (1.64 ft) or longer angle iron or steel tube into the earth ground to serve as a grounding conductor.

  • Page 42: Grounding The Switch By Using The Ac Power Cord

    Figure 60 Ground the switch by burying the grounding conductor into the earth ground (1) Grounding screw (2) Grounding cable (3) Earth (4) Joint (5) Grounding conductor (6) Chassis rear panel Grounding the switch by using the AC power cord If the installation site has no grounding strips or earth ground, you ground an AC-powered switch through the PE wire of the power cord, but must make sure: •...

  • Page 43: Connecting The Power Cord

    Connecting the power cord WARNING! Make sure that the grounding cable has been properly connected before powering on the switch. Table 10 to identify the power cord connection procedures available for your switch. Table 10 Power cord connection methods at a glance Chassis Connection procedure 5120-8G SI...

  • Page 44: Connecting The Switch To A +12 Vdc Output Rps

    Figure 62 Connect the AC power cord to the 5120-48G EI switch Figure 63 Connect the AC power cord to the 5120-24G SI switch Connecting the switch to a +12 VDC output RPS This section applies to the 5120-24G EI (2 slots), 5120-24G EI TAA (2 slots), 5120-48G EI (2 slots), 5120-48G EI TAA (2 slots), 5120-24G EI, and 5120-48G EI switches.

  • Page 45: Connecting The Switch To A -52 To -55 Vdc Output Rps

    Connect the other end of the power cord to the RPS. Figure 65 Connect the RPS cable to the +12 VDC RPS receptacle Connecting the switch to a –52 to –55 VDC output RPS This section applies to the 5120-24G-PoE+ EI (2 slots), 5120-24G-PoE+ EI TAA (2 slots), 5120-48G-PoE+ EI (2 slots), 5120-48G-PoE+ EI TAA (2 slots) and 5120-24G-PoE+ SI switches.

  • Page 46: Installing/Removing An Interface Card (Only For The 5120 Ei Switches)

    Installing/removing an interface card (only for the 5120 EI switches) This section applies to all 5120 EI switches but the 5120-24G EI and 5120-48G EI. For the interface cards available for the switches, see “Interface cards (only for the 5120 EI switches).”...

  • Page 47: Removing An Interface Card

    Figure 68 Install an interface card (II) NOTE: • Put away the removed filler panel for future use. When you tighten the captive screws, the torque must not be higher than 0.4 N-m. • Removing an interface card To remove an interface card: Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.

  • Page 48: Verifying The Installation

    To connect a CX4 or SFP+ cable to a port on a CX4/SFP+ interface card: Wear an ESD-preventive wrist strap and make sure it makes good skin contact is well grounded. Correctly orient one connector of the cable with the port and insert the cable connector into the port.

  • Page 49: Accessing The Switch For The First Time

    Accessing the switch for the first time Setting up the configuration environment The first time you access the switch you must use a console cable to connect a console terminal, for example, a PC, to the console port on the switch. Figure 69 Connect the console port to a terminal Connecting the console cable Console cable...

  • Page 50: Setting Terminal Parameters

    Connect the RJ-45 connector to the console port of the switch. NOTE: Identify the mark on the console port and make sure that you are connecting to the correct port. • The serial ports on PCs do not support hot swapping. If the switch has been powered on, connect the •...
  • Page 51 Figure 72 Set the serial port used by the HyperTerminal connection Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None, and click OK. Figure 73 Set the serial port parameters Select File >...
  • Page 52 Figure 74 HyperTerminal window On the Settings tab, set the emulation to VT100 and click OK. Figure 75 Set terminal emulation in Switch Properties dialog box...

  • Page 53: Powering On The Switch

    Power on the switch, for example, a 5120-24G-PoE+ EI TAA (2 slots) switch, and you can see the following information: Starting..******************************************************************************** * HP 5120-24G-PoE+ EI TAA Switch with 2 Interface Slots BOOTROM, Version 205 ******************************************************************************** Copyright (c) 2010-2011 Hewlett-Packard Development Company, L.P. Creation date...
  • Page 54 Restart the switch. NOTE: The system by default has no Boot ROM password. HP recommends that you set a Boot ROM password immediately after you access the Boot menu. If you perform no operation or press any key other than Ctrl + B within one second, the system •...

  • Page 55: Changing The Startup Mode

    User interface aux0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the switch when the prompt <HP> appears. Changing the startup mode The system by default starts up in fast mode. To change to the full startup mode, press Ctrl + B within one...
  • Page 56 Enter 0 at the prompt. The system reboots in full startup mode and displays the following information: Starting..******************************************************************************** * HP 5120-24G-PoE+ EI TAA Switch with 2 Interface Slots BOOTROM, Version 205 ******************************************************************************** Copyright (c) 2010-2011 Hewlett-Packard Development Company, L.P.
  • Page 57 User interface aux0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the switch when the prompt <HP> appears. NOTE: For more information about the configuration commands and CLI, see the configuration guides and...

  • Page 58: Setting Up An Irf Fabric

    Setting up an IRF fabric You can use HP Intelligent Resilient Framework (IRF) technology to connect and virtualize 5120 EI switches or 5120 SI switches into a virtual switch called an “IRF fabric” or “IRF virtual device” for flattened network topology, and high availability, scalability, and manageability.

  • Page 59: Planning Irf Fabric Setup

    Step Description Plan the installation site and IRF fabric setup parameters: • Planning IRF fabric size and the installation site • Identifying the master switch and planning IRF member IDs Plan IRF fabric setup • Planning IRF topology and connections •...

  • Page 60: Planning Irf Topology And Connections

    Planning IRF topology and connections You can create an IRF fabric in daisy chain topology, or more reliably, ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Rather, the IRF fabric changes to a daisy chain topology without interrupting network services.

  • Page 61: Identifying Physical Irf Ports On The Member Switches

    Figure 79 5120 SI IRF fabric in daisy chain topology Figure 80 5120 SI IRF fabric in ring topology Identifying physical IRF ports on the member switches Identify the physical IRF ports on the member switches according to your topology and connection scheme.

  • Page 62: Planning The Cabling Scheme

    HP recommends that you use Gigabit SFP ports and HP A3600 Switch SFP Stacking Kit cables for IRF connection. 5120 SI switches...
  • Page 63 If 2-port interface cards are used and IRF links are aggregate, follow these guidelines on connecting two neighboring switches: • The ports on the interface card MOD 1 on one switch must connect to the ports on the interface card MOD 2 on the other switch.

  • Page 64: Configuring Basic Irf Settings

    Planning the cabling scheme for a 5120 SI IRF fabric HP recommends that you use Gigabit SFP ports and HP A3600 Switch SFP Stacking Kit cables for IRF connection. Figure 84 shows two IRF connection schemes and uses Gigabit SFP ports and HP A3600 Switch SFP Stacking Kit cables for IRF connection.

  • Page 65: Connecting The Physical Irf Ports

    Execute the irf-port-configuration active command to activate the IRF port configuration. • • Execute the display irf configuration command to verify the basic IRF settings. For more information about configuring basic IRF settings, see the IRF configuration guide for your switch. Connecting the physical IRF ports Connect the IRF member switches as planned.

  • Page 66: Maintenance And Troubleshooting

    Boot ROM password loss Contact the HP technical support for help. Power supply failure The 5120 EI switches and the 5120 SI switches use fixed power supplies. All 5120 EI switches and the 5120-24G-PoE+ SI switch support three power input modes: AC input, RPS DC input, and concurrent AC and RPS DC inputs.
  • Page 67 NOTE: In the following subsections, the system status LED collectively refers to both the system status LED on a 5120 EI switch and the power LED on a 5120 SI switch. AC input If the system status LED is off, an AC input failure has occurred. Verify the following items: •...

  • Page 68: Fan Failure (Only For The 5120 Ei Switches)

    The LED flashes F for fan failure. Seven-segment LED Unit The 5120 EI switches use fixed fans. If a fan failure occurs, contact the HP technical support for help and do not attempt to fix the problem yourself. Configuration terminal problems If the configuration environment setup is correct, the configuration terminal displays booting information when the switch is powered on.

  • Page 69: Appendix A Technical Specifications

    Appendix A Technical specifications Physical specifications Chassis dimensions and weights Chassis Dimensions (H × W × D) Weight 5120-24G EI 43.6 × 440 × 300 mm 5120-24G EI (2 slots) < 4.5 kg (9.92 lb) (1.72 × 17.32 × 11.81 in) 5120-24G EI TAA (2 slots) 5120-24G-PoE+ EI (2 slots) 43.6 ×...

  • Page 70: Environmental Specifications

    10/100/1000Base-T Console 1000Base-X Interafce Chassis auto-sensing Ethernet ports SFP ports card slots ports 5120-48G EI (2 slots) 5120-48G EI TAA (2 slots) 5120-48G-PoE+ EI (2 slots) 48, PoE+ 5120-48G-PoE+ EI TAA (2 slots) 5120-8G SI 5120-16G SI 5120-24G SI 5120-8G-PoE+ SI 8, PoE+ 5120-8G-PPoE+ SI 8, PPoE+...

  • Page 71: Ac Input Voltage Specifications

    AC input voltage specifications Chassis Rated voltage range Max voltage range 100 VAC to 240 VAC, 50 Hz or 60 All chassis 90 VAC to 264 VAC, 47 Hz to 63 Hz RPS DC input voltage specifications and RPS compatibility RPS input rated voltage Chassis Compatible RPS...

  • Page 72: Power Consumption Specifications For Poe Switches

    Power consumption specifications for PoE switches Minimum Maximum power Maximum PoE Total PoE Chassis power consumption (including power per port output consumption total PoE output) 5120-24G-PoE+ EI (2 slots) 585 W at AC input 30 W 370 W 62 W 5120-24G-PoE+ EI 491 W at RPS DC input TAA (2 slots)
  • Page 73 Chassis Fixed fans 5120-8G-PPoE+ SI 5120-8G-PoE+ SI 5120-24G-PPoE+ SI 5120-24G-PoE+ SI...

  • Page 74: Appendix B Frus And Compatibility Matrixes

    SFP/SFP+/XFP transceiver modules and SFP+/CX4 cables (only for the 5120 EI switches) NOTE: To guarantee the functionality of the SFP/SFP+/XFP ports, use only HP transceiver modules. • The transceiver modules available for this switch series are subject to change over time. For the most •...

  • Page 75: Ge Sfp Transceiver Modules

    (μm) distance (nm) (MHz × km) 550 m (1804.46 ft) 50/125 500 m (1640.42 ft) HP X120 1G SFP LC SX JD118B Transceiver 275 m (902.23 ft) 62.5/125 220 m (721.78 ft) 10 km (6.21 9/125 miles) HP X120 1G SFP LC LX...

  • Page 76: Sfp+ Cables

    SFP+ cables Product code Cable description Cable length JD095C HP X240 10G SFP+ SFP+ 0.65m DA Cable 0.65 m (2.13 ft) JD096C HP X240 10G SFP+ SFP+ 1.2m DA Cable 1.2 m (3.94 ft) JD097C HP X240 10G SFP+ SFP+ 3m DA Cable 3 m (9.84 ft)

  • Page 77: 10-Ge Xfp Transceiver Modules

    0.5 m (19.69 in) CX4 Cable HP X230 Local Connect 100cm JD364B 4X Infiniband 1 m (39.37 in) CX4 Cable JD365A HP X230 CX4 to CX4 3m Cable 4X Infiniband 3 m (118.11 in) Figure 87 CX4 cable (1) Pull latch (2) Connector...

  • Page 78: Sfp Transceiver Modules And Sfp Stacking Kit (Only For The 5120 Si Switches)

    SFP transceiver modules and SFP Stacking Kit (only for the 5120 SI switches) NOTE: To guarantee the functionality of the SFP ports, use only HP SFP transceiver modules. • The SFP transceiver modules available for this switch series are subject to change over time. For the most •...
  • Page 79 IMPORTANT: You must use the transceiver modules coded JD098B and JD099B in pairs.

  • Page 80: Appendix C Ports And Leds

    Appendix C Ports and LEDs Ports Console port Every 5120 EI or 5120 SI switch provides one console port on the front panel. Table 15 Console port specifications Item Specification Connector type RJ-45 Compliant standard EIA/TIA-232 Transmission baud rate 9600 bps (default) to 115200 bps •...

  • Page 81: Combo Interface (Only Available On The 5120 Ei Switches)

    17. They form four combo interfaces. When one port in a pair is activated, the other port automatically shuts down. For more information about combo interfaces, see HP 5120 EI Switch Series Configuration Guides. Table 17 Copper/fiber combo ports in pairs...

  • Page 82: Rps Status Led

    LED mark Status Description Steady red POST has failed. Flashing yellow (1 Hz) Some ports have failed to pass POST. The switch is powered off. RPS status LED The RPS status LED shows the operating status of the RPS DC input. Table 20 RPS status LED description for the non-PoE switches LED mark Status...
  • Page 83 The seven-segment LED can also show the total PoE output power as a percentage of the maximum PoE output power that a PoE switch can supply (see Table 24). The PoE switches include 5120-24G-PoE+ EI (2 slots), 5120-24G-PoE+ EI TAA (2 slots), 5120-48G-PoE+ EI (2 slots), and 5120-48G-PoE+ EI TAA (2 slots). Table 23 Seven-segment LED description (I) System status LED Seven-segment LED (Unit) status...

  • Page 84: 10/100/1000Base-T Ethernet Port Led

    10/100/1000Base-T Ethernet port LED Each 10/100/1000Base-T auto-sensing Ethernet port has a status LED to show port operating status and activities. The port mode LED indicates the type of information (for example, port rate or duplex mode) that the port LEDs are showing. You can use the port LED mode switching button to change the type of displayed port information.

  • Page 85: Interface Card Status Led

    Table 26 SFP port LEDs description Port mode LED (Mode) status Port LED status Description The port is operating at 1000 Mbps. Steady green The port LED fast flashes when the port Steady green (rate mode) or is sending or receiving data. flashing green (1 Hz, PoE mode) Flashing yellow (3 Hz) POST has failed on the port.

  • Page 86: Rps Status Led

    LED mark Status Description The system is performing power-on self test (POST) or Flashing green (1 Hz) downloading software. Flashing green (3 Hz) POST has failed or another fatal error has been detected. The switch has been powered off. RPS status LED The 5120-24G-PoE+ SI switch has one RPS status LED on its front panel to show the operating status of the RPS DC input.
  • Page 87 Status Description No link is present on the port. Table 33 Ethernet port LEDs description (5120-16G SI/5120-24G SI) Status Description The port is operating at 1000 Mbps. The port is sending or receiving data at 1000 Fast flashing Green Mbps. The port has no link or is not operating at 1000 Mbps.

  • Page 88: 1000Base-X Sfp Port Led

    1000Base-X SFP port LED Table 35 1000Base-X SFP port LEDs description Status Description Steady green The port is operating at 1000 Mbps. Flashing green The port is sending or receiving data. No link is present on the port.

  • Page 89: Support And Other Resources

    Related information Documents To find related documents, browse to the Manuals page of the HP Business Support Center website: http://www.hp.com/support/manuals For related documentation, navigate to the Networking section, and select a networking category. •...

  • Page 90: Conventions

    Conventions This section describes the conventions used in this documentation set. Command conventions Convention Description Boldface Bold text represents commands and keywords that you enter literally as shown. Italic Italic text represents arguments that you replace with actual values. Square brackets enclose syntax choices (keywords or arguments) that are optional. Braces enclose a set of required syntax choices separated by vertical bars, from which { x | y | ...
  • Page 91 Network topology icons Represents a generic network device, such as a router, switch, or firewall. Represents a routing-capable device, such as a router or Layer 3 switch. Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.

  • Page 92: Index

    Configuring basic IRF settings,59 Mounting the switch to a wall,30 Connecting the console cable,44 Connecting the physical IRF ports,60 Connecting the power cord,38 Password loss,61 Contacting HP,84 Physical specifications,64 Conventions,85 Planning IRF fabric setup,54 Cooling system,67 Ports,75 Power specifications,65 Power supply failure,61...
