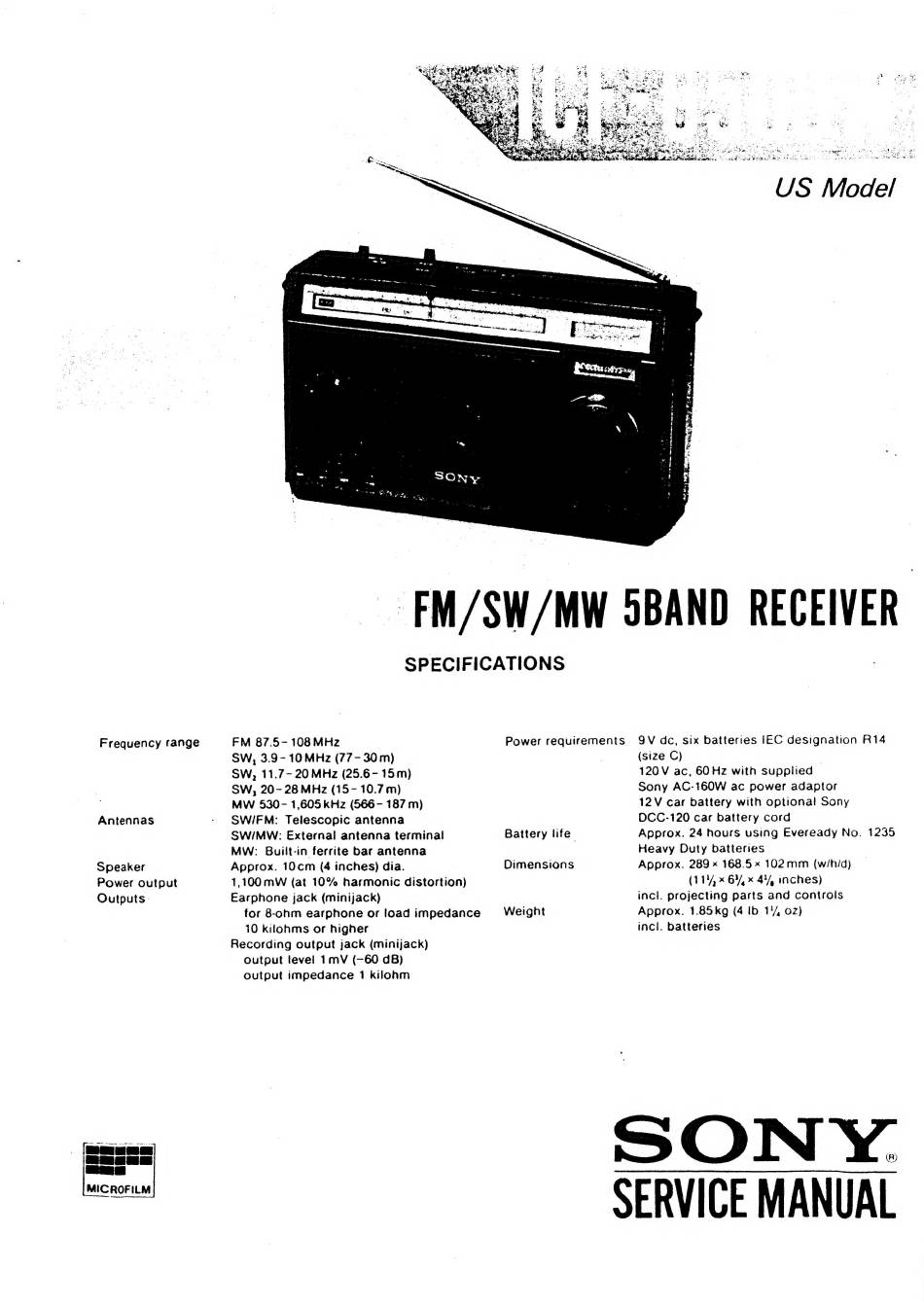

Sony ICF-6500W Service Manual

Frequency range
Antennas
Speaker
Power output
Outputs:
MICROFILM
CN ae ot ae
Sy ee Me Be
es Saly & ite
Steen ee ee
SPECIFICATIONS
FM 87.5- 108 MHz
SW, 3.9- 10 MHz (77- 30m)
SW, 11.7- 20 MHz (25.6- 15m)
SW, 20-28 MHz (15- 10.7 m)
MW 530- 1,605 kHz (566- 187 m)
SWI/FM: Telescopic antenna
SW/MW: External antenna terminal
MW: Built-in ferrite bar antenna
Approx. 10cm (4 inches) dia.
1,100 mW (at 10% harmonic distortion)
Earphone jack (minijack)
for 8-ohm earphone or load impedance
10 kilohms or higher
Recording output jack (minijack)
output level 1mV (-—60 dB)
output impedance 1 kilohm
Power requirements
Battery life"
Dimensions
Weight
9V dc, six batteries IEC designation R14
(size C) |
120 V ac, 60Hz with supplied
Sony AC-160W ac power adaptor
12V car battery with optional Sony
DCC-120 car battery cord
Approx. 24 hours using Eveready No. 1235
Heavy Duty batteries
Approx. 289 x 168.5 =x 102mm (wi/h/d)
(114, x 6%, x 44, inches)
incl. projecting parts and controls
Approx. 1.85kg (4 Ib 144, 02)
incl. batteries
®@
SERVICE MANUAL
