Before connecting, operating or adjust-
ing this product, please read these in-
structions completely.
Please keep this manual for future refer-
ence.

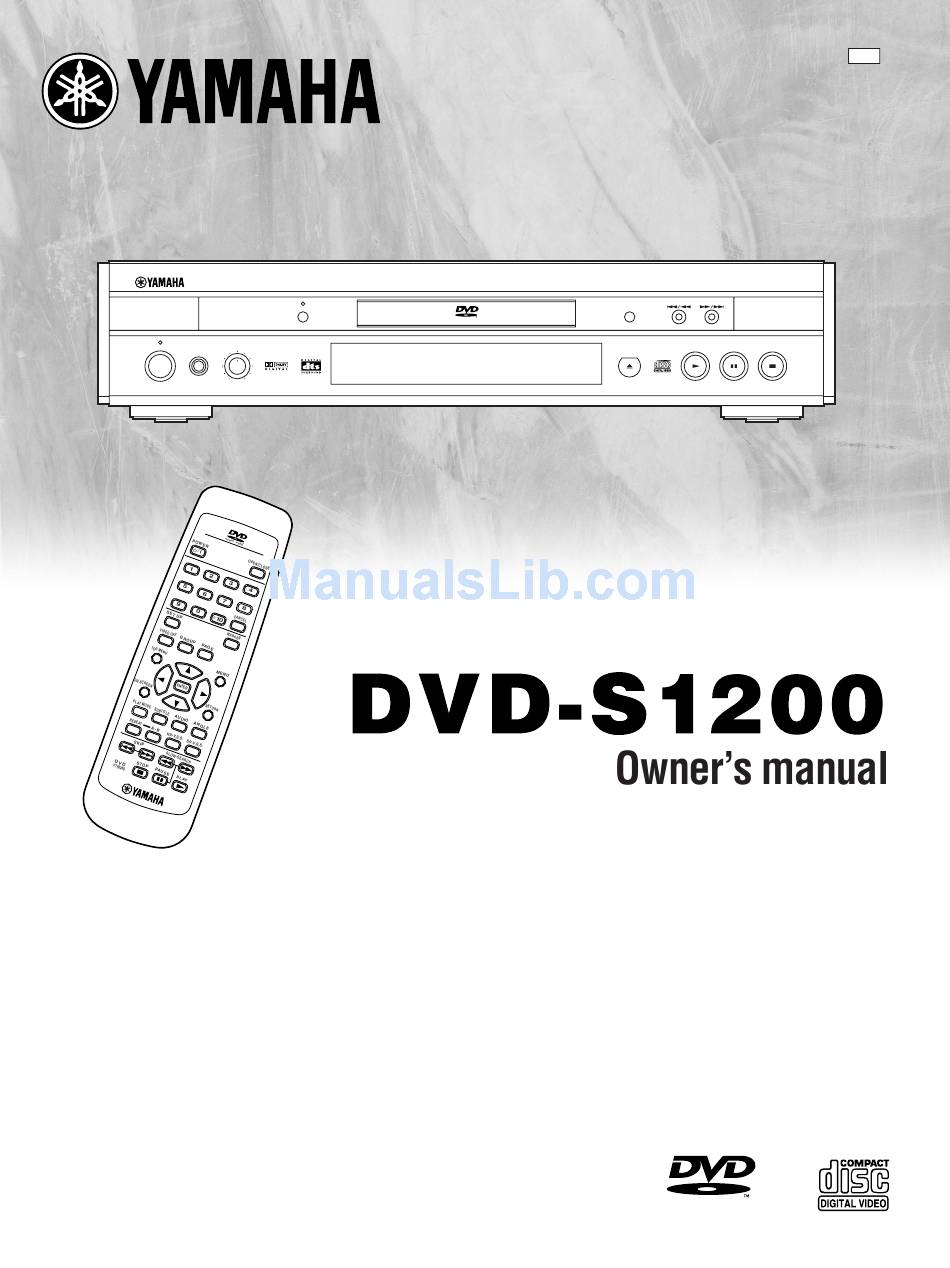

DVD AUDIO / VIDEO PLAYER DVD-S1200
VIDEO OFF
LEVEL
0
10
GROUP
AUDIO
/
VIDEO
DVD AUDIO/VIDEO PLAYER
AUDIO
/
VIDEO
GB

Advertisement

Table of Contents
loading

Related Manuals for Yamaha DVD-S1200

Summary of Contents for Yamaha DVD-S1200

  • Page 1: Remote Control

    NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF STANDBY PHONES LEVEL STANDBY Before connecting, operating or adjust- ing this product, please read these in- structions completely. Please keep this manual for future refer- ence. GROUP AUDIO VIDEO DVD AUDIO/VIDEO PLAYER...

  • Page 2: Table Of Contents

    Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Operations in these instructions are described mainly with the remote control, but you can do the operations on the main unit if the controls are the same. Accessories Please check and identify the supplied accessories.

  • Page 3: Caution For Ac Mains Lead

    Caution for AC Mains Lead (For United Kingdom) (U.K. model only) For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

  • Page 4: Safety Precautions

    Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These condi- tions can damage the cabinet and other components, thereby short- ening the unit’s service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources.

  • Page 5: Disc Information

    Some DVD-R and DVD-RW can be played. º Region Management Information (DVD-Video only) Region numbers are allocated to DVD players and software accord- ing to where they are sold. The region number of this unit is “2”. DVD-Video can be played on this unit if their region number is the same or includes the same number, or if the DVD is marked “ALL”.

  • Page 6: Connection

    Connection As this unit has built-in Dolby Digital and DTS decoders (á page 29), you can enjoy discs recorded with these systems by connecting this unit to the 6-channel input terminals on an AV amplifier (connection can make you feel like you were in a cinema or hall, connect this unit digitally to the AV amplifier (connection Use analog connection to enjoy the high quality audio (sampling frequencies of 192 kHz and 96 kHz) and multi-channel audio found on DVD-Audio.

  • Page 7: Connecting An Av Amplifier With A Built-In Decoder

    » Connecting an AV amplifier with a built-in decoder Before connection ³Do not connect the AC mains lead until all other connections are complete. ³Refer to the amplifier’s operating instructions. Speakers ³You can enjoy surround sound by connecting from three to six speakers. Example: Six speakers ³If you do not connect a subwoofer, it is advisable to connect main speakers (L/R) capable of producing...

  • Page 8: Connecting An Av Amplifier With 5.1-Channel Audio Input Terminals

    Connection » Connecting an AV amplifier with 5.1-channel audio input terminals Be sure to switch the amplifier to ANALOG input. ³Speaker connections (á page 7) ³Television connections (á pages 7 and 9) AV amplifier INPUT VOLUME INPUT MODE NATURAL SOUND AV RECEIVER RX–V3000 STANDBY SPEAKERS SOURCE...

  • Page 9: Connections Using The S Video Terminal

    Connections using the S video terminal Audio connections (á pages 7 and 8) Television AV amplifier NATURAL SOUND AV RECEIVER RX–V3000 STANDBY SPEAKERS SILENT BASS PROCESSOR EXTENSION DIRECT PHONES BASS TREBLE VIDEO MONITOR OUT INPUT terminal terminal Connecting to a television and a video cassette recorder with a 21-pin SCART terminal To improve picture quality, you can change the video signal output from the AV1 terminal from “Video”...

  • Page 10: Control Reference Guide

    Control reference guide NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF PHONES LEVEL STANDBY STANDBY > < Main unit Standby indicator (STANDBY) When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on.

  • Page 11: Basic Play

    NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF AUDIO/VIDEO STANDBY PHONES LEVEL STANDBY POWER OPEN/CLOSE Í CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU TOP MENU Cursor ENTER ON SCREEN RETURN buttons/ ENTER PLAY MODE SUBTITLE...

  • Page 12: Resume Function

    AUDIO/VIDEO POWER Í SET UP VIDEO OFF GROUP PAGE TOP MENU ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO REPEAT HP-V.S.S. SP-V.S.S. SKIP SLOW/SEARCH STOP PAUSE ∫ V756260 VIDEO TRACK V CD OPEN/CLOSE The position you stopped play at is recorded by the unit when “ ” is flashing on the unit’s display.

  • Page 13: Skipping Chapters Or Tracks

    NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF AUDIO/VIDEO PHONES LEVEL STANDBY STANDBY AUDIO/VIDEO POWER OPEN/CLOSE Í CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU Cursor ENTER buttons ON SCREEN RETURN PLAY MODE SUBTITLE AUDIO ANGLE REPEAT HP-V.S.S.

  • Page 14: Selecting Still Pictures-Page Skip

    VIDEO OFF NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF AUDIO/ VIDEO STANDBY PHONES LEVEL STANDBY AUDIO/VIDEO POWER Í Numeric buttons SET UP VIDEO OFF GROUP VIDEO OFF TOP MENU 2·3 ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO REPEAT HP-V.S.S.

  • Page 15: Marking Places To Play Again-Marker

    AUDIO/VIDEO POWER OPEN/CLOSE Í Numeric buttons CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU Cursor ENTER ON SCREEN RETURN buttons PLAY MODE SUBTITLE AUDIO ANGLE SUBTITLE REPEAT HP-V.S.S. SP-V.S.S. MARKER MARKER AUDIO DVD-Audio LPCM 192k24b 2ch Soundtrack selected Soundtrack playing Indicates that a multi- channel soundtrack...

  • Page 16: Changing The Play Sequence

    AUDIO/VIDEO POWER Í Numeric buttons SET UP VIDEO OFF GROUP PAGE TOP MENU ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO REPEAT HP-V.S.S. SP-V.S.S. SKIP SLOW/SEARCH STOP PAUSE V756260 Choose a group and track, then press ENTER. PLAY MODE PLAY MODE SELECT RETURN ENTER...

  • Page 17: All Group Play/Random Play

    AUDIO/VIDEO POWER OPEN/CLOSE Í Numeric buttons CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU ENTER ON SCREEN RETURN 1·1 PLAY MODE SUBTITLE AUDIO ANGLE REPEAT HP-V.S.S. SP-V.S.S. SKIP SLOW/SEARCH STOP PAUSE PLAY V756260 All Group Playback PLAY MODE Press PLAY to start PLAY e.g.

  • Page 18: Repeat Play

    AUDIO/VIDEO POWER Í Numeric buttons SET UP VIDEO OFF GROUP PAGE TOP MENU ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO REPEAT HP-V.S.S. SP-V.S.S. REPEAT SKIP STOP PAUSE V756260 ∫ REPEAT Remote control only OPEN/CLOSE During play CANCEL Press [REPEAT]. MARKER The display changes as illustrated.

  • Page 19: Increasing Your Enjoyment Of Movies And Music

    NATURAL  SOUND DVD AUDIO / VIDEO PLAYER DVD-S1200 VIDEO OFF AUDIO/VIDEO STANDBY PHONES LEVEL STANDBY LEVEL AUDIO/VIDEO POWER Í SET UP Headphone plug type: VIDEO OFF GROUP PAGE 6.3 mm stereo TOP MENU ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO HP.-V.S.S.

  • Page 20: Using Gui Screens

    AUDIO/VIDEO POWER Í Numeric buttons SET UP VIDEO OFF GROUP PAGE TOP MENU ENTER ON SCREEN PLAY MODE SUBTITLE AUDIO REPEAT HP-V.S.S. SP-V.S.S. SKIP SLOW/SEARCH STOP PAUSE V756260 ON SCREEN Example: DVD-Video 1 : 46 : 50 – – – 1 2 3 j 100 Remote control only...

  • Page 21: Screen For Disc Information

    Digital Î 1 ENG 3/2.1 ch 1 : 46 : 50 LPCM 1 : 46 : 50 192k24b 2ch (Karaoke DVD) Vocal - - : - - : - - P B C : 0 5 j 100 Using GUI screens Screen for disc information hi j Icon...

  • Page 22: Screen For Unit Information

    – – – 1 2 3 Icon Icon Note The unit saves the settings you make with the user mode for each disc so when you play a disc again and select a user mode, the same settings are selected. Discs you play for the first time use the previ- ous settings.

  • Page 23: Changing Settings

    SP OFF BRIGHT CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU 2·3·4 ENTER ON SCREEN RETURN PLAY MODE SUBTITLE AUDIO ANGLE REPEAT HP-V.S.S. SP-V.S.S. SKIP SLOW/SEARCH SET UP Disc SETUP SETUP Video TV Aspect TV Type Audio SETUP Speaker Setting Digital Audio Output...

  • Page 24: Summary Of Settings

    Changing settings Summary of settings This chart shows the initial settings for this unit. See page 23 for details on menu operation. Underlined items are the factory presets. The menu and on-screen message language has been factory preset to English. You can change the language by going to “Menu Language” in the Display menu.

  • Page 25: Language Code List

    Menus Display Menu Language Choose the preferred language for these menus and the on-screen messages. On-Screen Messages Choose whether to show on-screen messages or not. Others Demo A demonstration of the unit’s on-screen displays starts when you select “On”. The demonstration stops when you press a button and the setting reverts to “Off”.

  • Page 26: Television Settings

    Changing settings Television settings Change the settings to suit your television and your preference. Refer also to Common Procedures (á page 23) and the Video sec- tion in Summary of settings (á page 24). TV Aspect 4:3 Pan&Scan (Factory preset) Select if you have a regular television and to view 16:9 software in the pan and scan style.

  • Page 27: Speaker Setting

    AUDIO/VIDEO POWER OPEN/CLOSE Í CANCEL SET UP MARKER VIDEO OFF GROUP PAGE TOP MENU MENU ENTER ON SCREEN RETURN PLAY MODE SUBTITLE AUDIO ANGLE Main (L) Center SETUP Exit Exit Test SELECT Test ENTER RETURN signal Rear Large Center speaker Difference Approx.

  • Page 28: Digital Output

    Changing settings Digital output Refer also to “Common procedures” (á page 23) and the Audio menu in “Summary of settings” (á page 24). PCM Down Conversion Select how to output the high-quality audio signals (sampling fre- quencies of 96 kHz and 88.2 kHz) on discs that do not have copyright protection.

  • Page 29: Glossary

    Glossary Bitstream This is the digital form of multiple channel audio data (e.g., 5.1 chan- nel) before it is decoded into its various channels. Decoder A decoder restores the coded signals on DVDs to normal. This is called decoding. Dolby Digital This is a method of coding digital signals developed by Dolby Labora- tories.

  • Page 30: Troubleshooting Guide

    If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, contact your authorized YAMAHA dealer or service center for instructions. Reference pages are shown as black circled numbers Power No power.

  • Page 31: Maintenance

    Sound Piercing noise comes from the If you have connected this unit to other equipment through the DIGITAL AUDIO OUT terminal, speakers. ensure you have selected the correct settings for “Dolby Digital”, “DTS Digital Surround” and “MPEG” in the SET UP menus’ Audio menu. Picture Picture distorted.

  • Page 32: Specifications
