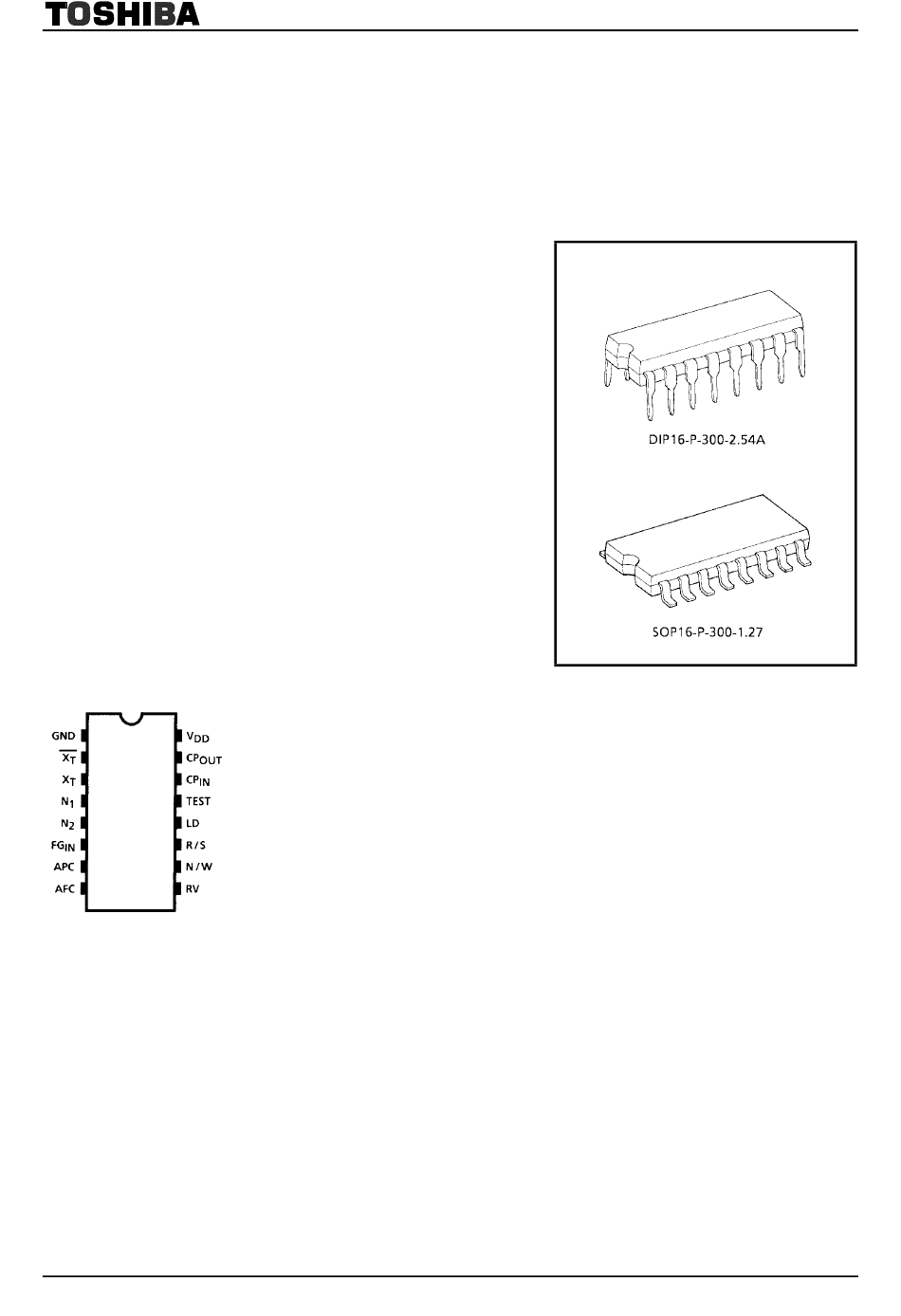

TC9242P/F TOSHIBA Bipolar Digital Integrated Circuit Silicon Monolithic TC9242P,TC9242F Quartz PLL Motor Control The TC9242P, TC9242F are CMOS LSIs developed for controlling the motor speed. Since an 8 bit D/A converter system has been employed for each TC9242P of the speed control system (AFC) and the phase control system (APC).
TC9242P/F Block Diagram Functional Explanation of Each Terminal Pin No. Symbol Pin Name Functional & Operation Explanation Remarks = 5 V ± 0.5 V is applied. Power Terminal Ground Terminal Ground Crystal Oscillation With a built-in feedback Crystal oscillator is connected.
TC9242P/F Explanation of Operation 1. Crystal Oscillation Terminals (X • The crystal oscillator is used by connecting as shown below. Note 1: CL of 10~30 pF is appropriate. • Crystal oscillation frequency is calculated by the following equation according to number of FG pulses of a motor to be used.
Page 4
TC9242P/F <when not using the crystal oscillator circuit> 2. Reference Frequency Input/Output Terminals (CP , CP • Divided output from the crystal reference frequency divider is available at CP , which is normally connected to CP • When an external oscillator (CR oscillator, etc.) is connected to CP , motor speed can be finally adjusted.
Page 5
TC9242P/F 4. Lock Range Switching Terminal (N/W) This terminal is for switching the Lock range with a pull-up resistor and chattering preventive circuit. (truth table) Divided Lock Range Frequency +3.4~−3.9% of reference cycle +4.6~−5.3% of reference cycle H or NC CAUTION reference frequency FS = f /N ×...
Page 6
TC9242P/F AFC Output Change Status for FG APC Output Change Status for Phase Difference φ φ φ φ Frequency • AFC and APC timing chart within lock range. AFC (speed control system) APC (phase control system) 6. Lock Detecting Terminal (LD) •...
Page 7
TC9242P/F 8. Reverse Signal Output Terminal (RV) • Reverse signal for braking the motor at time of switching of Lock range from 1/20 to 1/27 or the operation from RUN to STOP is output through this terminal. • Change of RV output status...
TC9242P/F (Ta = = = = 25°C) Maximum Ratings Characteristics Symbol Rating Unit −0.3~7.0 Supply voltage −0.3~V + 0.3 Input voltage Power dissipation −40~85 Operating temperature °C −65~150 Storage temperature °C (unless otherwise specified Ta = = = = 25°C, V...
TC9242P/F Test Circuit 1. Operating Supply Current I 2. X Operating Frequency Range f 3. CP Operating Frequency Range f 4. FG Input Sensitivity V 5. Amplifier Feedback Resistor R 2003-07-03...
TC9242P/F Application Circuit • Example of crystal oscillation frequency calculation. When FG’ (number of FG pulse) = 180 pulses and R (revolution of motor) = 200 rpm., if the dividing frequency of reference divider and lock range is set at N = 5 dividing frequency and N/W = 20, the crystal oscillation...
TC9242P/F Package Dimensions Weight: 1.00 g (typ.) 2003-07-03...
Page 12
TC9242P/F Package Dimensions Weight: 0.16 g (typ.) 2003-07-03...
Page 13
